Product SKU: DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2
Product Overview

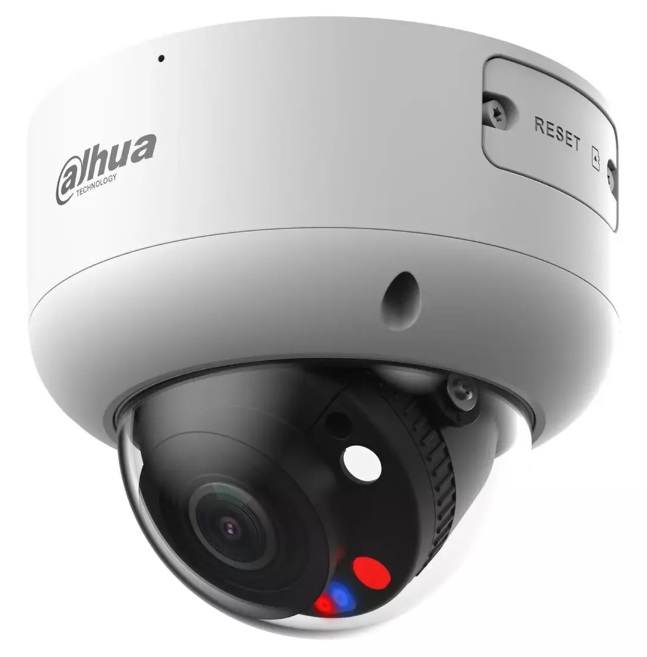

The Dahua DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 is a 6MP WizSense Smart Dual Light dome camera designed for commercial entrances, warehouses, retail sites, offices and exposed building perimeters. Its 1/2.7-inch CMOS sensor records at up to 3072 × 2048 and 25/30fps, while the motorised 2.7–13.5mm F1.0 lens adjusts remotely from a wide 104° view to a tighter 33° horizontal view. Infrared illumination reaches up to 50 metres, while the 40-metre warm light can activate during configured events to capture full-colour footage. Active deterrence adds red-and-blue warning lights, selectable voice alarms and support for customised warning messages. The camera also includes SMD 4.0, human and vehicle perimeter classification, AcuPick, AI SSA, dual microphones, a built-in speaker and two-way talk. MicroSD storage up to 512GB, audio and alarm interfaces, PoE, IP67 and IK10 protection support professional indoor or outdoor installations.
Key Capabilities
6MP Detailed Imaging
The camera captures up to 3072 × 2048 at 25/30fps and provides three video streams. This supports detailed primary recording together with separate streams for remote access, mobile viewing and lower-bandwidth monitoring.
Motorised 2.7–13.5mm Lens
The remotely adjustable lens changes the horizontal field of view from approximately 104° to 33°. Installers can refine the final scene after mounting, from broad entrance coverage to a tighter gate, pathway or identification area.
Smart Dual Light
Infrared provides discreet monochrome monitoring at night, while the warm light can activate when a configured target appears. This produces full-colour event video without requiring the visible light to remain on continuously.
Sound and Light Deterrence
Supported perimeter events can trigger red-and-blue warning lights and an audible voice alarm. Multiple warning voices are built in, customised audio can be imported, and one-tap disarming allows event linkages to be disabled or restored through the mobile app.
Human and Vehicle Intelligence
Tripwire and intrusion rules classify people and vehicles, while SMD 4.0 filters common non-target motion. AcuPick works with compatible back-end devices to help locate matching people and motor vehicles in live or recorded footage.
Built-In Two-Way Audio
Dual microphones capture audio from the monitored area, while the built-in speaker supports live talk and audible warnings. Separate RCA audio input and output connections also allow compatible external audio equipment to be added.
Best For
- Commercial Entrances: Adjust the motorised lens to cover reception doors, customer approaches and controlled access points.
- Warehouses and Loading Areas: Use human and vehicle filtering around roller doors, loading bays and restricted work zones.
- Retail Shopfronts: Capture detailed event footage and provide visible and audible warnings after hours.
- Building Perimeters: Apply intrusion and tripwire rules around fences, pathways, courtyards and side access areas.
- Vandal-Prone Locations: Use the IK10-rated dome housing where physical impact resistance is important.
Why Choose the DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2
The DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 combines adjustable coverage, intelligent event filtering and active intervention in one vandal-resistant dome. Its motorised lens provides more installation flexibility than a fixed-lens camera, while Smart Dual Light captures colour detail during configured events without leaving the warm light on all night. Red-and-blue warning lights, selectable voice alarms, dual microphones and a built-in speaker allow the camera to respond actively rather than only record. Available through Security Wholesalers, this model is best selected after confirming the required lens position, illumination behaviour, recorder compatibility and alarm settings. Buyers should also consider the difference between the 50-metre infrared range and the shorter 40-metre warm-light range when planning night coverage.
Buyer Decision Tips
Lens and Identification Tip: The wide position covers more of the scene, while the telephoto position places more pixels on a smaller area. Decide where identification detail is required rather than selecting the widest view automatically.
Deterrence and Lighting Tip: Red-and-blue lights, voice alarms and visible warm lighting may not suit every location. Consider neighbours, public areas, reflective surfaces and local noise requirements before enabling automatic warning functions.
Key Features & Technical Specifications
| Resolution and Camera Type |
6MP Smart Dual Light active-deterrence motorised varifocal WizSense dome network camera. |
| Image Sensor |
1/2.7-inch progressive-scan CMOS with 256MB ROM and 2GB RAM. |
| Maximum Resolution |
3072 × 2048 at up to 25fps in 50Hz systems or 30fps in 60Hz systems. |
| Streaming |
Three streams with up to 64Mbps total user bandwidth. |
| Lens |
2.7–13.5mm motorised varifocal lens with F1.0 maximum aperture. |
| Viewing Angle |
104°–33° horizontal, 75°–26° vertical and 128°–42° diagonal. |
| DORI Distance |
Identification distance approximately 6.5m wide and 18.7m telephoto. |
| Low-Light Performance |
0.003 lux colour, 0.0003 lux monochrome and 0 lux with illumination active. |
| Smart Dual Light |
Two infrared LEDs and two warm-light LEDs with up to 50m IR and 40m warm-light coverage. |
| Active Deterrence |
Red-and-blue warning lights, built-in voice alarms, customised voice import and one-tap event disarming. |
| Intelligent Detection |
Tripwire and intrusion with accurate human and vehicle classification, plus SMD 4.0. |
| Intelligent Search |
AcuPick target matching and search with compatible back-end devices. |
| Image Enhancement |
120dB WDR, AI SSA, BLC, HLC, 3D noise reduction, EIS, defog, ROI and four privacy-mask areas. |
| Video Compression |
H.265, H.264, H.264H, H.264B, Smart H.265+, Smart H.264+, AI H.265, AI H.264 and MJPEG on the sub stream. |
| Audio |
Built-in dual microphones, built-in speaker, two-way talk, one RCA input and one RCA output. |
| Alarm Interfaces |
One wet-contact alarm input rated 5mA at 3–5V DC and one wet-contact alarm output rated 300mA at 12V DC. |
| Network and Software |
10/100Mbps Ethernet, ONVIF Profiles S/G/T, CGI, SmartPSS Lite, DSS and DMSS. |
| Storage |
microSD card up to 512GB, FTP, SFTP and NAS; storage media is not included. |
| Power |
12V DC or standard PoE under IEEE 802.3af; maximum 8.9W on 12V DC or 10.3W through PoE. |
| Protection and Environment |
Metal IP67 and IK10 housing with operation from -30°C to +60°C. |
| Dimensions and Weight |
105 × Φ126mm with a net weight of 0.73kg. |
Ideal Use Cases
Reception Entrances
Use the wide lens position for broad doorway coverage or zoom tighter towards the visitor approach.
Warehouse Loading Bays
Classify people and vehicles and trigger warnings around roller doors and restricted work zones.
Retail Shopfronts
Capture full-colour event footage and provide visible and audible warnings after hours.
Side Access Paths
Adjust the lens towards narrow corridors, gates and restricted pedestrian approaches.
Exposed Public Areas
Use the IP67 and IK10 housing where weather and physical impact resistance are important.
Choosing the Right Model
- Choose this model if: The installation needs 6MP detail, remote lens adjustment, Smart Dual Light, active deterrence and two-way audio.
- Choose a fixed-lens model if: The required field of view is already known and lower product cost is the main priority.
- Choose an infrared-only camera if: Visible warm-light activation or warning lights would be unsuitable for the location.
- Choose a non-deterrence model if: Audible warnings, customised voice messages and flashing red-and-blue lights are not required.
- Confirm the recorder first if: AcuPick, alarm linkage, event searches or three-stream recording is required.
FAQs
- Does the DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 record 6MP video at full frame rate?
The DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 records up to 3072 × 2048 at 25fps in 50Hz systems or 30fps in 60Hz systems. It also provides two additional streams, although simultaneous settings remain subject to the camera’s total encoding capacity and the connected recorder’s bandwidth and decoding limits. This makes it suitable where detailed 6MP evidence is required without reducing the main stream to a low frame rate.
- How does the 2.7–13.5mm motorised lens change the viewing area?
The motorised 2.7–13.5mm lens changes the horizontal field of view from approximately 104° at the wide end to 33° at the telephoto end. Installers can refine the scene remotely after mounting, moving from broad entrance or courtyard coverage to a tighter identification area. Listed identification distance increases from about 6.5 metres wide to 18.7 metres telephoto, subject to lighting, target position and installation conditions.
- How does Smart Dual Light work on this active-deterrence dome camera?
Smart Dual Light normally uses infrared illumination for discreet monochrome monitoring at night. When a configured target enters the selected area, the warm light can activate so the camera records full-colour event video and snapshots. After the target leaves, the warm light switches off and infrared resumes. The listed illumination ranges are up to 50 metres for infrared and 40 metres for warm light.
- Which active-deterrence functions are built into the camera?
The camera includes red-and-blue warning lights and a built-in speaker for audible deterrence. Supported perimeter events can trigger the light and voice alarm to warn an intruder before they move farther into the protected area. Multiple built-in warning voices are available, and customised voice files can be imported. One-tap disarming allows configured event linkages to be disabled or restored through the mobile app when required.
- Does the camera support two-way audio?
Yes. The DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 has built-in dual microphones and a built-in speaker, so two-way talk is supported without requiring separate audio hardware. It also provides one RCA audio input and one RCA audio output for compatible external equipment. Audio recording, live talk and warning messages should be configured in accordance with applicable privacy, workplace-surveillance and local noise requirements.
- What intelligent detection and search functions are included?
The camera supports tripwire and intrusion rules with accurate human and vehicle classification, together with SMD 4.0 for filtering common non-target motion. AcuPick works with compatible back-end devices to match people and motor vehicles and search live or recorded footage. AI SSA adjusts image parameters to suit changing conditions. Complete search workflows depend on compatible recorder or management-platform support and correct commissioning.
- Is the DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 suitable for outdoor installation?
Yes. The metal housing is rated IP67 against dust and water and IK10 against physical impact, and it operates from -30°C to +60°C at up to 95% non-condensing humidity. Outdoor installation still requires suitable mounting hardware, protected cable connections and a stable surface. The camera supports 12V DC or PoE and has wide-voltage tolerance when used with applicable power supplies.
- What should I confirm before ordering this 6MP active-deterrence dome camera?
Confirm the required wide and telephoto views, identification distance, infrared and warm-light behaviour, recorder compatibility, AcuPick support, storage retention, alarm wiring and 12V DC or PoE power design. The motorised lens simplifies final framing, but the camera still needs suitable placement for the intended evidence area. Security Wholesalers can review the planned position and recorder to identify likely coverage, analytics, audio or compatibility limitations before installation.
Additional Information
Dahua DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 Datasheet
