Product SKU: DH-IPC-HDW3666-AS-KIT6Cam8CH-BLACK
Product Overview

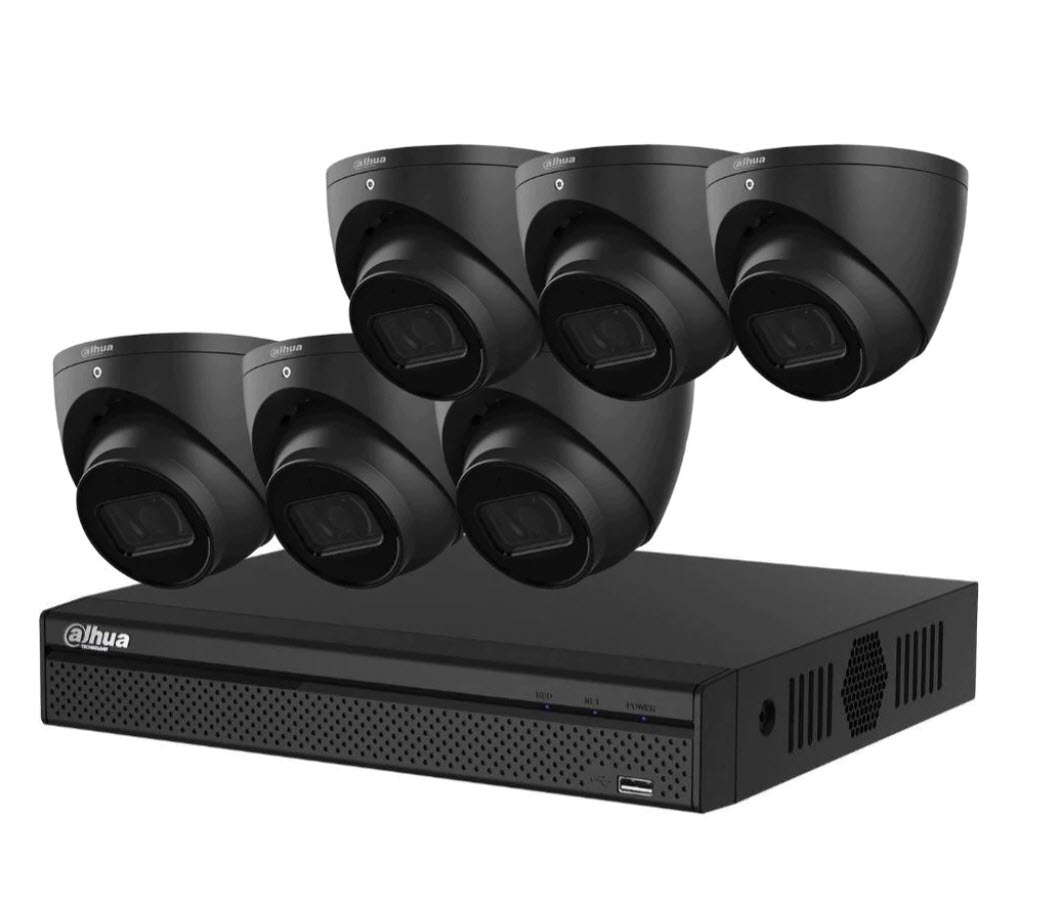

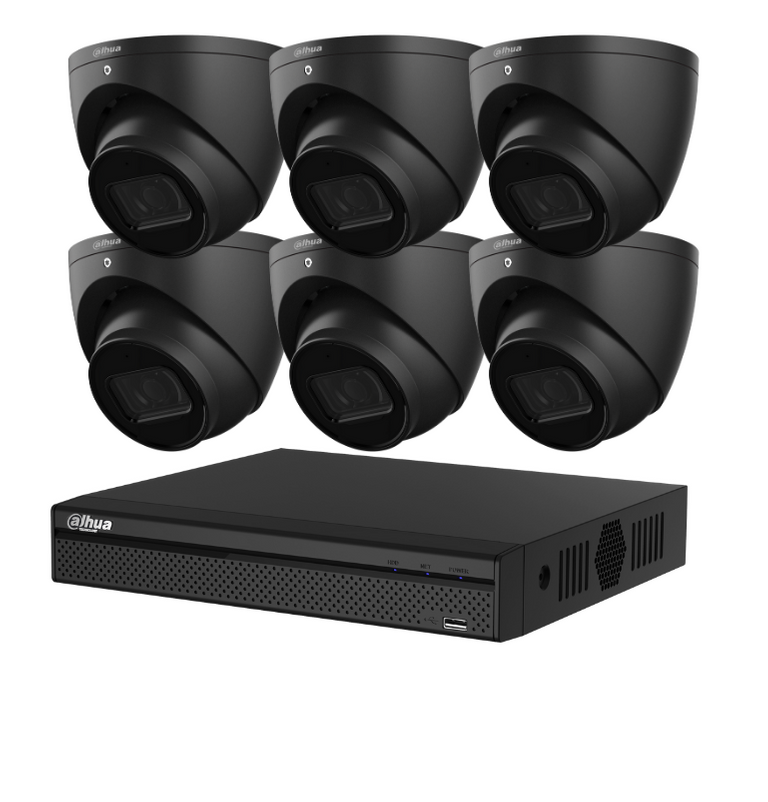

Built around 6 DH-IPC-HDW3666EMP-S-AUS turret cameras and an 8-channel PoE NVR, this Dahua WizSense 6MP turret kit in black is a complete IP surveillance system suited to homes, small businesses, and medium-sized commercial properties requiring AI-assisted monitoring from the ground up. Each camera captures 6MP footage at up to 3072×2048 resolution with Starlight low-light sensitivity and 30-metre infrared night vision, while SMD 4.0 uses deep learning to classify motion events as humans or vehicles, filtering out animals, foliage, and other non-threatening triggers. Equipped with a built-in microphone and IP67 weatherproof construction, every camera in this kit is ready for outdoor placement across driveways, entries, carparks, and building perimeters. The 8-channel NVR delivers PoE connectivity, H.265+ compression, perimeter tripwire detection, and mobile push notifications, with 2 spare channels available if the installation grows over time.


Key Capabilities
SMD 4.0 Human and Vehicle Classification
SMD 4.0 applies deep learning to distinguish humans and vehicles from animals, shadows, and moving foliage. This means push notifications are sent only when a genuine security event occurs, making the system practical to live with day to day rather than a source of constant nuisance alerts.
6MP Starlight Resolution
Each DH-IPC-HDW3666EMP-S-AUS camera records at up to 3072×2048 pixels using a 1/2.7″ progressive scan CMOS sensor with Starlight technology. The result is detailed, usable footage in very low ambient light, capturing distinguishing details such as clothing colours and number plates without relying purely on infrared illumination.
30-Metre Infrared Night Vision
Integrated IR LEDs extend night coverage up to 30 metres, providing consistent imaging across open driveways, side passages, and carpark areas in total darkness. WDR, 3D DNR, HLC, and BLC processing maintain image clarity when the scene transitions between bright and shadowed zones.
8-Channel PoE NVR with Perimeter Detection
The DHI-NVR4108HS-8P-AI/ANZ provides 8 built-in PoE ports, powering and connecting each camera over a single Cat6 cable run. It also supports tripwire and intrusion zone configuration, sending mobile alerts when defined boundaries are crossed, which is particularly useful for gates, loading areas, and restricted entry points.
Built-in Microphone Across All Cameras
Every camera in this kit includes an integrated microphone for simultaneous audio and video recording. This adds evidentiary value in situations involving verbal incidents, alarms sounding off-screen, or any event where audio context strengthens the recorded account of what occurred.
H.265+ Compression and Local MicroSD Backup
H.265+ encoding reduces recorded file sizes significantly compared to H.264, stretching HDD storage further across a 6-camera system. Each camera also supports a MicroSD card slot up to 256GB, providing a local edge-recording fallback if the network connection to the NVR is interrupted.
Best For
- Residential Perimeter Coverage: Homeowners who want 6 AI-capable cameras covering driveways, front entries, side passages, and backyards with accurate human and vehicle push alerts and 30-metre night vision.
- Small to Medium Commercial Properties: Retail shops, trade yards, and small offices that need a complete system with meaningful motion filtering rather than alert fatigue from basic PIR-based motion detection.
- Strata and Multi-Tenancy Buildings: Body corporates requiring coverage across carparks, lift lobbies, common entries, and building perimeters, with 2 spare NVR channels available to extend coverage without replacing the recorder.
- Outdoor Industrial and Warehouse Sites: IP67-rated cameras withstand dust, moisture, and temperature variation common in workshop, depot, and light industrial environments, with IR range suitable for large open areas.
- Schools and Childcare Facilities: The combination of 6MP resolution, built-in audio, SMD 4.0 filtering, and after-hours tripwire alerting supports both safety monitoring during operating hours and perimeter security outside them.
Why Choose the Dahua 6-Camera WizSense 6MP Turret Kit (Black)
Lower-priced IP camera kits frequently rely on basic motion detection that flags every passing vehicle, neighbourhood cat, or tree branch in the wind. This Dahua WizSense 6MP turret kit addresses that directly through SMD 4.0, which is trained to classify objects as humans or vehicles before generating an alert, not after. Each DH-IPC-HDW3666EMP-S-AUS camera delivers genuine 6MP Starlight resolution, 30-metre IR, IP67 weatherproofing, and a built-in microphone, combined with H.265+ compression that makes a single HDD work harder across 6 streams. The DHI-NVR4108HS-8P-AI/ANZ NVR adds tripwire and intrusion detection with mobile notifications, all over PoE for straightforward cabling. The black finish suits modern residential exteriors and commercial environments where a white camera would stand out on dark fascias. This kit is available through Security Wholesalers as a genuine Dahua ANZ product, backed by local warranty and support.
Package Inclusions
- 6 x DH-IPC-HDW3666EMP-S-AUS (Black) – 6MP turret, 2.8mm fixed lens, 30m IR, built-in mic, SMD 4.0
- 1 x DHI-NVR4108HS-8P-AI/ANZ – 8-channel PoE NVR, SMD 4.0, up to 16MP
Buyer Decision Tips
Buyer Tip: This kit does not include a hard drive. To enable continuous local recording on the DHI-NVR4108HS-8P-AI/ANZ, you will need to add a compatible surveillance-grade 3.5″ SATA HDD such as a WD Purple or Seagate SkyHawk. If you purchase a drive alongside this kit, it will be pre-installed in the NVR before dispatch. For 6 cameras recording at 6MP with H.265+ compression, a 4TB or 6TB drive is the practical starting point for retaining several weeks of continuous footage.
Buyer Tip: The 2.8mm fixed lens on each DH-IPC-HDW3666EMP-S-AUS produces a wide field of view, which suits open areas such as driveways, carparks, retail floors, and building entries. If your installation includes long narrow corridors, fencelines, or approach roads where a tighter viewing angle and greater depth of reach are required, a varifocal or motorised lens model would be a better fit for those specific positions.
Key Features & Technical Specifications
| Camera Model | DH-IPC-HDW3666EMP-S-AUS |
| NVR Model | DHI-NVR4108HS-8P-AI/ANZ |
| Number of Cameras | 6 |
| NVR Channels | 8 (2 spare channels for future expansion) |
| Image Sensor | 1/2.7″ progressive scan CMOS |
| Maximum Resolution | 6MP – 3072×2048 @25/30fps; also supports 3072×1728 @20fps and 2688×1520 @30fps |
| Lens | 2.8mm fixed |
| IR Night Vision Range | Up to 30 metres |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Smart Motion Detection | SMD 4.0 – AI-based human and vehicle classification; filters animals and small objects |
| Intelligent Detection | Tripwire, intrusion (perimeter protection) |
| Abnormality Detection | Motion detection, video tampering, defocus detection, scene changing, audio detection, SD card alerts, network disconnection, IP conflict, illegal access, voltage detection |
| Audio | Built-in microphone (each camera) |
| Local Storage (per camera) | MicroSD card slot – supports up to 256GB |
| Power Supply | PoE (IEEE 802.3af) / 12V DC |
| NVR PoE Ports | 8 x PoE ports |
| Weatherproof Rating | IP67 |
| Wide Dynamic Range | Yes – WDR, 3D DNR, HLC, BLC |
| Camera Colour | Black |
| Optional Accessories | Junction Box PFA130-E, Wall Mount Bracket PFB204W |
Ideal Use Cases
Residential Perimeter and Entry Coverage
Deploy cameras across front entries, driveways, side gates, and rear yards. SMD 4.0 ensures push notifications are sent only when a person or vehicle is detected, keeping homeowners informed without constant alerts from passing traffic or animals.
Retail and Hospitality Monitoring
Cover shop floors, stockrooms, external entries, and carparks with cameras that capture fine 6MP detail. The built-in microphone on each DH-IPC-HDW3666EMP-S-AUS camera adds an audio dimension for incident investigation and dispute resolution.
Warehouse and Light Industrial Sites
IP67-rated housings handle dust, moisture, and temperature variation typical of workshop and depot environments. The 30-metre IR range delivers clear imaging across large open floor areas and loading dock approaches after hours.
After-Hours Perimeter Alert Zones
Configure tripwire and intrusion zones through the DHI-NVR4108HS-8P-AI/ANZ to cover gates, fences, and restricted access areas. The system sends immediate mobile push alerts when those boundaries are breached, providing timely awareness without requiring constant active monitoring.
Strata and Multi-Tenancy Properties
Position cameras across carparks, lift lobbies, bin areas, and building entries. With 8 NVR channels and 6 cameras in use, body corporates retain 2 spare channels to expand coverage into additional zones without upgrading the recorder.
Schools and Childcare Facilities
Monitor outdoor play areas, car drop-off zones, and access corridors with both visual and audio recording. SMD 4.0 filtering means staff receive meaningful alerts during and outside operating hours rather than constant disturbances from everyday movement.
Choosing the Right Model
- Choose this model if: You need a ready-to-deploy 6-camera IP system with AI-powered SMD 4.0 detection, 6MP Starlight resolution, built-in audio, 30-metre IR night vision, IP67 weatherproofing, and PoE simplicity – all finished in black to suit darker building exteriors or modern residential aesthetics.
- Choose a different model if: Your installation requires more than 6 cameras from the outset and a higher-channel NVR to match, needs varifocal or motorised lenses for long narrow viewing angles or distant targets, or requires a white finish to blend with light-coloured soffits, fascias, or exterior walls.
FAQs
- Does this kit come with a hard drive included?
No, a hard drive is not included. To enable continuous local recording on the DHI-NVR4108HS-8P-AI/ANZ, you will need to add a compatible surveillance-grade 3.5″ SATA HDD. If you purchase a drive at the same time as this kit, it will be pre-installed in the NVR before dispatch. For 6 cameras at 6MP resolution using H.265+ compression, a 4TB or 6TB drive is recommended to retain several weeks of continuous footage. - What does SMD 4.0 actually do differently from standard motion detection?
Standard motion detection triggers alerts whenever pixels change in a scene, including from animals, blowing leaves, headlight sweeps, and weather. SMD 4.0 uses deep learning AI to evaluate whether the moving object is a human or vehicle before sending any alert. Objects that do not classify as either are filtered out, so the notifications you receive correspond to events that actually warrant attention. - How many cameras can this system support in total?
The DHI-NVR4108HS-8P-AI/ANZ has 8 PoE ports and supports up to 8 cameras. This kit uses 6, leaving 2 spare channels for future expansion. Additional Dahua IP cameras compatible with the NVR’s AI feature set can be added to those ports without replacing or upgrading the recorder. - Can I view footage and receive alerts remotely on my phone?
Yes. The NVR supports remote access via the Dahua DMSS app, available for iOS and Android. You can view live camera feeds, review recorded footage, and receive push notifications triggered by SMD 4.0 detection or perimeter zone breaches from anywhere with an internet connection on your mobile device. - Are the cameras suitable for outdoor installation in Australian conditions?
Yes. Each DH-IPC-HDW3666EMP-S-AUS carries an IP67 rating, meaning full protection against dust ingress and water immersion up to 1 metre. This makes the cameras suitable for exposed outdoor positions subject to Australian rain, heat, humidity, and dust environments without requiring additional weatherproof housings. - Do the cameras record audio, and are there any legal considerations?
Every camera in this kit includes a built-in microphone that records audio alongside video. Audio recording laws vary by state and territory in Australia. In most jurisdictions, recording audio in private spaces or areas where individuals have a reasonable expectation of privacy requires consent or appropriate notice. It is advisable to check applicable legislation in your state before enabling audio recording in publicly accessible locations. - What cabling is needed to connect the cameras to the NVR?
Each DH-IPC-HDW3666EMP-S-AUS connects to the NVR via a single Cat6 Ethernet cable carrying both data and PoE power. No separate power cabling is required at camera locations. The maximum recommended PoE cable run is 100 metres per port. Runs beyond this distance will require a PoE extender to maintain reliable power delivery and signal integrity. - Where is this kit available and what support is provided after purchase?
This Dahua WizSense 6MP turret kit is available through Security Wholesalers, an Australian supplier of genuine Dahua ANZ products. Security Wholesalers provides access to local warranty support and product assistance, so buyers can be confident the equipment is authentic and backed by an established after-sales pathway rather than a grey-market import.
Cabling Considerations
- Cable Type: Cat6 Ethernet cable is recommended for all camera-to-NVR runs to ensure reliable data transmission and stable PoE power delivery across the full installation.
- Maximum Cable Run: The maximum recommended PoE cable run is 100 metres per camera. Runs exceeding this distance may result in power drop or signal degradation and should be addressed using a PoE extender if longer runs are unavoidable.
- PoE Considerations: All 6 cameras are powered via PoE (IEEE 802.3af) through the NVR’s built-in 8-port PoE switch. No separate power adaptors are required at each camera location, provided cable runs remain within the 100-metre limit per port.
- Wiring Tips: Plan all cable routes before installation to avoid running Ethernet cables in parallel with high-voltage mains wiring, which can introduce electrical interference. Use conduit for any exposed outdoor cable sections to protect against UV degradation and physical damage. Label each cable at both ends during installation to simplify future maintenance and make adding cameras to the 2 spare NVR channels straightforward.
