Product Overview
Building a complete IP surveillance system from scratch involves matching cameras, a recorder, storage, and cabling into a coherent setup. This Dahua WizSense 6-camera kit eliminates that guesswork by bundling 6 x DH-IPC-HDW3666EMP-S-AUS 6MP turret cameras with an 8-channel AI NVR and a 2TB hard drive pre-installed and ready to record. Each camera captures 3072×2048 imagery, provides 30-metre infrared night vision, and includes a built-in microphone, all powered over a single Cat5e or Cat6 cable via PoE. Dahua’s SMD 4.0 deep learning engine runs across the system, classifying detected motion as human or vehicle and suppressing triggers from animals, foliage, and lighting shifts. The black finish suits modern residential facades, commercial shopfronts, and industrial buildings. With 2 spare PoE ports remaining on the NVR, the system also leaves room for future expansion without any hardware replacement.


Key Capabilities
6MP Resolution Across All 6 Cameras
Every camera in this kit captures at 3072×2048, giving you the image detail needed to identify faces, read licence plates, and support insurance or police requirements. Running 6MP across all positions is a meaningful step up from 4MP or 2MP systems at a comparable price point.
SMD 4.0 Human and Vehicle Detection
Dahua’s fourth-generation Smart Motion Detection uses deep learning to separate human and vehicle events from animals, moving trees, and environmental changes. It also logs clothing and vehicle colour, making footage search faster after an incident. The NVR processes SMD events from all connected cameras simultaneously.
8-Channel PoE NVR with Pre-Installed 2TB HDD
The DHI-NVR4108HS-8P-AI/ANZ supports up to 8 PoE IP cameras at resolutions up to 16MP. The 2TB security-grade hard drive is installed before dispatch, so there is no storage configuration required on arrival. The NVR’s built-in PoE switch removes the need for a separate PoE injector or switch at each camera run.
30-Metre Infrared Night Vision
Built-in IR LEDs provide consistent monochrome coverage up to 30 metres in complete darkness. This range comfortably covers residential driveways, building entrances, car parks, and open yard perimeters without requiring supplementary lighting at the camera locations.
IP67 Weather Resistance for Outdoor Placement
Each turret camera carries an IP67 ingress protection rating, meaning it is fully dust-tight and protected against water immersion up to one metre. This makes the cameras suitable for exposed eave, soffit, wall, and fascia mounting across all Australian climate zones without additional housing.
Built-In Microphone on Every Camera
Each DH-IPC-HDW3666EMP-S-AUS camera includes an integrated microphone, enabling audio to be recorded alongside video at every camera position. This is useful at entry points, retail counters, and access areas where verbal exchanges may form part of an incident record.
Best For
- Residential Perimeter Coverage: Homeowners wanting to cover front door, driveway, side access, and rear yard with 6 cameras and intelligent human and vehicle alerts via the DMSS mobile app.
- Small to Medium Business Premises: Retail stores, offices, and service businesses needing high-resolution recording across multiple zones with AI-filtered motion events and remote monitoring capability.
- Rental and Investment Properties: Landlords or property managers who want a durable, weather-resistant system with pre-configured storage that requires minimal ongoing maintenance or technical oversight.
- Construction and Industrial Sites: Sites needing to monitor access points, perimeter fencing, and equipment storage areas overnight using the 30-metre IR range and IP67-rated outdoor cameras.
- DIY and Trade Installers: Those who want a verified, compatible camera-plus-NVR combination with PoE connectivity and pre-installed storage to reduce on-site setup time and compatibility risk.
Why Choose the Dahua 6-Camera WizSense 6MP Turret Kit
Entry-level CCTV bundles often trade resolution, detection accuracy, or storage capacity to hit a price point. This kit avoids those compromises. The DH-IPC-HDW3666EMP-S-AUS cameras deliver true 6MP imaging with SMD 4.0 classification running on the DHI-NVR4108HS-8P-AI/ANZ, so human and vehicle events are separated from noise at the recorder level rather than relying on basic pixel-change detection. The 2TB drive arrives pre-installed, the cameras are confirmed compatible with the NVR, and all 6 positions are powered via the NVR’s built-in PoE switch. Two spare ports remain for future expansion without replacing the recorder. The black finish is a practical choice for darker facades, modern architecture, and commercial exteriors where white cameras would stand out. Available through Security Wholesalers, this kit suits buyers who want a properly specified, expandable system delivered ready to connect.

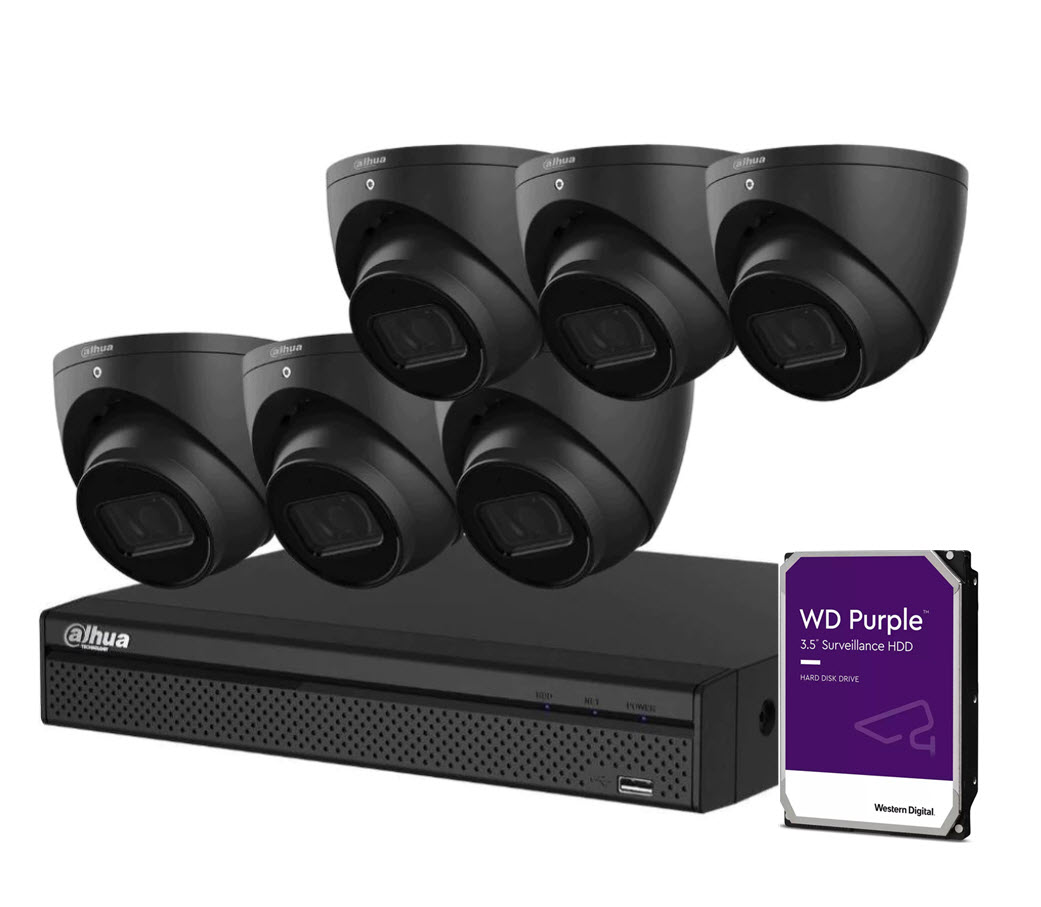

Package Inclusions
- 6 x DH-IPC-HDW3666EMP-S-AUS – 6MP WizSense Turret Network Camera, 2.8mm fixed lens, 30m IR, SMD 4.0, built-in microphone, IP67 (Black)
- 1 x DHI-NVR4108HS-8P-AI/ANZ – 8-Channel 8-Port PoE AI Network Video Recorder, supports up to 16MP, SMD 4.0
- 1 x Security HD-2TB – 2TB Security-Grade Hard Drive (pre-installed in NVR)
Buyer Decision Tips
Buyer Tip: This kit ships with 6 cameras connected to an 8-channel NVR, leaving 2 PoE ports unused. If you plan to add a camera at a rear gate, garage, or secondary entry point after the initial install, those ports accommodate that without any additional switching equipment. Factor that potential expansion into your cabling plan from the outset so conduit and cable runs are already in place.
Buyer Tip: The 2.8mm fixed lens on each camera produces a wide field of view suited to covering broad areas at close to medium range, such as driveways, open yards, shopfronts, and building entries. For any location where you need to frame a specific target at greater distance, such as a gate 20 metres or more from the camera position, a longer focal length would give you more usable detail on that target. Check each camera placement individually against the 2.8mm coverage angle before committing to final positions.
Key Features & Technical Specifications
| Camera Model | DH-IPC-HDW3666EMP-S-AUS |
| NVR Model | DHI-NVR4108HS-8P-AI/ANZ |
| Number of Cameras | 6 |
| NVR Channels | 8-channel (2 spare PoE ports available for expansion) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Resolution | 6MP (3072×2048) max; supports 4MP (2688×1520) @ 30fps |
| Frame Rate | 6MP @ 20fps; 4MP @ 30fps |
| Lens | 2.8mm fixed |
| Infrared Night Vision | Built-in IR LEDs, up to 30 metres |
| Video Compression | H.265 / H.265+ / H.264 / H.264+ |
| Smart Motion Detection | SMD 4.0 – human and vehicle classification, animal filtering, clothing and vehicle colour detection |
| Intelligent Detection | Tripwire, intrusion (perimeter protection) |
| Audio | Built-in microphone (each camera) |
| Local Camera Storage | Up to 256GB MicroSD card per camera (card not included) |
| NVR Storage | 2TB security-grade HDD pre-installed |
| Power Supply | PoE (IEEE 802.3af) / 12V DC |
| Weather Rating | IP67 |
| WDR / Image Enhancement | Wide Dynamic Range (WDR), 3D DNR, HLC, BLC, digital watermarking |
| NVR Max Camera Resolution | Up to 16MP |
| Colour | Black |
Ideal Use Cases
Residential Perimeter Coverage
Six camera positions are enough to cover a typical residential property including front entry, driveway, side access gates, and rear yard. SMD 4.0 push notifications via the Dahua DMSS app alert homeowners specifically when a person or vehicle is detected, not when a cat walks past.
Retail and Hospitality Premises
The 6MP resolution supports post-event review of customer interactions, stock handling, and till areas with enough detail to be useful in disputes or investigations. The built-in microphone on each camera adds an audio record at key service points or entry zones.
Warehouse and Loading Dock Monitoring
The 30-metre IR range and IP67 rating make these turret cameras practical for large indoor or semi-outdoor spaces. Vehicle detection via SMD 4.0 is particularly useful for tracking forklift movements, delivery access, and after-hours entry at loading areas.
Car Park and Driveway Surveillance
The wide field of view from the 2.8mm lens covers open parking areas effectively at close to medium range. SMD 4.0 vehicle classification helps log arrival and departure events, while 6MP imagery supports licence plate identification in well-lit conditions.
Construction Site After-Hours Monitoring
The IP67-rated cameras withstand outdoor conditions across Australian worksites, while 30-metre IR night vision covers material storage areas, site access points, and machinery compounds. Vehicle detection at night helps flag unauthorised access without constant manual review.
Childcare and Educational Facilities
High-resolution coverage of drop-off zones, playgrounds, and building entries provides a documented visual record for compliance and incident review. The black finish is low-profile and unobtrusive in environments where camera placement needs to be considered around children.
Choosing the Right Model
- Choose this model if: You need a complete 6-camera, 6MP WizSense system with SMD 4.0 detection, 30-metre IR, built-in audio, PoE connectivity, and a pre-installed 2TB NVR in a black finish, with 2 spare ports to accommodate future expansion to 8 cameras.
- Choose a different model if: You require full-colour night vision rather than infrared, a varifocal lens to frame distant or narrow targets, more than 8 recorder channels for a larger site, or a white-finish kit to match lighter-coloured building exteriors.
FAQs
- Does the 2TB hard drive come pre-installed in the NVR?
Yes. The 2TB security-grade hard drive is installed inside the DHI-NVR4108HS-8P-AI/ANZ before dispatch. There is no need to open the unit or configure storage on arrival. Connect your cameras and network, power the system on, and recording begins automatically. - How does SMD 4.0 differ from standard motion detection on the NVR?
Standard motion detection triggers on any pixel change in the frame, which generates frequent false alerts from moving foliage, insects, rain, and lighting shifts. SMD 4.0 uses a deep learning model to classify detected motion as human or vehicle before generating an alert. It also captures clothing colour and vehicle colour, which allows faster search through recorded footage after an incident rather than scrubbing through hours of irrelevant motion events. - Can I view the cameras remotely on a smartphone?
Yes. The DHI-NVR4108HS-8P-AI/ANZ supports remote access through the Dahua DMSS mobile app on iOS and Android. Once the NVR is connected to your local network and an account is configured, you can view live feeds, play back recorded footage, and receive push notifications for SMD 4.0 human and vehicle events from anywhere with an internet connection. - Can I add more cameras to this system later?
Yes. The 8-channel NVR has 2 unused PoE ports after the initial 6 cameras are connected. You can add up to 2 additional compatible IP cameras to those ports without replacing the recorder. If you plan to expand, run conduit and cable to future camera positions during the initial installation to avoid disruptive re-cabling later. - Are these cameras suitable for exposed outdoor locations in Australian conditions?
Yes. Each DH-IPC-HDW3666EMP-S-AUS carries an IP67 ingress protection rating, confirming it is fully dust-tight and protected against water immersion up to one metre depth. This makes the cameras suitable for eave mounting, wall mounting, and fascia installation at exposed outdoor locations across all Australian climate zones including coastal, tropical, and arid regions. - Do the cameras record audio as well as video?
Yes. Each camera includes a built-in microphone that captures audio alongside video at every position. Note that recording audio in certain locations may carry legal obligations under state and territory privacy and surveillance legislation in Australia. Check the relevant requirements for your location and signage obligations before enabling audio capture. - What cabling is needed to connect the cameras to the NVR?
Each camera connects to the NVR via Cat5e or Cat6 Ethernet cable, which carries both data and PoE power in a single run. Maximum recommended cable length per run is 100 metres. Cat6 is preferred for longer runs or where future-proofing is a priority. Pre-made patch cables and bulk cable are available separately through Security Wholesalers if needed for your installation. - Is the 2.8mm lens appropriate for every camera position on a property?
The 2.8mm fixed lens produces a wide field of view well suited to covering open areas, building entries, driveways, and retail floors at close to medium range. For camera positions that need to frame a specific target at greater distance, such as a gate or access point more than 15 to 20 metres from the camera, a longer focal length would deliver more usable detail on that target. Review each planned camera position individually against the 2.8mm coverage angle before finalising mounting locations.
Cabling Considerations
- Cable Type: Cat5e or Cat6 Ethernet cable is recommended for all camera-to-NVR runs. Cat6 is preferred for longer runs or higher-density installations where future expansion is anticipated.
- Maximum Cable Run: The maximum recommended cable run per camera is 100 metres when using PoE. Runs beyond this distance may result in signal degradation or insufficient power delivery to the camera.
- PoE Considerations: All 6 cameras are powered via PoE (IEEE 802.3af) through the NVR’s built-in 8-port PoE switch. No separate power supply or PoE injector is required at each camera location, provided cable runs stay within the 100-metre limit.
- Wiring Tips: Route cables through wall cavities or conduit wherever possible to protect against physical damage and UV degradation at outdoor sections. During the initial install, consider running spare conduit to the 2 unused camera positions to simplify future expansion without re-opening walls or ceilings. Label all cables at both ends to make future maintenance and additions straightforward.
Product Video Samples
Additional Information
If the system is purchased with a hard drive, it will be pre-installed in the NVR.
