Product SKU: DH-6M8C2T2TIOC
Product Overview
The Dahua 6MP 8-channel mixed camera kit delivers a comprehensive IP surveillance solution combining two types of intelligent camera technology under a single, easy-to-manage NVR. Two 6MP TiOC fixed turret cameras provide full-colour night vision, active deterrence with red and blue strobe lights, and two-way audio — making them ideal for entry points and high-risk zones where you want to deter intruders on the spot. Two 6MP WizSense turret cameras with SMD 4.0 and IR illumination cover additional monitoring areas with precision human and vehicle detection. All four cameras are managed through an 8-channel AI NVR with PoE, supporting face detection, perimeter protection, and SMD Plus analytics. This kit suits homeowners, small businesses, and installers looking for a scalable, AI-powered system that goes beyond basic recording to provide active security management.


Key Capabilities
TiOC Active Deterrence
The two TiOC cameras combine full-colour night vision, a built-in siren, and red/blue strobe lights to actively deter intruders before an incident occurs — not just record it. This three-in-one capability makes them significantly more effective than passive IR cameras at vulnerable access points.
6MP High-Resolution Imaging
All four cameras capture footage at 6 megapixels — delivering sharp, detailed images that make it far easier to identify faces, number plates, and clothing. This level of clarity is essential when footage needs to be used as evidence or reviewed after an incident.
SMD 4.0 Human & Vehicle Detection
Smart Motion Detection 4.0 filters out false alarms caused by animals, leaves, and shadows by accurately classifying moving objects as human or vehicle. This means fewer unnecessary alerts and faster response to genuine security events across the entire kit.
8-Channel AI NVR with PoE
The included 8-channel NVR features built-in PoE ports, meaning cameras are powered and connected over a single Cat6 cable — greatly simplifying installation. The AI NVR supports face detection, perimeter protection, and SMD Plus analytics, providing centralised intelligent management of all cameras.
Two-Way Audio & Built-in Microphones
The TiOC cameras feature dual built-in microphones, a speaker, and support for two-way talk. This allows real-time communication through the camera — useful for remotely warning intruders, speaking to visitors, or monitoring activity with audio context alongside video.
H.265+ Efficient Compression
All cameras and the NVR support Smart H.265+ encoding, which significantly reduces file sizes and bandwidth usage compared to standard H.264 — meaning you get more days of recorded footage stored on the same hard drive without sacrificing image quality.
Best For
- Residential Properties: Homeowners wanting full-colour night coverage at entry points with active deterrence capability alongside standard perimeter monitoring cameras.
- Small Businesses & Retail: Shops or offices needing a mix of active deterrence at doorways and AI-powered detection cameras covering internal or external areas.
- Installers & Integrators: Security professionals who want a pre-matched, AI-capable kit that is quick to deploy with PoE connectivity and flexible NVR analytics.
- Properties with High-Risk Zones: Sites with specific areas — such as gates, car parks, or loading docks — where active deterrence cameras provide an additional layer of protection beyond passive recording.
- Expandable Surveillance Systems: Users who want to start with a 4-camera setup but retain the capacity to add up to four additional cameras on the same 8-channel NVR as needs grow.
Why Choose the Dahua 6MP 8-Channel TiOC & WizSense Kit
Basic 2MP or 4MP camera kits simply cannot match the detail, intelligence, or active response capability offered by this Dahua system. The combination of 6MP resolution across all four cameras ensures footage is genuinely usable for identification purposes — not just a blurry record of an event. Where this kit truly stands apart is the inclusion of TiOC cameras, which actively intervene with light and sound alerts rather than passively recording incidents. Paired with an AI NVR that delivers face detection, perimeter analytics, and SMD Plus, this is a system designed to prevent incidents as well as document them. The PoE NVR also keeps installation straightforward, reducing cabling complexity and cost. Security Wholesalers supplies this kit as a fully matched, tested combination of Dahua components, giving you confidence that every device has been selected to work together reliably from day one.

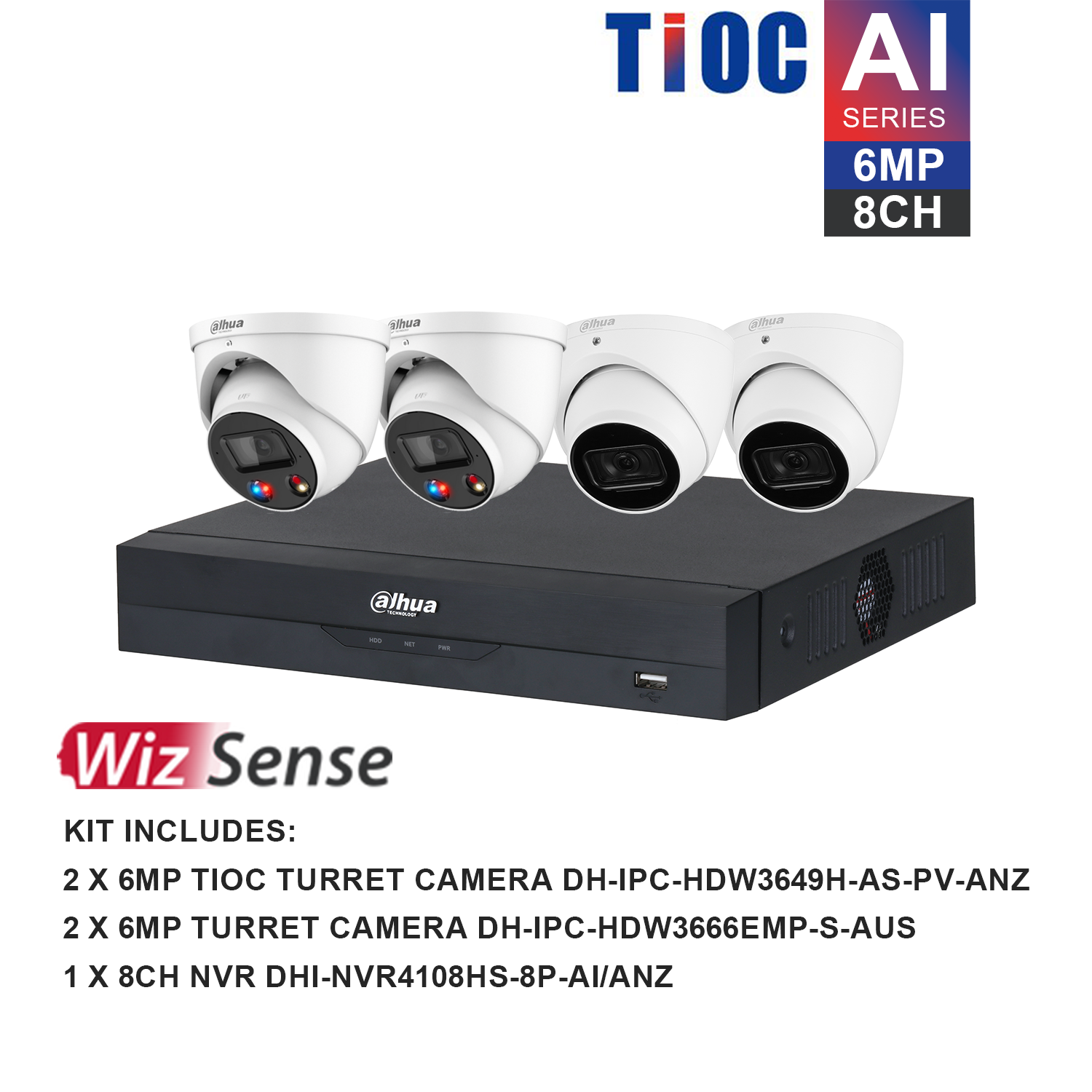

Package Inclusions
- 2 x DH-IPC-HDW3666EMP-S-AUS — 6MP Fixed Turret WizSense Camera with SMD 4.0, 30m IR, built-in mic, IP67
- 2 x DH-IPC-HDW3649H-AS-PV-ANZ — 6MP TiOC Fixed Turret Camera with full colour, active deterrence, dual mic, two-way audio, IP67
- 1 x DHI-NVR4108HS-8P-AI/ANZ — 8-Channel 8-Port PoE AI NVR with SMD Plus, face detection, perimeter protection, up to 16MP decoding
Buyer Decision Tips
Buyer Tip: This kit does not include a hard drive. The NVR supports standard 3.5″ surveillance-grade HDDs. If you plan to record continuously across all four cameras at 6MP, a minimum of 4TB is recommended for several weeks of storage. A surveillance-rated WD Purple or Seagate Skyhawk drive is strongly advised — standard desktop drives are not designed for the constant read/write demands of NVR recording.
Buyer Tip: The TiOC cameras require the alarm input to be configured for one-press arming and disarming. If you want active deterrence to trigger automatically based on AI detection rather than manual arming, ensure the NVR perimeter protection rules are enabled and paired with the TiOC alarm output settings during initial setup.
Key Features & Technical Specifications
| Kit SKU | DH-6M8C2T2TIOC |
| Total Cameras Included | 4 (2 x WizSense turret + 2 x TiOC turret) |
| Camera Resolution | 6MP — WizSense: 3072×2048; TiOC: 3200×1800 |
| Image Sensor | 1/2.7″ CMOS (both camera models) |
| Frame Rate | Up to 25/30 fps at maximum resolution |
| IR Illumination Distance | 30m IR (WizSense); 30m IR + 30m warm light (TiOC) |
| Night Vision Type | IR (WizSense turret); Full-colour + IR (TiOC) |
| Active Deterrence | Red and blue strobe lights + built-in siren (TiOC cameras only) |
| Audio | WizSense: built-in mic; TiOC: dual mic, 1 speaker, two-way talk, 1-in/1-out |
| Video Compression | Smart H.265+/H.265/Smart H.264+/H.264/AI H.264/H.265 |
| Intelligent Detection | Intrusion, tripwire, human & vehicle classification (both models) |
| SMD Version | SMD 4.0 (both camera models) |
| Local Storage | Micro SD up to 256GB (both camera models) |
| Camera Power | 12V DC / PoE (IEEE 802.3af) |
| Weather Rating | IP67 (both camera models) |
| NVR Model | DHI-NVR4108HS-8P-AI/ANZ |
| NVR Channels | 8-channel with 8 built-in PoE ports |
| NVR AI Capabilities | 1-ch face detection & recognition; 2-ch perimeter protection; 4-ch SMD Plus; up to 10 face databases / 20,000 images |
| NVR Decoding | Max 16 x 1080p@30fps; supports up to 16MP; adaptive decoding |
| NVR Throughput | 256 Mbps (180 Mbps with AI functions enabled) |
Ideal Use Cases
Front Door & Driveway Monitoring
TiOC cameras placed at the front door or driveway can detect approaching people or vehicles and trigger an instant strobe and audio warning — deterring would-be intruders before they reach the property.
Retail Shop Entrance & Stockroom
Use TiOC cameras at entry and exit points with active deterrence, while WizSense turret cameras monitor stockrooms or internal areas with accurate human detection to reduce false alerts during business hours.
Car Park & Vehicle Access
The 6MP resolution across all cameras means vehicle number plates and driver identification are captured with sufficient clarity in both day and night conditions, supporting incident investigation and access control.
After-Hours Business Premises
When staff leave for the day, TiOC cameras can be armed to automatically trigger deterrence lighting and sound on detecting human intrusion — providing a cost-effective alternative to manned security for small to medium commercial sites.
Residential Perimeter Coverage
Deploy WizSense turret cameras along side fences, backyards, and low-activity zones where SMD 4.0 eliminates false motion alerts from pets or wind, while reserving TiOC cameras for the highest-priority access areas.
Choosing the Right Model
- Choose this kit if: You want a mix of active deterrence and standard AI surveillance cameras in one package, with a PoE NVR that simplifies installation and provides centralised AI analytics across all cameras.
- Choose a different model if: You need all four cameras to have active deterrence capability — in that case, consider a full TiOC kit where every camera features full-colour night vision, strobes, and audio alerts across all positions.
- Choose a different model if: Your installation requires more than four camera positions to be active immediately — an 8-camera kit would provide full coverage of all NVR channels from the outset without needing additional purchases.
FAQs
- Does this kit include a hard drive?
No, this kit is supplied without a hard drive. The NVR has a single 3.5″ HDD bay and is compatible with surveillance-grade drives such as WD Purple or Seagate Skyhawk. For continuous 6MP recording across four cameras, a 4TB drive or larger is recommended. Hard drives can be added separately and, when ordered together, will be pre-installed in the NVR before dispatch. - What is the difference between the TiOC cameras and the WizSense turret cameras in this kit?
The TiOC cameras offer full-colour night vision using warm white LEDs, active deterrence with red and blue strobe lights and a built-in siren, dual microphones, a speaker, and two-way audio support. The WizSense turret cameras use standard IR for night vision and include a single built-in microphone, but do not have active deterrence or two-way audio. Both models share the same 6MP resolution and SMD 4.0 intelligence. - Can I add more cameras to this system later?
Yes. The NVR has 8 channels with 8 PoE ports, but this kit only populates 4 of those channels. You can add up to 4 additional compatible Dahua IP cameras at any time without replacing the NVR, making this a practical starting point for a system you intend to expand. - Do the TiOC cameras work automatically, or do they need to be manually armed?
TiOC cameras support both modes. They can be configured via the NVR to trigger active deterrence automatically when the AI detects a human or vehicle within a defined perimeter zone. They also support one-press arming and disarming through the alarm input for manual control. - Is this kit suitable for outdoor installation in Australia?
Yes. All four cameras carry an IP67 weather resistance rating, meaning they are fully protected against dust ingress and can withstand direct water jets. They are suitable for exposed outdoor locations including eaves, exterior walls, and undercover areas subject to rain and humidity. - What cabling is required to install this system?
The NVR’s built-in PoE ports allow each camera to be connected and powered using a single run of Cat5e or Cat6 Ethernet cable per camera. No separate power cabling is required at each camera location. Pre-made Cat6 cables in various lengths are available separately to complement this kit. - Where can I purchase this kit with support included?
This Dahua 6MP mixed camera kit is available through Security Wholesalers, which supplies it as a complete, pre-matched system. All components are covered by warranty, and technical support is available to assist with setup, configuration, and any post-installation queries. - Can this NVR perform face recognition on all four cameras simultaneously?
The DHI-NVR4108HS-8P-AI/ANZ supports 1-channel face detection and recognition when AI functions are enabled. For broader perimeter protection analytics, it supports 2-channel perimeter protection and 4-channel SMD Plus simultaneously, with AI bandwidth reduced to 180 Mbps when these functions are active.
