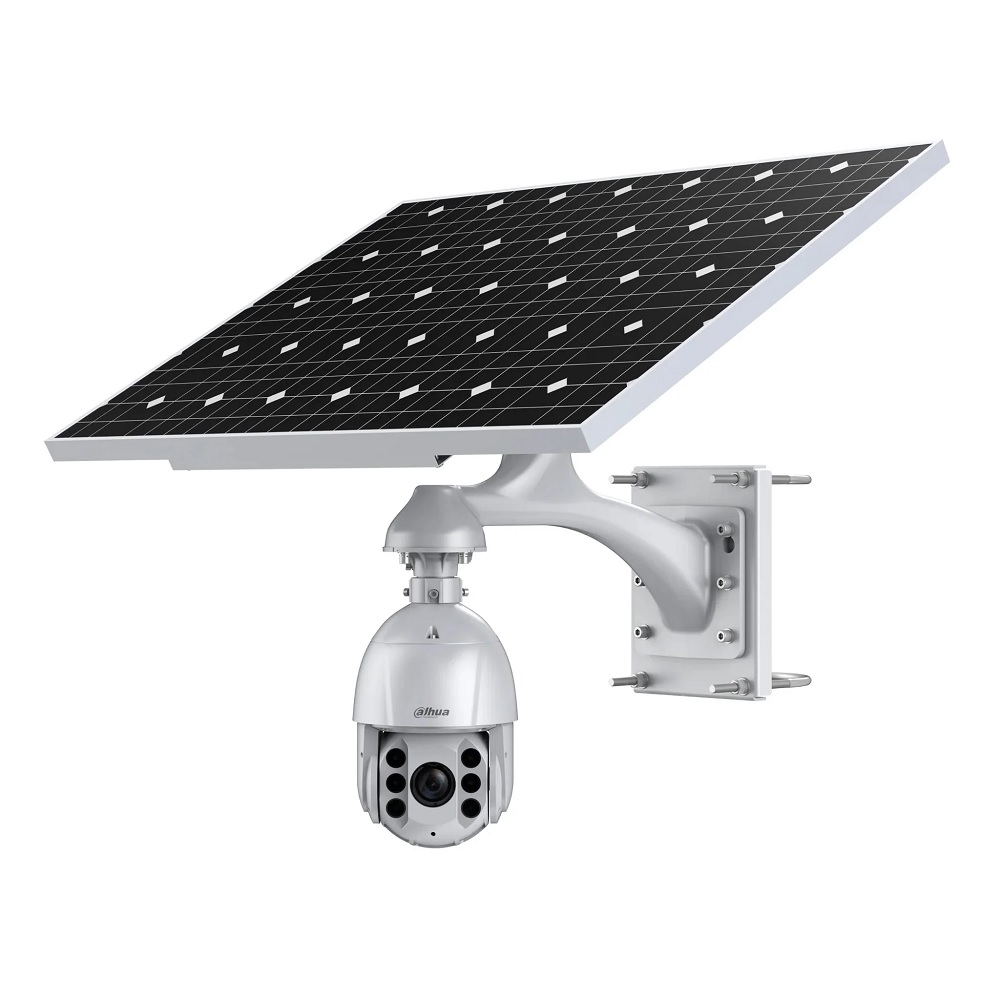

| Solar Panel |
| Type |
Monocrystalline silicon |
| Max. Power |
125 W |
| Solar Cell Efficiency |
21% |
| Max. Mechanical Load |
5400 Pa |
| Controller |
| Type |
MPPT |
| Operating Voltage |
12 VDC |
| Rated Charging Current |
10 A |
| Rated discharge current |
10 A |
| MPPT Tracking Efficiency |
≥ 99% |
| Communication Mode |
RS485 |
| Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Rated Charging Power |
130 W |
| Over-discharge Protection Voltage |
11.1 VDC |
| Others |
Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
| Port |
| Power Output |
Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22″ × Φ0.08″ × 0.47″) |
| RS–485 |
Red: RS485-A
Black: RS485-B |
| Output Port |

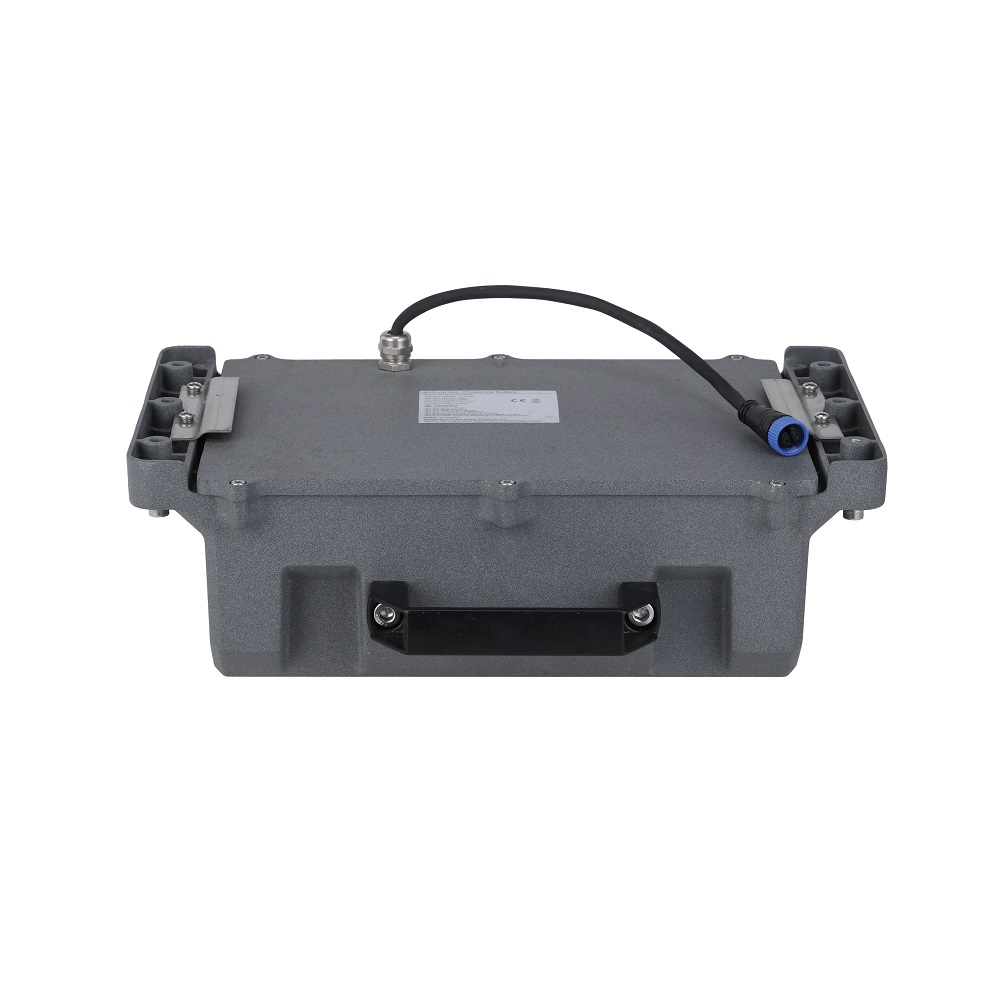

CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
| General |
| Main Body Material |
Q235 steel/aluminum |
| IP Rating |
IP65 |
| Installation |
Pole mount, Φ80mm~Φ150mm |
| Adjustable Angle |
Solar panel: H: 360°, V: 10°/20°/30°/40°/50° |
| Product Dimensions |
965.0 mm × 910.5 mm × 786.4 mm (37.99″ × 35.85″ × 30.96″) |
| Packaging Dimensions |
1,280 mm × 775 mm × 280 mm (50.39″ × 30.51″ × 11.02″) |
| Packaging Method |
1 pc in each carton |
| Net Weight |
20.1 kg (44.31 lb) |
| Gross Weight |
26 kg (57.32 lb) |
| Environment |
| Operating Altitude |
< 3000 m (9842.5 ft) |
| Applicable Area |
Areas with daily exposure to solar radiation for more than 3.5 hours |
| Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity |
< 95% (RH) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
< 95% (RH) |
| Certifications |
| Certifications |
CE: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020
FCC: 47 CFR Part 15, Subpart B
UKCA: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020 |

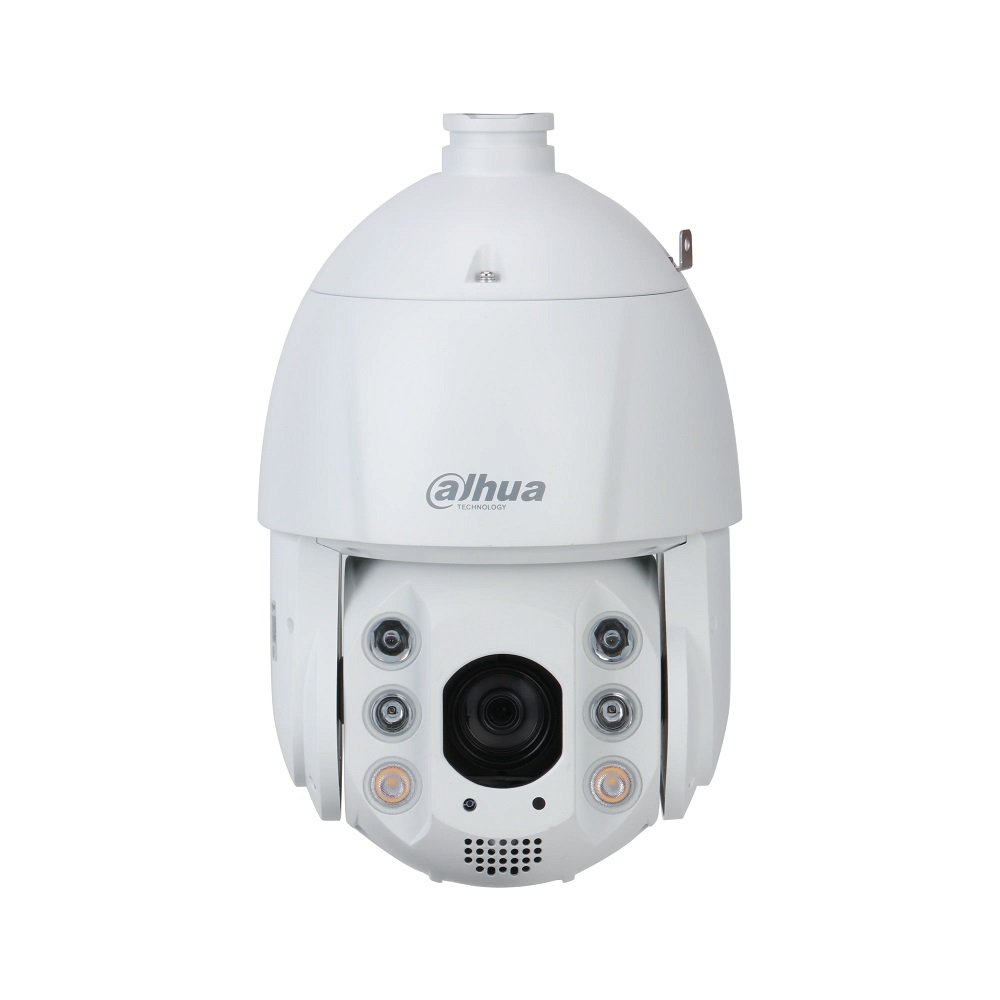

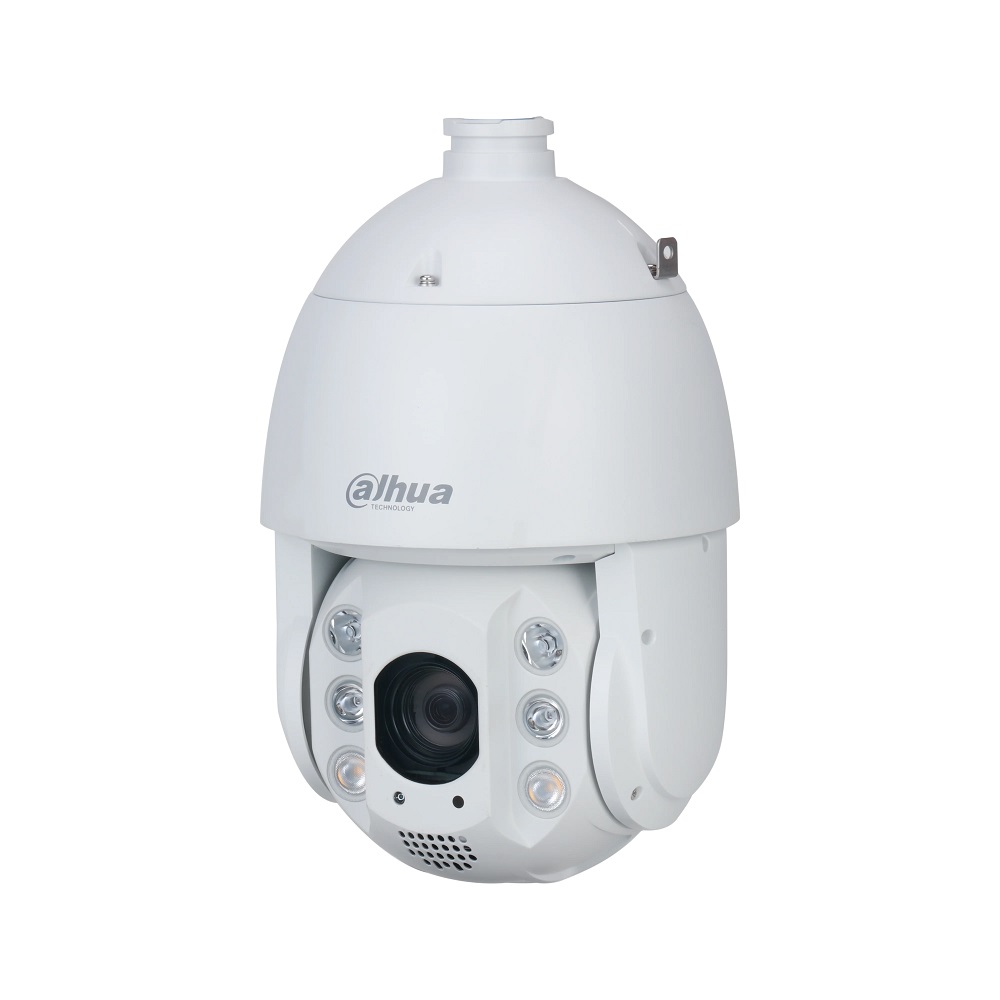

| 4 MP 32x Startlight IR WizSense Network PTZ Camera |
| Model |
DH-SD6C3432XB-HNR-AGQ-PV |
| Camera |
| Image Sensor |
1/2.8” CMOS |
| Pixel |
4 MP |
| Max. Resolution |
2560 (H) × 1440 (V) |
| ROM |
4 GB |
| RAM |
1 GB |
| Electronic Shutter Speed |
1/1 s–1/30,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on) |
| Illumination Distance |
150 m (492.13 ft) (IR)
80 m (262.47 ft) (white light) |
| Illuminator Number |
4 (IR)
2 (white light) |
| Lens |
| Focal Length |
4.8 mm–154 mm |
| Max. Aperture |
F1.6–F4.0 |
| Field of View |
H: 55.8°–2.3°
V: 31.9°–1.3°
D: 63.7°–2.7° |
| Optical Zoom |
32× |
| Focus Control |
Auto; Semi-Auto; Manual |
| Close Focus Distance |
0.1m-1.5m |
| Iris Control |
Auto |
| DORI Distance |
Detect |
Observe |
Recognize |
Identify |
| 3,080 m (10104.99
ft) |
1,216.6 m (3991.47
ft) |
616 m (2021.00
ft) |
308 m (1010.50
ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1°–160°/s; Tilt: 0.1°–120°/s |
| Preset Speed |
Pan: 240°/s; Tilt: 150°/s |
| Preset |
300 |
| Tour |
8 (up to 32 presets per tour) |
| Pattern |
5 |
| Scan |
5 |
| Power-off Memory |
Yes |
| Idle Motion |
Preset; Pattern; Tour; Scan |
| Smart Event |
| IVS |
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking |
| Intelligence |
| Smart Capture |
Support human, motor vehicle and non-motor vehicle image capture. |
| IVS (Perimeter Protection) |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection |
Yes |
| People Counting |
Yes |
| Auto Tracking |
Preset; Pattern; Tour; Scan |
| Video |
| Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) |
| Streaming Capability |
3 streams |
| Resolution |
4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Frame Rate |
Main stream: 4M/3M/1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 2816 kbps–8192 kbps
H.265: 1024 kbps–7936 kbps |
| Day/Night |
Auto (ICR); Color; B/W |
| BLC |
Yes |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR; 3D NR |
| Region of Interest (RoI) |
Yes |
| Image Stabilization |
EIS |
| Defog |
Electronic defog |
| Digital Zoom |
16 × |
| Privacy Masking |
Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio |
≥ 55 dB |
| Audio |
| Audio Compression |
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| 4G-Wireless Frequency Range |
LTE-FDD: B1/3/5/7/8/20
LTE-TDD: Band 38/40
WCDMA: Band 1/5/8
GSM: 850/900/1800 MHz |
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS |
| Interoperability |
ONVIF (Profile S&G&T); CGI; Dahua SDK; GA/T 1400; SDK; API |
| User/Host |
20 (total bandwidth: 64 MB) |
| Storage |
FTP; Micro SD card (256 GB); NAS |
| Management Software |
Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; Imou; NetSDK |
| Mobile Client |
iOS; Android; iPhone; iPad; Windows Phone |
| Certification |
| Certifications |
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port |
| RS-485 |
1 (baud rate: 1200 bps–9600 bps) |
| Two-way Audio |
Yes |
| Alarm Linkage |
Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up |
| Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alarm I/O |
2/1 |
| Audio I/O |
1/1 |
| Power |
| Power Supply |
12 VDC, 4 A (–10% to +25%) |
| Power Consumption |
Sleep: ≤ 1 W
Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G)
Max.: 27 W (illuminator+heater+PTZ+speaker+pulling stream in 4G) |
| Environment |
| Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity |
≤ 95% |
| Protection |
IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure |
| Casing |
ADC12 |
| Dimensions |
325.0 mm × Φ202.0 mm (12.80″ × Φ7.95″) |
| Net Weight |
4.4 kg (9.70 lb) |
| Gross Weight |
6.4 kg (14.11 lb) |

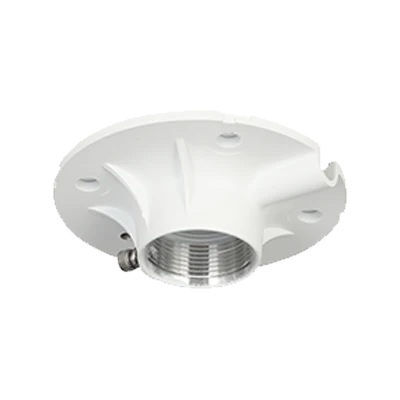

| Ceiling Mount Bracket of PTZ camera |
| Model |
DH-PFB301C |
| General |
| Material |
Aluminum alloy |
| Dimension (W×H×D) |
φ128.8 mm × 35.5 mm (5.07″ × 1.40″) (D × H) |
| Weight |
0.21 kg (0.46 lb) |
| Load Bearing |
10.0 kg (22.04 lb) |

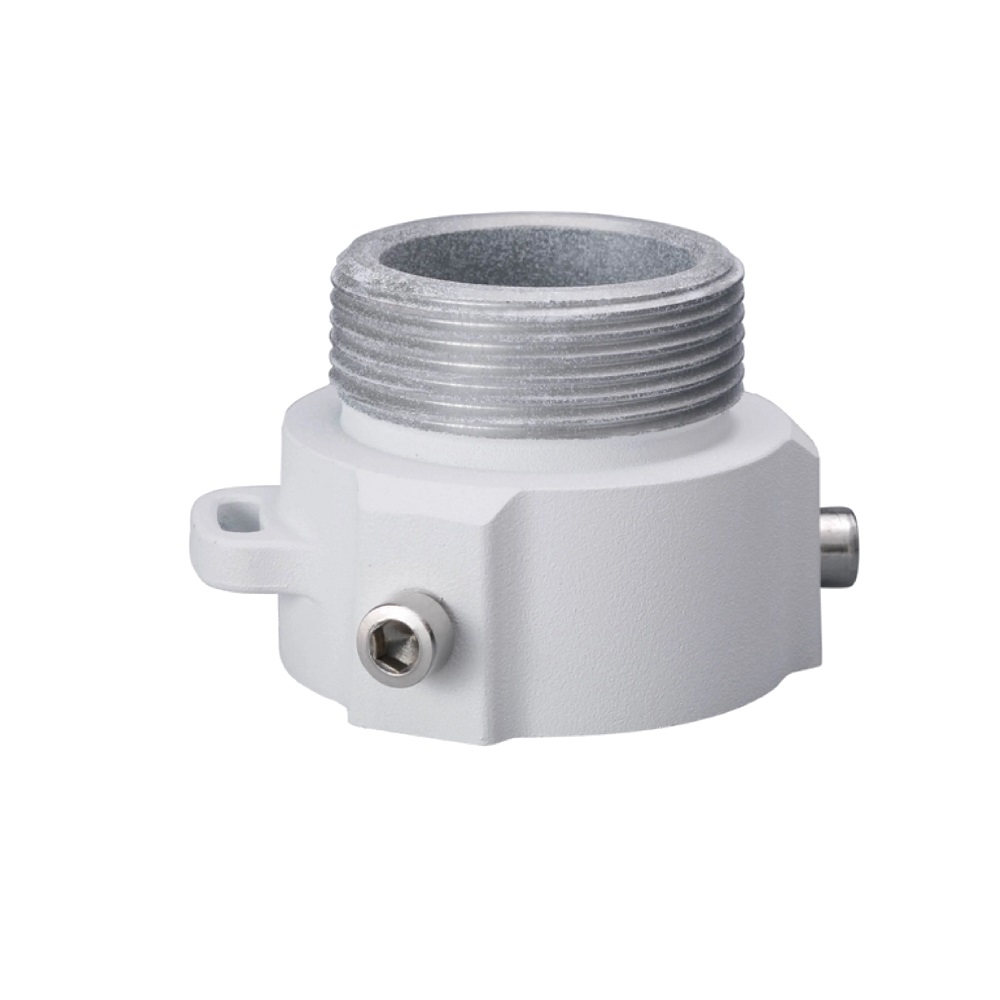

| Mount Adapter |
| Model |
PFA111 |
| General |
|
| Material |
Aluminum |
| Dimension (W×H×D) |
Φ60 mm x 49 mm (Φ2.36″ × 1.93″) |
| Weight |
0.25 kg (0.55 lb) |
| Load Bearing |
7.0 kg (15.43 lb) |
