Product SKU: DH-KIT/DH-PFM378-B100-WB/PFM372-L45-4S14P/DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Product Overview

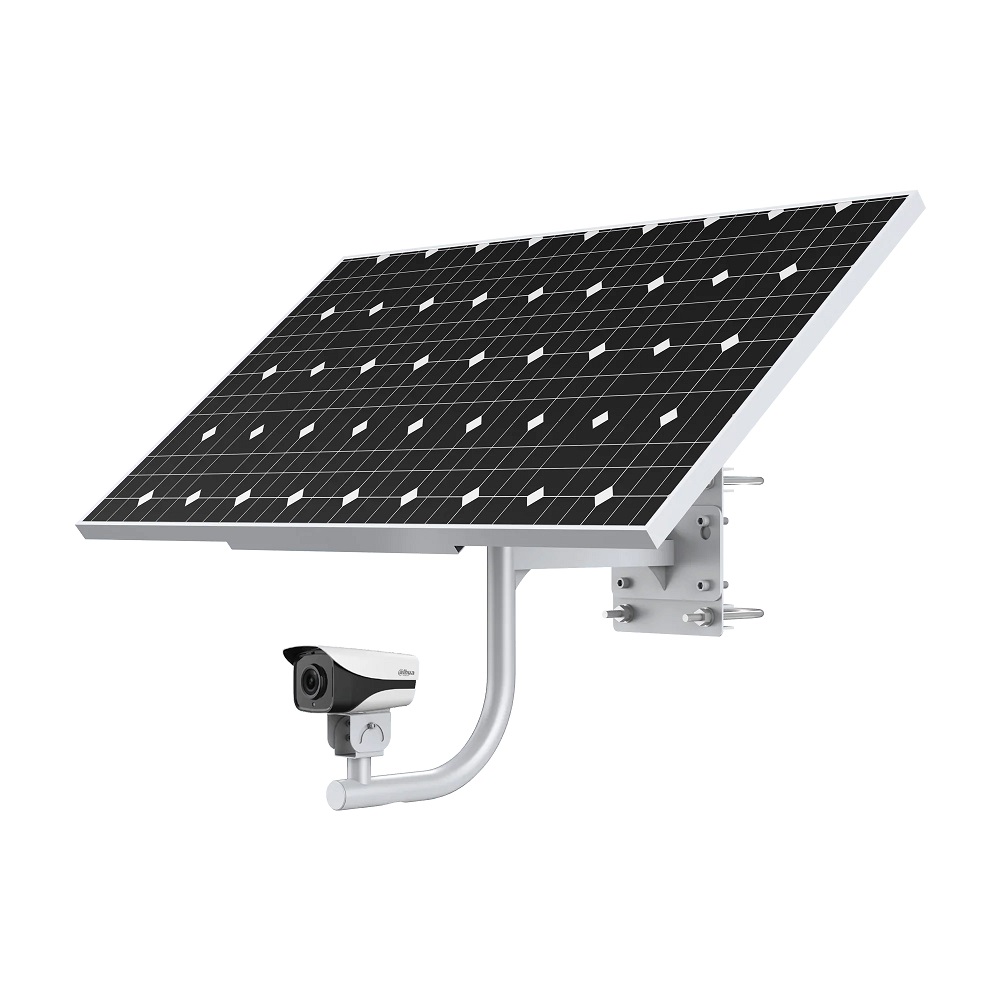

For locations where mains power and network cabling are not available, the Dahua 100W Solar Camera System Kit delivers a fully self-contained surveillance solution that runs entirely on solar energy and transmits footage over 4G. The kit bundles the DH-PFM378-B100-WB integrated solar power system, a DH-IPC-HFW4230MP-4G-AS-I2 2MP 4G IR bullet network camera, and the PFM372-L45-4S14P lithium battery into a single pole-mounted package. Featuring a 100W monocrystalline solar panel with MPPT charging control, the system sustains camera operation through variable sunlight conditions, with the lithium battery providing backup capacity during low-light periods. The bullet camera delivers 1080p resolution, up to 40m IR night vision, IP67 weatherproofing, and onboard micro SD recording of up to 256GB. Designed to withstand sustained winds up to 117 km/h, this kit suits remote paddocks, farm gates, construction sites, water infrastructure, and any off-grid monitoring scenario where running power or data cabling is not practical.
Key Capabilities
100W Solar Power with MPPT Control
The 100W monocrystalline solar panel uses Maximum Power Point Tracking to extract the maximum available charge under variable sunlight. This ensures the camera and battery receive consistent power across different seasons and weather conditions without manual adjustment.
4G Network Connectivity
The integrated 4G modem transmits live and recorded footage over mobile networks, eliminating the need for on-site cabling or Wi-Fi infrastructure. This makes the kit deployable at remote gates, paddocks, and construction sites beyond the reach of fixed internet connections.

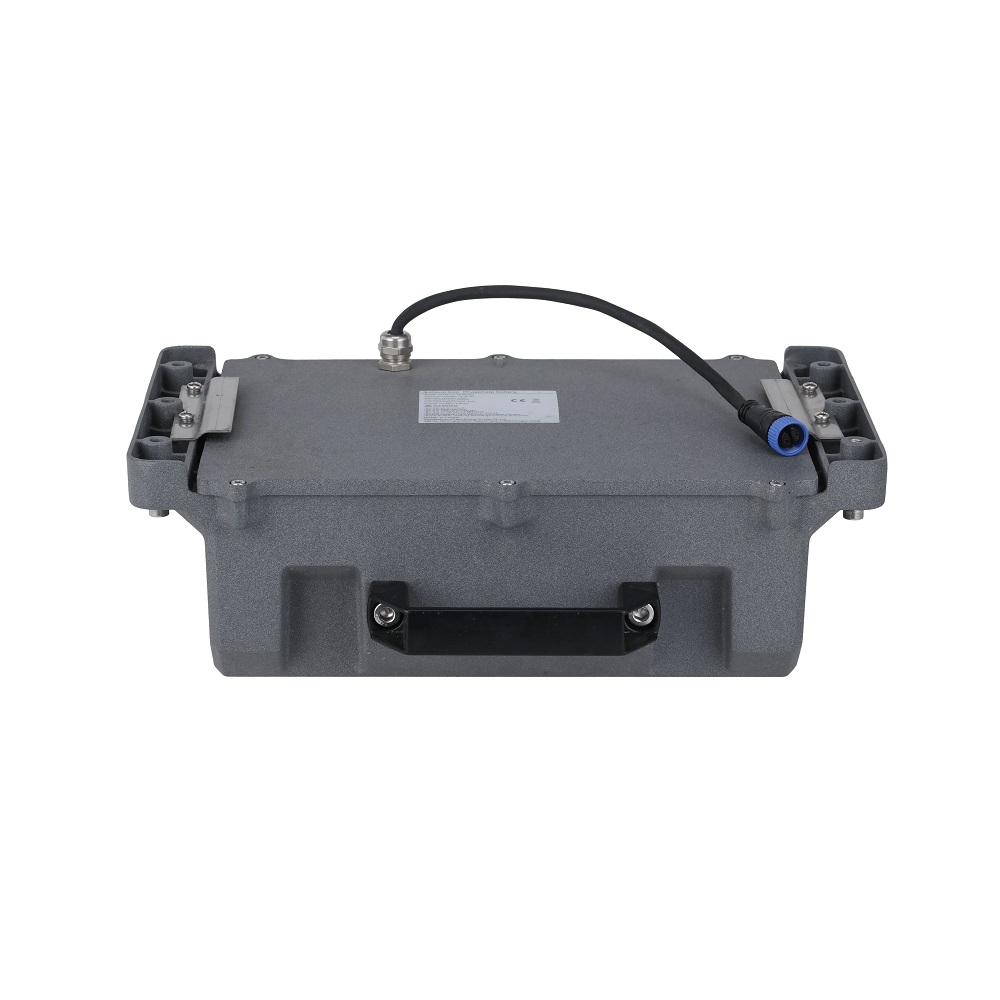

Lithium Battery Storage (PFM372-L45-4S14P)
The IP66-rated die-cast aluminium lithium battery stores solar energy for use during low-sunlight periods and overnight operation. The compact, sealed construction protects the battery from outdoor conditions without requiring a separate enclosure.

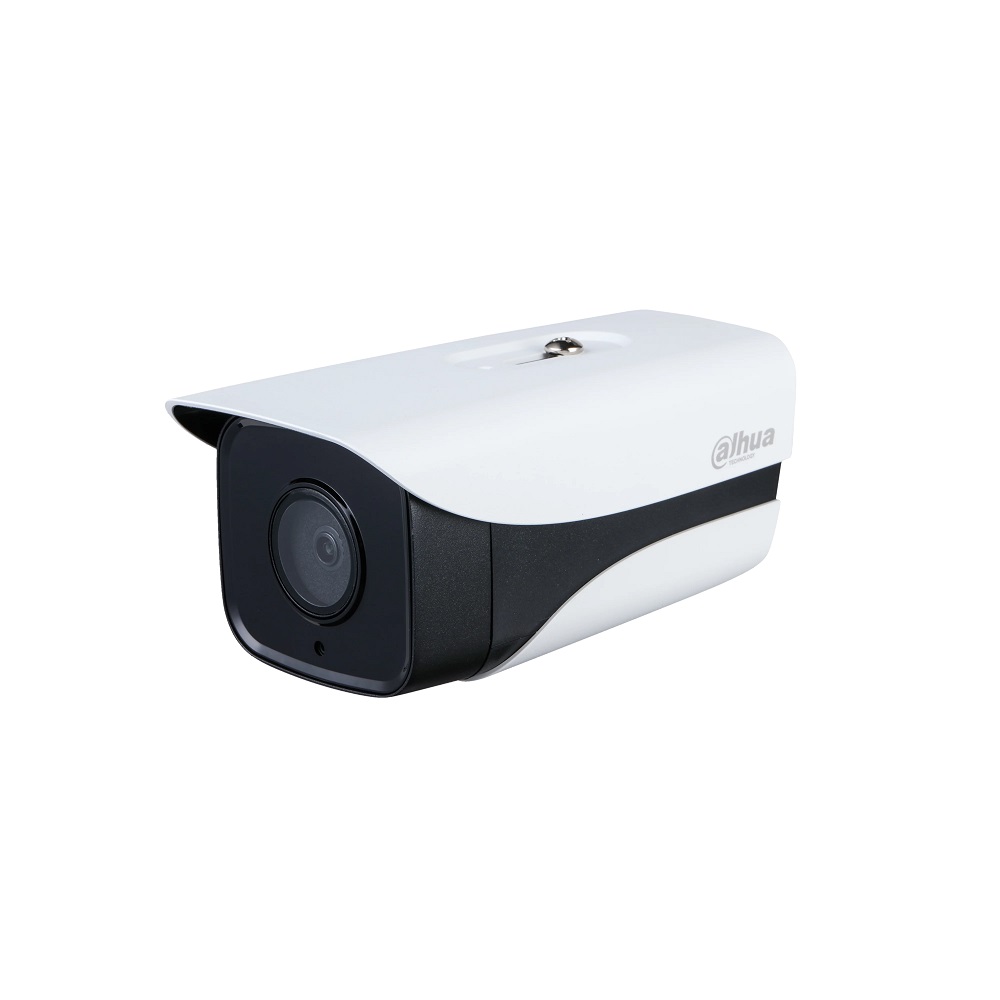

IR Night Vision up to 40m
The 2MP bullet camera includes IR LEDs with a maximum range of 40m, providing usable night-time imaging across typical entry points, driveways, and perimeter zones without any external lighting required at the installation site.

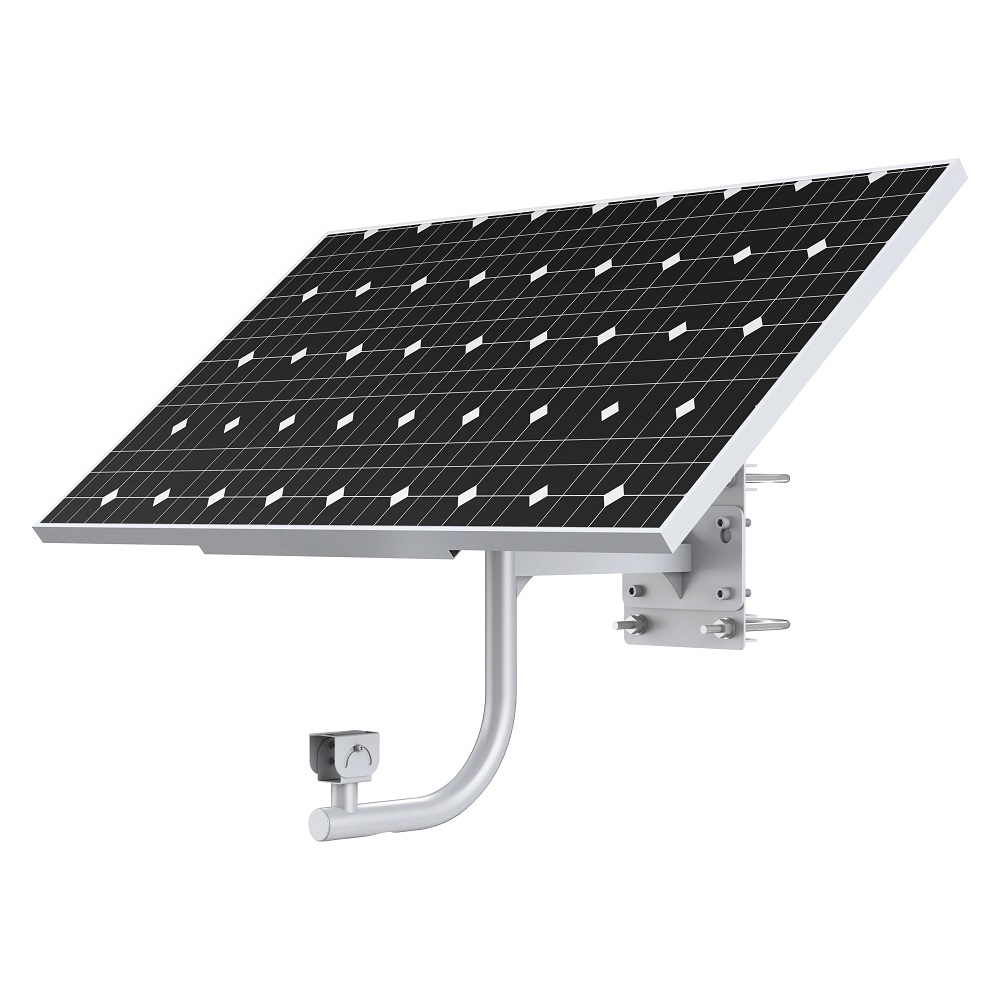

Storm-Rated Pole Mount Structure
The DH-PFM378-B100-WB mounting frame is engineered to withstand sustained winds up to 117 km/h, making the kit suitable for exposed rural and coastal locations. The solar panel and camera angles are both independently adjustable for optimal orientation after installation.
Best For
- Remote Farm and Rural Gate Monitoring: 4G connectivity and solar power allow deployment at property entrances and paddock access points where neither mains power nor cabling is available.
- Temporary Construction Site Surveillance: The pole-mounted, self-powered design means the kit can be installed quickly and relocated as site requirements change, without any cabling infrastructure left behind.
- Off-Grid Water and Utility Infrastructure: IP67 camera and IP66 battery ratings, combined with storm-rated mounting, make this kit suitable for monitoring pump stations, water tanks, and remote utility assets exposed to outdoor conditions.
- Locations with No Fixed Internet Access: The integrated 4G modem connects directly to mobile networks, allowing remote viewing via DMSS app and CMS software without a local router or internet service at the site.
Why Choose the Dahua 100W Solar Camera System Kit
Where other camera systems depend on mains power and fixed network connections, the Dahua 100W Solar Camera System Kit operates entirely off-grid by combining solar generation, lithium battery storage, and 4G transmission in a single pole-mounted package. The DH-PFM378-B100-WB power system uses MPPT charging to maintain reliable battery top-up under real-world conditions rather than ideal-weather ratings, and the structure itself is rated for sustained wind loads up to 117 km/h. The included 2MP 4G bullet camera records at 1080p with 40m IR range, supports onboard micro SD storage up to 256GB, and can be monitored remotely through DMSS and CMS platforms. This combination of power independence, weatherproof construction, and wireless transmission avoids the installation cost and complexity of trenching cable to remote locations. Available at Security Wholesalers, this kit is a practical choice for farms, construction sites, and utility monitoring where off-grid deployment is a requirement rather than a convenience.
Package Inclusions
- x 1 DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 – 2MP 4G IR Bullet Network Camera
- x 1 DH-PFM378-B100-WB – Integrated Solar Power System (100W monocrystalline panel, pole mount, MPPT controller)
- x 1 PFM372-L45-4S14P – Integrated Solar Lithium Battery
Buyer Decision Tips
4G SIM Card: The camera requires an active 4G SIM card to transmit footage and enable remote viewing. The SIM is not included in this kit. Before installation, confirm your site has adequate 4G coverage from your intended carrier, as signal strength at the pole location will directly affect video streaming reliability and remote access performance.
Solar Panel Orientation: Correct north-facing orientation and an unobstructed sky view are critical to maximising daily charge input. In locations with partial shade from trees or structures, the 100W panel may not fully replenish the lithium battery during shorter winter days. Assess your installation site for shade at different times of day before committing to a pole position.
Key Features & Technical Specifications
| Kit Model |
Dahua 100W Solar Camera System Kit |
| Solar Panel Model |
DH-PFM378-B100-WB |
| Solar Panel Output |
100W Monocrystalline |
| Charging Controller |
Maximum Power Point Tracking (MPPT) |
| Mounting Type |
Pole mount with adjustable solar panel and camera angles |
| Wind Resistance |
Sustained winds up to 117 km/h |
| Communication |
RS-485, remote monitoring via mobile app |
| Battery Model |
PFM372-L45-4S14P |
| Battery Material |
Die-cast aluminium |
| Battery Weather Rating |
IP66 |
| Camera Model |
DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 |
| Camera Resolution |
2MP (1920 x 1080) @ 25/30fps |
| Image Sensor |
1/2.9″ Progressive CMOS |
| Lens |
3.6mm fixed lens |
| IR Night Vision Range |
Up to 40m |
| Network Connectivity |
4G |
| Local Storage |
Micro SD card slot, up to 256GB |
| Video Encoding |
H.265 and H.264 dual-stream |
| Camera Weather Rating |
IP67 |
| Remote Monitoring |
Web viewer, CMS (DSS/PSS), DMSS mobile app |
Ideal Use Cases
Rural Farm Gate and Driveway Entries
Pole-mount installation at remote property entrances is straightforward with the DH-PFM378-B100-WB integrated frame. The 4G camera transmits footage to the DMSS app without any on-site network infrastructure, making this kit practical for properties well outside town boundaries.
Construction and Temporary Site Monitoring
The self-contained solar and battery system avoids the need for generator power or temporary electrical connections. Once the project is complete, the kit can be removed from the pole and redeployed to the next site without leaving any cabling infrastructure behind.
Remote Water and Utility Infrastructure
Pump stations, water storage tanks, and irrigation infrastructure are often located in areas with no power or cabling. The IP67 camera and IP66 lithium battery handle outdoor exposure, and the 40m IR range covers the immediate surrounds of small structures and access points.
Bushfire and Flood Monitoring Zones
In locations where power lines are frequently disrupted by weather events, the solar and lithium battery combination maintains continuous camera operation. The wind-rated mounting structure supports deployment in exposed locations where storm conditions are a regular consideration.
Event and Pop-Up Site Security
Temporary outdoor events, markets, and pop-up facilities can deploy this kit without coordinating with venue electrical services. Micro SD onboard recording of up to 256GB provides local backup even in areas with limited 4G throughput during high-traffic event periods.
Choosing the Right Model
- Choose this kit if: Your installation site has no mains power or fixed internet connection, and you need a pole-mounted, storm-rated camera system that operates entirely on solar energy and transmits over 4G with onboard micro SD backup.
- Choose a different model if: Your site has access to mains power and a fixed network connection. In that scenario, a wired PoE bullet or turret camera will deliver more consistent power, higher potential resolution, and lower ongoing operating complexity without dependency on 4G signal quality or solar charge levels.
- Consider your 4G coverage first: If your site is in a mobile coverage blackspot or a low-signal rural area, live remote viewing will be unreliable. Confirm carrier coverage at the exact pole location before purchasing, as the camera depends entirely on 4G for remote access and alerts.
FAQs
- Does this kit include a SIM card for 4G connectivity?
No. The 4G camera requires an active SIM card from your preferred Australian mobile carrier, which is not included in the kit. You will need to source a SIM separately and confirm that your chosen carrier provides sufficient 4G signal at the installation location before committing to a pole position.
- How does the system operate at night or during cloudy periods?
The PFM372-L45-4S14P lithium battery stores charge generated by the 100W solar panel throughout the day, supplying the camera with power after dark and during overcast conditions. The MPPT charging controller maximises energy capture during partial sunlight to help sustain the battery reserve.
- What is the maximum IR range of the included camera?
The DH-IPC-HFW4230MP-4G-AS-I2 camera has a maximum IR LED range of 40m. This is suitable for monitoring property entrances, gate areas, and smaller outdoor zones, though it is not suited to long-range perimeter surveillance where targets may be beyond that distance.
- Can footage be recorded locally without a network connection?
Yes. The camera includes a micro SD card slot supporting cards up to 256GB. Local recording operates independently of the 4G connection, so footage is captured continuously to the card even when mobile signal is weak or temporarily unavailable.
- How is the kit mounted and how adjustable is the installation?
The DH-PFM378-B100-WB uses a pole-mount design with independent angle adjustment for both the solar panel and the camera. This allows you to orient the panel toward the north for maximum solar exposure while directing the camera toward your target area, without one position compromising the other.
- Is the kit weather-rated for Australian outdoor conditions?
Yes. The bullet camera carries an IP67 rating, meaning it is protected against temporary water immersion. The lithium battery housing is rated IP66, protecting it from heavy rain and water jets. The mounting structure is rated to withstand sustained winds up to 117 km/h, making it suitable for exposed rural and coastal sites. This kit is part of the Security Wholesalers range and is available for purchase with full warranty and technical support.
- What software can be used to monitor the camera remotely?
The camera is compatible with Dahua’s DMSS mobile app, as well as CMS platforms including DSS and PSS. Remote monitoring is available through a web viewer on PC. All remote access is routed over the 4G connection, so an active SIM with a data plan is required for live viewing and notifications.
Product Video Samples
Cabling Considerations
- Primary Connectivity: This kit transmits over 4G and does not require a network cable run to the camera. No Cat6 cabling is needed between the solar pole and any NVR or router.
- Internal Component Wiring: Connections between the solar panel, MPPT controller, and lithium battery are made at the pole using the integrated DH-PFM378-B100-WB wiring harness. Follow the supplied installation documentation for correct terminal connections.
- SIM Card Access: Insert a standard 4G SIM card into the camera before sealing and mounting. Confirm the APN settings required by your carrier are correctly configured in the camera’s network settings prior to final installation at height.
