Product SKU: DH-PFM378-B100-WB/PFM372-L45-4S14P/DH-IPC-HFW3441DG-AS-4G-EAU-B-KIT
Product Overview

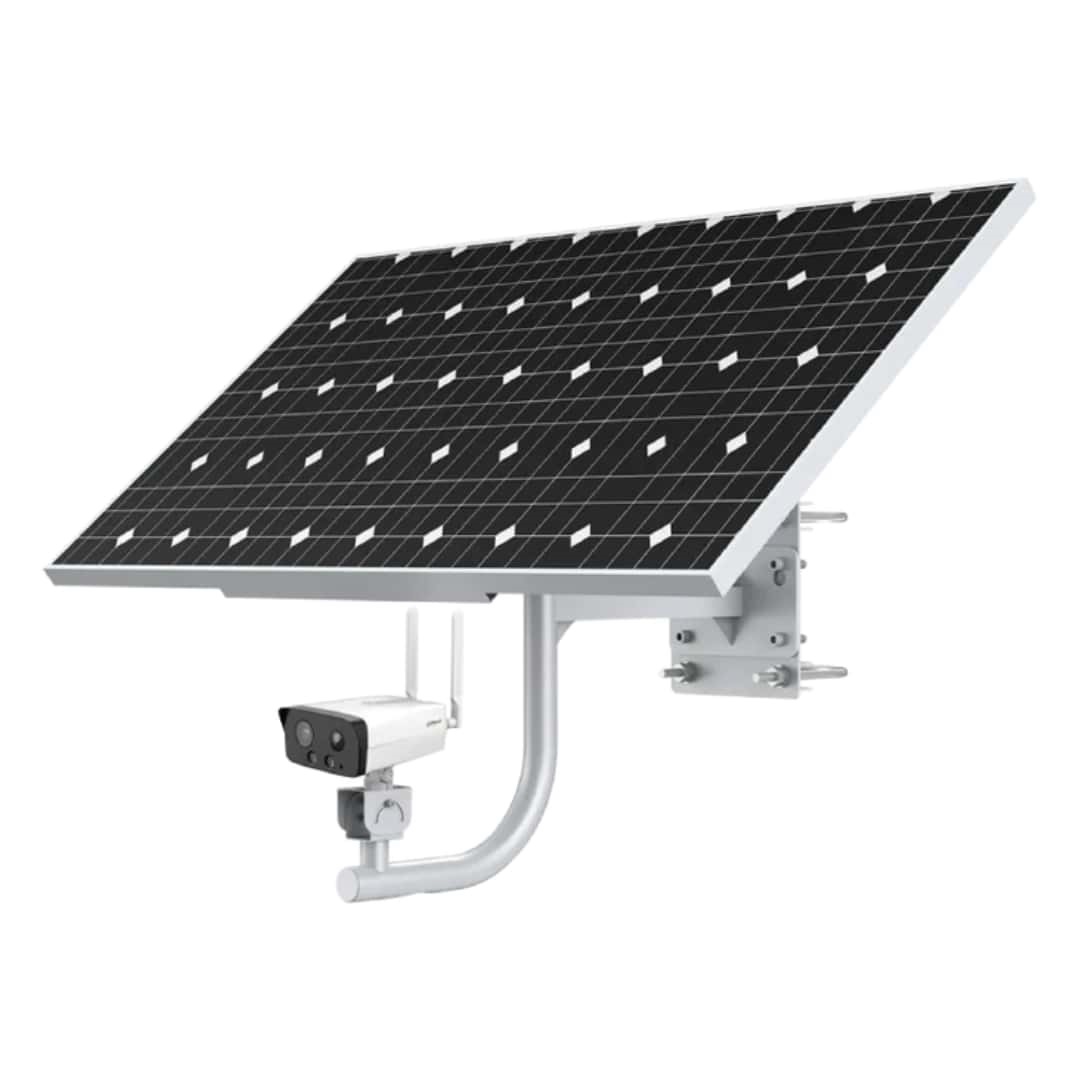

Remote sites, rural properties, construction zones, and off-grid locations where mains power is unavailable present a real challenge for camera deployment. The Dahua 100W Solar Camera System Kit with Lithium Battery solves this by combining a 100W mono-crystalline solar panel, a lithium battery pack, and a 4MP 4G bullet camera into a single pole-mounted system that operates entirely without grid power or network cabling. The IPC-HFW3441DG-AS-4G-EAU-B camera transmits footage over 4G mobile networks, so there is no requirement for trenching, conduit, or on-site data infrastructure. Built-in PIR detection triggers a sound and light alarm response when a person is detected, while two-way audio via the built-in microphone and speaker allows real-time voice communication. The DH-PFM378-B100-WB bracket is engineered to withstand sustained winds up to 117 km/h, and the camera carries IP67 weather protection, making this kit suited to exposed outdoor environments year-round.
Key Capabilities
100W Solar Power with MPPT Charging
The mono-crystalline solar panel uses Maximum Power Point Tracking to extract the most charge available at any given light level. This extends battery life and reduces the risk of the system going offline during extended overcast periods at remote installations.
Built-in 4G Connectivity
The IPC-HFW3441DG-AS-4G-EAU-B camera uses a high-performance built-in 4G module compatible with all Australian mobile networks. No network cable run or local router is needed, making it possible to deploy the kit at sites that are kilometres from the nearest infrastructure.
PIR-Triggered Active Deterrence
A built-in PIR sensor detects human body heat, triggering a linked sound and light alarm. This active response is especially valuable at unstaffed remote sites such as rural properties, equipment yards, and construction sites where an audible deterrent can discourage trespassers before access occurs.
4MP Resolution with Warm Light and IR
The 4MP sensor delivers 2688 x 1520 output at up to 30fps, capturing usable detail across entry points and access roads. Built-in warm light LEDs provide colour night vision while IR provides extended low-light coverage, giving the system flexible night performance without additional lighting infrastructure.
Two-Way Audio
With a built-in microphone and speaker both confirmed in this camera, operators can communicate directly with people in the camera’s field of view through the mobile app or monitoring software. This is particularly useful for access control at unmanned gates or remote site entry points.
Storm-Rated Pole Mount Structure
The DH-PFM378-B100-WB bracket is built to resist sustained winds up to 117 km/h, with flexible angle adjustment for both the solar panel and the camera. The integrated pole-mount design simplifies installation at sites where wall or ceiling mounting is not feasible.
Best For
- Off-Grid Rural Properties: The 100W solar panel and lithium battery combination keeps the system operational at farms, stations, and rural acreage where grid power is not accessible.
- Construction Sites and Temporary Installations: The pole-mount design requires no permanent infrastructure, allowing the kit to be relocated as site layouts change across a project’s lifecycle.
- Unstaffed Equipment Yards and Storage Compounds: PIR-triggered sound and light alarms provide an active deterrent response when operators are not on site, supported by remote monitoring through the mobile app.
- Remote Gate and Access Road Monitoring: 4G transmission and two-way audio allow operators to monitor and communicate at entry points kilometres from any fixed network connection.
Why Choose the Dahua 100W Solar Camera System Kit
Where conventional camera installations stall due to the absence of mains power or network cabling, this kit removes both dependencies in a single deployable package. The IPC-HFW3441DG-AS-4G-EAU-B captures 4MP footage and transmits it over 4G, while the DH-PFM378-B100-WB supplies 100W of solar generation with MPPT charging management and a wind rating of 117 km/h. A basic solar camera without MPPT control and a confirmed lithium battery backup will struggle to maintain uptime during poor weather, whereas this kit is engineered to continue operating through extended low-sunlight periods. The built-in 8GB eMMC memory chip inside the camera retains key footage locally even if the 4G connection drops, and the system also supports a microSD card up to 256GB for extended on-camera storage. Available at Security Wholesalers, this kit is a self-contained outdoor monitoring solution for sites where running cable and power simply is not practical.
Package Inclusions
- x 1 DH-IPC-HFW3441DG-AS-4G-EAU-B – 4MP 4G Active Deterrence Bullet Camera
- x 1 DH-PFM378-B100-WB – 100W Mono-Crystalline Solar Panel with Integrated Bracket and MPPT Charging Controller
- x 1 PFM372-L45-4S14P – Lithium Battery Pack (Die-Cast Aluminium, IP66)
Buyer Decision Tips
4G SIM Card Required: The IPC-HFW3441DG-AS-4G-EAU-B requires a data SIM card to be inserted for remote access and live streaming. The camera is compatible with all Australian mobile networks, but confirm 4G coverage at your specific site before deployment. In areas with very low signal, local recording to the built-in 8GB eMMC or a microSD card (up to 256GB) will continue regardless of connectivity status.
Solar Panel Orientation and Shading: The DH-PFM378-B100-WB bracket allows flexible angle adjustment of the solar panel independently of the camera. At the time of installation, orient the panel to maximise daily sun hours for your location and ensure no seasonal shading from trees or structures will reduce charging capacity. In southern Australian states with lower winter sun angles, tilt the panel more steeply to compensate.
Key Features & Technical Specifications
| Camera Model |
IPC-HFW3441DG-AS-4G-EAU-B |
| Image Sensor |
1/3″ CMOS, 4MP |
| Max Resolution |
2688 x 1520 @ 25/30fps |
| Video Compression |
H.265 |
| Night Vision |
Built-in warm light LED and IR LED |
| Active Deterrence |
Sound and light alarm linkage triggered on alarm event |
| PIR Detection |
Built-in PIR sensor, detects human body heat |
| Connectivity |
Built-in 4G module, compatible with all mobile networks |
| Audio |
Built-in microphone and speaker, two-way talk supported |
| On-Camera Storage |
Built-in 8GB eMMC; supports up to 256GB microSD card |
| Alarm I/O |
1 alarm input, 1 alarm output |
| Camera Weather Rating |
IP67 |
| Solar Panel |
100W mono-crystalline (DH-PFM378-B100-WB) |
| Charging Controller |
MPPT (Maximum Power Point Tracking) |
| Bracket Mount Type |
Pole mount with adjustable panel and camera angle |
| Wind Resistance |
Sustained winds up to 117 km/h |
| Lithium Battery |
PFM372-L45-4S14P, die-cast aluminium housing, IP66 |
| Remote Monitoring |
Available via mobile app; RS-485 communication on bracket |
Ideal Use Cases
Rural and Agricultural Properties
Farms and rural holdings located far from grid infrastructure benefit directly from the solar and lithium battery combination. The 4G module transmits footage over mobile networks, removing any dependence on property-based internet connections that may not reach boundary fences or machinery sheds.
Construction Sites
The pole-mount design allows the kit to be positioned and repositioned as work progresses. No conduit, trenching, or temporary power board connection is required for camera operation, which simplifies compliance with site safety requirements around electrical installations.
Remote Equipment and Asset Storage
Machinery yards, mining equipment compounds, and storage depots that are left unstaffed overnight are well suited to the PIR-triggered sound and light alarm. The deterrent response activates automatically when a person is detected, without requiring an operator to initiate an action remotely.
Unmanned Gate and Access Road Monitoring
Two-way audio via the built-in microphone and speaker enables operators to speak with visitors or vehicle drivers at a remote entry point. Combined with 4G live viewing through the mobile app, this allows basic access management without on-site staff.
Event and Pop-Up Site Monitoring
Temporary event venues, markets, and seasonal operations that do not have permanent security infrastructure can deploy this kit rapidly. The 8GB eMMC and microSD support mean footage is retained locally even if the 4G connection is interrupted by network congestion during a busy event.
Choosing the Right Model
- Choose this kit if: Your site has no access to mains power or network cabling and requires a self-contained 4G-connected camera system that can withstand exposed outdoor conditions and respond actively to detected persons.
- Choose a different model if: Your site has reliable mains power and a wired network available. In that case, a standard PoE IP camera will provide a more cost-effective installation with no ongoing SIM data costs and without the complexity of solar system maintenance.
- Choose a different model if: You need to monitor multiple points across a single property from the one system. This kit covers a single camera position. A networked NVR-based system connected to multiple wired cameras may provide better value where power and cabling are available across the site.
FAQs
- Does this kit include everything needed for operation, or are additional components required?
The kit includes the IPC-HFW3441DG-AS-4G-EAU-B camera, the DH-PFM378-B100-WB solar panel and bracket assembly, and the PFM372-L45-4S14P lithium battery. You will need to supply and insert a 4G data SIM card to enable remote viewing and transmission. A microSD card up to 256GB is optional but recommended for extended on-camera recording beyond the built-in 8GB eMMC.
- Which 4G networks does the camera support?
The built-in 4G module in the IPC-HFW3441DG-AS-4G-EAU-B is confirmed to suit all mobile networks. In Australia, this covers the major carriers and their associated MVNOs. Before purchasing a SIM, confirm that the carrier you intend to use provides 4G coverage at your specific deployment location, as performance in remote areas will vary by carrier.
- Will the system keep recording if sunlight is unavailable for several days?
The lithium battery pack provides backup power to bridge periods of low solar generation. The MPPT charging controller on the DH-PFM378-B100-WB maximises energy harvesting at all available light levels. Exact battery runtime will depend on camera activity, alarm trigger frequency, and ambient temperature. For extended overcast periods in high-latitude locations, consider how many days of autonomy your site requires when planning the installation.
- How is the solar panel angle adjusted for different Australian locations?
The DH-PFM378-B100-WB bracket provides flexible angle adjustment for the solar panel independently of the camera direction. For sites in southern Australia, tilting the panel more steeply towards north will improve winter generation. The camera orientation can be set separately to cover your intended field of view without compromising the panel’s solar angle.
- What happens to recorded footage if the 4G connection drops?
The IPC-HFW3441DG-AS-4G-EAU-B includes a built-in 8GB eMMC memory chip that stores footage locally on the camera. If a microSD card up to 256GB is also installed, this extends local recording capacity significantly. Footage stored locally during a connectivity outage remains accessible once the 4G connection is restored, protecting records from being lost during network interruptions.
- Can I speak to someone through the camera from my phone?
Yes. The IPC-HFW3441DG-AS-4G-EAU-B has both a built-in microphone and a built-in speaker confirmed in the product specifications, enabling two-way talk. Through the Dahua mobile app, an operator with live viewing access can initiate a two-way audio session to communicate with anyone in the camera’s field of view in real time.
- Is the bracket suitable for Australian weather conditions including storms?
The DH-PFM378-B100-WB is built to resist sustained winds of up to 117 km/h. The lithium battery unit, PFM372-L45-4S14P, carries an IP66 weather protection rating with a die-cast aluminium housing. The camera itself is rated IP67. These ratings make the complete kit suitable for exposed outdoor installations in most Australian coastal, rural, and alpine environments. This kit and its components are available through Security Wholesalers for trade and professional buyers.
Cabling Considerations
- Network Cabling: No network cable is required between the camera and a router or NVR. The IPC-HFW3441DG-AS-4G-EAU-B transmits data over 4G using a SIM card. An Ethernet cable may optionally be used for initial configuration or local access, but is not required for ongoing operation.
- Power Cabling: The system is self-powered by the solar panel and lithium battery. No mains power cable, PoE switch, or power adaptor is required at the installation site.
- Internal Bracket Wiring: The RS-485 connection on the DH-PFM378-B100-WB bracket communicates solar battery status, including power level and battery charge, to the camera. This wiring is internal to the kit assembly and does not require additional cabling from the installer beyond following the bracket installation guide.
- Wiring Tips: Ensure all cable entry points into the camera body are sealed with the supplied weatherproof fittings to maintain the IP67 rating. At pole installations in exposed locations, use UV-rated cable management to protect any interconnecting leads between the bracket, battery, and camera from long-term sun degradation.
