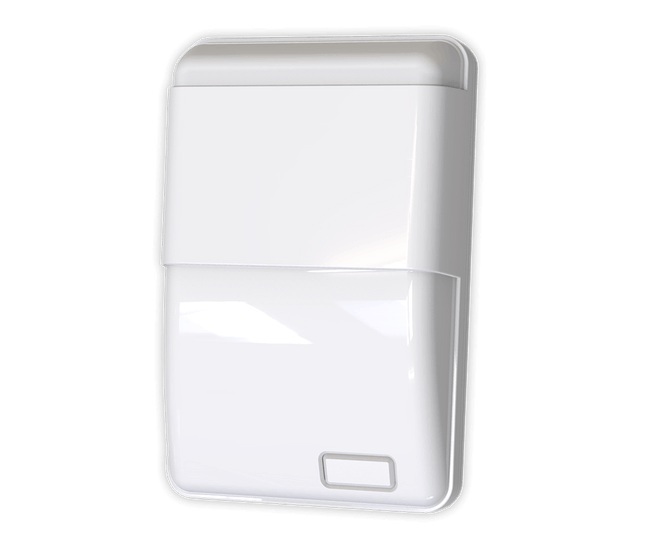

CQR SOINT2/WH/HI-LO Internal Sounder 12V Grade 3 110dB Hi-Lo White

Name: CQR SOINT2/WH/HI-LO Internal Sounder 12V Grade 3 110dB Hi-Lo White
Brand: Hikvision
SKU: SOINT2/WH/HI-LO
Price: 61.00 AUD
Availability: InStock

$61.00

WARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

The CQR SOINT2/WH/HI-LO delivers a Grade 3 internal sounder solution designed for hardwired alarm systems in homes, offices, retail stores, commercial premises and secure entry areas. Featuring selectable sounder output with a 110dB high alarm tone and 90dB low alarm tone, it supports clear alarm notification as well as entry and exit tone use.

It also includes independent LED status notification and wall and cover tamper protection, making this model supplied by Security Wholesalers practical for professional alarm installations. With its white plastic housing, 12VDC operation, Mylar cone sounder type and -10°C to +40°C operating range, the SOINT2/WH/HI-LO suits supervised internal security applications requiring compact Grade 3 audible warning.

Key Features

Grade 3 Sounder: Designed for alarm installations requiring EN50131-4 Grade 3 internal sounder support.
Selectable Sound Output: Provides 110dB high alarm tone and 90dB low alarm tone for flexible notification use.
Entry & Exit Tone Use: Suitable for lower-level entry and exit tone notification where required.
Wall & Cover Tamper: Supports supervised installation with both wall and cover tamper protection.
12VDC Operation: Runs from a 12VDC supply with 300mA sound-only current consumption.
White Plastic Housing: Features a low-profile white housing with listed dimensions of 155 x 100 x 48mm.

PLEASE NOTE: STANDARD LEAD TIME IS 30 DAYS

$61.00 inc GST +3 Year Warranty & Support

Description

Product SKU: SOINT2/WH/HI-LO

Product Overview

The CQR SOINT2/WH/HI-LO Internal Sounder 12V Grade 3 110dB Hi-Lo White is a low-profile electronically driven internal alarm sounder designed for compatible Grade 3 intruder alarm installations. It provides selectable sound output with a high 110dB alarm tone and lower 90dB tone, making it suitable for both alarm activation and entry/exit tone notification. The unit features a white plastic ABS-style housing, Mylar cone sounder type, independent LED status notification, wall and cover tamper protection, and a white LED cover for a neat internal finish. With a 12VDC operating range, 300mA sound-only current draw, IP4X rating and operating temperature range of -10°C to +40°C, the SOINT2/WH/HI-LO is well suited to professional residential, retail, office and commercial alarm installations requiring a tamper-protected internal Grade 3 sounder.

Key Capabilities

Grade 3 Internal Sounder

The SOINT2/WH/HI-LO is designed for compatible Grade 3 intruder alarm installations where a higher security internal sounder is required.

Selectable Hi-Lo Output

Selectable sound output provides a 110dB high alarm tone and a 90dB low tone for entry, exit or lower-level notification.

Wall and Cover Tamper

Wall and cover tamper protection supports supervised installation where removal or cover opening must be monitored by the alarm system.

Independent LED Status

Independent LED status notification provides a visual indication point for compatible system status or sounder condition signalling.

Low Profile Plastic Housing

The white low-profile plastic housing provides a clean internal finish for professional alarm installations in residential and commercial interiors.

Mylar Cone Sounder

The Mylar cone sounder design provides electronically driven audible output for compatible internal alarm and notification functions.

Best For

Grade 3 Alarm Installations: Suitable for compatible intruder alarm systems requiring an EN50131-4 Grade 3 internal sounder.
Internal Alarm Warning: The 110dB high tone provides strong audible alarm warning inside the protected premises.
Entry and Exit Notification: The 90dB low tone is ideal for entry and exit tone notification where a lower sound level is preferred.
Tamper-Monitored Sites: Useful where the internal sounder must include wall and cover tamper protection.
Professional Internal Fit-Outs: Practical for offices, retail stores, clinics, service areas, warehouses, corridors and commercial alarm projects.

Why Choose the SOINT2/WH/HI-LO

Choose the CQR SOINT2/WH/HI-LO when the installation requires a Grade 3 internal sounder with selectable high and low sound output. The high 110dB tone is suited to internal alarm activation, while the lower 90dB tone is useful for entry and exit notification where a less intense local tone is required. Its wall and cover tamper protection, independent LED status notification, Mylar cone sounder type and low-profile white housing make it suitable for professional alarm fit-outs where supervision and clean presentation are both important. This model, supplied by Security Wholesalers, is a practical option for compatible 12VDC intruder alarm systems requiring a white hi-lo internal sounder.

Buyer Decision Tips

Buyer Tip: Confirm the alarm system requires a Grade 3 internal sounder and can support the 12VDC operating requirement and 300mA sound-only current draw.

Buyer Tip: Use the 110dB high tone for alarm warning and the lower 90dB tone for entry and exit notification where a less intense sound is preferred.

Key Features & Technical Specifications

Product Type	Internal alarm sounder.
Model	SOINT2/WH/HI-LO.
Brand	CQR.
Colour	White.
Material	Plastic / ABS plastic housing.
EN50131-4 Grade	Grade 3.
Voltage Range	12VDC.
Sound Output	110dB high / 90dB low.
Selectable Sound Output	Selectable hi alarm tone and low alarm tone for alarm and entry/exit notification applications.
Sounder Type	Mylar cone.
Speaker Type	Electronically driven speaker.
Sound Only Current	300mA.
Tamper Protection	Wall and cover tamper.
LED Status	Independent LED status notification.
Lens Colour	White LED cover.
IP Rating	IP4X.
Temperature Range	-10°C to +40°C.
Dimensions	155 x 100 x 48mm.
Listed Height	60mm.
Listed Width	120mm.
Listed Depth	170mm.
Weight	0.53kg.
Logo Application	Suitable for screen printed logo application by enquiry.
Typical Use	Internal alarm warning, entry/exit tone notification and LED status indication for compatible intruder alarm systems.

Ideal Use Cases

Internal Alarm Warning

Use the 110dB high tone where strong internal audible warning is required during alarm activation.

Entry and Exit Notification

Use the 90dB low tone for entry and exit notification where a lower-level audible tone is preferred.

Grade 3 Alarm Sites

Suitable for compatible intruder alarm systems where an EN50131-4 Grade 3 internal sounder is required.

Tamper-Monitored Areas

Use where wall and cover tamper monitoring is required for the internal alarm sounder.

Commercial Interiors

A practical option for offices, retail stores, warehouses, clinics, corridors and staff-only areas.

Professional Alarm Branding

Suitable where a low-profile white internal sounder may be required for screen printed logo application by enquiry.

Choosing the Right Model

Choose this model if: You need a white Grade 3 internal sounder with selectable 110dB high tone, 90dB low tone, LED status notification and wall/cover tamper.
Choose a basic internal screamer if: The installation only needs a simple internal alarm sounder without Grade 3 requirements, selectable hi-lo output or tamper supervision.
Choose an external siren/strobe if: The site requires outdoor warning presence, weatherproof housing or visual deterrence outside the protected premises.
Choose a passive speaker if: The alarm panel provides a siren driver output and the installation requires a passive speaker rather than an electronically driven sounder.
Check before installation: Confirm Grade 3 requirements, 12VDC compatibility, 300mA current capacity, tamper wiring, LED status wiring, mounting position and required sound level.

FAQs

What is the CQR SOINT2/WH/HI-LO used for?
The CQR SOINT2/WH/HI-LO is used as a Grade 3 internal sounder for compatible intruder alarm systems. It provides selectable high and low sound outputs, making it useful for both internal alarm warning and lower-level entry or exit tone notification.
How loud is the SOINT2/WH/HI-LO?
The sounder offers selectable output with a high alarm tone rated at 110dB and a low alarm tone rated at 90dB. The higher tone is suited to alarm activation, while the lower tone is ideal for entry and exit notification where a less intense sound is preferred.
Is this sounder Grade 3?
Yes. The SOINT2/WH/HI-LO is listed as EN50131-4 Grade 3. The installer should still confirm that the full alarm system design, panel programming, tamper wiring and installation method meet the site’s required grading and compliance expectations.
Does it have tamper protection?
Yes. The CQR SOINT2/WH/HI-LO includes wall and cover tamper protection. This allows a compatible alarm system to monitor the internal sounder for removal, cover opening or interference, depending on how the tamper circuit is connected.
Can it be used for entry and exit tones?
Yes. The lower 90dB selectable tone is ideal for entry and exit tone notification. This allows the sounder to provide a more suitable notification tone during normal entry or exit periods without using the full 110dB alarm tone.
Does it include LED status notification?
Yes. The SOINT2/WH/HI-LO includes independent LED status notification with a white LED cover. The final indication behaviour depends on how the installer connects and configures the device with the compatible alarm system.
Is this an internal or external sounder?
This model is an internal sounder with low-profile plastic housing and an IP4X rating. If the installation requires outdoor warning, weatherproof construction, external strobe indication or a visible deterrent box, choose a suitable external siren or siren/strobe instead.
What should I check before buying the SOINT2/WH/HI-LO?
Before buying the SOINT2/WH/HI-LO, confirm that your alarm system requires a Grade 3 internal sounder, supports 12VDC operation, can provide 300mA for sound-only operation, and can use the tamper and LED status functions as intended. This model is available through Security Wholesalers for compatible professional alarm installations.
