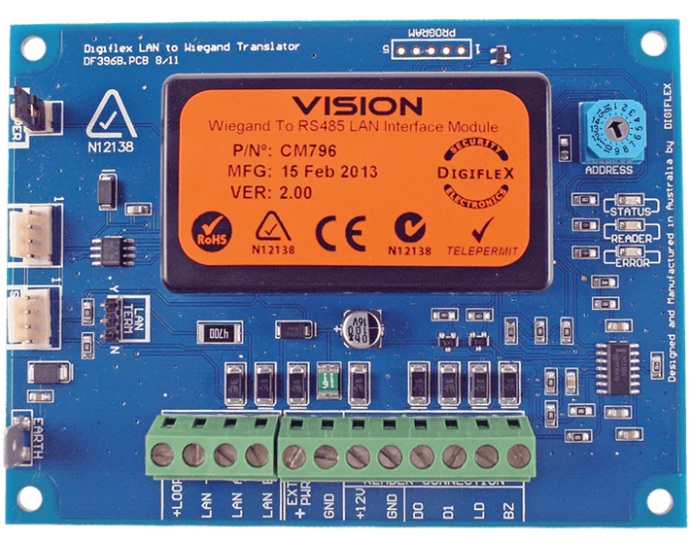

Bosch Solution CM796B Wiegand to RS485 LAN Module for Solution 144 and 6000 Alarm Panels

$228.85
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Bosch Solution Wiegand to RS485 LAN Module | CM796 | Access Control Integration | Solution 144 Compatible | Solution 6000 Compatible | Alarm Panel Accessory

The Bosch Solution CM796B provides a Wiegand-to-RS485 LAN interface module designed for compatible Bosch Solution 144 and Solution 6000 alarm panels. It enables supported Wiegand access-control devices to communicate with the alarm system through an RS485 LAN connection, helping integrate compatible readers and related access hardware into a broader security installation.

Its dedicated interface design makes the module available at Security Wholesalers practical for professional alarm and access-control projects requiring coordinated system operation. With support for compatible Bosch Solution platforms, the CM796B suits new installations, system expansions and upgrade projects where reliable communication between Wiegand devices and the alarm panel network is required.

Key Features

  • Wiegand Interface: Supports connection of compatible Wiegand access-control devices.
  • RS485 LAN Communication: Connects supported devices to the compatible Bosch alarm panel network.
  • Solution 144 Compatibility: Designed for integration with compatible Bosch Solution 144 alarm systems.
  • Solution 6000 Compatibility: Supports compatible Bosch Solution 6000 alarm panel installations.
  • Access-Control Integration: Helps combine supported reader hardware with the alarm and security platform.
  • Professional Expansion Module: Suits new installations, system expansions and replacement interface requirements.

Additional Information

Bosch CM796B Datasheet

$228.85 inc GST +3 Year Warranty & Support

Product SKU: CM796B

Product Overview

The Bosch Solution CM796B Wiegand to RS485 LAN Module enables compatible third-party Wiegand proximity readers to connect with Bosch Solution 144 and Solution 6000 alarm panels. It supports Wiegand credential formats from 26-bit to 40-bit, making it suitable for sites that want to retain existing readers, access cards or user credentials while integrating them with a compatible Bosch intrusion and access-control system. The module connects through the panel’s encrypted RS485 LAN and operates as a keypad or reader device. Reader LED and buzzer control, a tamper input, diagnostic indicators and a separately fused reader power input support professional alarm and access-control installations.

Key Capabilities

Wiegand Reader Integration

Connects supported third-party Wiegand proximity readers to compatible Bosch Solution alarm panels.

26-Bit to 40-Bit Support

Supports common Wiegand credential formats from 26-bit through to 40-bit.

Encrypted RS485 LAN

Communicates with the alarm panel through the Bosch encrypted RS485 system LAN.

Reader LED and Buzzer Control

Provides supported visual and audible feedback through compatible reader indicators and sounders.

System and Door Control

A connected reader can be configured for alarm area control, door access control or both where supported.

Diagnostic Indicators

Status, reader and error LEDs provide installation, communication and troubleshooting feedback.

Best For

  • Existing Wiegand Installations: Retains compatible readers and credentials when upgrading to a Bosch Solution 144 or Solution 6000 panel.
  • Commercial Alarm Systems: Suitable for offices, warehouses, retail premises and industrial facilities requiring reader-based system control.
  • Combined Alarm and Door Access: Supports applications where a reader is used for alarm area operation, door control or both.
  • HID and Third-Party Readers: Provides an interface for supported industry-standard Wiegand reader hardware.
  • Credential Migration Projects: Helps preserve compatible existing access cards rather than replacing every reader and credential.

Why Choose the CM796B

Choose the Bosch CM796B when a Solution 144 or Solution 6000 installation needs to use compatible third-party Wiegand readers instead of proprietary LAN readers. Its support for 26-bit to 40-bit formats makes it practical for sites with established reader hardware and credential databases. The module operates as a reader device on the encrypted RS485 LAN, records supported access events in the panel log and provides LED, buzzer and tamper integration. Separately fused reader power and onboard diagnostic indicators support easier installation and fault finding. Security Wholesalers supplies the CM796B for professional Bosch alarm and access-control integrations.

Buyer Decision Tips

Buyer Tip: Confirm that the existing proximity reader outputs a supported 26-bit to 40-bit Wiegand format and that its credential format is configured correctly in the panel.

Buyer Tip: Each CM796B consumes one keypad or reader address on the Bosch LAN, so allow for the total number of installed keypads and reader devices.

Power Note: Plan a suitable reader power supply and verify the current requirements of the reader, door lock and other connected equipment before installation.

Key Features & Technical Specifications

Product Type Wiegand to RS485 LAN interface module.
Model CM796B.
Alternate Product Reference CM796.
Manufacturer Part Number F.01U.287.314.
Brand Bosch Solution.
Compatible Panels Bosch Solution 144 and Solution 6000 control panels with supported firmware.
Minimum Solution 144 Firmware Version 2.08.
Minimum Solution 6000 Firmware Version 2.12.
Reader Interface Wiegand.
Supported Wiegand Formats 26-bit to 40-bit.
Panel Connection Encrypted RS485 LAN.
Device Programming Configured as a keypad or reader device through the panel’s Keypads and Readers programming menu.
Maximum Modules Up to 15 modules on a compatible Solution 144 or Solution 6000 system, subject to available device addresses and system configuration.
Addressing Rotary address selector with a unique LAN reader address required for each installed module.
Reader Functions Alarm area control, door access control or combined operation where configured.
Reader LED Control Supported for compatible Wiegand reader indicators.
Reader Buzzer Control Supported for compatible Wiegand reader sounders.
Event Logging Supported user access events can be stored in the control panel log and reported where configured.
Status Indicators Status, reader and error LEDs.
Tamper Input Normally closed tamper input, programmable through the panel and able to be shunted when unused.
Reader Power Input Separately fused external power input for the connected Wiegand reader.
Service Interface Connection point for a compatible installer service keypad.
Supply Voltage 10.0V DC to 14.5V DC.
Module Current Approximately 50mA, excluding the connected reader and other powered equipment.
Operating Temperature -30°C to 55°C.
PCB Dimensions Approximately 115mm × 86mm × 20mm.
Enclosure Space Occupies one module position in a compatible panel enclosure.
Surge Protection Designed with a high level of lightning and surge immunity.
Included Components Module PCB, mounting spacer pack, installer reference guide and two shunts or jumpers.
Items Not Included Wiegand reader, credentials, alarm panel, enclosure, power supply, door lock, cabling and other accessories are supplied separately unless included in another package.

Ideal Use Cases

Existing Reader Migration

Retain supported Wiegand readers and credentials when installing a compatible Bosch Solution panel.

Alarm Area Control

Allow authorised users to arm or disarm assigned areas through a compatible proximity reader.

Door Access Control

Use supported credentials to manage a compatible controlled door through the Bosch system.

Shared Credentials

Suitable where the same compatible credentials are intended for both building access and alarm operation.

Commercial Premises

Supports reader-controlled security for offices, warehouses, retail sites and industrial facilities.

Multi-Reader Systems

Multiple modules can be uniquely addressed across larger compatible Solution 144 and Solution 6000 installations.

Choosing the Right Model

  • Choose this module if: The system uses a Solution 144 or Solution 6000 panel and needs to accept a compatible 26-bit to 40-bit Wiegand reader.
  • Check panel firmware: Confirm that the panel meets the required firmware version before installation and programming.
  • Check credential format: Verify the reader output, card bit format, facility code and credential numbering before migrating users.
  • Check available addresses: Each module occupies a keypad or reader address and must use a unique address on the RS485 LAN.
  • Check power requirements: Size the external power supply for the connected reader, lock and any other equipment rather than relying on the panel LAN without calculation.

FAQs

  1. What does the Bosch CM796B module do?
    The CM796B converts the output from a compatible Wiegand proximity reader for communication over the Bosch encrypted RS485 LAN. This allows supported third-party readers and credentials to operate with compatible Solution 144 and Solution 6000 alarm panels.
  2. Which Wiegand formats does it support?
    The module supports Wiegand formats from 26-bit to 40-bit. The reader and credentials must use a compatible format, and the relevant bit structure, facility code and user details must be programmed correctly in the panel.
  3. Can the CM796B be used with both Solution 144 and Solution 6000 panels?
    Yes. It supports the Solution 144 from firmware version 2.08 and the Solution 6000 from firmware version 2.12. The panel firmware and programming options should be checked before installation.
  4. How many CM796B modules can be installed?
    Up to 15 modules are supported on a compatible Solution 144 or Solution 6000 system. Each module consumes one keypad or reader address, so the actual number available also depends on the other devices already connected to the LAN.
  5. Can a connected reader control the alarm and a door?
    Yes. Depending on panel programming and connected equipment, the reader can be configured for alarm area control, door access control or both. The door lock, power supply and required control hardware are supplied separately.
  6. Does the module control the reader’s LED and buzzer?
    Yes. The CM796B supports compatible reader LED and buzzer functions, allowing visual and audible feedback for system states and selected events. Available behaviour depends on the reader wiring and panel programming.
  7. Does the CM796B power the connected reader?
    The module provides a separately fused external power input for the Wiegand reader. A suitable power supply should be selected according to the reader, lock and total system current requirements.
  8. What should I check before buying the CM796B?
    Confirm the panel model and firmware, reader Wiegand format, credential structure, available LAN address, reader power requirements and planned alarm or door-control functions. Security Wholesalers can supply the module for compatible Bosch Solution installations.
