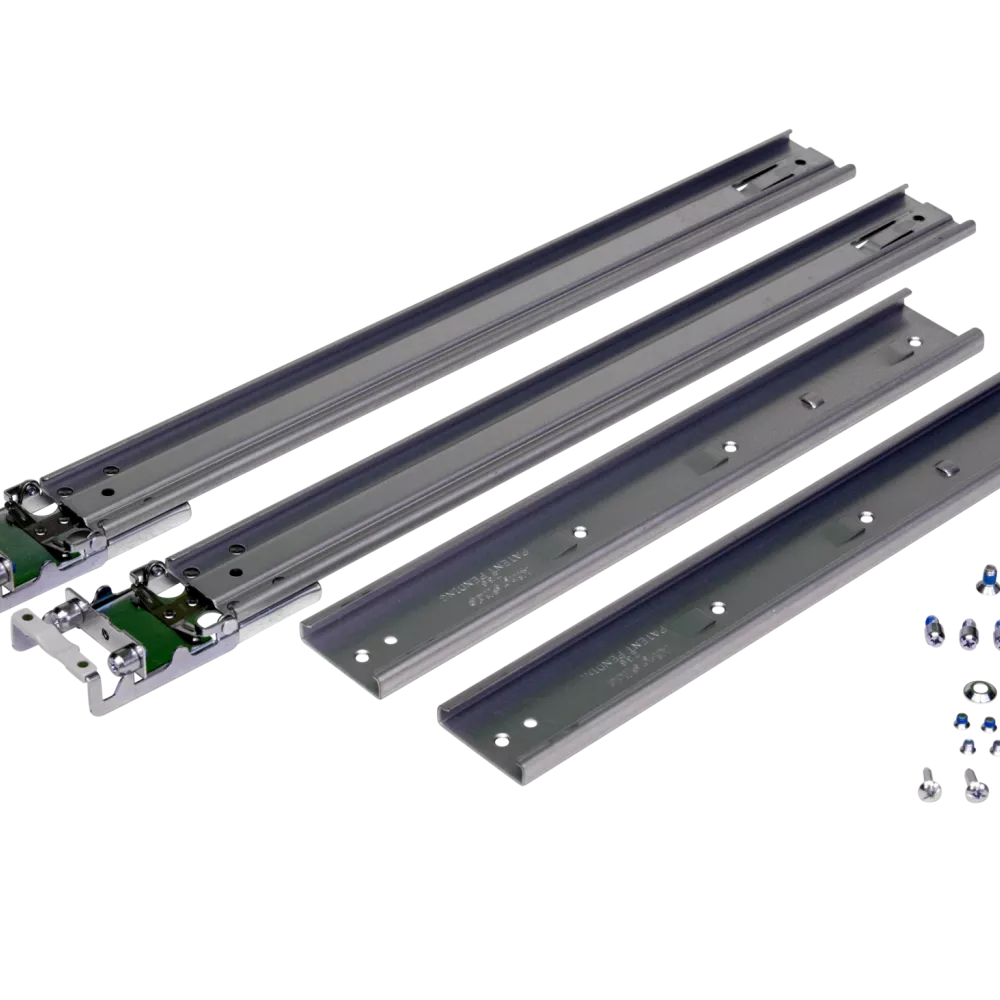

AXIS TS3901 Rail Extensions
The AXIS TS3901 Rail Extensions are genuine AXIS mounting accessories designed for deeper rack installations. They allow the AXIS S3016 Recorder to be mounted securely in server racks where the distance between the front and rear rack posts is greater than what the standard rail kit can support.
These rail extensions are intended for server racks with a post-to-post distance between 499mm and 689mm. This makes them useful for installations where the recorder is being mounted inside a deeper communications cabinet, server rack, security equipment cabinet, or enterprise rack environment.
Designed for Deep Server Racks
In many CCTV and network security installations, the recorder is mounted in a rack alongside switches, patch panels, UPS equipment and other network hardware. Standard rack rails may not always suit deeper racks, especially where the rear posts sit further back than normal. The AXIS TS3901 Rail Extensions solve this by extending the mounting range for compatible AXIS recorders.
AXIS specifies that the standard rails can be used without extensions when the rack post-to-post distance is between 376mm and 499mm. If the distance is between 499mm and 689mm, the AXIS TS3901 Rail Extensions are required. The post-to-post measurement is taken between the outside-facing surfaces of the front and rear rack posts.
Compatible AXIS Products
The AXIS TS3901 Rail Extensions are listed by AXIS as compatible with the following network video recorder products:
- AXIS S3016 Recorder
- AXIS S4000 Rack Recorder
These extensions are particularly relevant when installing an AXIS S3016 Recorder into a deeper rack cabinet where the original rails do not reach the rear mounting posts.
When Should You Use AXIS TS3901 Rail Extensions?
You should consider the AXIS TS3901 Rail Extensions if your AXIS recorder is being installed into a deeper rack and the standard rails do not line up correctly with the rear posts. This is common in larger comms cabinets and server racks used in commercial, industrial, education, healthcare and enterprise security environments.
They are especially useful for neat, professional rack mounting where the recorder needs to be properly supported from both the front and rear of the rack rather than simply resting on a shelf.
Key Features
- Genuine AXIS rail extension kit
- Designed for deep server rack installations
- Allows AXIS S3016 Recorder to be mounted in racks with 499–689mm post-to-post distance
- Standard rails can be used without extensions for 376–499mm rack depth
- Compatible with AXIS S3016 Recorder and AXIS S4000 Rack Recorder
- Useful for professional rack-mounted CCTV and network video systems
- AXIS part number: 02528-001
Professional Rack Installation Accessory
For commercial CCTV systems, rack mounting is often preferred because it keeps the recorder protected, organised and serviceable. The AXIS TS3901 Rail Extensions help ensure the recorder is installed properly in deeper racks, reducing the need for improvised mounting methods or unsupported equipment placement.
By using the correct AXIS rail extension accessory, installers can achieve a cleaner rack layout and better physical support for the recorder, particularly in installations where the rack depth exceeds the standard rail range.
Part Number
AXIS TS3901 Rail Extensions
Part Number: 02528-001
Ideal For
- AXIS recorder installations in deep server racks
- Commercial CCTV rack cabinets
- Enterprise security rooms
- Network video recorder rack mounting
- Professional security system installations
- Projects using AXIS S3016 or AXIS S4000 rack-mounted recorders
FAQs
What are the AXIS TS3901 Rail Extensions used for?
They are used to mount compatible AXIS recorders in deeper server racks where the original rack rails are not long enough.
Which recorder is the AXIS TS3901 Rail Extensions mainly designed for?
AXIS describes the TS3901 Rail Extensions as allowing the AXIS S3016 Recorder to be mounted in deep server racks.
What rack depth does the AXIS TS3901 support?
The AXIS TS3901 Rail Extensions support rack installations with a post-to-post distance between 499mm and 689mm.
Do I always need the AXIS TS3901 Rail Extensions?
No. AXIS states that the original rails can be used without extensions when the rack post-to-post distance is between 376mm and 499mm.
How is the rack post-to-post distance measured?
AXIS states that the post-to-post distance is measured between the outside-facing surface of the front and rear rack posts.
Is the AXIS TS3901 compatible with the AXIS S3016 Recorder?
Yes. AXIS lists the AXIS S3016 Recorder as a compatible product for the AXIS TS3901 Rail Extensions.
Is the AXIS TS3901 compatible with the AXIS S4000 Rack Recorder?
Yes. AXIS also lists the AXIS S4000 Rack Recorder as a compatible product.
What is the AXIS part number?
The AXIS part number for the AXIS TS3901 Rail Extensions is 02528-001.
Are these suitable for normal shallow racks?
They are not usually required for shallower racks. If the rack post-to-post distance is within the standard rail range of 376mm to 499mm, the original rails can be used without extensions.
Why use rail extensions instead of a rack shelf?
Rail extensions provide a cleaner and more secure rack-mounted installation for compatible AXIS recorders. A shelf may work in some situations, but rail mounting is generally preferred when the recorder is designed to be supported by rack rails.
