Product SKU: TQ3204-E
Product Overview

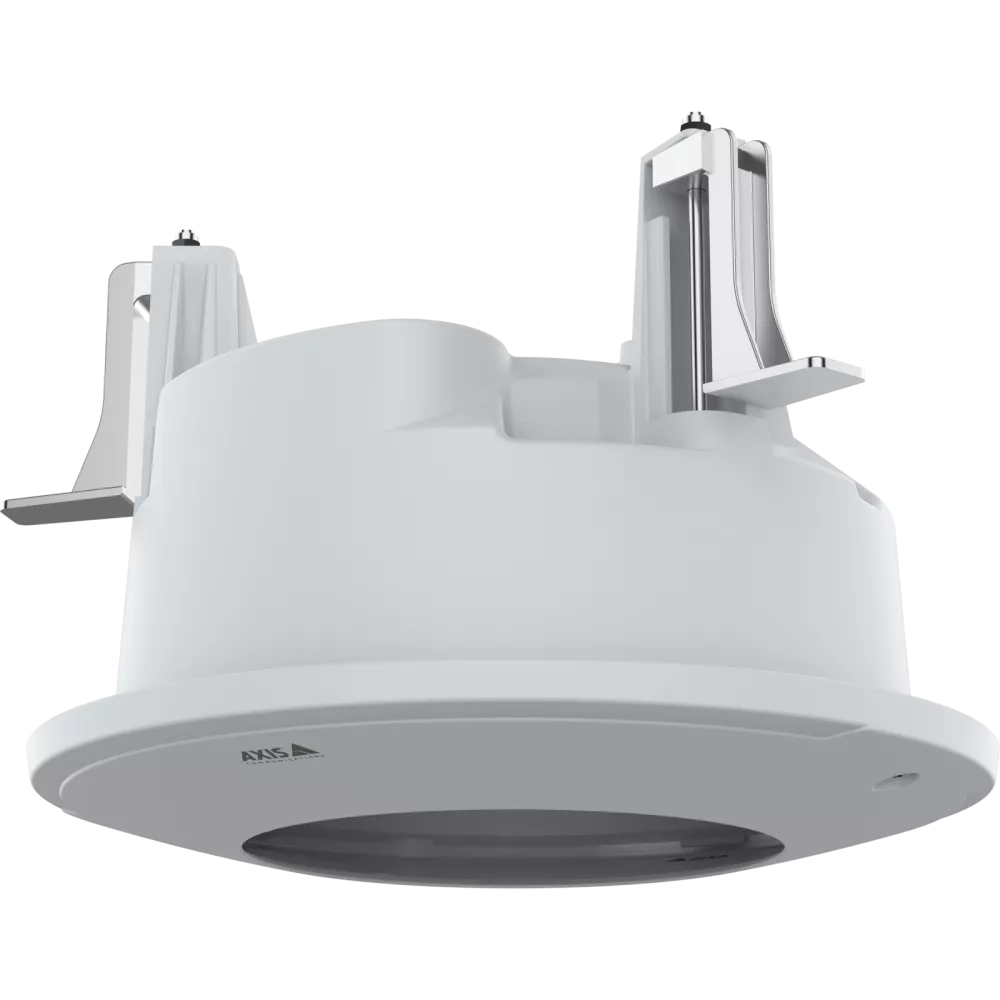

Recessed ceiling installations demand a mount that can disappear into the surface while still holding up in outdoor conditions. The AXIS TQ3204-E (part number 03249-001) is purpose-built for exactly this, allowing the AXIS Q3546-LVE, Q3556-LVE, and Q3558-LVE dome cameras to sit flush or near-flush with the mounting surface without compromising protection. Built from durable metal and high-strength polymer, it carries an IP66 weather resistance rating and IK10 impact protection, making it suitable for exposed outdoor soffits, covered walkways, and architectural facades where both the environment and aesthetics are demanding. A sealing gasket is included to maintain the IP66 rating at the camera-to-mount interface. For installers working on projects where ceiling-mounted cameras must blend into the structure rather than protrude from it, the TQ3204-E provides the mechanical and weatherproof foundation to do that correctly.
Key Capabilities
Recessed Flush-Mount Profile
Designed to sit the Q35-LVE dome nearly flush with the ceiling or soffit surface. This recessed installation style removes the protruding camera housing from sight lines, making it a practical choice for architectural environments where visual impact matters.
IP66 Weather Resistance
Rated IP66, this mount protects against powerful water jets and driving rain, maintaining integrity in fully exposed outdoor positions. Combined with the included sealing gasket, the camera-to-mount interface retains its weatherproof rating throughout the installation’s service life.
IK10 Impact Protection
The IK10 rating confirms resistance to high-impact force, relevant in public-facing locations such as transport hubs, retail precincts, and building exteriors where incidental or deliberate physical contact with the mount housing is a real consideration.
Purpose-Built Camera Compatibility
Engineered specifically for the AXIS Q3546-LVE, Q3556-LVE, and Q3558-LVE cameras. This ensures correct physical fit, preserved sealing integrity, and alignment with AXIS mounting specifications rather than relying on a generic bracket that may compromise performance.
Best For
- Architectural Outdoor Ceilings: The recessed profile keeps the camera housing below the ceiling plane, making it appropriate for modern building facades, covered entry points, and feature soffits where standard surface-mount brackets would look out of place.
- High-Traffic Public Environments: IK10 impact resistance makes this mount suitable for transport terminals, retail centres, and public walkways where the mounting hardware may be subject to physical contact or deliberate interference.
- Exposed Outdoor Positions: IP66 weather protection and a sealing gasket make this appropriate for uncovered or semi-covered outdoor ceiling positions where moisture ingress is a genuine risk.
Why Choose the AXIS TQ3204-E
The AXIS TQ3204-E is not a universal bracket. It is engineered specifically for the Q3546-LVE, Q3556-LVE, and Q3558-LVE camera bodies, which means the physical fit, sealing interface, and structural alignment are all designed to preserve those cameras’ IP66 and IK10 ratings rather than potentially undermining them with an incompatible aftermarket option. The recessed installation design is a genuine differentiator for projects where the camera profile needs to integrate into the ceiling rather than extend below it. A standard surface-mount approach on the same camera would produce a very different visual outcome in a finished architectural space. Built from metal and high-strength polymer, this mount is rated for outdoor use without degradation from UV or moisture exposure over time. For installers supplying Q35-LVE camera projects, the TQ3204-E is available through Security Wholesalers as part of the broader AXIS accessories range.
Buyer Decision Tips
Buyer Tip: The TQ3204-E is only compatible with the Q3546-LVE, Q3556-LVE, and Q3558-LVE camera models. Before ordering, confirm your ceiling or soffit construction is suitable for recessed installation, as the mount requires a cavity behind the surface to accommodate the camera body. On metal pan ceilings or composite soffits, ensure appropriate conduit isolation is applied during installation to avoid galvanic corrosion at the contact point.
Key Features & Technical Specifications
| Part Number |
03249-001 |
| Mount Type |
Outdoor recessed ceiling mount |
| Compatible Cameras |
AXIS Q3546-LVE, Q3556-LVE, Q3558-LVE |
| Weather Protection |
IP66 |
| Impact Rating |
IK10 |
| Construction Materials |
Metal and high-strength polymer |
| Sealing Gasket Included |
Yes |
| Installation Type |
Recessed / flush ceiling |
| Environment Rating |
Outdoor |
| Brand |
AXIS Communications |
Ideal Use Cases
Outdoor Retail Soffits
Retail precincts and shopping centre exteriors often require cameras that sit within the ceiling line rather than hanging below it. The TQ3204-E’s recessed design and IP66 rating make it a practical fit for soffit installations at entry canopies and covered walkways.
Public Transport Terminals
Bus terminals, train station platforms, and ferry terminals require mounting hardware that can handle both outdoor weather exposure and the physical demands of high-traffic public spaces. The IK10 rating addresses impact resistance in these environments directly.
Architectural Building Facades
Modern commercial and civic buildings where surveillance must be integrated without disrupting the design aesthetic benefit from the flush-mount profile. The TQ3204-E allows Q35-LVE cameras to be installed into ceiling skins with minimal visual intrusion.
Covered Outdoor Entry Points
Building entries, porte-cocheres, and undercover carparks with exposed ceiling structures benefit from the IP66 sealing and recessed format, keeping the camera body protected from moisture while maintaining a tidy overhead installation.
Choosing the Right Model
- Choose this model if: You are installing an AXIS Q3546-LVE, Q3556-LVE, or Q3558-LVE in an outdoor ceiling position where a recessed, low-profile appearance is required and the surface construction allows for a recessed cavity.
- Choose a different model if: Your ceiling surface does not allow recessed installation, in which case a surface pendant or wall bracket designed for these cameras would be more appropriate. This mount is also not compatible with AXIS camera models outside the Q3546-LVE, Q3556-LVE, and Q3558-LVE range.
FAQs
- Which AXIS cameras is the TQ3204-E compatible with?
The TQ3204-E is designed specifically for the AXIS Q3546-LVE, Q3556-LVE, and Q3558-LVE dome cameras. It is not a universal mount and should not be used with other AXIS camera models, as physical fit and sealing integrity are matched to this specific camera family.
- Does the TQ3204-E maintain the camera’s IP66 rating when installed?
Yes. The mount is IP66 rated and includes a sealing gasket at the camera interface to preserve weatherproof integrity. Provided the installation is carried out correctly and the gasket is seated properly, the assembled unit retains the IP66 rating against water ingress.
- What type of ceiling construction is this mount suited to?
The TQ3204-E requires a ceiling or soffit with sufficient depth behind the mounting surface to accommodate the recessed camera body. It suits concrete soffits, timber-framed ceilings with appropriate sheeting, and composite soffit panels. On metal ceilings, conduit isolation is recommended to prevent galvanic corrosion at the contact point between the metal mount and the ceiling skin.
- What is the IK10 rating relevant to for an outdoor mount?
IK10 is the highest standardised rating for protection against mechanical impact, confirming resistance to a defined high-energy impact force. For an outdoor ceiling mount in a public-facing location such as a transport terminal, retail precinct, or covered carpark, this matters because the mounting hardware can be subject to physical contact, ladder contact during cleaning, or deliberate interference.
- Where can I purchase the AXIS TQ3204-E in Australia?
The TQ3204-E is part of the Security Wholesalers range of AXIS accessories and is available for trade purchase. It is supplied as a purpose-built mounting accessory for the Q35-LVE camera family and is stocked to support professional installation projects requiring the recessed outdoor format.
Additional Information
No additional downloads available for this product.
