Product SKU: TQ3103-E
Product Overview

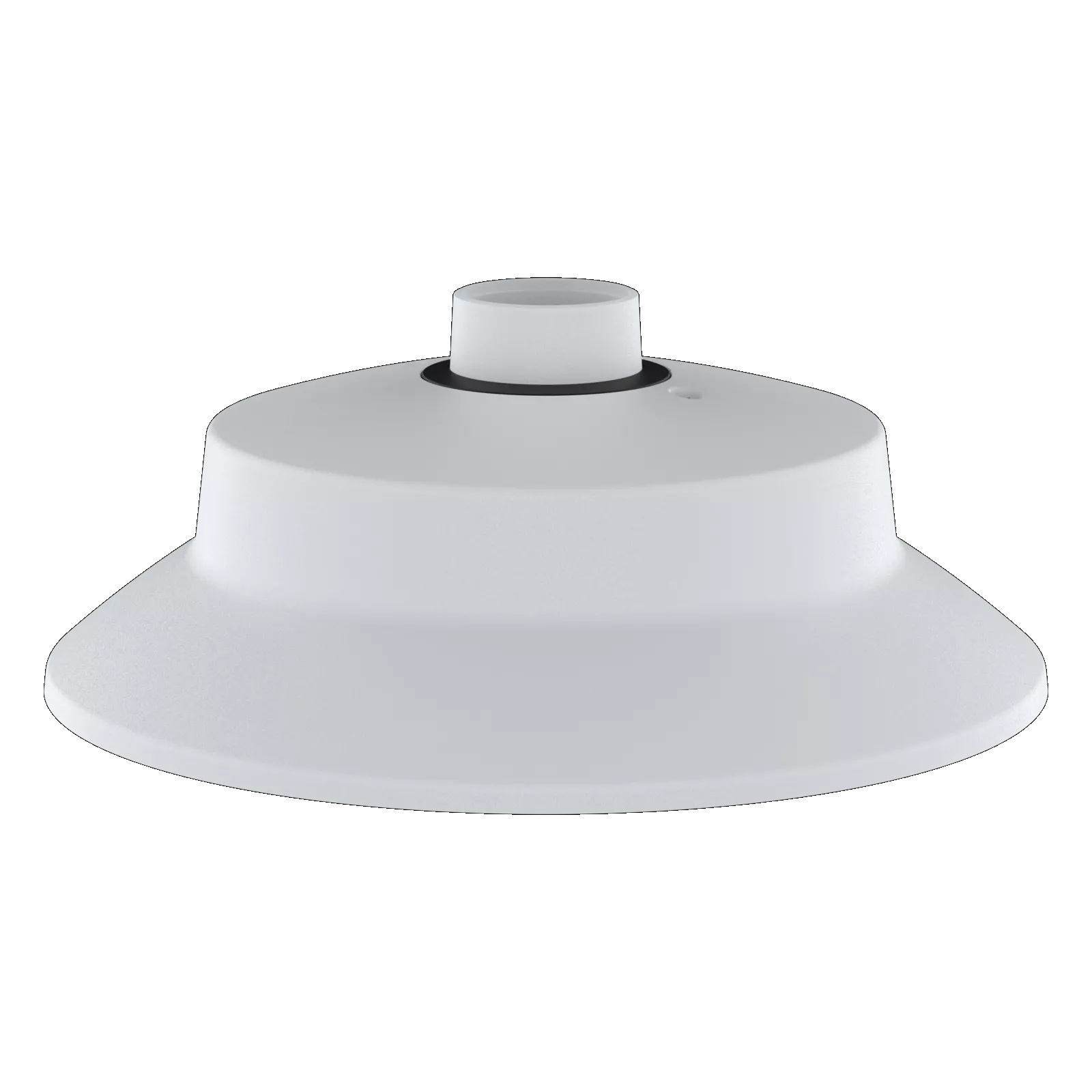

Installers working on outdoor dome camera deployments with selected Axis Q35 and Q36 Series models will find the AXIS TQ3103-E Pendant Kit is the purpose-built connection between compatible dome cameras and 1.5-inch NPS threaded mounting brackets. Built for outdoor-ready use, it provides improved weather protection for compatible dome camera installations and expands mounting flexibility across poles, parapets, outer corners, walls and ceiling bracket systems. Featuring compatibility with models including the AXIS Q3546-LVE, Q3548-LVE, Q3556-LVE, Q3558-LVE, Q3626-VE and Q3628-VE, it works with a broad range of Axis wall, ceiling, pole, corner and parapet mounting accessories. This makes it suitable for commercial buildings, car parks, campuses, industrial sites, transport areas and any outdoor surveillance environment where bracket-based pendant mounting is required for correct camera positioning and weather protection.
Key Capabilities
Outdoor-Ready Pendant Mounting
The TQ3103-E is designed for outdoor-ready installation of selected Axis dome cameras. Its improved weather protection helps support long-term camera performance in exposed or semi-exposed locations such as building exteriors, car parks, covered entries and industrial sites where direct surface mounting is not practical or sufficient.
1.5-Inch NPS Threaded Bracket Support
Designed for connection to 1.5-inch NPS threaded brackets, the TQ3103-E integrates with a wide range of Axis wall, ceiling, pole, corner and parapet mounting accessories. This gives installers the flexibility to match one compatible dome camera to multiple mounting configurations across different site layouts.
Pole, Parapet and Corner Mounting
When paired with compatible Axis brackets, the pendant kit enables selected dome cameras to be positioned on poles, parapets and outer building corners. This is especially useful where standard ceiling or wall surface mounting cannot deliver the required field of view for perimeter, entrance or facade coverage.
Selected Q35 and Q36 Series Compatibility
The TQ3103-E supports selected Axis Q35 Series models including the Q3546-LVE, Q3548-LVE, Q3556-LVE and Q3558-LVE, and Q36 Series models including the Q3626-VE and Q3628-VE. Compatibility should always be confirmed against the target camera model before ordering or commencing installation.
Broad Axis Mount Ecosystem Integration
The kit is designed to work within the Axis mounting accessory ecosystem, supporting compatibility with ceiling mounts, wall mounts, pole mounts, corner mounts, parapet mounts, extension pipes and the AXIS Bird Control Spike. This modular system approach allows installers to adapt a single compatible camera to varied site requirements.
Best For
- Outdoor Dome Camera Deployments: Provides improved weather protection for compatible Axis Q35 and Q36 Series dome cameras installed in exposed or semi-exposed outdoor locations.
- Pole and Parapet Installations: Enables selected dome cameras to be mounted from poles and parapets via compatible Axis brackets, supporting perimeter and rooftop surveillance positioning.
- Building Corner Coverage: Allows compatible dome cameras to be mounted on outer corners where standard flat surface mounting would restrict the camera’s field of view.
- Retrofit and Multi-Surface Projects: Compatibility with the AXIS 1.5-inch NPS/NPT Male Coupler helps support retrofit scenarios where existing bracket infrastructure needs to be adapted for compatible Axis dome cameras.
Why Choose the AXIS TQ3103-E
The AXIS TQ3103-E Pendant Kit delivers something a generic mounting adapter cannot: Axis-approved compatibility with selected Q35 and Q36 Series dome cameras, designed to work precisely within the Axis mounting accessory ecosystem. The 1.5-inch NPS threaded connection ensures a clean, secure fit across compatible wall, ceiling, pole, corner and parapet brackets rather than relying on workarounds. Its outdoor-ready build with improved weather protection makes it suitable for exposed installation positions that would compromise a standard indoor or non-rated mounting approach. The 5-year warranty supports confidence in long-term installations. For professional installers planning outdoor dome camera deployments across car parks, campuses, industrial facilities or building perimeters, the TQ3103-E is available through Security Wholesalers as part of a complete Axis mounting accessory range.
Buyer Decision Tips
Confirm the Full Mounting Chain Before Ordering: The TQ3103-E works as the connecting component between a compatible dome camera and a 1.5-inch NPS threaded bracket. Before ordering, confirm the exact dome camera model, the intended bracket type (wall, ceiling, pole, corner or parapet mount), the cable routing path, and whether any extension pipe or additional accessory such as the AXIS Bird Control Spike is needed. Installing with an incompatible camera or bracket type will prevent a successful fit.
Key Features & Technical Specifications
| Model |
AXIS TQ3103-E Pendant Kit |
| Part Number |
02855-001 |
| Product Type |
Pendant Kit for Selected Axis Dome Cameras |
| Primary Function |
Connects selected Axis dome cameras to 1.5-inch NPS threaded mounting brackets |
| Installation Environment |
Outdoor-ready |
| Weather Protection |
Improved weather protection for compatible dome camera installations |
| Thread Support |
1.5-inch NPS threaded bracket mounting |
| Supported Mounting Positions |
Poles, parapets, outer corners, walls, ceilings and other compatible bracket-based installations |
| Compatible Dome Cameras (Current) |
AXIS Q3546-LVE, AXIS Q3548-LVE, AXIS Q3556-LVE, AXIS Q3558-LVE, AXIS Q3626-VE, AXIS Q3628-VE |
| Compatible Dome Cameras (Discontinued) |
AXIS Q3536-LVE, AXIS Q3538-LVE |
| Retrofit Accessory |
AXIS 1.5-inch NPS/NPT Male Coupler |
| Compatible Ceiling Mounts |
AXIS T91B50 Telescopic Ceiling Mount, AXIS T91B51 Ceiling Mount, AXIS T91B63 Ceiling Mount |
| Compatible Wall Mounts |
AXIS T91D61 Wall Mount, AXIS T91H61 Wall Mount, AXIS TP1001-E Wall-and-Pole Mount, AXIS TP3004-E Wall Mount Black |
| Compatible Pole and Corner Mounts |
AXIS T91B67 Pole Mount, AXIS TP3301-E Pole Mount Black, AXIS TP3302-E Corner Mount |
| Compatible Extension Pipes |
AXIS TP3908-E Extension Pipe White in 15cm, 30cm and 100cm options |
| Compatible Parapet Mounts |
AXIS T91D62 Telescopic Parapet Mount, AXIS TQ6501-E Parapet Mount |
| Optional Accessory |
AXIS Bird Control Spike |
| Warranty |
5 years |
Ideal Use Cases
Car Parks and Open Campuses
Pole mounting via the TQ3103-E and a compatible Axis pole mount allows selected dome cameras to be positioned centrally across open areas such as car parks, university campuses and public spaces where wall or ceiling surfaces are not accessible.
Building Perimeter and Rooftop Edges
Parapet mounting with the TQ3103-E enables selected Axis Q35 and Q36 Series dome cameras to be directed outward from rooftop edges, supporting perimeter surveillance across building facades, external walkways and entry approaches.
Outer Corner Coverage
The TQ3103-E combined with the AXIS TP3302-E Corner Mount allows compatible dome cameras to be positioned on outer building corners, providing wider angular coverage across two adjacent sides of a building exterior, yard or facility entrance.
Industrial Sites and Warehouses
The outdoor-ready design and improved weather protection make the TQ3103-E suitable for industrial yards, loading areas and warehouse exteriors where cameras are exposed to changing weather and need secure bracket-based mounting away from standard surfaces.
Retail Exteriors and Commercial Entrances
For shopfronts, commercial building entries and retail forecourts, the TQ3103-E allows compatible dome cameras to be pendant-mounted from wall or ceiling brackets with weather protection, providing cleaner installation outcomes than surface-only mounting solutions.
Choosing the Right Model
- Choose this model if: You are installing a confirmed compatible Axis Q35 or Q36 Series dome camera and need outdoor-ready pendant mounting on a 1.5-inch NPS threaded bracket, including pole, parapet, corner, wall or ceiling mount configurations.
- Choose a different model if: Your dome camera is not listed as a compatible model for the TQ3103-E, or if your installation site uses a different bracket thread standard. Axis provides other pendant kit and mounting accessory options for different camera families and mounting specifications.
- Consider adding: An extension pipe (AXIS TP3908-E in 15cm, 30cm or 100cm) if the camera needs to be positioned further from the bracket attachment point, or the AXIS Bird Control Spike for outdoor installations in areas with bird activity.
FAQs
- What exactly does the AXIS TQ3103-E Pendant Kit do?
The TQ3103-E acts as the connecting component between selected Axis dome cameras and compatible 1.5-inch NPS threaded mounting brackets. It enables pendant-style outdoor installation and provides improved weather protection for the dome camera at the bracket connection point. Without it, the compatible dome cameras cannot attach to 1.5-inch NPS bracket-based mounts.
- Which Axis dome cameras are confirmed as compatible with the TQ3103-E?
Current compatible models listed by Axis include the AXIS Q3546-LVE, Q3548-LVE, Q3556-LVE, Q3558-LVE, Q3626-VE and Q3628-VE. Discontinued models include the AXIS Q3536-LVE and Q3538-LVE. Always confirm the target camera model against the Axis compatibility list before installing.
- Is the TQ3103-E suitable for exposed outdoor mounting positions?
Yes. The TQ3103-E is outdoor-ready and provides improved weather protection for compatible Axis dome camera installations. It is appropriate for exposed or semi-exposed locations including building exteriors, car parks, industrial yards, rooftops and pole-mounted positions when used with the correct compatible camera and bracket.
- What type of thread does the TQ3103-E use and why does it matter?
The TQ3103-E uses a 1.5-inch NPS threaded connection. This thread standard must match the selected bracket accessory for a secure fit. Axis wall mounts, ceiling mounts, pole mounts, corner mounts, parapet mounts and extension pipes that carry this thread specification are confirmed compatible with the TQ3103-E.
- Can the TQ3103-E be used with extension pipes to position the camera further from the bracket?
Yes. The AXIS TP3908-E Extension Pipe is listed as a compatible accessory and is available in 15cm, 30cm and 100cm lengths. This allows the camera to be extended away from the bracket attachment surface, which is useful when positioning around structural obstructions or achieving a specific downward angle.
- What should be planned before purchasing the AXIS TQ3103-E?
Confirm the exact dome camera model to ensure it is listed as compatible. Identify the bracket type needed for the installation surface (wall, ceiling, pole, corner or parapet). Check the cable routing path, outdoor exposure requirements, and whether any additional accessories such as extension pipes, the AXIS Bird Control Spike or the AXIS 1.5-inch NPS/NPT Male Coupler are required. The TQ3103-E is available through Security Wholesalers alongside compatible Axis mounting accessories to help complete the installation plan.
