Product SKU: TQ1503-E
Product Overview

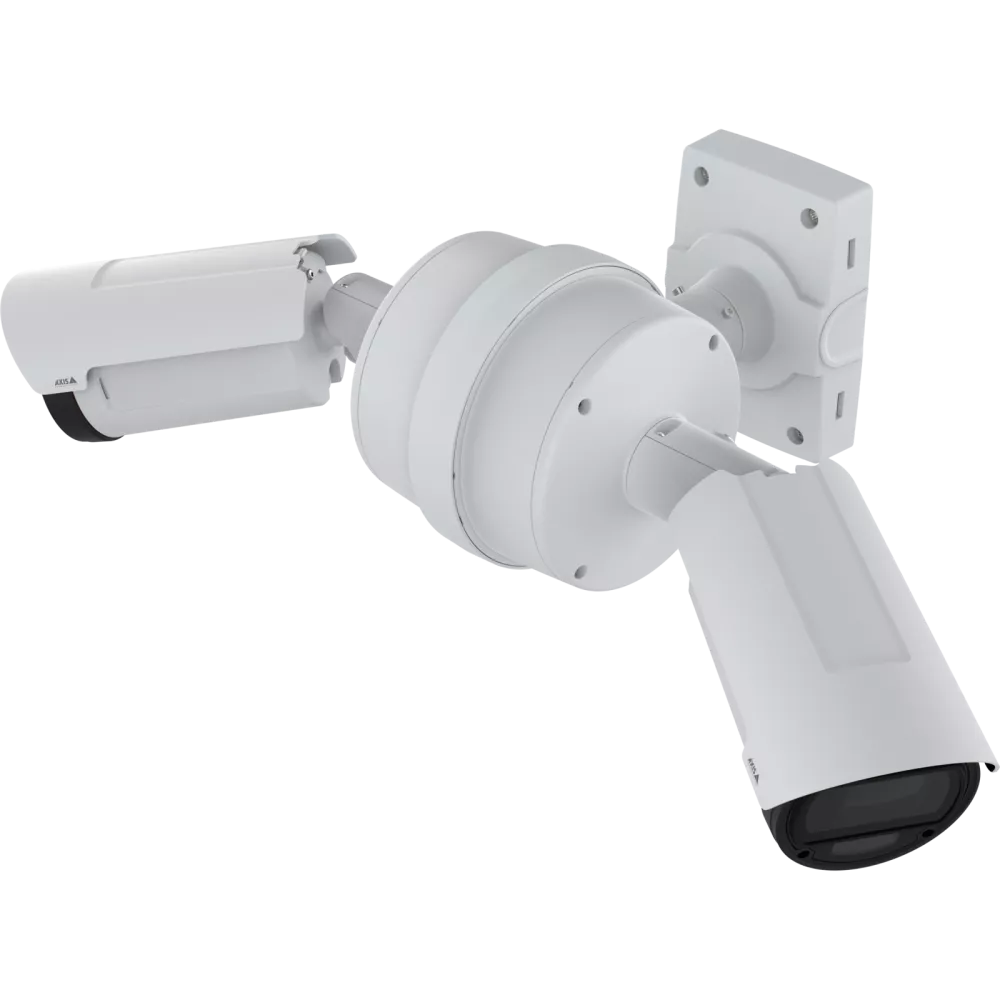

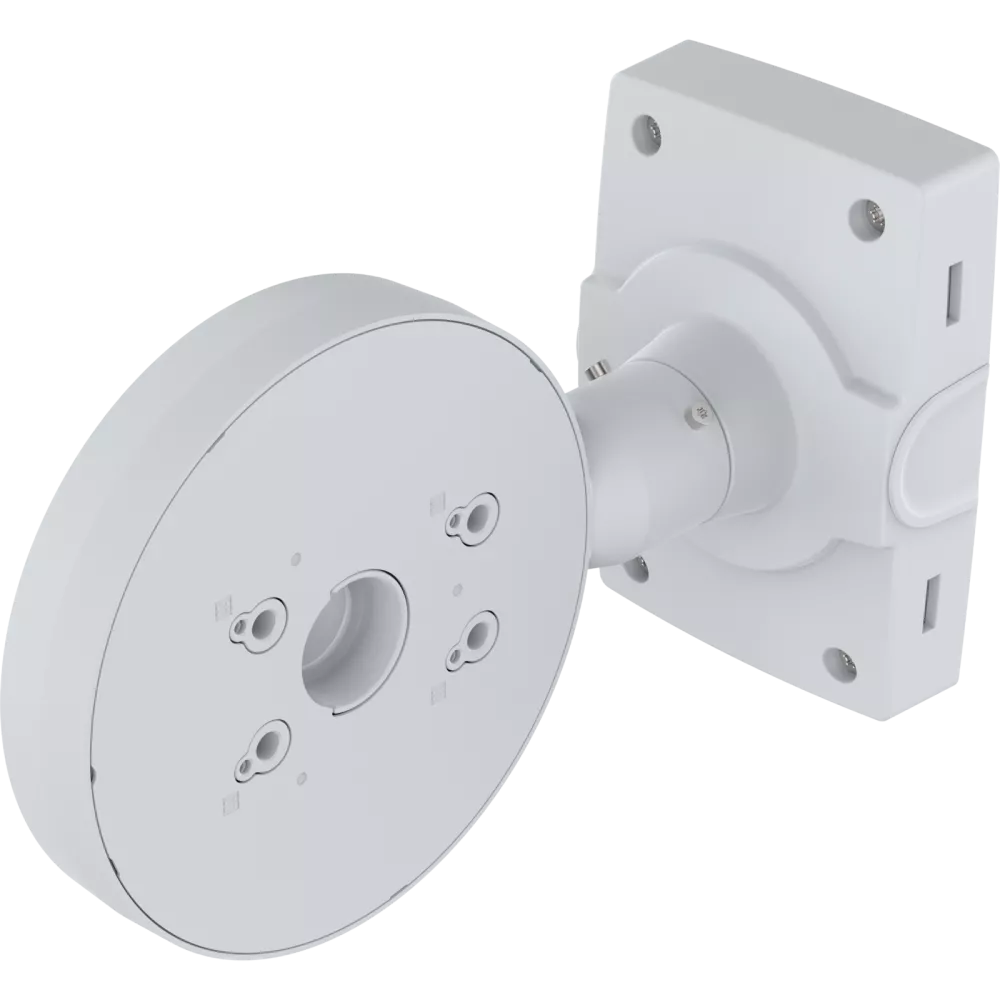

For installers needing dual-direction surveillance coverage from a single mounting point, the AXIS TQ1503-E Dual Camera Mount provides a back-to-back bracket solution for deploying two Axis network cameras simultaneously. Designed to suit both indoor and outdoor environments, this bracket eliminates the need for separate mounting infrastructure for opposing camera angles, reducing installation hardware and keeping the finish clean and professional. Featuring IK10-rated impact resistance, the TQ1503-E is suited to demanding locations where vandalism or physical contact is a risk. Built-in cable management support keeps cabling routed neatly behind the assembly, which is particularly useful in publicly visible installations. Compatible with a range of Axis dome, bullet, and fixed camera models, it is well suited to open-area sites such as transport terminals, sporting venues, large retail complexes, and industrial perimeter lines where overlapping dual coverage must be achieved efficiently.
Key Capabilities
Back-to-Back Dual Camera Design
The TQ1503-E positions two cameras facing opposite directions from a single bracket assembly, allowing installers to achieve bidirectional or wide-area coverage without doubling the mounting hardware or drilling additional fixing points into walls, poles, or ceilings.
IK10 Impact Resistance
With an IK10 vandal-resistance rating, the mount is built to withstand deliberate physical impact. This makes it appropriate for transport hubs, sports facilities, and outdoor perimeter locations where the bracket is exposed and unguarded.
Indoor and Outdoor Suitability
The TQ1503-E is built for use in both indoor and outdoor settings, giving installers a single bracket solution that works across mixed environments such as covered walkways, building facades, and internal atrium ceilings.
Integrated Cable Management
Cable routing is supported within the bracket assembly, keeping network or power cabling contained and out of sight. This contributes to a cleaner finished installation and reduces the risk of cable damage or tampering in exposed locations.
Best For
- Perimeter and Entry Point Monitoring: The back-to-back layout allows two cameras to face opposing directions simultaneously, covering both approaching and departing traffic from a single pole or wall position.
- High-Footfall Public Environments: IK10 impact resistance makes the TQ1503-E appropriate for stadiums, transit stations, and shopping centres where the mount may be exposed to accidental or deliberate contact.
- Reduced Infrastructure Installations: Where fewer mounting structures are preferred for aesthetic or structural reasons, the dual camera design consolidates two camera positions into one bracket footprint.
- Professional Commercial Fitouts: Integrated cable management and a clean bracket profile support professional-grade installation finishes across commercial, retail, and institutional projects.
Why Choose the AXIS TQ1503-E
The AXIS TQ1503-E addresses a specific installation challenge: deploying two cameras in opposing directions without separate brackets, conduit runs, or mounting structures. The back-to-back design consolidates this into a single, mechanically straightforward assembly that saves both time and hardware costs on multi-camera projects. The IK10 impact rating sets it apart from standard camera mounts, making it genuinely usable in locations where a lower-rated bracket would be vulnerable. Integrated cable management is not always present in basic mounting brackets, and its inclusion here matters in professionally presented sites. Confirmed compatibility with Axis dome, bullet, and fixed camera models gives installers flexibility in camera selection without changing the bracket. The TQ1503-E is available through Security Wholesalers as part of the AXIS mounting and accessories range, suited to commercial and institutional CCTV projects.
Buyer Tip: Always confirm the specific Axis camera models you intend to mount with this bracket before ordering. While the TQ1503-E is designed for a broad range of Axis network cameras, not every Axis model is confirmed compatible. Check the AXIS product compatibility documentation for the TQ1503-E to verify your chosen cameras will fit before committing to the installation layout.
Key Features & Technical Specifications
| Product Name |
AXIS TQ1503-E Dual Camera Mount |
| SKU |
TQ1503-E |
| Mounting Configuration |
Back-to-back dual camera bracket |
| Number of Cameras Supported |
2 |
| Impact Resistance Rating |
IK10 |
| Installation Environment |
Indoor and outdoor |
| Cable Management |
Integrated cable routing support |
| Compatible Camera Brands |
Axis network cameras |
| Compatible Camera Types |
Dome, bullet, and fixed camera models (confirm per model) |
| Included Hardware |
Mounting plate, bracket assembly, screws, fixing hardware, cable management accessories, installation documentation |
| Product Category |
Camera mounting bracket / accessory |
| Brand |
AXIS Communications |
Ideal Use Cases
Transport Terminals and Stations
Rail platforms, bus interchanges, and ferry terminals benefit from the back-to-back layout, which lets 2 cameras monitor opposing ends of a platform or concourse from a single overhead or pillar-mounted bracket position.
Stadiums and Sporting Venues
High-footfall venues require vandal-rated hardware. The IK10-rated TQ1503-E handles the physical demands of crowd environments while providing dual-direction camera coverage at concourse entry and exit points.
Industrial Perimeter Lines
At fence lines or vehicle access gates, mounting 2 cameras back-to-back on a single post covers inbound and outbound movement without requiring separate bracket installations at each direction of travel.
Large Retail and Shopping Centres
Internal or covered external walkways with foot traffic flowing in both directions are well served by a back-to-back bracket configuration, minimising visible infrastructure while maintaining full corridor coverage.
Choosing the Right Model
- Choose this model if: You need to mount 2 Axis cameras back-to-back from a single bracket point, particularly in outdoor or high-risk locations where IK10 impact resistance is required.
- Choose a different model if: You only need to mount a single camera, or if your cameras require a specific pole-top, corner, or ceiling mount configuration that the back-to-back layout does not accommodate. A single-camera wall or ceiling bracket would be more appropriate in those cases.
- Choose a different model if: Your chosen camera models are not confirmed as compatible with the TQ1503-E. Always verify camera-to-mount compatibility using AXIS documentation before ordering.
FAQs
- How many cameras can the AXIS TQ1503-E support?
The TQ1503-E is designed to support 2 Axis network cameras mounted back-to-back on a single bracket assembly. This allows both cameras to be positioned facing opposite directions from one central mounting point, reducing the number of individual brackets and wall fixings required across a site.
- Is the TQ1503-E suitable for outdoor installation?
Yes. The TQ1503-E is confirmed suitable for both indoor and outdoor use. It carries an IK10 impact resistance rating, making it appropriate for exposed outdoor environments where the bracket may be subject to physical contact or vandalism, such as transport hubs, perimeter fencing, and open car parks.
- What does the IK10 rating mean for this bracket?
IK10 is the highest level of the IK impact protection scale, indicating the bracket can withstand significant mechanical impact. For a camera mount, this matters in locations where the hardware is within reach of the public or exposed to rough handling during maintenance, making it more durable than standard unrated mounting hardware.
- Which Axis camera models are compatible with the TQ1503-E?
The TQ1503-E is designed for use with a range of Axis dome, bullet, and fixed network cameras. However, not all Axis models are confirmed compatible. Before ordering, check the AXIS TQ1503-E compatibility list on the AXIS Communications website or consult Security Wholesalers to confirm your intended camera models will suit this bracket.
- Does the TQ1503-E include cable management for both cameras?
Yes. The bracket assembly includes integrated cable management accessories designed to route cabling neatly within the mount structure. This supports a tidy finished installation and helps protect cabling from exposure in outdoor or high-traffic indoor environments where loose cables would be a risk.
