Product SKU: AXIS TP3101
Product Overview

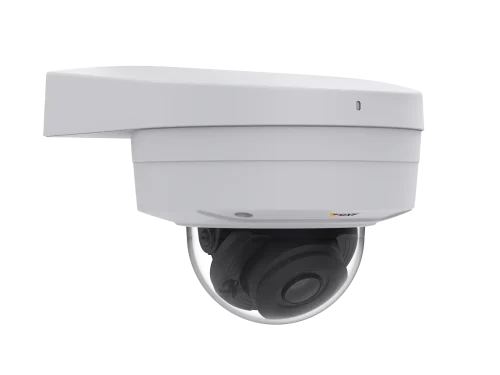

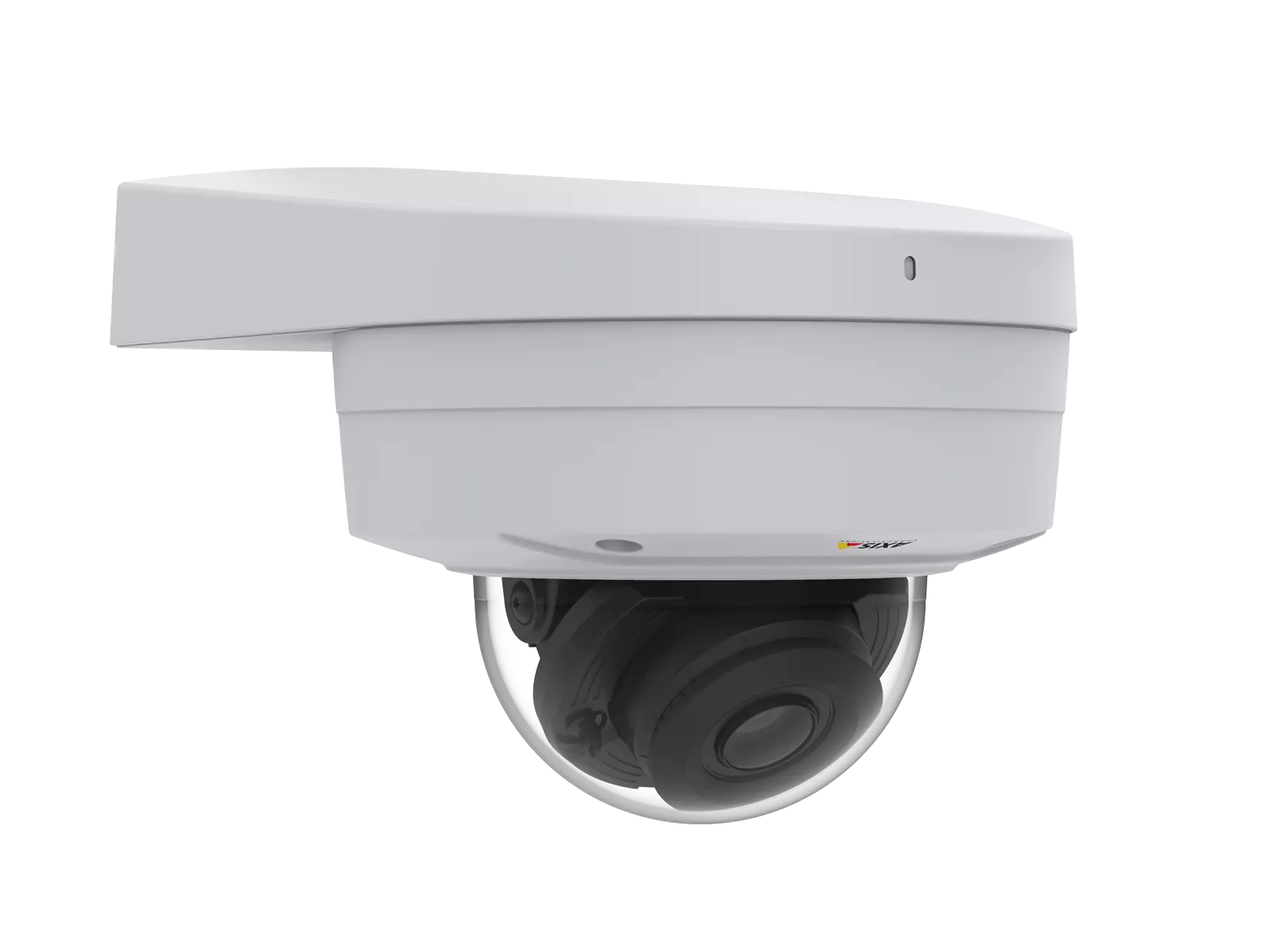

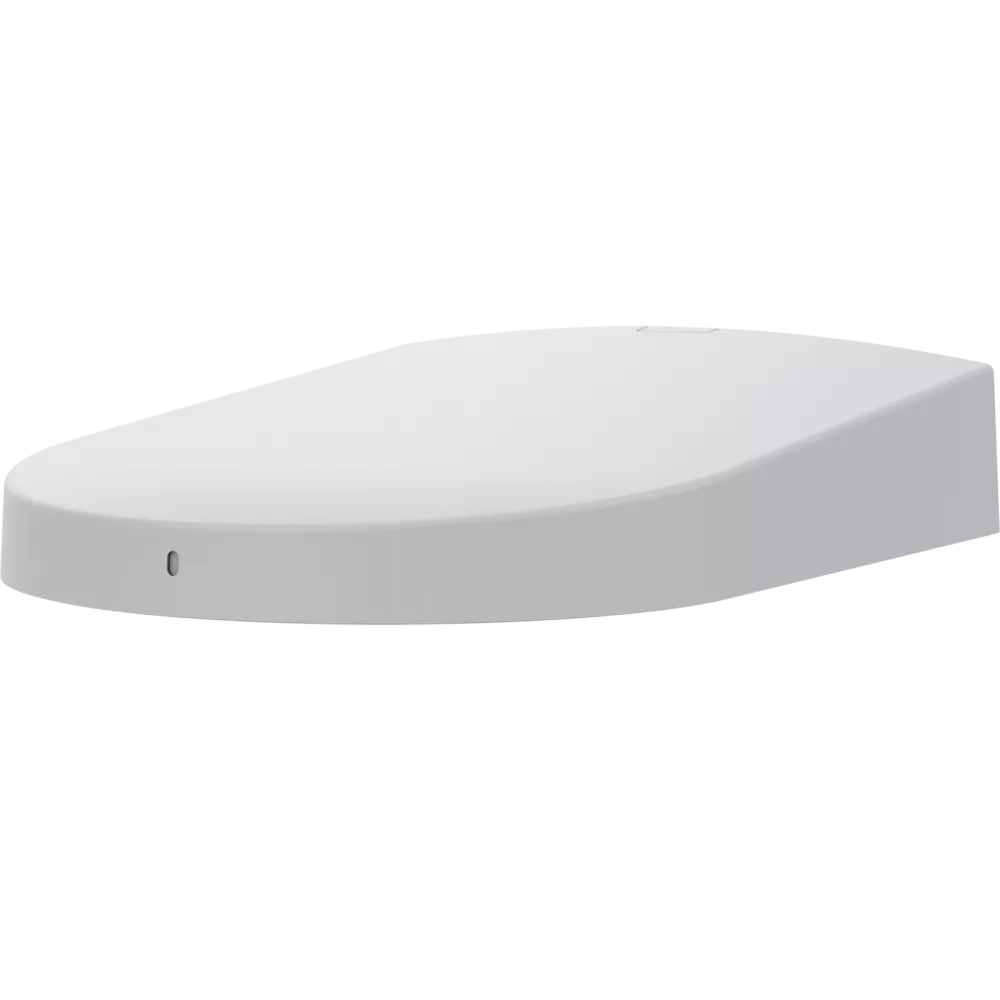

The AXIS TP3101 Pendant Wall Mount is a discreet indoor mounting accessory designed for clean pendant-style installation of compatible Axis dome cameras, including AXIS M32-LVE and AXIS P32-V/-LV camera models. It allows these cameras to be mounted without additional pendant kits, helping create a neat, professional and visually integrated installation. With concealed cabling, concealed mounting screws, a spacious compartment for microphone and connectivity devices, and flexible mounting on walls, ceilings, counter tops or junction boxes, this mount is ideal for retail, offices, healthcare, education, reception areas, checkouts, entrances and indoor analytics applications.
Why Choose the AXIS TP3101 Pendant Wall Mount
The AXIS TP3101 Pendant Wall Mount is ideal for installers who need a clean indoor pendant solution for selected Axis dome cameras without adding separate pendant kits. Its contemporary design blends into the wall and can be repainted to suit the indoor environment, while concealed screws and cabling create a tidy finish. The integrated compartment can hold connectivity devices, microphones, audio accessories, I/O indication LED accessories, or PoE-over-coax equipment, helping make the installation more capable while keeping supporting hardware protected and hidden.
Key Capabilities
Clean Indoor Pendant Installation
The AXIS TP3101 allows compatible AXIS M32-LVE and AXIS P32-V/-LV cameras to be mounted in a pendant-style position without requiring additional pendant kits. This helps installers create a neat, professional finish for indoor spaces where appearance and practical camera positioning both matter.
Concealed Cabling and Screws
The mount is designed to hide mounting screws and cabling, helping it blend into the wall or indoor surroundings. This is especially useful in retail, office, healthcare, reception and customer-facing environments where visible cables or exposed hardware can reduce the quality of the installation.
Room for Audio and Connectivity Devices
The internal compartment allows secure storage of compatible accessories such as Axis microphones, audio interfaces, I/O indication LED accessories and PoE-over-coax equipment. This helps keep extra components close to the camera while maintaining a tidy and protected installation layout.
Flexible Mounting Directions
The AXIS TP3101 can be installed in different directions to suit the required analytics or monitoring outcome. It can be mounted on walls pointing downwards for people counting, sideways for facial recognition use cases, on hard ceilings, or even on counter tops for checkout, reception or border-control style applications.
Designed for Retail and Indoor Analytics
The mount is useful for positioning compatible cameras exactly where analytics need them, such as above shop fronts for people counting or side-facing at entrances for face recognition applications. This makes it practical for retail analytics, customer flow monitoring and indoor business intelligence deployments.
Key Features
-
Compatible with AXIS M32-LVE and P32-V/-LV Cameras: The AXIS TP3101 is designed for clean pendant-style indoor mounting of compatible AXIS M32-LVE and AXIS P32-V/-LV cameras. It removes the need for extra pendant kits, helping simplify camera installation while maintaining a professional appearance.
-
Contemporary Discreet Design: The mount is designed to become one with the wall and blend into indoor surroundings. Its casing can also be repainted in any colour, helping match shop interiors, offices, healthcare spaces, reception areas or other environments where visual presentation is important.
-
Concealed Mounting Screws and Cabling: Hidden screws and concealed cabling help create a cleaner installation compared with exposed brackets or visible cable runs. This is especially valuable in customer-facing environments such as retail stores, reception desks, waiting rooms and indoor entrance areas.
-
Spacious Protected Compartment: The internal compartment is designed to securely store connectivity devices, microphones and accessories at the same installation point. This helps keep additional hardware protected and hidden while supporting audio, I/O indication, PoE-over-coax and other compatible Axis accessory setups.
-
Multiple Mounting Positions: The mount can be installed on walls, counter tops and hard ceilings, giving installers flexibility when standard wall or ceiling mounting is not suitable. This makes it useful for entrances, shopfronts, checkout counters, interview rooms, receptions, border-control desks and other indoor surveillance points.
-
Optimised for Analytics Positioning: The AXIS TP3101 can help position compatible cameras for people counting, face recognition and other retail analytics use cases. It can be mounted pointing downwards above entrances or sideways at doorways depending on the desired camera view and analytics requirement.
-
Junction Box and Pole Adapter Support: The mount can be installed on junction boxes using the optional AXIS TP3701 J-Box & Pole Adapter. This gives installers additional flexibility when the site requires a junction box, pole-style mounting support or an adapted installation position.
-
Flexible Cable Entry: Network, audio and I/O cables can be inserted from any direction, helping speed up installation and adapt to different cable routes. This is useful for retrofit projects, retail refurbishments, hard ceiling installations, counter-top mounting and locations with limited cable access.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS TP3101 Pendant Wall Mount |
| Product Type |
Indoor Pendant Wall Mount Accessory |
| Primary Compatibility |
AXIS M32-LVE and AXIS P32-V/-LV cameras |
| Installation Style |
Pendant-style mounting without additional pendant kits |
| Installation Location |
Indoor use |
| Mounting Options |
Walls, counter tops, hard ceilings and junction box installations with compatible accessory |
| Design |
Contemporary discreet design that blends into the wall |
| Finish |
Casing can be repainted to match indoor surroundings |
| Cable Management |
Concealed cabling with cable insertion possible from any direction |
| Mounting Screws |
Concealed mounting screws |
| Internal Compartment |
Space for microphone, connectivity devices and compatible accessories |
| Compatible Audio Accessories |
AXIS T6101 Audio + AXIS Device Microphone A for AXIS M32-LVE; AXIS Device Microphone B for selected AXIS P32-V/-LV cameras |
| Compatible I/O Accessory |
AXIS I/O Indication LED supported |
| Compatible Connectivity Accessory |
AXIS T8643 PoE+ over Coax Compact supported |
| Recommended Mounting Accessory |
AXIS TP3701 J-Box & Pole Adapter |
| Analytics Positioning Use |
People counting, face recognition, retail analytics and indoor monitoring applications |
| Warranty |
3-year warranty |
Ideal Use Cases
- Retail Entrances – Suitable for mounting compatible Axis cameras above shopfronts for people counting, customer flow analytics and entrance monitoring with a discreet indoor finish.
- Face Recognition Positioning – Useful for side-facing entrance installations where the camera needs to be positioned for better face capture compared with a standard ceiling view.
- Checkout and Counter Areas – A practical option for counter-top or table-mounted surveillance in cash checkout counters, reception desks, interview rooms and border-control style environments.
- Offices and Reception Areas – Ideal for indoor customer-facing areas where a clean design, concealed cabling and professional camera appearance are important.
- Healthcare and Privacy-Sensitive Spaces – Suitable for installations using AXIS I/O Indication LED where an indicator can show when monitoring is active, helping provide clearer awareness in patient or privacy-sensitive environments.
Understanding Indoor Pendant Wall Mounting
The AXIS TP3101 Pendant Wall Mount allows selected Axis dome cameras to be positioned in a pendant-style orientation from a wall, hard ceiling or counter top without needing a separate pendant kit. This is useful when camera placement needs to be more precise for analytics, such as people counting above an entrance or face recognition from a side-facing angle. The internal compartment also allows supporting accessories to be kept close to the camera while maintaining a discreet indoor appearance.
| Mounting Position |
What It Provides |
Best For |
| Wall Downwards |
Camera positioned above an entrance looking downward |
People counting, shopfront entrances, customer flow analytics and doorway monitoring |
| Wall Sideways |
Camera positioned for a side-facing entrance view |
Face recognition use cases, entrance identification, corridor views and indoor access points |
| Hard Ceiling |
Pendant-style placement where wall drilling is not ideal |
Glass walls, blocked wall views, retail interiors, offices and indoor areas with limited wall mounting options |
| Counter Top |
Camera mounted on a desk, counter or table position |
Checkout counters, receptions, interview rooms, border control and service desks |
Tip:
Use the AXIS TP3101 when camera placement needs to support indoor analytics or a discreet customer-facing installation. Confirm the exact compatible camera model and any required accessories, such as microphones, I/O indication LED, PoE-over-coax equipment or AXIS TP3701 J-Box & Pole Adapter, before installation.
FAQs
- What is the AXIS TP3101 Pendant Wall Mount used for?
The AXIS TP3101 Pendant Wall Mount is used for clean indoor pendant-style mounting of compatible Axis dome cameras, especially AXIS M32-LVE and AXIS P32-V/-LV camera models. It helps position cameras for surveillance or analytics while concealing cabling and mounting screws for a more discreet and professional installation.
- Does the AXIS TP3101 require an additional pendant kit?
No, the AXIS TP3101 is designed to mount compatible AXIS M32-LVE and AXIS P32-V/-LV cameras without additional pendant kits. This simplifies installation and helps reduce the number of accessories required when creating a clean indoor pendant-style camera setup.
- Can the AXIS TP3101 be used outdoors?
No, the AXIS TP3101 is designed for indoor installations. It is best suited to retail, office, healthcare, reception, checkout, education, border-control and customer-facing indoor environments. For outdoor camera installations, a suitable outdoor-rated Axis mount should be selected based on the camera model and mounting location.
- What accessories can fit inside the AXIS TP3101 compartment?
The internal compartment can hold compatible connectivity devices, microphones and accessories. Examples include AXIS T6101 Audio with AXIS Device Microphone A for AXIS M32-LVE, AXIS Device Microphone B for selected AXIS P32-V/-LV cameras, AXIS I/O Indication LED and AXIS T8643 PoE+ over Coax Compact. Compatibility should be confirmed for the exact camera and accessory combination.
- Where can the AXIS TP3101 be mounted?
The AXIS TP3101 can be mounted on walls, hard ceilings and counter tops. It can also be installed on junction boxes using the optional AXIS TP3701 J-Box & Pole Adapter. This gives installers flexibility for retail entrances, checkout counters, reception areas, indoor analytics points and sites where standard wall or ceiling mounting is not ideal.
- Why is this mount useful for retail analytics?
The mount helps position compatible Axis cameras for analytics such as people counting or face recognition. A downward wall-mounted position can support people-counting at entrances, while a sideways wall-mounted position can improve face capture at doorways. This makes it valuable for retail stores that need both discreet installation and useful analytics positioning.
Additional Information
Datasheet-axis-tp3101-pendant-wall-mount
