Product SKU: T94B01P
Product Overview

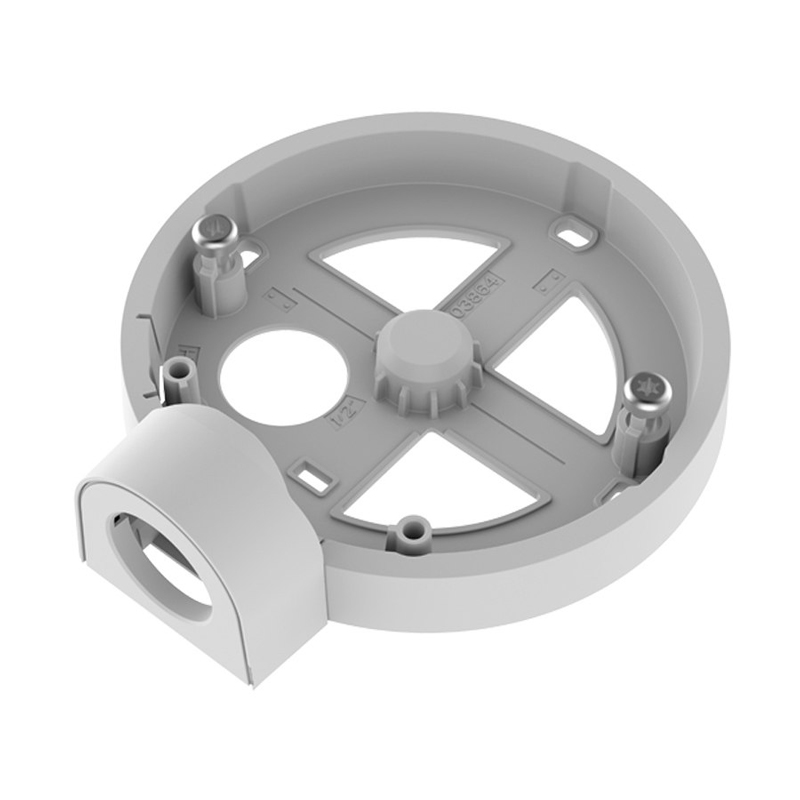

Installers specifying conduit-run cabling for AXIS M20 and M3x series cameras will find the AXIS T94B01P Conduit Back Box to be the correct fitting for a clean, code-compliant termination point at the camera head. Designed to accept both 1/2″ imperial and M20 metric conduit pipes, the T94B01P allows network cables to be fully enclosed from the distribution point through to the mount, eliminating exposed surface cable runs at the camera location. Featuring a 1/2″ ACI (American Conduit Interface), it also supports ACI adapter fittings where flexible conduit connections are needed rather than a direct rigid pipe entry. This makes the T94B01P suited to commercial offices, schools, healthcare facilities, and industrial sites where structured cabling, cable protection, or a higher-quality finished installation is a project requirement. It is purpose-built for the AXIS M20 and M3x series and integrates directly into the AXIS mounting ecosystem.
Key Capabilities
Dual Conduit Size Support
Accepts both 1/2″ imperial and M20 metric conduit pipes, covering the two most commonly used conduit standards on Australian commercial projects and removing the need to source a different back box for each site specification.
1/2″ ACI Interface
The built-in American Conduit Interface port allows ACI-compatible adapters to be connected, giving installers the option of flexible conduit entry configurations rather than being limited to a single rigid pipe connection type.
Direct Fit for AXIS M20 and M3x Series
Purpose-engineered for AXIS M20 and M3x series cameras, the T94B01P slots into the AXIS mounting system without modification, ensuring correct alignment and a professional finish at the camera mount point.
Concealed In-Wall Cable Routing
Routes cabling fully through the mounting surface inside conduit, so no cable is exposed at the camera head. This supports building code compliance in commercial environments and produces a substantially tidier installation result.
Best For
- Conduit-Wired Commercial Projects: Installations where project specifications or building codes require cables to be enclosed in conduit from end to end, with a clean termination point at each camera.
- AXIS M3x Series Deployments Requiring Flush Mounting: Sites using M3x series cameras where a tidy, flush wall or ceiling entry is needed rather than a surface-run cable approach.
- Industrial and Institutional Environments: Warehouses, schools, and healthcare facilities where physical cable protection and a professional finish are both required at the camera mount point.
Why Choose the AXIS T94B01P
The AXIS T94B01P is not a generic back box adapted to fit AXIS cameras. It is designed specifically for the AXIS M20 and M3x series, which means alignment, fitment, and finish are all handled correctly without modification or improvised hardware. The dual support for 1/2″ and M20 conduit is a practical detail for Australian installers who regularly encounter both imperial and metric pipe on the same site or across different projects. The 1/2″ ACI interface extends the fitting options further by accepting ACI adapters, which is a feature often absent from generic conduit back boxes. For installers who deliver structured, conduit-run installations as a standard practice, this back box is the correct way to terminate conduit at an AXIS M-series camera head. The T94B01P is available through Security Wholesalers as part of the AXIS accessories range, making it straightforward to order alongside cameras and other mounting components in a single supply.
Buyer Decision Tips
Buyer Tip: Before ordering, confirm two things: that your conduit pipe is either 1/2″ or M20 in diameter, and that the cameras specified for your project belong to the AXIS M20 or M3x series. The T94B01P is sized and engineered for those two camera families only. If your project uses a different AXIS camera series or a larger conduit size, a different AXIS-compatible back box will be required for that application.
Key Features & Technical Specifications
| Product Model |
AXIS T94B01P |
| Part Number |
5507-401 |
| Product Type |
Conduit back box |
| Compatible Camera Series |
AXIS M20 series and AXIS M3x series |
| Conduit Size Supported |
1/2″ or M20 |
| Conduit Interface |
1/2″ ACI (American Conduit Interface) |
| Manufacturer |
AXIS Communications |
| Category |
AXIS Mounts and Brackets / AXIS Accessories |
Ideal Use Cases
Commercial Office Buildings
Offices fitting AXIS M3x cameras with in-wall conduit runs benefit from the T94B01P, producing a flush ceiling or wall mount with no exposed cable at the camera location.
Schools and Educational Facilities
High-traffic corridors and classrooms that require conduit-enclosed cabling for cable protection and a tidy finish are well suited to this back box when deploying compatible AXIS M-series cameras.
Healthcare and Aged Care Sites
Environments requiring fully enclosed cabling at the camera mount point for hygiene compliance or facility standards are directly served by this back box used with M20 or M3x series cameras.
Industrial and Warehouse Deployments
Sites where cables must be conduit-enclosed to protect against physical damage from equipment or harsh operating conditions benefit from the T94B01P when M20 or M3x series cameras are in use.
Choosing the Right Model
- Choose this model if: Your installation uses AXIS M20 or M3x series cameras and requires conduit entry via a 1/2″ or M20 pipe, with the option of ACI adapter fittings for flexible conduit connections.
- Choose a different model if: Your AXIS cameras are from a series outside the M20 and M3x range, or your conduit pipe is larger than M20, as this back box is engineered specifically for those camera families and pipe sizes.
FAQs
- Which AXIS cameras is the T94B01P compatible with?
The T94B01P is purpose-built for AXIS M20 series and AXIS M3x series cameras. It integrates directly with those camera families without modification. If your project specifies cameras from a different AXIS series, you will need to identify the correct back box for that series before ordering.
- What conduit pipe sizes does the T94B01P support?
The T94B01P accepts both 1/2″ imperial and M20 metric conduit pipe. These two sizes cover the most commonly used conduit specifications on Australian commercial and institutional projects, so most standard conduit installations will be covered by this single back box SKU.
- What does the ACI interface on the T94B01P allow?
ACI stands for American Conduit Interface. The 1/2″ ACI port on the T94B01P allows ACI-compatible conduit adapters to be fitted to the back box. This is useful when the installation requires a flexible conduit connection at the entry point rather than a direct rigid pipe entry into the back box body.
- Is the T94B01P required for all AXIS M3x camera installations?
No. The T94B01P is only needed when cables are run through conduit to the camera mount point. Installations using surface-mounted trunking or exposed cable runs do not require this back box. It is the correct fitting when the cabling must be fully enclosed in conduit from the camera head back to the cable distribution point.
- Can I order the T94B01P alongside compatible AXIS cameras and mounting hardware?
Yes. The T94B01P is part of the AXIS accessories range stocked by Security Wholesalers, so it can be ordered together with compatible AXIS M-series cameras and other mounting components to keep your project supply consolidated in a single order.
Additional Information
No additional downloads available for this product.
