AXIS T91D62 Telescopic Parapet Mount to suit Outdoor Fixed & PTZ Domes, 1.5 NPT‍‌​‌​​‌​​‌​‌​‌​‌‌‌‍

Product SKU: T91D62

Product Overview

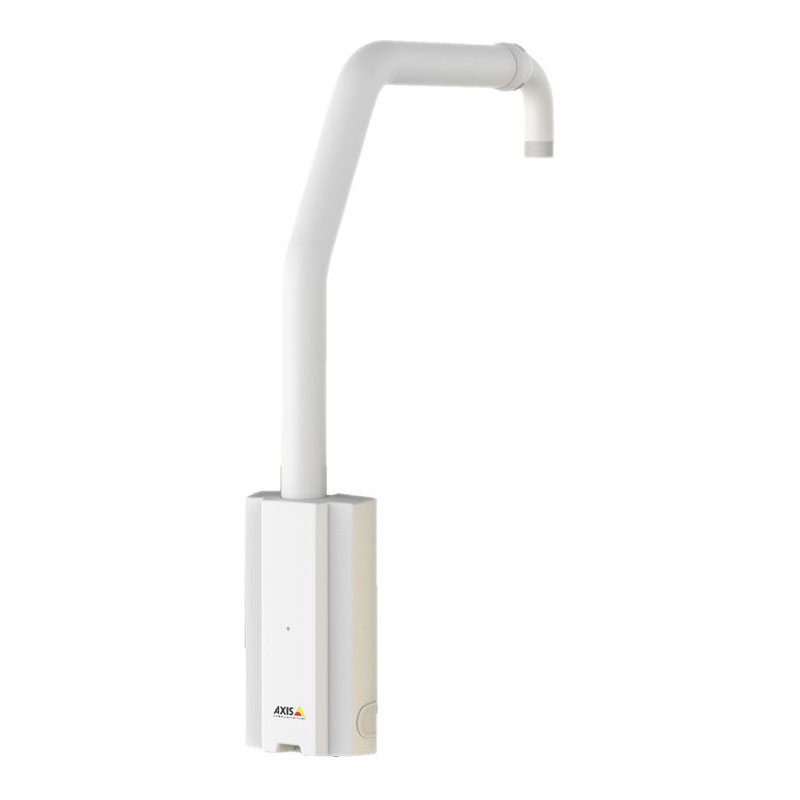

Built for rooftop and elevated wall installations where standard mounts fall short, the AXIS T91D62 Telescopic Parapet Mount gives installers the reach needed to clear thick parapets, architectural ledges, and obstructive facade elements. The telescopic arm adjusts between a collapsed dimension of 1007 x 783mm and an extended dimension of 1007 x 1033mm, providing the clearance flexibility that fixed-length mounts cannot offer. Featuring a 180-degree swivel on its own axis, the T91D62 allows safe camera positioning and maintenance from the rooftop rather than requiring access from below. Rated IK10 and NEMA 4X, the aluminium construction resists both physical impacts and corrosion in outdoor environments. It supports outdoor fixed and PTZ dome cameras with a 1.5-inch NPS thread and carries a maximum load of 10kg. An optional retrofit bracket also allows reuse of existing holes drilled for Pelco PTZ dome parapet mounts, making it a practical choice for upgrade and replacement projects.

Key Capabilities

Best For

• Parapet Rooftop Installations: The telescopic arm and swivel allow cameras to be mounted above thick or uneven parapets, giving the dome a clear unobstructed field of view across a rooftop perimeter.
• Wall Mounting with Extended Reach: Useful where cameras need to project further from a building facade than a standard wall mount allows, such as when monitoring a wide loading area or vehicle approach.
• Pelco PTZ Dome Upgrade Projects: The optional retrofit bracket lets installers reuse existing Pelco parapet mount drill holes when upgrading to AXIS outdoor dome cameras, reducing remediation work on finished surfaces.

Why Choose the AXIS T91D62

The T91D62 solves a problem that fixed-length parapet mounts cannot address: varying parapet depths and facade obstructions that block a camera’s sightline from standard mounting positions. The telescopic arm gives installers a genuine working range of 783mm to 1033mm, avoiding the need for custom fabrication or stacked adapters. The 180-degree swivel means cameras can be oriented and serviced from the rooftop without rigging work below, which matters on multi-storey commercial buildings. The IK10 and NEMA 4X ratings confirm performance in Australian outdoor conditions, and the aluminium body with corrosion treatment is appropriate for coastal and industrial sites where lesser materials deteriorate quickly. The 10kg load capacity supports the full weight of AXIS outdoor PTZ dome cameras. Available at Security Wholesalers, the T91D62 is a purpose-engineered mounting solution for professional installers who need adjustable outdoor reach without compromising structural integrity or camera placement accuracy.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You are mounting an outdoor fixed or PTZ dome camera on a rooftop parapet or wall that requires extended arm reach beyond what a standard wall mount provides, and you need a confirmed IK10, NEMA 4X rated solution with a 180-degree swivel for rooftop servicing access.
• Choose a different model if: Your installation is at standard eave, soffit, or flat wall height where a compact wall mount or ceiling mount provides sufficient positioning without requiring a telescopic arm, as the T91D62 is sized and weighted for elevated parapet and extended-reach wall applications rather than compact indoor or low-profile outdoor installs.

FAQs

1. What is the maximum arm extension on the T91D62?
   The telescopic arm extends from a collapsed dimension of 783mm to a fully extended dimension of 1033mm, with the overall mount length at 1007mm. This gives installers approximately 250mm of adjustable reach to compensate for different parapet depths or wall obstructions.
2. Can the T91D62 be used as a wall mount rather than a parapet mount?
   Yes. The T91D62 supports both parapet and wall installation. When used as a wall mount, the telescopic arm extends the camera further from the wall surface than a standard bracket allows, which is useful where facade elements such as cladding, pipework, or cornices would otherwise obstruct the camera’s field of view.
3. What camera thread size does the T91D62 accept?
   The mount is designed for cameras with a 1.5-inch NPS thread, which covers the AXIS range of outdoor fixed dome and PTZ dome cameras intended for use with this bracket. Confirm your specific camera model uses this thread standard before ordering.
4. How does the 180-degree swivel assist with installation and maintenance?
   The swivel allows the camera head and arm to be rotated during installation so the camera can be positioned and aimed from a rooftop without the installer needing to access the side or underside of the parapet. This is a meaningful safety consideration on multi-storey buildings where working over the parapet edge is not practical.
5. Is the T91D62 suitable for coastal or high-humidity outdoor environments?
   The aluminium construction includes corrosion protection treatment and the mount carries a NEMA 4X rating, which covers protection against windblown dust, rain, and splashing water. These ratings make it appropriate for coastal, industrial, and high-humidity outdoor sites where surface corrosion is a long-term concern. The T91D62 is available through Security Wholesalers for professional installation projects across Australia.
6. Can the T91D62 be used with existing Pelco PTZ dome parapet mount drill holes?
   Yes, but only with the optional retrofit mounting bracket, which is a separate accessory. This bracket allows installers to reuse holes already drilled for Pelco PTZ dome parapet mounts, avoiding the need to core new holes or patch existing penetrations when upgrading to AXIS outdoor dome cameras.

Additional Information

• AXIS-5507-271 Datasheet

{
