Product SKU: T91D61
Product Overview

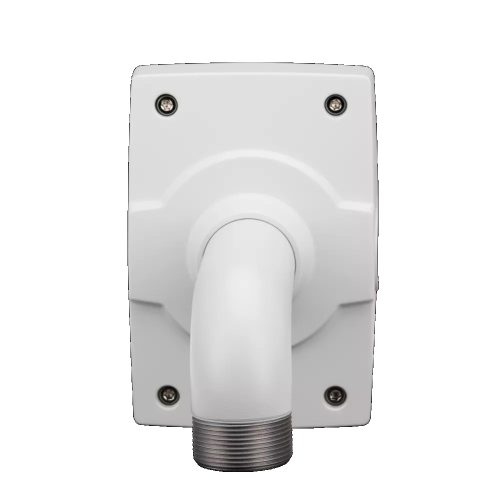

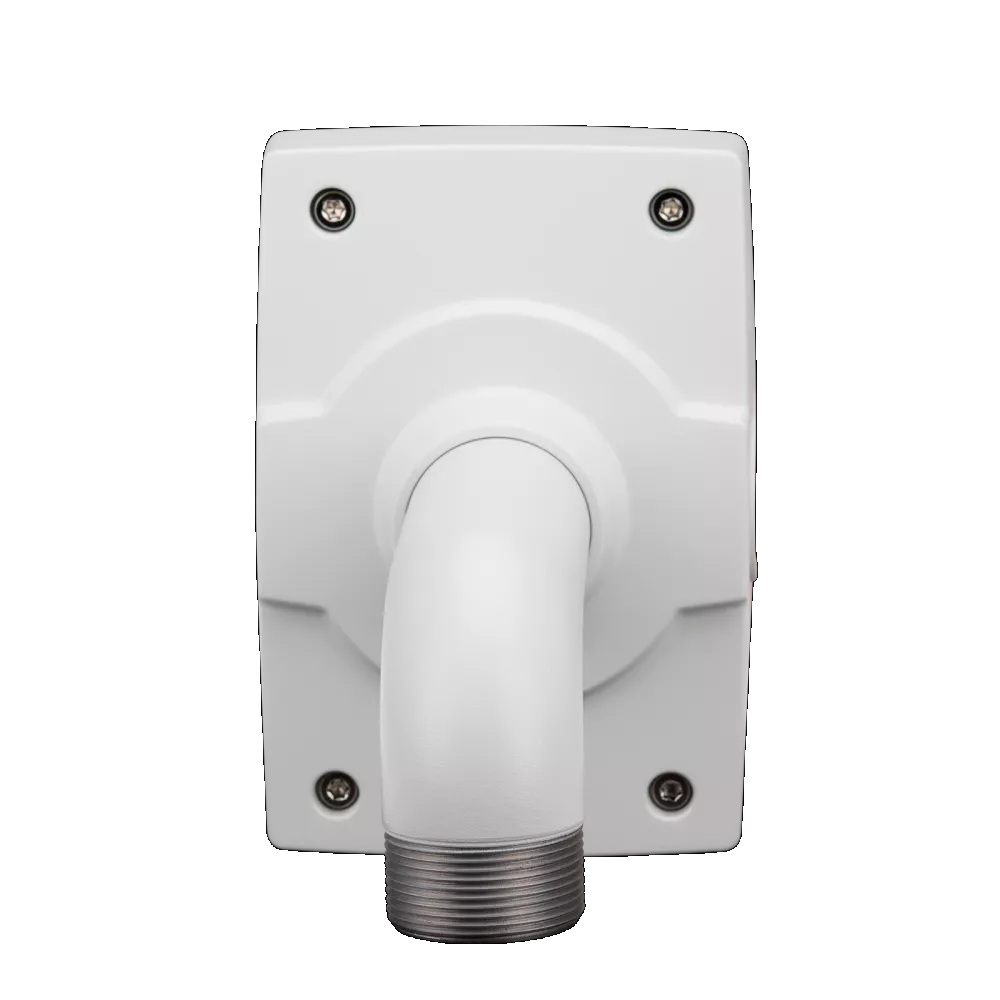

Wall-mounting a compatible Axis fixed dome camera in a pendant-style configuration requires a bracket that matches both the camera system’s thread standard and the site’s cabling constraints. The AXIS T91D61 Wall Mount provides a 1.5″ NPS threaded mounting point for compatible Axis fixed dome pendant kits, allowing selected dome cameras to be positioned from a wall bracket rather than being fixed directly to a ceiling or flat surface. Featuring powder-coated aluminium construction and flexible cable routing through the rear of the mount or from the side via a conduit connection, the T91D61 adapts to both new-build and retrofit cabling layouts. It is supplied with the AXIS T91A6 Pipe Seal and AXIS ACI Conduit Cover A, and is compatible with Axis ACI 3/4″ conduit adapters. This makes it a practical choice for commercial, education, warehouse, retail, and outdoor building surveillance installations where a professional pendant wall mount is required.
Key Capabilities
1.5″ NPS Threaded Interface
The T91D61 uses a 1.5″ NPS thread to connect with compatible Axis fixed dome pendant kits. This standard interface allows selected dome cameras to hang from a wall-mounted bracket, supporting pendant-style positioning in corridors, building exteriors, entrances, and commercial spaces where ceiling mounting is not practical.
Flexible Cable Routing
Cables can be routed through the back of the mount for concealed wall installations, or from the side using a conduit connection. This dual-routing approach helps installers adapt to different site conditions, including surface conduit runs, retrofit cable pathways, and locations where rear wall access is limited.
Included Pipe Seal and Conduit Cover
The AXIS T91A6 Pipe Seal and AXIS ACI Conduit Cover A are both supplied with this mount. These included accessories support a neater cable entry and a more protected installation, particularly useful for outdoor deployments, conduit-based cabling, and commercial sites where a finished appearance is required.
Powder-Coated Aluminium Construction
The aluminium body with powder-coat finish provides a durable mounting structure for indoor and outdoor Axis pendant camera installations. It gives the mount a professional appearance and supports long-term stability in commercial surveillance environments where the bracket is visible and permanently fixed.
Best For
- Fixed Dome Pendant Installations: Provides the 1.5″ NPS wall-mounted bracket needed to support compatible Axis fixed dome pendant kits in commercial, retail, education, and outdoor surveillance settings.
- Conduit-Based Cabling Layouts: The side conduit entry and compatibility with Axis ACI 3/4″ conduit adapters make this mount well suited to sites where surface conduit is part of the installation design.
- Retrofit Camera Projects: Dual cable routing options allow installers to reuse existing conduit, surface cable routes, or rear wall entry points when upgrading or repositioning existing Axis dome camera installations.
- Extended Axis Accessory Builds: Pairs with compatible Axis corner brackets, camera holders, and 1.5″ NPS extension pipes to achieve custom camera positions, corner placements, and varied wall clearances.
Why Choose the AXIS T91D61 Wall Mount
The AXIS T91D61 Wall Mount is specifically designed for Axis fixed dome pendant kit installations using the 1.5″ NPS thread standard, making it a more targeted choice than a generic wall bracket that may not align with Axis pendant kit dimensions or conduit accessory requirements. The inclusion of the AXIS T91A6 Pipe Seal and AXIS ACI Conduit Cover A means the installer does not need to source these separately, supporting a cleaner and more complete setup out of the box. The dual cable routing design – rear or side conduit – removes a common installation obstacle on retrofit or conduit-run sites. Compatibility with Axis ACI 3/4″ conduit adapters and the broader Axis accessory ecosystem, including corner brackets and extension pipes, adds further site flexibility. Available through Security Wholesalers, the T91D61 is a professional mounting solution built to work within the Axis camera accessory platform.
Buyer Decision Tips
Confirm pendant kit and camera compatibility before ordering: The AXIS T91D61 is designed for Axis fixed dome pendant kits using a 1.5″ NPS thread, including the T94A01D, T94F01D, T94K01D, T94M01D, T94T02D, TM4101, TP3103-E, TP3105-E, TP3106-E, TP3107, TP3108-E, and TQ3103-E pendant kits where compatible. Not all Axis dome cameras or pendant accessories use the 1.5″ NPS interface. Check the exact pendant kit model and the camera it supports before purchasing to ensure the complete assembly aligns with your installation requirements.
Key Features & Technical Specifications
| Model |
AXIS T91D61 Wall Mount 1.5″ NPS |
| Part Number |
5504-821 |
| Product Type |
Wall Mount Accessory |
| Thread Type |
1.5″ NPS thread |
| Material |
Powder-coated aluminium |
| Cable Routing Options |
Through the back or from the side using a conduit connection |
| Conduit Adapter Compatibility |
Axis ACI 3/4″ conduit adapters |
| Included Accessories |
AXIS T91A6 Pipe Seal, AXIS ACI Conduit Cover A |
| Primary Compatibility |
Axis fixed dome pendant kits with 1.5″ NPS interface |
| Compatible Pendant Kits |
T94A01D, T94F01D, T94K01D, T94M01D, T94T02D, TM4101, TP3103-E, TP3105-E, TP3106-E, TP3107, TP3108-E, TQ3103-E (where compatible) |
| Recommended Camera Holder |
AXIS T91A05 Camera Holder 1.5″ NPS |
| Recommended Corner Bracket |
AXIS T91A64 Corner Bracket |
| Recommended Extension Pipe |
AXIS TP3908-E Extension Pipe (1.5″ NPS thread) |
| Indoor/Outdoor Use |
Suitable for both indoor and outdoor installations |
| Warranty |
3-year warranty |
Ideal Use Cases
Commercial Building Entrances
The T91D61 provides a wall-mounted pendant position for compatible Axis dome cameras at building entrances where ceiling mounting is not available. The powder-coated aluminium finish supports a professional appearance in publicly visible locations.
Warehouse and Industrial Walls
Side conduit entry and compatibility with Axis ACI 3/4″ conduit adapters make this mount well suited to warehouse and industrial installations where surface conduit is standard practice and rear cable access through the wall is not possible.
Retrofit and Upgrade Projects
Dual cable routing through the rear or side conduit entry allows the T91D61 to work within existing cabling arrangements, making it practical for upgrading Axis fixed dome installations without rerouting established cable pathways.
Corner and Extended Mounting Setups
When paired with the AXIS T91A64 Corner Bracket or AXIS TP3908-E Extension Pipe, the T91D61 supports installations at corners or positions requiring additional clearance, giving installers flexibility to achieve the correct camera angle and coverage zone.
Choosing the Right Model
- Choose this model if: You are installing a compatible Axis fixed dome pendant kit that requires a 1.5″ NPS wall-mounted bracket, and you need flexibility in cable routing through the rear or via side conduit entry.
- Choose a different model if: Your Axis dome camera or pendant kit does not use the 1.5″ NPS thread standard. Always check the pendant kit thread specification and camera compatibility before selecting this mount, as other Axis wall mounts support different thread types and pendant configurations.
- Consider adding accessories if: Your site requires corner positioning or additional wall clearance. The AXIS T91A64 Corner Bracket and AXIS TP3908-E Extension Pipe (1.5″ NPS) are confirmed compatible accessories that extend the mounting options available with the T91D61.
FAQs
- What is the AXIS T91D61 Wall Mount designed to do?
The T91D61 provides a 1.5″ NPS threaded wall-mounted bracket for compatible Axis fixed dome pendant kits. It allows selected Axis dome cameras to be positioned in a pendant-style configuration from a wall surface rather than being ceiling-mounted or fixed directly to a flat wall, which is useful in corridors, building exteriors, entrances, and commercial spaces where ceiling access is not available.
- Which Axis pendant kits are compatible with the T91D61?
The T91D61 is compatible with a range of Axis fixed dome pendant kits using the 1.5″ NPS interface, including the T94A01D, T94F01D, T94K01D, T94M01D, T94T02D, TM4101, TP3103-E, TP3105-E, TP3106-E, TP3107, TP3108-E, and TQ3103-E pendant kits where compatible. Always verify the specific pendant kit and camera model before ordering to confirm the full assembly is supported.
- Can cables be routed from the side rather than the back?
Yes. The T91D61 supports cable routing from the side of the mount using a conduit connection, in addition to rear routing through the back of the bracket. This is particularly useful for installations on solid masonry or concrete walls, surface conduit runs, industrial sites, and retrofit projects where cutting a rear cable entry is not practical.
- What accessories are included in the box?
The AXIS T91D61 is supplied with the AXIS T91A6 Pipe Seal and the AXIS ACI Conduit Cover A. These accessories support a cleaner conduit entry and a more finished installation, which is relevant for outdoor mounting and conduit-based commercial installations where exposed cable entry points need to be managed neatly.
- Is the T91D61 suitable for outdoor installations?
Yes, the T91D61 is suitable for both indoor and outdoor use. Its powder-coated aluminium construction provides a durable mounting structure for external wall applications including building perimeters, shopfronts, car park walls, school entrances, and other outdoor surveillance positions where a compatible Axis pendant dome camera requires a wall bracket.
- Can this mount be paired with corner brackets or extension pipes?
Yes. The T91D61 is confirmed compatible with the AXIS T91A64 Corner Bracket for corner-mounted installations and with AXIS TP3908-E Extension Pipe options that use the 1.5″ NPS thread for extended wall clearance. These accessories are available through Security Wholesalers and allow installers to adjust camera positioning, angle, and clearance to suit specific site requirements.
