Product SKU: T91B57
Product Overview

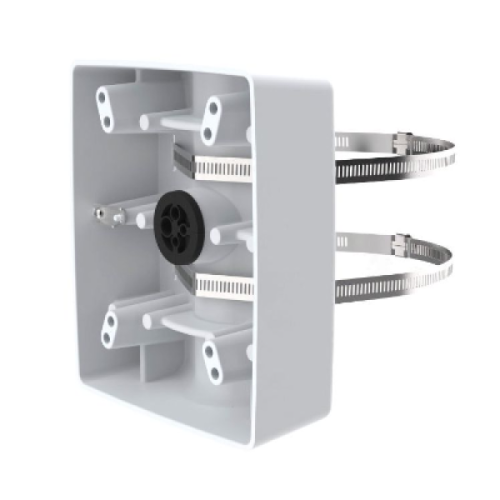

Installers working on pole-mounted Axis surveillance deployments need a mounting base that handles both the physical demands of exposed outdoor sites and the compatibility requirements of the AXIS T91 and T98A product ecosystem. The AXIS T91B57 Pole Mount, supplied under part number 01470-001, is engineered for exactly that purpose, fitting poles from 100mm to 410mm in diameter and providing a confirmed interface for selected AXIS T91 wall mounts, the AXIS T98A cabinet series, and the AXIS A9188-VE Network I/O Relay Module. Built from IK10-rated powder-coated aluminium with marine-grade stainless steel straps included in the box, it is suited to car parks, perimeter poles, utility sites, campuses, and transport infrastructure. The closed-back design with insect-proof cable gasket addresses a practical concern in long-term outdoor pole installations, while the 30kg load capacity supports heavier Axis mounting assemblies without requiring additional structural hardware.
Key Capabilities
100-410mm Pole Diameter Coverage
The adjustable strap system spans the wide diameter range common to car park lighting masts, dedicated surveillance poles, and infrastructure columns. This covers the larger pole sizes where compact pole mounts cannot achieve a secure fit or provide sufficient surface contact around the pole.
IK10 Impact-Rated Casing
The powder-coated aluminium body carries an IK10 impact resistance rating, providing measurable protection against physical contact and vandalism. This is relevant for publicly accessible pole locations such as car parks, school grounds, and transport precincts where mounting hardware is within reach.
Insect-Proof Cable Gasket
A sealed closed-back design incorporates an insect-proof cable gasket at the cable entry point. Open entry points on outdoor pole mounts commonly allow insect ingress over time, which can compromise cabling and connections. The gasket reduces this maintenance risk across the life of the installation.
30kg Maximum Load Capacity
With a 30kg load rating, the T91B57 supports complete Axis mounting assemblies including wall mounts, camera heads, and T98A cabinet installations with enclosed accessories. This accommodates heavier configurations that would exceed the capacity of basic pole adapters.
Marine-Grade Stainless Steel Straps Included
Stainless steel straps with a TX30 screw interface are supplied in the box, allowing direct pole attachment without additional fasteners. The marine-grade specification provides corrosion resistance for coastal or high-humidity outdoor sites where standard steel hardware would deteriorate.
Best For
- Large Outdoor Pole Installations: The 100-410mm diameter range is matched to the larger poles used in car parks, road corridors, and perimeter surveillance where smaller pole mount adapters cannot clamp securely.
- AXIS T91 Wall Mount Deployments Away From Buildings: Where buildings are not available as a mounting surface, this pole mount allows compatible AXIS T91 wall mounts to be positioned on free-standing poles, giving installers flexible camera placement across open sites.
- AXIS T98A Cabinet Pole Mounting: Power supplies, media converters, and network switches housed in the T98A cabinet can be pole-mounted using the T91B57, keeping field infrastructure consolidated at the camera pole rather than routed back to a building.
- Exposed Public and Industrial Environments: The IK10-rated aluminium construction and stainless steel straps suit school grounds, transport infrastructure, utility depots, and industrial yards where mounting hardware faces physical exposure, weather, and potential interference.
Why Choose the AXIS T91B57 Pole Mount
The AXIS T91B57 fills a specific gap in pole-mounted Axis installations: positioning compatible T91 wall mounts and T98A cabinets on the larger-diameter poles common across commercial and public infrastructure sites. Unlike generic pole mount brackets, the T91B57 is designed to integrate directly with the AXIS T91 and T98A product families, removing guesswork around compatibility and load ratings. The IK10 certification provides documented impact resistance rather than a general claim of durability, which matters for vandal-risk environments. The insect-proof cable gasket is a detail that reduces long-term maintenance requirements in outdoor installations, an area that generic hardware rarely addresses. Stainless steel straps are included so the assembly can be completed without sourcing separate components. The T91B57 is available at Security Wholesalers as part of the AXIS professional mounting accessories range, supporting complete pole-mounted Axis system builds for installation contractors.
Buyer Decision Tips
Buyer Tip: The T91B57 is a pole interface only and does not replace or include an AXIS T91 wall mount or T98A cabinet. Before ordering, confirm the full mounting chain: the T91B57 attaches to the pole, a compatible T91 wall mount or T98A cabinet attaches to the T91B57, and the camera or cabinet equipment attaches to that. Also verify your pole diameter sits within the 100-410mm range. For bottom cable routing, note that this requires either the AXIS T91G61 or the AXIS T98A – the back cable hole is the only native cable exit on the T91B57 alone.
Key Features & Technical Specifications
| Model |
AXIS T91B57 Pole Mount |
| Part Number |
01470-001 |
| Product Type |
Pole Mount Accessory |
| Pole Diameter Compatibility |
100-410mm / 4-16in |
| Installation Location |
Indoor and outdoor use |
| Compatible Products |
Selected AXIS T91 wall mounts, AXIS T98A cabinet series, AXIS A9188-VE Network I/O Relay Module |
| Maximum Load |
30kg / 66lb |
| Impact Rating |
IK10 |
| Casing Material |
Powder-coated aluminium |
| Colour |
White, NCS S 1002-B |
| Cable Protection |
Closed back with insect-proof cable gasket |
| Cable Routing |
Back cable hole; bottom cable routing requires AXIS T91G61 or AXIS T98A |
| Included Accessories |
Installation guide, insect-proof cable gasket, stainless steel straps |
| Dimensions |
190 x 214 x 67mm |
| Weight |
1.4kg |
| Sustainability |
PVC free |
| Regulatory Approvals |
IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC 62262 IK10 |
| Warranty |
3 years |
Ideal Use Cases
Car Park Lighting and Camera Poles
The 100-410mm diameter range covers the light poles and dedicated surveillance poles commonly installed across open car parks. The T91B57 allows compatible AXIS T91 wall mounts to be pole-deployed for monitoring vehicle lanes, pedestrian paths, entry points, and ticketing areas.
Perimeter and Boundary Pole Positions
Where free-standing poles define a fence line or site boundary, the T91B57 provides an IK10-rated mounting point for AXIS T91 wall mounts at positions where building wall mounting is not an option. The stainless steel straps resist corrosion in exposed outdoor perimeter conditions.
Industrial Yards and Depot Sites
Warehouses, logistics depots, and utility facilities often have structural poles within yards and loading areas. The 30kg load capacity and IK10-rated construction make the T91B57 practical for heavier AXIS T91 or T98A assemblies in environments where standard hardware may not provide adequate strength.
Campus and Transport Precinct Infrastructure
Schools, universities, bus terminals, and rail precincts frequently use existing large poles as mounting points for surveillance. The T91B57’s compatibility with the AXIS T91 range allows camera systems to be integrated into these poles without additional structural fabrication or bespoke bracketing.
AXIS T98A Cabinet Pole Consolidation
Where network switches, media converters, or power supplies need to be located at the camera pole rather than back at a building, the T91B57 allows the AXIS T98A cabinet to be mounted on the pole itself. This reduces cable runs and keeps field infrastructure contained at a single point.
Choosing the Right Model
- Choose this model if: Your pole diameter falls between 100mm and 410mm and you need a confirmed mounting interface for a compatible AXIS T91 wall mount, AXIS T98A cabinet series, or AXIS A9188-VE Network I/O Relay Module in an indoor or outdoor environment.
- Choose a different model if: Your pole is narrower than 100mm. The AXIS T91B47 Pole Mount is designed for poles from 50mm to 150mm and is the appropriate choice for thinner poles, conduit runs, or narrower structural columns.
- Choose a different model if: You need to mount a camera directly to a pole without a T91 wall mount in the assembly. The T91B57 is a pole interface for existing AXIS T91 and T98A products and is not a standalone direct-to-camera pole mount.
FAQs
- What pole sizes does the AXIS T91B57 support?
The T91B57 accommodates poles with diameters from 100mm to 410mm, which is approximately 4 to 16 inches. This range covers the larger poles typically found in car parks, perimeter surveillance positions, campus infrastructure, and utility sites. Poles outside this range are not compatible, and a different Axis pole mount should be selected.
- Does the T91B57 include everything needed to attach it to a pole?
Yes. The package includes marine-grade stainless steel straps with a TX30 screw interface, an insect-proof cable gasket, and an installation guide. The straps allow direct pole attachment without sourcing separate fasteners. A compatible AXIS T91 wall mount or T98A cabinet is still required to complete the full mounting assembly above the pole mount.
- Which Axis products can be attached to the T91B57?
Confirmed compatible products include selected AXIS T91 wall mounts, the AXIS T98A cabinet series, and the AXIS A9188-VE Network I/O Relay Module. The camera compatibility depends on which AXIS T91 wall mount is used in the assembly chain. Refer to the AXIS compatibility documentation for your specific camera model before finalising the mounting configuration.
- Is the T91B57 suitable for permanent outdoor installations?
Yes. It is rated for both indoor and outdoor use and is constructed with IK10-rated powder-coated aluminium, marine-grade stainless steel straps, and an insect-proof cable gasket. These features address the main durability and maintenance concerns in exposed outdoor pole installations, including weather exposure, corrosion, physical impact, and insect ingress at cable entry points.
- What does the insect-proof cable gasket do?
The gasket seals the cable entry on the closed back of the mount. In outdoor pole-mounted installations, unsecured cable entry points allow insects – particularly ants – to establish nests inside the mounting body over time. This can damage cabling and connections. The sealed design reduces this risk and helps lower ongoing maintenance requirements for outdoor systems operating in warm or humid climates.
- How much weight can the T91B57 safely carry, and does it affect which Axis products I can use with it?
The maximum load is 30kg. This is sufficient for standard AXIS T91 wall mount and camera combinations as well as T98A cabinet installations with enclosed network accessories. Before finalising the assembly, confirm the combined weight of all components attached to the mount does not exceed this limit. The T91B57 is part of the Security Wholesalers AXIS accessories range and is supplied to professional installation contractors across Australia.
