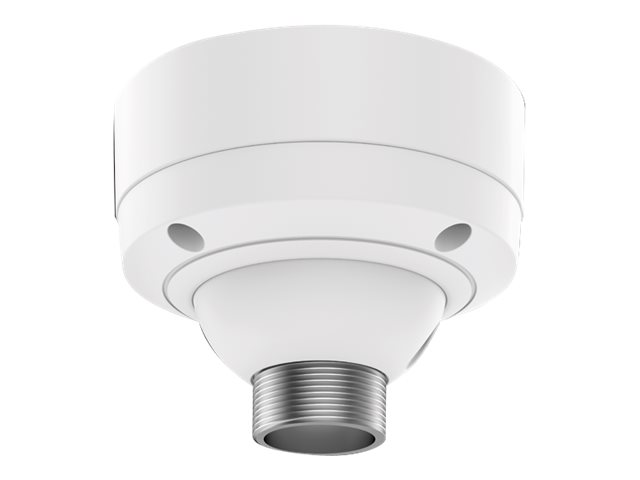

AXIS T91B51 Ceiling Mount 5507-461 for Low-Ceiling Camera Installations with Swivel Action, IK10 Vandal Resistance, NEMA 4X Corrosion Resistance

$228.00

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

The AXIS T91B51 Ceiling Mount delivers a robust low-ceiling mounting accessory designed for compatible Axis PTZ dome cameras and outdoor fixed dome models. Featuring a close-to-ceiling installation profile, swivel action, and support for sloped ceiling alignment, it provides a practical mounting solution for sites where headroom, safety, and camera positioning are important. It also allows the mounted camera to swing safely out of the way if accidentally hit, making it well suited to environments with vehicles, forklifts, or low ceiling clearance. With IK10 vandal resistance, NEMA 4X corrosion and salt spray resistance, and indoor or outdoor suitability, this mount suits commercial, industrial, offshore, warehouse, and exposed ceiling installations.

Key Features

Low-Ceiling Installation: Mounts compatible cameras extremely close to the ceiling for a reduced profile.
Swivel Action: Allows the mount to swing safely out of the way if accidentally impacted.
Sloped Ceiling Support: Helps the mounted camera remain perpendicular even on sloped ceilings.
Camera Compatibility: Compatible with Axis PTZ dome cameras and outdoor models of Axis fixed domes.
IK10 Vandal Resistance: Robust construction helps protect the installation from physical impact.
NEMA 4X Corrosion Resistance: Supports offshore and outdoor applications with corrosion and salt spray resistance.

Additional Information

Datasheet-axis-t91b51-ceiling-mount

$228.00 inc GST +3 Year Warranty & Support

Description

Product SKU: T91B51

Product Overview

Built for low-ceiling environments where camera drop height must be minimised and impact risk is a real operational concern, the AXIS T91B51 Ceiling Mount (part number 5507-461) is a purpose-designed bracket for compatible Axis PTZ dome cameras and outdoor models of Axis fixed dome cameras. Featuring a close-to-ceiling installation profile, the T91B51 allows cameras to be mounted extremely close to the ceiling surface, keeping equipment clear of vehicle traffic and reducing exposure in tight overhead spaces. A swivel action mechanism lets the mount move safely if accidentally struck by a forklift, tall vehicle, or equipment, helping to protect the camera, ceiling structure, and surrounding hardware. The mount also stays perpendicular on sloped ceilings, supporting consistent camera alignment across varied building types. With IK10 vandal resistance and NEMA 4X corrosion and salt spray resistance, it suits demanding indoor and outdoor environments including warehouses, car parks, coastal sites, and offshore installations. Optional 30cm and 100cm extension pipes are available when additional camera drop is required.

Key Capabilities

Close-to-Ceiling Profile

The T91B51 is engineered specifically for locations where overhead clearance is limited. It positions compatible Axis cameras extremely close to the ceiling surface, reducing the camera’s exposure to accidental contact in low-clearance car parks, loading areas, corridors, and warehouse interiors.

Safety Swivel Action

If the mounted camera is accidentally struck by a forklift, tall vehicle, or equipment, the swivel action allows the mount to move safely out of the way. This reduces the risk of damage to the camera, ceiling fixings, and surrounding hardware in busy operational spaces where accidental impact is a genuine concern.

Sloped Ceiling Alignment

The mount is designed to remain perpendicular even when installed on a sloped or angled ceiling. This maintains correct camera orientation without additional shimming or adjustment, making it practical for buildings, covered outdoor areas, and architectural spaces where flat ceiling surfaces cannot be assumed.

IK10 and NEMA 4X Ratings

IK10 vandal resistance protects the mount against physical impact in exposed or public-facing locations. NEMA 4X corrosion and salt spray resistance extends service life in coastal, offshore, and harsh outdoor environments where standard mounting hardware deteriorates more rapidly over time.

Extension Pipe Compatibility

When more camera drop is needed, compatible 30cm and 100cm Axis extension pipes can be added to the T91B51 base. This allows installers to adjust the camera’s hanging position to suit higher ceilings, obstructions, or specific coverage requirements while retaining the mount’s protective features.

Best For

Forklift and Vehicle Zones: The swivel action provides a safer mounting option in warehouses, loading docks, and industrial spaces where tall vehicles or forklifts operate close to ceiling-mounted cameras.
Low-Ceiling Car Parks: Positions compatible Axis cameras extremely close to the ceiling to maintain clearance while keeping the camera securely mounted and properly aimed.
Coastal and Offshore Installations: NEMA 4X corrosion and salt spray resistance makes this mount a practical choice for sites exposed to marine environments, coastal air, or harsh weather.
Sloped or Non-Standard Ceiling Surfaces: The perpendicular alignment feature simplifies installation on angled ceilings in commercial buildings, covered walkways, or architectural spaces without requiring custom adapters.

Why Choose the AXIS T91B51 Ceiling Mount

The AXIS T91B51 Ceiling Mount addresses a specific installation challenge that standard ceiling brackets do not: close-to-ceiling mounting in environments where accidental impact from vehicles or equipment is a realistic risk. Its swivel mechanism is not a convenience feature but a functional safety measure that can reduce costly damage in car parks, logistics facilities, and industrial interiors. The IK10 and NEMA 4X ratings go beyond what most general-purpose mounts offer, allowing use across coastal, offshore, and harsh outdoor conditions where corrosion would otherwise limit bracket service life. Compatibility with Axis pendant kits, the AXIS T91A05 camera holder, and optional extension pipes means the mount can be adapted to a wide range of Axis PTZ dome and outdoor fixed dome camera configurations. Part number 5507-461 is available through Security Wholesalers for professional installers working on Axis-based surveillance projects in demanding environments.

Buyer Decision Tips

Confirm Full Accessory Compatibility Before Ordering: The AXIS T91B51 is a ceiling mount base, not a complete mounting kit. The correct pendant kit, camera holder (such as the AXIS T91A05), housing, and any required adapters must be selected based on the specific Axis camera model being installed. Axis compatibility documentation should be reviewed for each camera and accessory combination before purchasing to avoid missing components on site.

Extension Pipes Are Optional, Not Included: If the installation requires the camera to hang lower than the close-to-ceiling position the T91B51 provides, the 30cm or 100cm Axis extension pipes must be ordered separately. Measure the required drop height before the installation visit to confirm whether an extension pipe is needed and which length is appropriate for the ceiling height and viewing angle.

Key Features & Technical Specifications

Model	AXIS T91B51 Ceiling Mount
Part Number	5507-461
Product Type	Ceiling mount accessory
Primary Camera Compatibility	Axis PTZ dome cameras and outdoor models of Axis fixed dome cameras
Installation Environment	Indoor and outdoor use
Best Installation Scenario	Low-ceiling environments requiring close-to-ceiling camera placement
Swivel Action	Yes – mount swings safely if accidentally struck
Sloped Ceiling Support	Yes – remains perpendicular on sloped ceiling surfaces
Vandal Resistance	IK10
Corrosion Resistance	NEMA 4X (corrosion and salt spray resistant)
Optional Extension Pipes	30cm and 100cm compatible extension pipes (sold separately)
Compatible Camera Holder	AXIS T91A05 Camera Holder 1.5″ NPS for cameras with standard UNC thread
Compatible Pendant Kits	Selected AXIS T94, TM4101, TP310, TP3908-E, and TQ310 pendant kits where compatible
Compatible Housing	AXIS TM5806-E Housing for compatible applications
Regional Availability	AR, AU, BR, CN, EU, IN, JP, KR, UK, US
Warranty	3 years

Ideal Use Cases

Low-Ceiling Car Parks

The close-to-ceiling profile keeps cameras out of the path of tall vehicles, while the swivel action reduces damage risk if accidental contact does occur. Suitable for multi-storey and basement car parks with restricted overhead clearance.

Warehouses and Loading Docks

Forklift and vehicle zones benefit directly from the swivel mechanism. The IK10 rating adds protection against knocks in operationally busy areas, and the NEMA 4X rating suits industrial interiors exposed to chemicals, moisture, or wash-down conditions.

Coastal and Offshore Sites

NEMA 4X corrosion and salt spray resistance makes this mount appropriate for maritime, offshore, and coastal installations where unprotected metal hardware corrodes quickly. It supports long-term outdoor camera deployments in salt-laden or high-humidity environments.

Public Transport and Infrastructure

Covered platforms, transit terminals, bus shelters, and public corridors with low ceilings benefit from the T91B51’s compact profile, vandal-resistant IK10 construction, and outdoor durability, allowing compatible Axis cameras to be installed securely in high-traffic public areas.

Commercial Buildings with Sloped Ceilings

Shopping centres, covered walkways, service areas, and architecturally designed buildings often feature sloped or angled ceiling surfaces. The T91B51’s perpendicular alignment design avoids the need for custom shimming, simplifying installation and maintaining correct camera orientation.

Choosing the Right Model

Choose this model if: You are installing a compatible Axis PTZ dome or outdoor fixed dome camera in a low-ceiling environment where close-to-ceiling mounting, swivel impact protection, IK10 vandal resistance, or NEMA 4X corrosion resistance is a requirement.
Choose a different model if: Your camera requires a pendant or drop mount with significant hanging length from a high ceiling, a wall-mount bracket for exterior wall surfaces, or a pole or parapet mounting configuration. The T91B51 is optimised for close-to-ceiling positioning and may not suit these scenarios without extension pipes or additional hardware.
Choose a different model if: Your Axis camera model is not within the compatible PTZ dome or outdoor fixed dome range. Always verify the exact camera and pendant kit combination against Axis compatibility documentation before ordering this mount.

FAQs

What exactly does the swivel action on the AXIS T91B51 do?
The swivel action allows the entire mount assembly to rotate or swing if it is accidentally struck by a tall vehicle, forklift, or piece of equipment passing beneath the camera. Rather than absorbing the full impact rigidly, the mount gives way in a controlled manner, which can reduce damage to the camera, the ceiling fixing point, and any surrounding equipment in operationally busy environments like warehouses and loading docks.
Is the AXIS T91B51 a complete mounting kit or just the ceiling bracket?
The T91B51 is the ceiling mount base component only. A complete mounting installation for most Axis cameras will also require the appropriate pendant kit, camera holder (such as the AXIS T91A05), and in some cases a housing or adapter. The correct combination of accessories depends on the specific Axis camera model being installed. Always check Axis compatibility documentation and confirm all required components before ordering.
What does NEMA 4X mean for this mount?
NEMA 4X is an electrical enclosure rating that, when applied to mounting hardware, indicates resistance to corrosion, salt spray, and moisture ingress at a level suitable for harsh indoor and outdoor environments. For the T91B51, this means the mount can be used in coastal locations, offshore platforms, industrial environments with chemical exposure, and exposed outdoor installations where standard mounting brackets would corrode and weaken over time.
Can the T91B51 be installed on a ceiling that is not flat?
Yes. The AXIS T91B51 is designed to remain perpendicular even when mounted on a sloped or angled ceiling surface. This means the camera hangs correctly and maintains the intended downward viewing angle without additional shimming or custom fabrication, which is useful in commercial buildings, covered outdoor areas, or any site where the ceiling is angled rather than horizontal.
What extension pipe options are available for this mount?
Axis lists compatible 30cm and 100cm extension pipes that can be used with the T91B51 when additional camera drop is required. These are ordered separately and allow installers to lower the camera position from the ceiling to suit higher ceiling heights, obstructions above the camera, or specific viewing angle requirements. The T91B51 itself positions the camera extremely close to the ceiling without extension pipes.
Which Axis cameras work with the AXIS T91B51?
The AXIS T91B51 is compatible with all Axis PTZ dome cameras and outdoor models of Axis fixed dome cameras when the correct pendant kit, camera holder, and any required adapters are also used. Compatibility depends on the specific camera model and the accessory combination selected. Axis publishes compatibility lists for each camera model, and Security Wholesalers can assist in confirming the correct accessory set for your specific Axis camera installation.
