Product SKU: T91B47
Product Overview

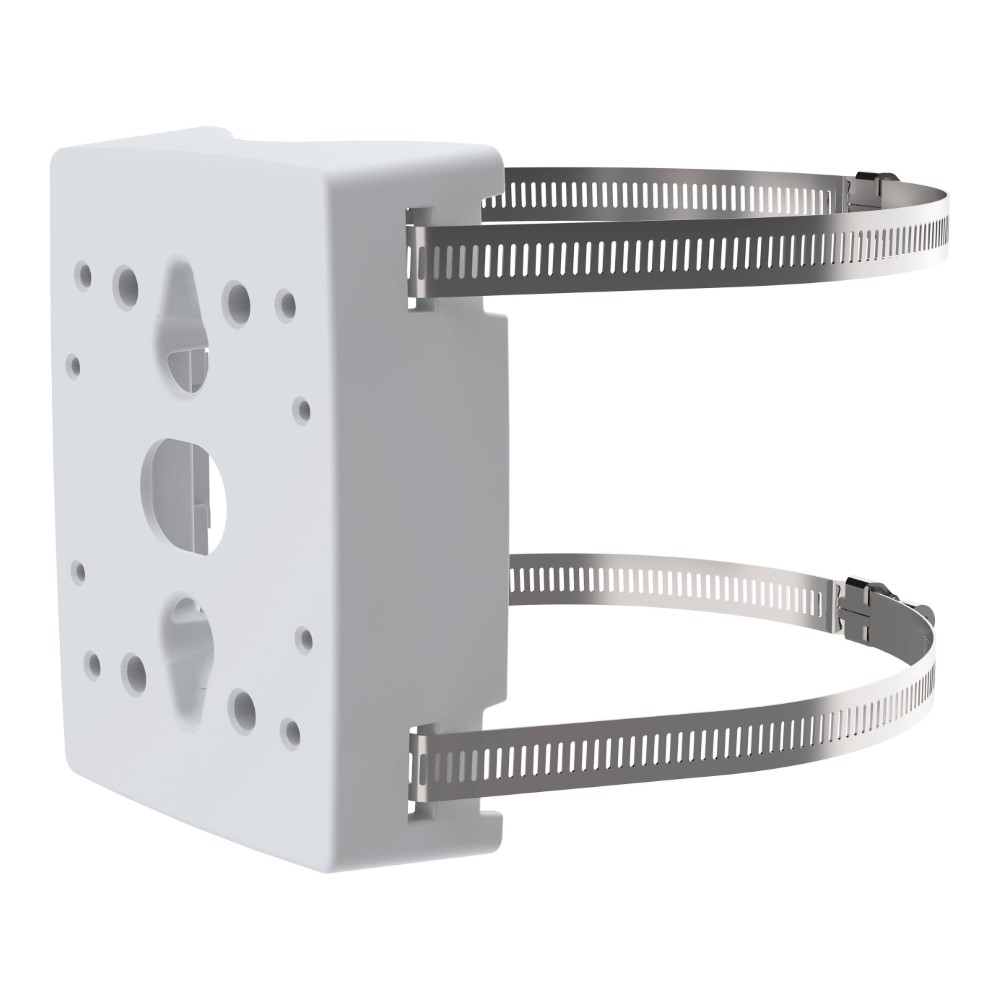

Installers mounting Axis cameras on poles in car parks, perimeter fences, industrial yards, and public spaces need hardware that handles the physical demands of those environments without compromise. The AXIS T91B47 Pole Mount is a purpose-built accessory designed for securely attaching compatible Axis cameras and network devices to poles between 50mm and 150mm in diameter. Featuring two included marine-grade SS316L stainless steel straps tightened via a TX30 screw interface, the mount provides a stable and installer-friendly attachment method for a broad range of Axis products, including fixed dome cameras, thermal cameras, box cameras, panoramic cameras, intercoms, speakers, and radar devices. With an IK10 vandal resistance rating and NEMA 4X corrosion protection, it is built to perform in long-term outdoor installations exposed to weather, moisture, and physical impact.
Key Capabilities
50-150mm Pole Diameter Range
Sized for standard surveillance poles, car park poles, and building perimeter poles between 50mm and 150mm (2-6 inches) in diameter. This range covers many common pole types used in commercial and industrial security installations, making it a practical fit for most pole-mounted Axis deployments.
Marine-Grade SS316L Stainless Steel Straps
Two marine-grade SS316L stainless steel straps are included with the mount. This grade of stainless steel resists corrosion in coastal, industrial, and moisture-exposed environments, reducing long-term fastener degradation and the risk of mounting instability on outdoor poles over time.
IK10 Vandal Resistance
The IK10 rating confirms the mount can withstand high-energy mechanical impacts. In public-facing pole locations such as car parks, transport hubs, or school grounds, this helps protect the mounted installation against tampering, accidental contact, or deliberate physical force.
NEMA 4X Corrosion Protection
NEMA 4X-rated protection means the mount is designed to handle rain, dust, splashing liquids, and corrosive atmospheres. This matters for outdoor pole installations at industrial sites, loading docks, coastal facilities, and any environment where hardware degradation from the elements is a practical concern.
Broad Axis Device Compatibility
The T91B47 supports a wide range of Axis products beyond cameras alone, including network intercoms, speakers, radar devices, and panoramic units when paired with the appropriate Axis bracket or adapter. This flexibility makes it useful across multi-device Axis installations on a single site.
Best For
- Car Park and Open-Area Surveillance: Poles in car parks and open yards allow cameras to cover wider zones than wall-mounted positions. The T91B47 provides a secure base for Axis fixed dome or panoramic cameras on these poles where NEMA 4X and IK10 durability is needed.
- Industrial and Commercial Perimeters: Fence lines, loading docks, and industrial yard boundaries often use freestanding poles for camera placement. The marine-grade SS316L straps and corrosion protection make this mount appropriate for those demanding outdoor environments.
- Public Spaces and Transport Infrastructure: Schools, campuses, transport terminals, and pedestrian areas frequently use pole-mounted devices. The IK10 vandal resistance rating makes the T91B47 a practical fit for poles in locations exposed to public contact or accidental impact.
- Multi-Device Axis Installations: Sites running Axis cameras alongside intercoms, speakers, or radar units benefit from consistent mounting hardware. The T91B47 supports a broad range of compatible Axis products, enabling a uniform pole-mount approach across a site.
Why Choose the AXIS T91B47 Pole Mount
The AXIS T91B47 Pole Mount is a purpose-engineered Axis accessory rather than a generic third-party bracket. It is built to the same durability standards as the devices it supports, with IK10 impact resistance, NEMA 4X corrosion protection, and marine-grade SS316L stainless steel straps included in the box. The TX30 screw interface makes on-site tightening straightforward and secure without additional tooling complications. Its compatibility with a broad range of Axis network devices, including thermal cameras, panoramic cameras, radar, and intercoms, means a single mount model can serve multiple device types across a project. This reduces procurement complexity for multi-device Axis installations. The 3-year warranty supports long-term confidence in the hardware, particularly for outdoor pole locations where revisiting the installation is costly. Available through Security Wholesalers, the T91B47 is a practical choice for professional installers who need Axis-native pole mounting hardware rated for demanding environments.
Buyer Decision Tips
Confirm Your Pole Diameter Before Ordering: The T91B47 comes in 2 versions. This 50-150mm version suits standard surveillance poles, car park poles, and building perimeter poles within that diameter range. If your pole exceeds 150mm, such as larger light poles or infrastructure poles, the 100-410mm version is the correct choice. Measure the actual pole diameter before purchasing to avoid ordering the wrong variant.
Check Camera-to-Mount Compatibility: The T91B47 attaches the Axis device to the pole, but the specific camera or device being installed may also require a compatible Axis wall mount, pendant adapter, or interface bracket between the device and the pole mount. Always confirm the required intermediate accessory for the specific Axis camera or device model before finalising the installation hardware list.
Key Features & Technical Specifications
| Model |
AXIS T91B47 Pole Mount |
| Part Number |
01165-001 |
| Product Type |
Pole Mount Accessory |
| Pole Diameter Compatibility |
50-150mm / 2-6 inches |
| Alternative Version |
100-410mm / 4-16 inch version also available |
| Installation Location |
Indoor and outdoor |
| Included Fastening |
2 x Axis stainless steel straps included |
| Strap Material |
Marine-grade SS316L stainless steel |
| Strap Fastening Interface |
TX30 screw interface |
| Vandal Resistance Rating |
IK10 |
| Corrosion Protection Rating |
NEMA 4X |
| Compatible Device Types |
Selected Axis fixed dome cameras, thermal cameras, box cameras, bullet cameras, panoramic cameras, network intercoms, network speakers, radar devices, and other compatible Axis products |
| Warranty |
3 years |
| Region Availability |
AR, AU, BR, CN, EU, IN, JP, KR, UK, US |
Ideal Use Cases
Car Park Monitoring
Poles in open-air and covered car parks allow compatible Axis cameras to cover vehicle lanes, pedestrian paths, and access points at angles that wall mounting cannot achieve. The IK10 and NEMA 4X ratings suit the physical and weather exposure typical of these environments.
Perimeter and Fence Line Coverage
Fence line poles and gate posts benefit from cameras positioned to cover approach paths and boundary zones. The T91B47 provides a stable, corrosion-resistant mounting point for compatible Axis thermal or dome cameras in these exposed perimeter locations.
Industrial Sites and Loading Zones
Warehouses, depots, and outdoor production yards often install cameras on freestanding poles to monitor wide activity areas. The marine-grade SS316L straps and NEMA 4X corrosion protection make the T91B47 appropriate for industrial atmospheres where standard hardware deteriorates faster.
Schools, Campuses, and Public Spaces
Educational and public environments use pole-mounted cameras across grounds, walkways, and open areas. The IK10-rated vandal resistance of the T91B47 supports installations in locations where contact with the mounting hardware is more likely than in secured facilities.
Multi-Device Axis Deployments
Sites combining Axis cameras with intercoms, speakers, or radar devices on shared poles can use the T91B47 across multiple device types. Its broad Axis compatibility reduces the number of different bracket types needed across a single installation project.
Choosing the Right Model
- Choose this model if: Your pole diameter falls between 50mm and 150mm and you are installing a compatible Axis camera, thermal device, intercom, speaker, or radar unit in an outdoor or indoor pole-mount configuration requiring IK10 and NEMA 4X-rated hardware.
- Choose the 100-410mm version if: Your installation pole exceeds 150mm in diameter, such as larger light poles, utility poles, or infrastructure poles. Using the wrong size version will result in straps that cannot secure the mount safely to the pole.
- Confirm intermediate accessories before ordering: Some Axis cameras require a compatible wall mount, pendant adapter, or interface bracket between the device and the T91B47. The pole mount alone may not be sufficient for all Axis camera models without the correct adapter.
FAQs
- What pole sizes does the AXIS T91B47 (50-150mm version) fit?
This version is designed for poles with a diameter between 50mm and 150mm, which is approximately 2 to 6 inches. This covers many standard surveillance poles, car park lighting poles, and building perimeter poles. If your pole exceeds 150mm in diameter, you will need the separately available 100-410mm version of the T91B47.
- Are the mounting straps included with this pole mount?
Yes. The AXIS T91B47 includes 2 marine-grade SS316L stainless steel straps as part of the package. These straps use a TX30 screw interface for tightening and are designed to secure the mount firmly to the pole without requiring separately sourced fasteners.
- Is this pole mount suitable for outdoor installation in harsh environments?
Yes. The T91B47 carries both IK10 vandal resistance and NEMA 4X corrosion protection ratings. NEMA 4X covers rain, dust, moisture, and corrosive conditions, making it appropriate for exposed outdoor installations at industrial sites, coastal locations, car parks, and similar environments where weather exposure is a long-term concern.
- Which Axis cameras and devices are compatible with the T91B47?
The T91B47 supports a wide range of Axis network devices, including selected fixed dome cameras, thermal cameras, box cameras, bullet cameras, panoramic cameras, network intercoms, speakers, and radar products. Compatibility depends on the specific Axis model and whether the correct intermediate bracket or adapter is used. Always verify compatibility for the exact Axis device before ordering.
- Does the T91B47 require any additional brackets to mount a camera?
In many cases, yes. The T91B47 attaches the mounting interface to the pole, but the Axis camera or device itself may require a compatible Axis wall mount, pendant adapter, or specific interface accessory to connect between the device and the pole mount. The required intermediate accessory varies by camera or device model, so this should be confirmed as part of the installation planning process.
- What does the IK10 rating mean for a pole mount accessory?
IK10 is the highest rating in the IEC 62262 impact protection scale, indicating the enclosure or assembly can withstand a defined high-energy mechanical impact. For a pole-mounted camera installation, this means the mount housing is built to resist significant physical strikes, which is relevant in public areas, transport environments, schools, and industrial sites where the mount may be exposed to impact or tampering. The T91B47 is available through Security Wholesalers for professional Axis installers requiring this level of hardware durability.
