Product SKU: AXIS T8516
Product Overview

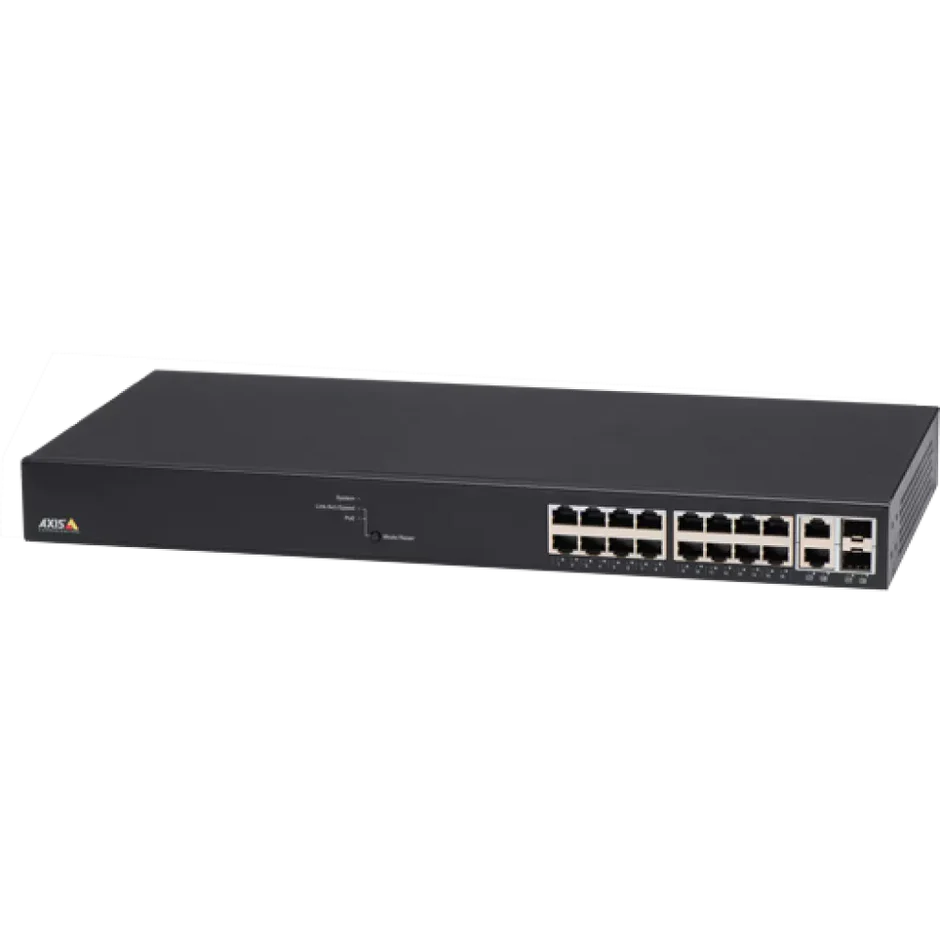

The AXIS T8516 PoE+ Network Switch is a 16-port managed network switch designed specifically for efficient surveillance system deployment and management. It features gigabit switching, PoE+ support, 240W total PoE output power, two SFP/RJ45 combination ports, an integrated DHCP server, VLAN support, QoS, security features, Spanning Tree support, and an intuitive web graphic user interface with network topology overview. Designed to work seamlessly with Axis cameras and devices, this switch is ideal for retail stores, offices, schools, warehouses, commercial buildings, car parks, and surveillance installations requiring reliable PoE power, simplified setup and clear network visibility.
Why Choose the AXIS T8516 PoE+ Network Switch
The AXIS T8516 is ideal for installers and businesses that need a surveillance-focused network switch with strong PoE capability and simple device management. Its unique web graphic interface provides a visual topology of connected devices, making it easier to understand network layout, device status and system health. With 16 PoE+ ports, a 240W total power budget and two SFP/RJ45 combination ports, it provides the flexibility needed for camera-heavy installations, fibre uplinks and structured surveillance networks. VLAN, QoS and Spanning Tree support also help optimise traffic, improve reliability and support more professional network design.
Key Capabilities
16-Port PoE+ Surveillance Switching
The AXIS T8516 provides 16 PoE+ ports for powering and connecting compatible Axis cameras and network devices. This makes it suitable for small to medium surveillance installations where multiple cameras need centralised power, data connectivity and efficient network management from one switch.
240W Total PoE Power Budget
With a 240W total PoE output power budget, the switch can support multiple PoE-powered devices across a surveillance network. This allows installers to power cameras, intercoms, speakers or other compatible network devices while keeping power distribution centralised and easier to manage.
Graphic Topology Interface
The unique web graphic user interface provides a topology view for easy overview and management of connected devices. This helps installers and administrators quickly understand device connections, view status information and troubleshoot surveillance networks more efficiently.
Advanced Network Configuration
VLAN, QoS, security and Spanning Tree support allow the AXIS T8516 to be configured for more advanced surveillance network requirements. These tools help separate traffic, prioritise video data, improve stability and support better structured network design.
SFP/RJ45 Combination Ports
Two SFP/RJ45 combination ports provide flexible uplink options for copper or fibre connections. This is useful where the switch needs to connect back to a recorder, core network, server room or fibre infrastructure across larger buildings and commercial sites.
Key Features
-
16 PoE+ Ports: The AXIS T8516 provides 16 PoE+ ports for connecting and powering compatible network surveillance devices. This simplifies installation by allowing cameras to receive power and data through the same cable, reducing the need for separate local power supplies at each camera point.
-
240W PoE Output Power: The switch offers a total PoE output power budget of 240W, allowing installers to power multiple connected devices from one central switch. This is useful for camera-heavy systems where reliable PoE distribution and power planning are important.
-
Gigabit Switching: Gigabit network performance helps support high-quality video streams from multiple cameras. This is important for surveillance systems using higher-resolution cameras, continuous recording, remote viewing and video management software that depends on stable network throughput.
-
Two SFP/RJ45 Combination Ports: The two SFP/RJ45 combination ports provide flexible uplink connectivity using either copper Ethernet or compatible fibre modules. This gives installers more options when connecting the switch to a recorder, server, core switch or longer-distance network infrastructure.
-
Surveillance-Focused Graphic Interface: The web graphic user interface provides a topology overview of connected devices and system status. This makes it easier for installers and administrators to manage cameras, identify connection issues and maintain the surveillance network without relying only on complex switch tables.
-
Integrated DHCP Server: The built-in DHCP server can automatically assign IP addresses to connected devices, helping speed up installation and reduce manual configuration work. This is useful for surveillance systems where multiple cameras or devices need to be deployed efficiently.
-
VLAN Support: VLAN support allows traffic to be separated across the network, improving organisation, security and performance. This is useful for keeping surveillance devices logically separated from other network traffic or creating structured network segments for different areas or device groups.
-
QoS and Spanning Tree: Quality of Service helps prioritise important network traffic, while Spanning Tree supports network redundancy and loop prevention. These features help improve reliability in more complex surveillance networks where uptime and stable video transmission are important.
-
Easy Axis Tool Integration: The AXIS T8516 is designed for easy installation using standard Axis tools such as AXIS IP Utility and AXIS Device Manager. This helps streamline deployment for installers already working within the Axis ecosystem.
-
Cost-Efficient Ownership: The switch is designed as a one-time purchase with no service fees and Axis support, making it a practical network foundation for professional surveillance systems. The 5-year warranty also supports long-term confidence in commercial installations.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS T8516 PoE+ Network Switch |
| Product Type |
Managed PoE+ Network Switch |
| Primary Use |
Surveillance network switching and PoE power distribution |
| PoE Ports |
16 PoE+ ports |
| Total PoE Output Power |
240W |
| Switching Type |
Gigabit switch |
| Uplink / Combination Ports |
2 SFP/RJ45 combination ports |
| Management |
Managed switch with unique web graphic user interface |
| Topology View |
Graphic topology overview for connected devices and status |
| DHCP Server |
Integrated DHCP server for automatic IP address assignment |
| VLAN Support |
Yes |
| QoS Support |
Yes |
| Spanning Tree Support |
Yes |
| Security Configuration |
Advanced security configuration supported |
| PoE Scheduling |
PoE schedule profiles supported |
| PoE Auto Checking |
Supported for automatic connection checking and PoE port restart |
| Installation |
Easy installation and configuration with setup wizard |
| Axis Tool Support |
AXIS IP Utility and AXIS Device Manager support |
| Typical Applications |
Retail, offices, schools, warehouses, commercial buildings, camera networks and managed surveillance systems |
| Recommended SFP Modules |
Compatible Axis SFP modules where required for fibre uplink |
| Ownership Benefit |
One-time purchase cost, no service fees and Axis support |
| Warranty |
5-year warranty |
Ideal Use Cases
- Retail Stores – Suitable for powering and managing multiple cameras across entrances, checkout zones, aisles, stock rooms, offices, loading areas and customer-facing spaces.
- Commercial Buildings – Ideal for connecting surveillance cameras across lobbies, corridors, lifts, car parks, plant rooms, service areas and shared facilities.
- Schools and Education Sites – Useful for managed camera networks covering administration areas, corridors, libraries, entrances, classrooms, canteens and shared student spaces.
- Warehouses and Logistics Sites – Practical for camera systems covering loading docks, roller doors, stock zones, dispatch areas, office spaces, pedestrian paths and vehicle access points.
- Structured Surveillance Networks – Suitable for installations requiring VLANs, QoS, Spanning Tree, fibre uplinks, topology overview and centralised PoE power management.
Understanding Managed PoE Switching for Surveillance
The AXIS T8516 is designed to simplify surveillance networking by combining PoE+ power, gigabit data switching and camera-focused management in one switch. Unlike basic unmanaged switches, it provides a visual topology interface, VLAN configuration, QoS, Spanning Tree, DHCP server functionality and PoE management features. This helps installers deploy, organise and maintain camera networks more efficiently, especially where multiple Axis cameras, recorders and network devices need reliable power and structured connectivity.
| Network Feature |
What It Provides |
Best For |
| 16 PoE+ Ports |
Power and data for connected surveillance devices |
Camera networks, retail sites, offices, schools, warehouses and commercial buildings |
| 240W PoE Budget |
Centralised power capacity for multiple connected PoE devices |
Multi-camera systems, higher PoE demand planning and simplified power distribution |
| Graphic Topology Interface |
Visual overview of connected devices and network status |
Faster troubleshooting, easier management and clearer surveillance network visibility |
| VLAN, QoS and Spanning Tree |
Advanced traffic organisation, prioritisation and network stability |
Professional installations, structured networks, redundancy planning and network optimisation |
Tip:
Use the AXIS T8516 when a surveillance system needs a managed 16-port PoE+ switch with strong PoE capacity and easy device visibility. Confirm connected device power requirements, uplink type, VLAN design and total PoE load before installation.
FAQs
- What is the AXIS T8516 PoE+ Network Switch used for?
The AXIS T8516 is used to power and connect surveillance devices such as Axis cameras and compatible network products. It is designed for efficient surveillance network management, with PoE+ power, gigabit switching, topology overview, VLAN support and configuration tools suited to professional camera installations.
- How many PoE ports does the AXIS T8516 have?
The AXIS T8516 includes 16 PoE+ ports, allowing up to 16 compatible PoE cameras or devices to connect directly to the switch. This reduces the need for individual power supplies and helps create a cleaner, more centralised surveillance network installation.
- What is the PoE power budget of the AXIS T8516?
The AXIS T8516 provides a total PoE output power budget of 240W. This allows the switch to power multiple connected PoE devices, but the final device mix should always be checked against each camera or device’s power requirements to avoid exceeding the available power budget.
- Does the AXIS T8516 support fibre uplinks?
Yes, the AXIS T8516 includes two SFP/RJ45 combination ports, allowing flexible uplink options using compatible copper or fibre connectivity. Fibre uplinks are useful where the switch needs to connect across longer distances to a recorder, server room or core network.
- Does the AXIS T8516 support VLANs?
Yes, the AXIS T8516 supports VLAN configuration. VLANs help separate surveillance traffic from other network traffic, improve network organisation and support better security design. This is useful in commercial environments where cameras, recorders and business systems share network infrastructure.
- What makes the AXIS T8516 suitable for surveillance?
The AXIS T8516 is optimised for surveillance solutions and includes a unique web graphic user interface with topology overview, PoE management, automatic device discovery, DHCP server support and advanced network features. These functions make it easier to install, manage and troubleshoot camera-focused networks.
Additional Information
Datasheet-axis-t8516-poe+-network-switch
