Product SKU: T8154
Product Overview

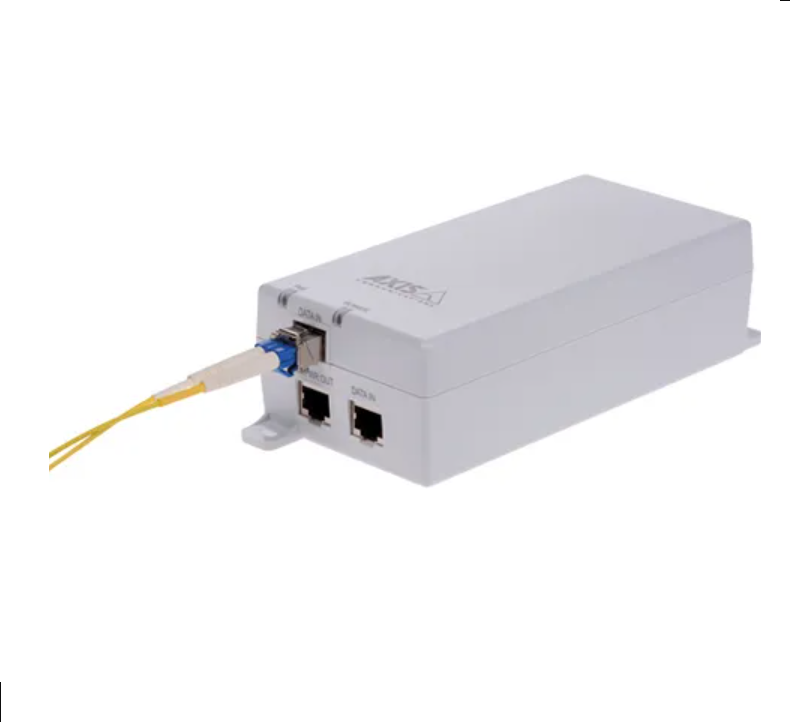

Bridging a fiber backbone to a single powered Axis endpoint is a common challenge on large sites, multi-building campuses, and industrial installations where running copper Ethernet across long distances is not practical. The AXIS T8154 60W SFP Midspan resolves this by combining a media converter and a High PoE injector into one compact, integrated unit. It accepts data input through an SFP slot for fiber connections or an RJ45 port for standard copper Ethernet, then delivers up to 60W of High PoE to the connected Axis device over the outgoing port. The integrated power supply removes the need for a separate external adapter, keeping the installation self-contained at junction enclosures, wall boxes, or ceiling cavities. No software configuration is required, and the unit operates transparently inline without modifying the upstream network topology. It is compatible with all Axis network products that support Power over Ethernet, making it a focused infrastructure solution for single-endpoint deployments where a full PoE switch is not present or practical.
Key Capabilities
SFP Fiber Input
An SFP slot accepts standard small form-factor pluggable transceivers, allowing the T8154 to receive data directly from a fiber backbone and pass it to a single Axis PoE device. This suits sites where fiber replaces long copper runs between buildings or distribution points. The SFP transceiver is sold separately and must match your installed fiber type.
RJ45 Copper Ethernet Input
Where fiber is not involved, the RJ45 input port provides a copper Ethernet path into the midspan. The same unit handles either input type, meaning installers carry one product across mixed-infrastructure sites without needing separate variants for fiber and copper environments.
60W High PoE Output
With up to 60W of High PoE on the single output port, the T8154 covers Axis hardware that exceeds the limits of standard 15.4W PoE or PoE+ at 30W. PTZ cameras, multi-sensor units, and other high-draw Axis devices can be powered at a single endpoint without a separate power feed.
Integrated Power Supply
The built-in power supply keeps the unit self-contained, removing the external adapter from the equation at the installation point. This reduces component count and simplifies cable management inside enclosures, junction boxes, and ceiling spaces where available room is limited.
Plug-and-Play Inline Operation
The T8154 requires no web interface, management software, or switch-level configuration. It operates transparently as an inline midspan injector, passing data and injecting PoE power automatically on connection. This removes the need for IT-layer involvement and reduces commissioning time on standard Axis camera deployments.
Best For
- Fiber-to-PoE Bridging: Sites running a fiber backbone that need to deliver High PoE to a single Axis endpoint benefit directly from the SFP input combined with the 60W output, removing the need for two separate units at the fiber termination point.
- High-Power Single Device Endpoints: Where one Axis device draws beyond what standard PoE can supply, the 60W High PoE output provides the power headroom without requiring a full PoE switch at that distribution point.
- Retrofit Infrastructure Without PoE Switches: The inline midspan design means no PoE-capable switch is required upstream, making the T8154 practical for retrofit projects where the existing copper infrastructure stays in place.
- Remote Camera Nodes With Minimal Hardware: The integrated power supply and plug-and-play setup allow a single Axis device to be powered and connected at an isolated edge location without additional hardware at the node.
Why Choose the AXIS T8154
The AXIS T8154 fills a specific gap that a standard single-port copper PoE injector cannot: it accepts fiber input via an SFP slot, making it usable on sites where the primary network infrastructure runs on fiber rather than copper Ethernet. Paired with its 60W High PoE output, it covers the power requirements of demanding Axis hardware including PTZ cameras and multi-sensor devices that exceed the 30W ceiling of PoE+. The integrated power supply keeps the installation compact and self-contained, and plug-and-play operation removes the configuration overhead that would be associated with a managed switch. Installers benefit from a single unit that combines media conversion and power injection, rather than sourcing and mounting two separate devices at the same endpoint. Available through Security Wholesalers in the Australian power specification, the T8154 is a purpose-built infrastructure component for Axis-based deployments that require both fiber connectivity and elevated PoE power at a single device location.
Buyer Tip: Before purchasing, confirm the PoE power class of the Axis device you are connecting by checking its datasheet. While 60W covers most Axis hardware, the exact figure matters for PTZ cameras and multi-sensor units with elevated draw. Additionally, the SFP transceiver is not included and must be purchased separately. Verify whether your fiber run is single-mode or multi-mode and identify the correct wavelength so the transceiver you source matches the existing fiber infrastructure at the site.
Buyer Tip: The T8154 is a single-port midspan unit and powers one device only. If your installation requires PoE power to be distributed across multiple Axis devices from a single point, a multi-port PoE switch or a multi-port midspan is the appropriate solution. The T8154 is best suited to isolated endpoints or locations where one high-power Axis device sits at the end of the network run.
Key Features & Technical Specifications
| Product Name |
AXIS T8154 60W SFP Midspan |
| SKU |
T8154 |
| Part Number |
5901-006 |
| Device Type |
Media converter with integrated PoE midspan injector |
| PoE Standard |
High PoE |
| PoE Power Output |
Up to 60W |
| Data Input – Fiber |
SFP slot (SFP transceiver sold separately) |
| Data Input – Copper |
RJ45 port |
| Output Ports |
Single PoE output port |
| Power Supply |
Integrated |
| Configuration |
Plug-and-play, no software configuration required |
| Compatibility |
All Axis network products supporting Power over Ethernet |
| Power Region |
Australia (AUS) |
| Form Factor |
Compact inline unit |
Ideal Use Cases
Multi-Building and Campus Sites
On campuses and industrial facilities where fiber serves as the primary backbone between buildings, the T8154’s SFP slot allows a single Axis device to connect and receive High PoE at the fiber termination point, removing the need for a separate media converter and injector at each location.
High-Power Axis PTZ Deployments
Axis PTZ cameras that require more than PoE+ can supply are suited to the T8154’s 60W output. Where a PTZ camera is the sole device at a network node, the T8154 delivers the power and connectivity without requiring a full managed switch at that endpoint.
Retrofit Copper Infrastructure
Existing copper Ethernet runs without PoE capability can be extended to support a single Axis device using the RJ45 input, allowing a retrofit upgrade at the device level without replacing the upstream network switch or running new cabling across the site.
Edge and Isolated Camera Positions
At remote camera positions where installing a powered switch is impractical, the T8154’s integrated power supply and plug-and-play design provide a self-contained solution that powers and connects one Axis device with no additional hardware required at the node.
Choosing the Right Model
- Choose this model if: You need to deliver up to 60W High PoE to a single Axis device at the end of a fiber run using an SFP transceiver, or you need a compact plug-and-play midspan injector for a copper Ethernet segment where no PoE switch is present upstream.
- Choose a different model if: You need to power more than 1 device from the same distribution point. The T8154 is a single-port unit and a multi-port PoE switch or multi-port midspan would be the appropriate choice for powering several cameras or devices from one location.
- Choose a different model if: The Axis device you are connecting draws only standard PoE at 15.4W or PoE+ at 30W on a copper-only run, as a simpler lower-wattage single-port copper injector may be a more cost-effective fit for that specific endpoint.
FAQs
- What does a midspan injector do, and how does the T8154 fit into a network?
A midspan injector sits between an existing non-PoE switch and the powered device. It passes data through the connection while adding PoE power to the outgoing port. The AXIS T8154 operates this way, injecting up to 60W of High PoE on the output connection so your upstream switch does not need to be PoE-capable. It functions transparently inline without altering the rest of the network topology.
- Is the SFP transceiver included with the T8154?
No. The SFP transceiver is sold separately and is not included in the box. You will need to identify the correct transceiver for your fiber installation, covering whether the run uses single-mode or multi-mode fiber, the wavelength required, and the connector type. Selecting the wrong transceiver is a common installation error, so confirm these details against your site’s existing fiber specification before ordering.
- What PoE power output does the T8154 provide, and which Axis devices typically need 60W?
The T8154 provides up to 60W of High PoE on its single output port. Standard PoE delivers 15.4W and PoE+ delivers up to 30W. The 60W output is typically needed by Axis PTZ cameras with pan, tilt, and zoom motors, multi-sensor devices, and hardware with high-intensity illuminators. Always check the power class listed in the specific Axis device’s datasheet before selecting the T8154 to confirm it meets that device’s requirement.
- Can the T8154 be used with non-Axis PoE devices?
Axis confirms compatibility with all Axis network products that support Power over Ethernet. The T8154 delivers High PoE, which is based on a recognised standard. If you intend to power a non-Axis device, verify PoE standard compatibility with that device’s manufacturer before deployment, as Axis does not formally extend compatibility claims to third-party hardware.
- Does the T8154 require any configuration after installation?
No configuration is required. The T8154 is a plug-and-play device that operates as a transparent inline unit. There is no web interface, no management software, and no settings to adjust on the unit itself. Once connected between the network source and the Axis device, it passes data and delivers PoE power automatically, removing any need for IT-level involvement during commissioning.
- Is the T8154 sold in an Australian power specification?
Yes. The model listed here is the AUS-spec unit with an integrated power supply suited to the Australian power standard. No separate power adapter is required. It is part of the Security Wholesalers range and is available for trade and installer purchase locally, with the Australian specification confirmed in the part number suffix.
Additional Information
