Product SKU: T8144
Product Overview

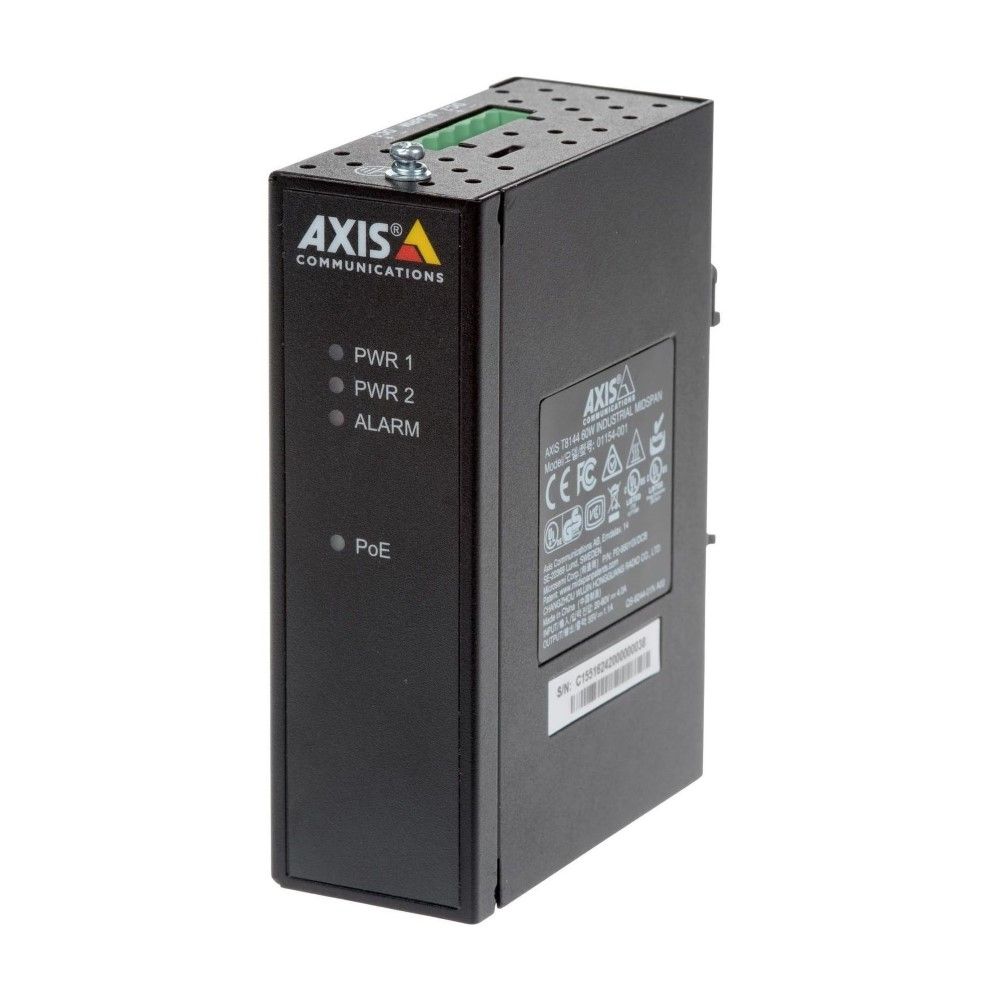

Built for industrial and outdoor network installations, the AXIS T8144 is a single-port PoE midspan that injects up to 60W of Power over Ethernet using DC input rather than AC mains. Designed to operate across a confirmed temperature range of -40°C to 75°C, it can be deployed inside outdoor field enclosures, rooftop cabinets, and unheated industrial housings where standard PoE hardware would be unsuitable. Featuring dual 20-60 V DC inputs, the T8144 supports power redundancy so that a connected device remains online if one supply is interrupted. It mounts on a standard DIN rail or inside an electrical cabinet, integrating neatly into structured field installations without additional mounting hardware. Compatible with all Axis PoE devices and capable of enabling PoE delivery through non-PoE equipment such as 3G/4G routers and unmanaged switches, this midspan is suited to systems integrators and field technicians specifying dependable power injection at the network edge.
Key Capabilities
Industrial Temperature Tolerance
A confirmed operating range of -40°C to 75°C allows the T8144 to function inside outdoor enclosures, rooftop mounting boxes, and cold-climate field cabinets where consumer or office-grade PoE injectors would fail due to temperature limits falling well short of site conditions.
Dual DC Input Power Redundancy
Two DC inputs accepting 20-60 V DC can be connected to separate power sources at the same time. If one source fails, the second continues supplying the midspan without interruption, which is critical for cameras and network devices at unattended or remote locations where manual intervention is not practical.
60W PoE Output
The 60W output exceeds the 30W ceiling of standard PoE+ injectors, making the T8144 capable of powering higher-draw Axis devices including PTZ cameras and multi-sensor units from a single port without requiring additional power hardware at the mounting point.
DIN Rail and Cabinet Mounting
Sized and designed to fit a standard DIN rail or electrical cabinet, the T8144 integrates into structured field enclosures cleanly. This keeps installations tidy and avoids the need for additional brackets or improvised mounting solutions inside existing infrastructure.
Non-PoE Infrastructure Compatibility
The T8144 inserts into the data line between a non-PoE device and the downstream camera or access point, adding PoE delivery without requiring the upstream switch, 3G/4G router, or Wi-Fi access point to be replaced or reconfigured.
Best For
- Extreme Temperature Field Sites: The -40°C to 75°C operating range makes the T8144 appropriate for outdoor enclosures, rooftop cabinets, and industrial spaces where ambient or internal enclosure temperatures cannot be controlled within standard PoE hardware limits.
- Remote and Unattended Installations: Dual DC input redundancy keeps connected cameras or network equipment powered if one supply fails, reducing the need for on-site intervention at locations that are difficult or costly to reach.
- DC-Powered Network Infrastructure: At sites fed by solar systems, 48V DC distribution, or battery-backed supplies within the 20-60 V DC range, the T8144 accepts these sources directly and delivers PoE output without a separate AC mains connection.
- Adding PoE to Existing Non-PoE Equipment: Where a deployed switch or router does not provide PoE, the T8144 enables power injection into the Ethernet cable run without requiring upstream equipment to be replaced.
Why Choose the AXIS T8144
Standard desktop PoE injectors are designed for conditioned indoor environments and offer no power redundancy. The AXIS T8144 addresses the requirements of genuinely industrial deployments: a confirmed operating temperature of -40°C to 75°C, dual 20-60 V DC inputs for redundant power feeds, and a 60W output that goes beyond what standard PoE+ hardware delivers on a single port. These are not incremental improvements but fundamental design differences that matter when a connected device is mounted on a rooftop, inside an outdoor cabinet in a harsh climate, or at a remote site with no technician on call. The plug-and-play operation removes the need for device-level configuration, and DIN rail or cabinet mounting keeps field enclosures structured. For integrators specifying infrastructure-critical or environmentally exposed installations, the T8144 is available through Security Wholesalers as a purpose-built industrial midspan rather than an adapted consumer product.
Buyer Decision Tips
Buyer Tip: The T8144 accepts only DC input in the 20-60 V range and does not connect to 230V AC mains directly. Before specifying this midspan, confirm that your site power source falls within this DC range or that a suitable DC power supply or converter is included in the installation design. Solar systems and 48V DC infrastructure are common sources that align with this input range, but a standard mains-only site will require an upstream DC PSU.
Key Features & Technical Specifications
| Model |
AXIS T8144 |
| Type |
Industrial 1-port PoE Midspan |
| PoE Output |
60W |
| Number of Ports |
1 |
| DC Input Voltage |
20-60 V DC (dual input) |
| Power Redundancy |
Yes, via dual DC inputs |
| Operating Temperature |
-40°C to 75°C |
| Device Compatibility |
All Axis PoE devices |
| Mounting Options |
DIN rail, cabinet |
| Installation |
Plug-and-play |
| Typical Use |
Adding PoE to non-PoE switches, 3G/4G routers, Wi-Fi access points |
Ideal Use Cases
Outdoor Field Enclosures
The confirmed -40°C to 75°C operating range allows the T8144 to be mounted inside rooftop or pole-mounted enclosures exposed to direct sun or freezing temperatures, removing the need for a separate climate-controlled housing around the midspan itself.
Solar and DC-Powered Remote Sites
At locations powered by solar arrays, 48V battery banks, or other DC supplies within the 20-60 V range, the T8144 accepts these sources natively across both inputs, delivering PoE to cameras or access points without requiring an AC mains connection or inverter.
Transit and Infrastructure Sites
Rail, road, and utility installations that rely on DC distribution infrastructure benefit from the T8144’s wide DC input tolerance and redundant power design, maintaining camera uptime at critical monitoring points where supply interruptions must not take the device offline.
High-Power Axis Device Deployment
PTZ cameras and multi-sensor Axis units that draw beyond the 30W ceiling of standard PoE+ hardware are supported by the T8144’s 60W output, making it the appropriate midspan choice where device power requirements exceed what a standard injector can deliver.
Upgrading Non-PoE Network Equipment
Where a deployed 3G/4G router, unmanaged switch, or wireless access point has no PoE output, the T8144 inserts into the Ethernet data line to add power injection to the downstream device without replacing or reconfiguring the upstream network hardware.
Choosing the Right Model
- Choose this model if: Your site uses DC power within the 20-60 V range, requires PoE injection across an extreme temperature range, needs dual-supply redundancy for an unattended or remote device, or involves powering a single high-draw Axis device from an industrial field enclosure.
- Choose a different model if: You need to power multiple cameras or network devices from a single unit, as the T8144 provides only 1 PoE output port. A multi-port industrial PoE switch or injector would be more appropriate for that requirement. If your site runs on 230V AC mains with no DC infrastructure, an AC-input PoE injector would also suit the installation more directly.
FAQs
- What does the T8144 do that a standard PoE injector cannot?
The AXIS T8144 is rated to operate from -40°C to 75°C and accepts dual DC inputs for power redundancy, neither of which is available on typical office or consumer PoE injectors. It also delivers 60W on a single port, exceeding the 30W ceiling of standard PoE+ hardware. These features make it suitable for industrial, outdoor, and remote deployments where standard hardware would not be appropriate.
- Can the T8144 be used inside a sealed outdoor enclosure exposed to direct sunlight in Australia?
Yes. The upper operating limit of 75°C allows the T8144 to function inside enclosures where internal temperatures can rise significantly above ambient due to solar heat loading. This is a practical consideration in Australian outdoor installations where unventilated enclosure temperatures can exceed what standard PoE hardware tolerates.
- Does the T8144 accept AC mains power?
No. The T8144 accepts only DC input in the 20-60 V range across its dual inputs. It does not connect to 230V AC mains power directly. A site running on standard mains supply will need a separate DC power supply or converter rated to output within this voltage range installed upstream of the T8144.
- How does power redundancy work on the T8144?
Both DC inputs can be connected to independent power sources at the same time. The T8144 draws from both simultaneously or fails over to the remaining source if one supply is interrupted. No manual intervention is required. This is particularly valuable at remote or unattended sites where a single power supply failure would otherwise take the connected camera or device offline until a technician responds.
- Can the T8144 be used with non-Axis PoE devices?
The product data confirms compatibility with all Axis PoE devices. The T8144 uses standard PoE protocols, so it may operate with equipment from other manufacturers, but it is specified and tested against Axis hardware. For non-Axis devices, confirm that the connected device’s PoE standard is compatible before installation. Security Wholesalers stocks the T8144 for Axis-based network and surveillance infrastructure.
- What is the maximum PoE output of the T8144 and which Axis devices does it support?
The T8144 delivers up to 60W on its single PoE port. This exceeds the 30W limit of standard PoE+ injectors, making it capable of powering higher-draw Axis devices such as PTZ cameras and multi-sensor units that require more power than a standard injector can supply from a single port.
- Where does the T8144 physically install within a network run?
The T8144 insterts into the Ethernet data line between the upstream network device, such as a switch or 3G/4G router, and the downstream PoE-powered device. It adds power to the cable run at the point of installation without affecting data traffic passing through it. It mounts on a DIN rail or inside a cabinet at that point in the run.
