Product SKU: TU8006
Product Overview

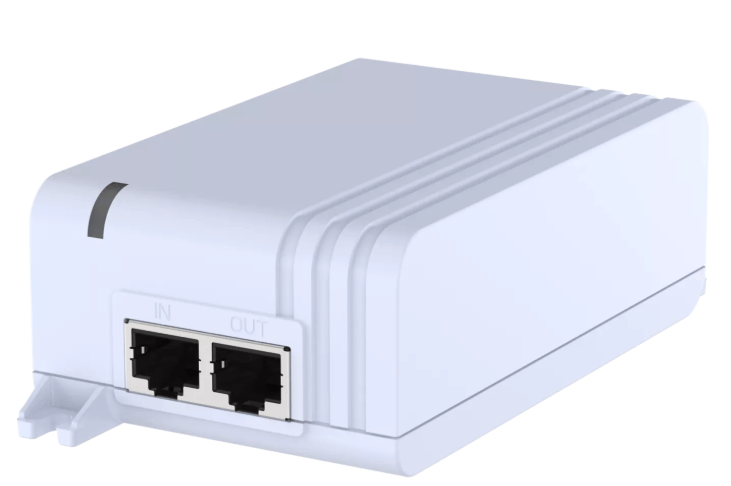

For installers working with high-power Axis network cameras where the existing switch cannot deliver sufficient PoE output, the AXIS TU8006 60 W Midspan provides a targeted, single-port power injection solution. Installed between an existing Ethernet switch and the powered device, it injects both power and data over one network cable, removing the need for a separate power supply at the camera or device location. Featuring compliance with IEEE 802.3bt and support for Axis High PoE devices, the TU8006 is suited to demanding Axis cameras that draw higher wattage for heaters, motors, IR illuminators, or advanced imaging functions. It accepts a universal 100 to 240 V AC input and can be wall, shelf, or DIN rail mounted using the optional AXIS T91A03 DIN Rail Clip A. The TU8006 replaces the discontinued AXIS T8134 midspan and carries the Axis part number 03223-001. Note that the AXIS TU6011 Mains Cable is sold separately.
Key Capabilities
60 W IEEE 802.3bt PoE Output
Delivers up to 60 W per port in line with the IEEE 802.3bt standard, providing enough power for high-demand Axis cameras and devices that exceed what standard 802.3af or 802.3at switches can supply.
Single-Port Midspan Design
Targets power to one device at a time, making it a practical choice when only a single camera or network device on a site requires a PoE upgrade without affecting the rest of the switch infrastructure.
Power and Data Over One Cable
Combines network data and power onto the existing Ethernet cable run, so no additional power cabling is required at the camera or device end, simplifying both new installs and retrofit work.

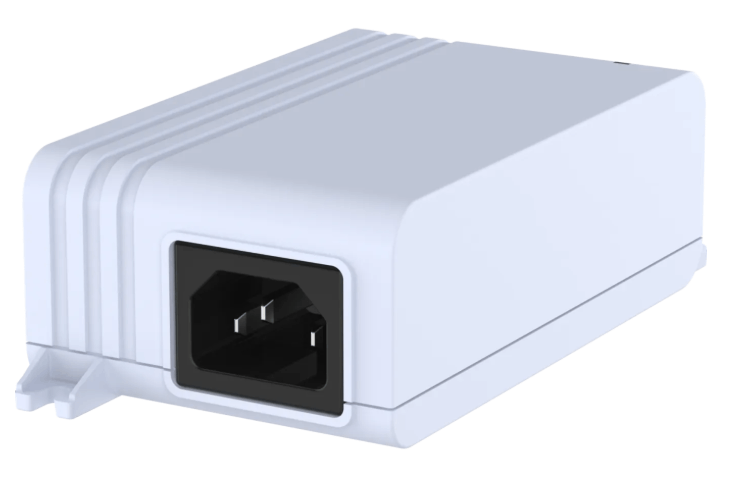

Universal AC Input
Accepts 100 to 240 V AC input, making the TU8006 compatible with Australian mains power without requiring a voltage converter or additional power conditioning equipment.
Best For
- Switch PoE Budget Shortfalls: Sites where the installed switch has insufficient total PoE budget to support an additional high-power Axis camera without the TU8006 supplementing power from mains.
- Non-PoE Switch Retrofits: Installations where an existing non-PoE switch is in place and replacing it is not practical, as the TU8006 injects the required power mid-span before it reaches the device.
- High-Power Axis Device Support: Axis cameras requiring more than 30 W, including models with integrated heaters, optical zoom motors, or powerful IR illuminators, that need IEEE 802.3bt-level power delivery.
- Single-Position Upgrades: Service and remedial work where only one camera position on an existing site needs a PoE power boost, avoiding the cost and disruption of a full switch replacement.
Why Choose the AXIS TU8006
The AXIS TU8006 60 W Midspan fills a specific gap in Axis installations where high-power cameras cannot be adequately powered by an existing switch. Unlike a general-purpose PoE injector, the TU8006 is engineered to support Axis High PoE devices and complies fully with IEEE 802.3bt, which means it delivers reliable 60 W output rather than underpowering demanding cameras with a lower-rated alternative. Its single-port format keeps costs proportionate when only one device needs a PoE upgrade on an established site. The universal 100 to 240 V AC input and compact form factor support flexible placement, including DIN rail mounting with the optional AXIS T91A03 clip. As the confirmed replacement for the discontinued AXIS T8134, the TU8006 provides a direct upgrade path for sites carrying legacy Axis infrastructure. It is available at Security Wholesalers as part of the broader Axis Communications accessories range.
Buyer Decision Tips
Mains Cable Required Separately: The AXIS TU8006 does not include a mains cable in the box. The AXIS TU6011 Mains Cable must be ordered separately before installation. Confirm you have the correct regional mains cable on order before the site visit to avoid delays on the day.
Single Port Only: The TU8006 powers one device per unit. If multiple cameras on a site require high-power PoE beyond what the switch provides, a separate TU8006 unit is needed per device, or a switch with a higher total PoE budget should be evaluated for the installation.
Key Features & Technical Specifications
| Brand |
Axis Communications |
| Model |
AXIS TU8006 60 W Midspan |
| Axis Part Number |
03223-001 |
| Replaces |
AXIS T8134 (discontinued) |
| Device Type |
Single-port PoE midspan |
| PoE Output |
60 W |
| PoE Standard |
IEEE 802.3bt |
| Axis High PoE Compatible |
Yes |
| Input Voltage |
100 to 240 V AC |
| Data and Power |
Combined over a single Ethernet cable |
| Ports |
1 |
| Mounting Options |
Wall, shelf, or DIN rail (DIN rail via optional AXIS T91A03 DIN Rail Clip A) |
| Mains Cable |
Not included – AXIS TU6011 Mains Cable sold separately |
| Power Efficiency |
High |
Ideal Use Cases
Outdoor High-Power Axis Cameras
Axis cameras with built-in heaters for harsh environments or powerful IR illuminators often exceed standard PoE limits. The TU8006 delivers up to 60 W via IEEE 802.3bt to support these devices where the existing switch falls short.
PTZ and Multi-Sensor Axis Cameras
Pan-tilt-zoom and multi-sensor Axis cameras draw higher wattage to drive motors and multiple imaging components. The TU8006 injects the required power mid-span without any change to the network switch.
Legacy Site Upgrades
Sites originally installed with the discontinued AXIS T8134 can use the TU8006 as a direct replacement, maintaining compatibility with existing Axis High PoE devices and switch configurations already in place.
Commercial CCTV Service Work
When a single camera position on a commercial site requires additional PoE capacity, the TU8006 resolves the issue without redesigning the switch layout, keeping remedial service calls fast and cost-controlled.
Choosing the Right Model
- Choose this model if: You need to power a single Axis High PoE or IEEE 802.3bt device and your existing switch does not provide sufficient PoE output, or you are replacing an AXIS T8134 on an established site.
- Choose a different model if: Multiple cameras across a site need higher PoE capacity, in which case a switch with a higher total PoE budget across all ports may be a more efficient and cost-effective solution than deploying multiple single-port midspans.
FAQs
- What does the AXIS TU8006 actually do in a network installation?

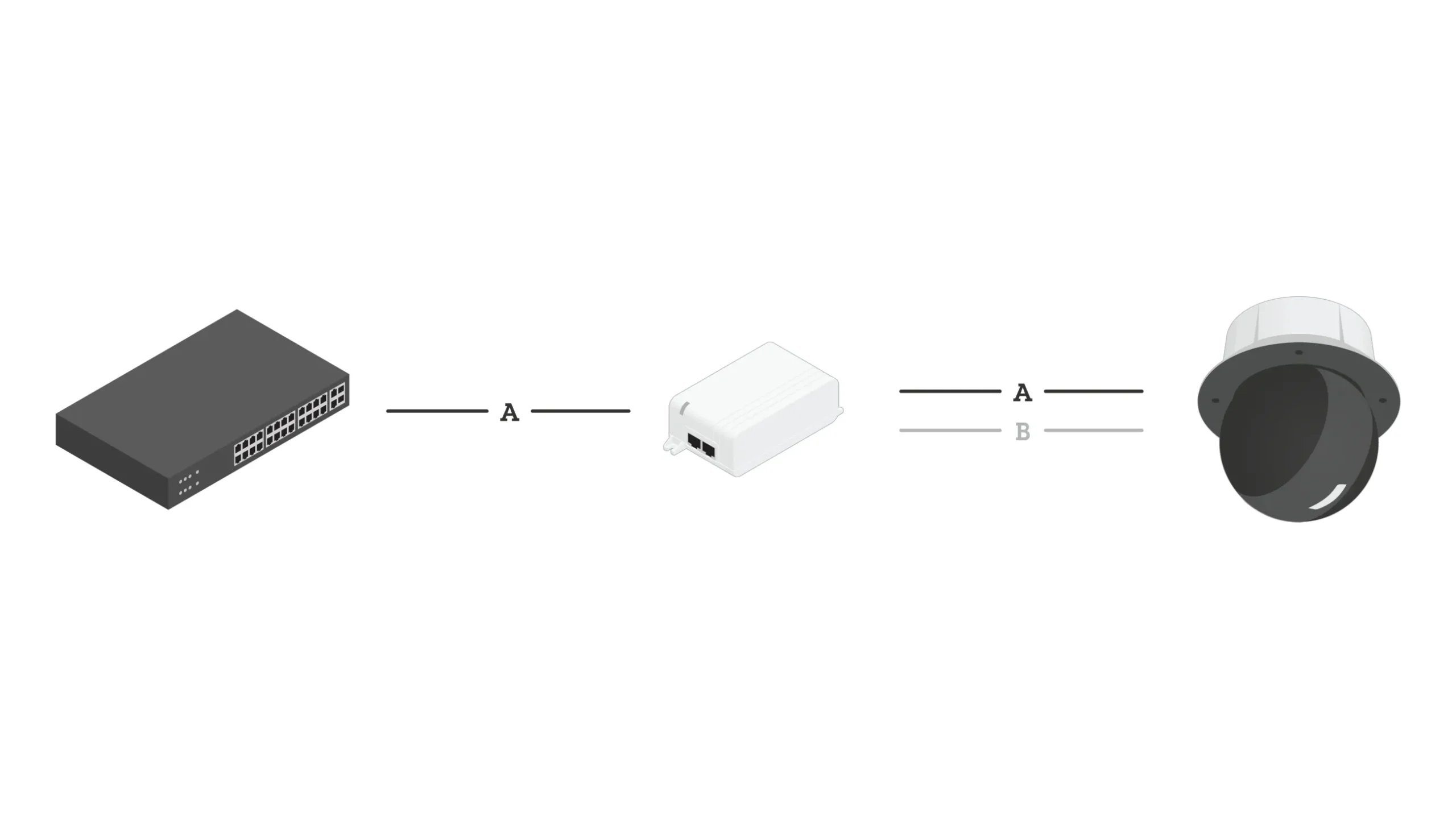

The TU8006 sits between your Ethernet switch and the powered device. It takes standard network data from the switch and injects up to 60 W of power onto the same cable, so the connected Axis device receives both data and power through a single Ethernet run without needing a separate power outlet at the device end.
- What PoE standard does the TU8006 support and why does it matter?
The TU8006 supports IEEE 802.3bt, which allows up to 60 W per port. This is above what IEEE 802.3af (15.4 W) and 802.3at (30 W) deliver, making it necessary for Axis cameras with heaters, motorised optics, or other high-draw components that would not function correctly on a lower-rated PoE source.
- Is the mains cable included with the TU8006?
No. Axis specifies that the AXIS TU6011 Mains Cable is sold separately. You will need to order the appropriate mains cable before installation. Arriving on site without it will prevent the midspan from being commissioned.
- Can the TU8006 be used with any PoE network camera, or only Axis products?
The TU8006 is designed and tested for Axis High PoE devices and IEEE 802.3bt-compatible equipment. While IEEE 802.3bt is an industry standard, Axis positions this midspan specifically within its own product ecosystem. Compatibility with non-Axis devices should be verified against the relevant device specifications before purchase.
- How can the TU8006 be mounted on site?
The unit can be mounted on a wall, placed on a shelf, or installed on a DIN rail. DIN rail mounting requires the optional AXIS T91A03 DIN Rail Clip A, which is not included in the box and must be ordered separately if a rack or cabinet installation is planned.
- What model does the TU8006 replace and is it a direct swap?
The TU8006 replaces the discontinued AXIS T8134 midspan (part number 5900-336). It is the current supported replacement for that unit and is stocked through Security Wholesalers as part of the ongoing Axis Communications accessories range. Installers carrying out like-for-like replacements on existing sites can use it as a direct substitute.
