Product SKU: AXIS T8120
Product Overview

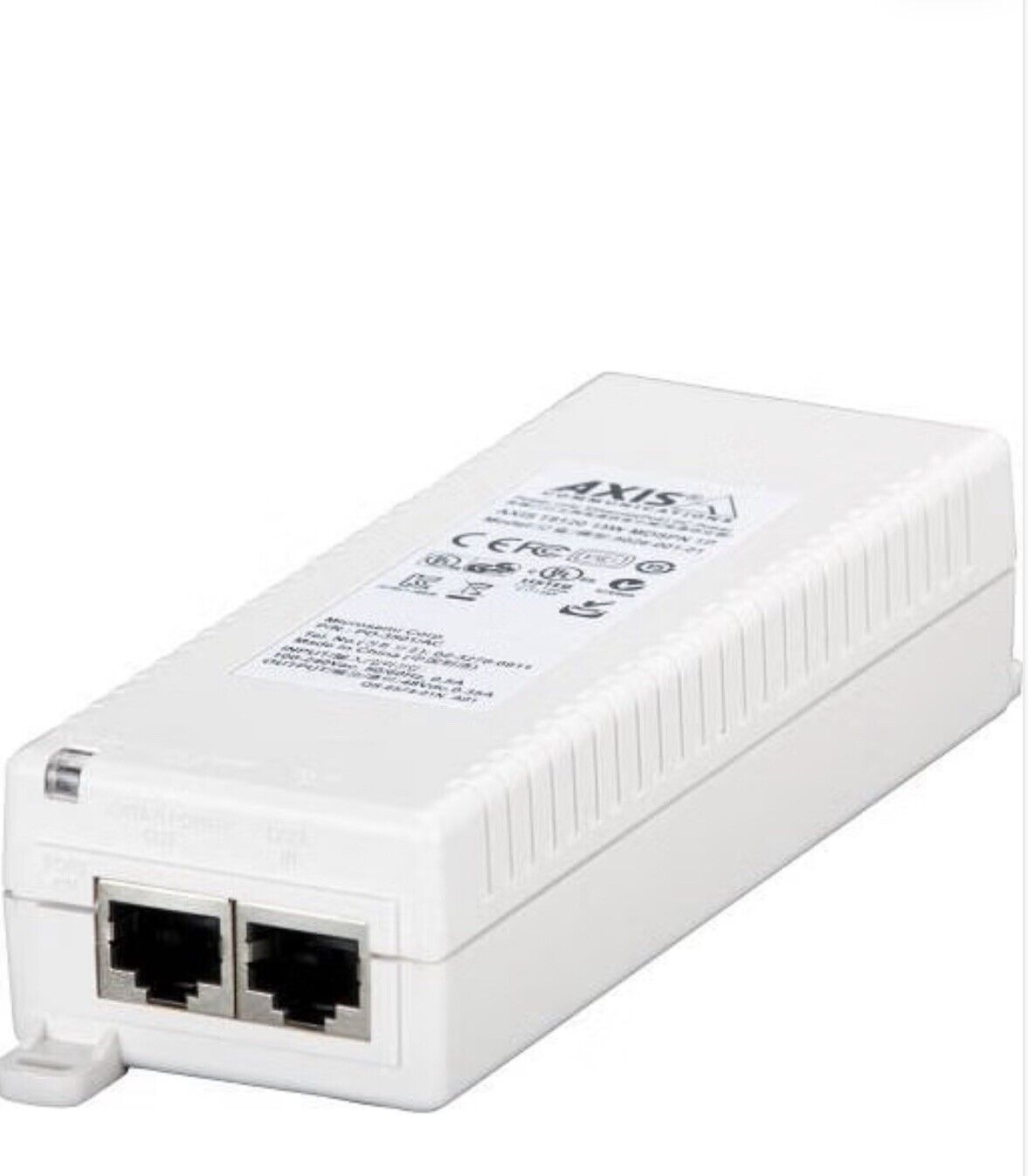

For installers who need to power a single AXIS camera on a network that has no PoE switch in place, the AXIS T8120 provides a direct, single-port midspan solution. Sitting inline between a standard non-PoE switch and the connected camera, it delivers 15W of IEEE 802.3af power and passes network data simultaneously over the same Ethernet cable. Featuring a plug-and-play design, no software configuration or IT-side changes are required once it is connected. Built as a genuine AXIS accessory, the T8120 is tested for compatibility within AXIS camera deployments and meets the power requirements of most standard AXIS fixed cameras. It is well suited to single-camera additions on existing non-PoE networks, retrofit IP camera upgrades where switching infrastructure will remain unchanged, and staged rollouts where a full PoE switch replacement is outside the current project scope.
Key Capabilities
Single-Port PoE Injection
The T8120 targets exactly 1 network port, adding PoE capability inline without touching the rest of the switch. This keeps the hardware scope and cost matched to the actual requirement when only 1 camera on the installation needs to be powered over Ethernet.
15W IEEE 802.3af Output
Complying with the IEEE 802.3af standard, the T8120 delivers up to 15W, covering the power draw of the majority of standard AXIS fixed cameras and removing the need for a local mains power supply at the camera mounting point.
Transparent Data Passthrough
The inline midspan design passes network data through alongside the injected power without registering as a managed device. The T8120 is invisible to the network, meaning no VLAN changes, IP addressing, or IT reconfiguration is needed when it is installed.
Plug-and-Play, No Configuration
Once connected between the switch port and the camera cable, the T8120 operates immediately with no setup steps. This makes it practical for retrofit jobs, temporary deployments, and staged rollouts where minimising installation time at each camera position matters.
Best For
- Single Camera Additions: When 1 AXIS camera is being added to a site with a non-PoE switch already in place, the T8120 injects power on that single port without requiring switch changes or additional hardware across the rest of the installation.
- Retrofit IP Migrations: Sites transitioning from analogue cameras to AXIS IP cameras on non-PoE infrastructure can use the T8120 to power individual cameras inline, allowing the migration to proceed without a concurrent switch replacement project.
- Edge or Remote Camera Positions: Where running cable back to a central PoE switch is impractical, the T8120 can be placed at a local non-PoE data point to deliver 15W of IEEE 802.3af power directly at the camera mounting location.
Why Choose the AXIS T8120
The AXIS T8120 is designed for one specific scenario: powering a single network camera on infrastructure that has no PoE switch available. Its 15W IEEE 802.3af output is sufficient for most standard AXIS fixed cameras, and its inline midspan operation means the existing non-PoE switch stays in place with no configuration changes required on either side. For a single-camera job, purchasing a multi-port PoE switch adds unnecessary cost and scope. The T8120 keeps the investment proportional to the requirement. As a genuine AXIS accessory, it is tested within the AXIS product ecosystem, which reduces compatibility uncertainty on AXIS camera deployments. Installers and integrators sourcing it through Security Wholesalers can be confident they are working with a purpose-matched AXIS component rather than a generic third-party injector.
Buyer Tip: Before purchasing, check the maximum power consumption figure listed on the datasheet of the AXIS camera being connected. The T8120 is rated to 15W under IEEE 802.3af. If the target camera requires IEEE 802.3at (PoE+) with up to 30W, this injector will not supply sufficient power and a higher-output injector will be required for that specific model.
Key Features & Technical Specifications
| Brand |
AXIS Communications |
| Model |
AXIS T8120 |
| Product Type |
Midspan PoE Injector |
| Number of Ports |
1 (single port) |
| PoE Standard |
IEEE 802.3af |
| Maximum PoE Output |
15W |
| Data Passthrough |
Yes – inline data and power over a single Ethernet cable |
| Configuration Required |
None – plug-and-play operation |
| Compatible Devices |
AXIS network cameras and IEEE 802.3af compliant PoE devices |
| Product Category |
AXIS Accessories |
Ideal Use Cases
Adding a Camera to an Existing Non-PoE Network
When a single AXIS camera is being added to a site that already has a non-PoE switch installed, the T8120 injects 15W of IEEE 802.3af power on that one port without requiring any changes to the existing switch or surrounding network infrastructure.
Analogue-to-IP Camera Retrofit Projects
Installers replacing analogue cameras with AXIS IP cameras on sites where non-PoE switches will remain in place can use the T8120 inline on individual ports, enabling the IP transition without making the switching infrastructure part of the project scope.
Edge Camera Positions on Long Cable Runs
Where a camera is installed at a remote or edge location and returning cable to a central PoE switch is not practical, the T8120 can be positioned near a local non-PoE data point to deliver IEEE 802.3af power at that specific mounting location.
Staged Rollouts and Temporary Deployments
For phased installations or short-term surveillance setups where a permanent PoE switch is not yet part of the plan, the T8120 provides a plug-and-play single-port PoE solution that gets 1 AXIS camera operational quickly with minimal infrastructure commitment.
Choosing the Right Model
- Choose this model if: You need to power exactly 1 AXIS camera on a non-PoE network and the camera’s confirmed maximum power draw is at or below 15W under the IEEE 802.3af standard.
- Choose a different model if: Multiple cameras require PoE on the same site, where a multi-port PoE midspan or a PoE switch will be more practical. If the connected camera requires IEEE 802.3at PoE+ power above 15W, a higher-rated injector will be needed for that deployment.
FAQs
- What does a midspan PoE injector do differently from a PoE switch?
A midspan injector like the T8120 sits between an existing non-PoE switch and a single camera, adding power to that one cable run without replacing any network hardware. A PoE switch replaces the non-PoE switch entirely and provides power across all of its ports. The T8120 is the appropriate choice when the existing switch is staying and only 1 port needs PoE capability added to it.
- How many cameras can the AXIS T8120 support at once?
The T8120 is a 1-port midspan injector and powers exactly 1 camera or IEEE 802.3af device at a time. If multiple cameras require PoE injection across the same non-PoE network, individual injectors would be needed per port, or a multi-port PoE midspan or switch would be the more practical and cost-effective solution.
- Will the AXIS T8120 work with cameras that need PoE+ (30W)?
No. The T8120 is rated to 15W and complies with IEEE 802.3af only. Cameras that require IEEE 802.3at PoE+ up to 30W cannot be adequately powered by this unit. Before selecting the T8120 for a specific camera, confirm the camera’s maximum power consumption figure on its datasheet to ensure the 15W output is a match for that model.
- Does the T8120 need to be configured or registered on the network?
No configuration is required. Once connected inline between the switch port and the camera’s Ethernet cable, the T8120 passes data and delivers power immediately. It operates transparently and does not appear as a managed device on the network, so no IP addressing, VLAN adjustments, or IT involvement is needed during installation.
- Can the AXIS T8120 be used with non-AXIS PoE devices?
Because the T8120 complies with the IEEE 802.3af standard, it will supply power to any IEEE 802.3af compliant device regardless of manufacturer. It is however designed and tested as part of the AXIS accessories ecosystem. For non-AXIS devices, verify the connected device’s PoE standard and maximum power draw against the T8120’s 15W output before installation. The T8120 is available through Security Wholesalers as part of the AXIS accessories range.
Additional Information
No additional downloads available for this product.
