Product SKU: AXIS T8061 Ethernet Surge Protector
Product Overview

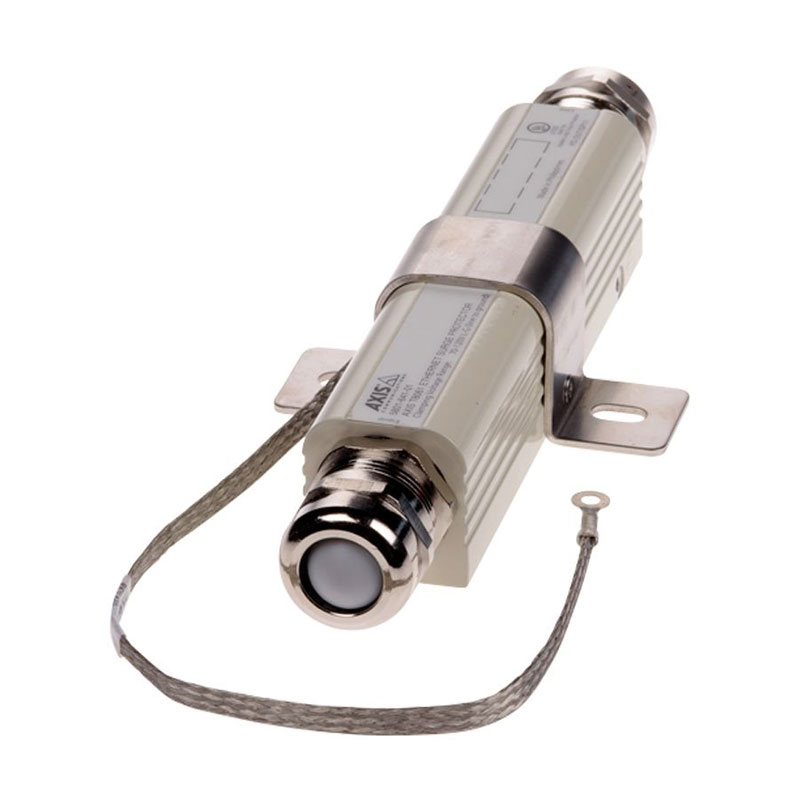

The AXIS T8061 Ethernet Surge Protector is a robust outdoor surge protection accessory designed to help protect PoE network devices from transient voltage spikes carried through Ethernet cabling. It supports data rates up to 1Gbps and provides surge protection up to 10kV, making it a practical choice for outdoor Axis camera and network device installations exposed to lightning-related surges or electrical disturbances. With its IP66-rated waterproof metal casing, wall or pole mounting options, and validation with Axis devices, this surge protector is ideal for outdoor cameras, building perimeters, car parks, gates, industrial sites, access roads, and exposed network cable runs.
Why Choose the AXIS T8061 Ethernet Surge Protector
The AXIS T8061 Ethernet Surge Protector is ideal for installers who want to reduce the risk of downtime, service calls, and equipment damage in outdoor PoE surveillance systems. Ethernet cables running outdoors can be exposed to electrical surges, especially where cables travel between buildings, along poles, across open areas, or into outdoor camera positions. This protector is designed to be installed before the cable enters the building or close to wall or pole-mounted network cameras, helping shield connected Axis devices while maintaining gigabit network performance.
Key Capabilities
Up to 10kV Surge Protection
The AXIS T8061 is designed to protect outdoor PoE network devices against transient voltage spikes of up to 10kV. This helps reduce the risk of damage caused by electrical surges travelling through Ethernet cabling, especially in exposed outdoor surveillance installations.
Gigabit Network Support
With support for data rates up to 1Gbps, the surge protector can be used in modern IP surveillance networks without unnecessarily limiting standard gigabit Ethernet performance. This makes it suitable for Axis cameras, network devices, and other compatible PoE equipment requiring reliable data transmission.
Outdoor-Ready IP66 Metal Housing
The unit is enclosed in a robust waterproof metal casing with an IP66 rating, helping protect it from dust and powerful water jets. This makes it suitable for exposed outdoor installation points near cameras, poles, walls, equipment enclosures, and building entry points.
Wall or Pole Mounting
AXIS T8061 can be mounted on a wall or pole, giving installers flexibility when protecting outdoor cable routes. It can be positioned near a camera or before the cable enters a building, supporting cleaner installation design and practical surge protection placement.
Validated with Axis Devices
The surge protector is tested with Axis devices, helping ensure compatibility within Axis surveillance systems. This gives installers and customers a single Axis-backed accessory for protecting outdoor PoE devices while maintaining consistent support across the camera and surge protection solution.
Key Features
-
10kV Surge Protection: The AXIS T8061 helps protect outdoor PoE devices from transient voltage spikes in Ethernet cabling. This is especially important where cables are exposed to outdoor electrical disturbances, long cable routes, poles, external walls, or building entry points.
-
Up to 1Gbps Data Rate: Support for data rates up to 1Gbps allows the surge protector to be used in gigabit network surveillance systems. This helps maintain reliable data flow for connected Axis network cameras and devices while adding an important layer of electrical protection.
-
IP66 Waterproof Protection: The robust metal casing is IP66 rated, making it suitable for outdoor installations exposed to dust, rain, and water jets. This allows the device to be mounted near outdoor cameras, poles, walls, perimeters, and other exposed surveillance locations.
-
Outdoor PoE Device Protection: The device is designed to help shield outdoor PoE equipment from surge events travelling through Ethernet cables. It is particularly useful for outdoor cameras, intercoms, speakers, strobe sirens, and other Axis network devices installed in exposed environments.
-
Wall or Pole Mounting: Flexible mounting options allow the AXIS T8061 to be installed on a wall or pole, helping position the protector where it is most effective. It can be mounted close to the camera or before the Ethernet cable enters the building.
-
Validated with Axis Devices: The AXIS T8061 is tested with Axis devices, giving installers confidence that it is designed to work seamlessly within Axis systems. This helps simplify system design, compatibility checks, and ongoing support for outdoor surveillance deployments.
-
Helps Reduce Downtime: By helping protect network equipment from voltage spikes, the surge protector can reduce the likelihood of camera outages, service calls, and equipment replacement. This is valuable for sites where security coverage needs to remain reliable around the clock.
-
Best Positioned at Building Entry Points: Axis recommends installing the surge protector before the cable enters the building or directly near a wall or pole-mounted network camera. Correct placement helps improve protection for connected devices and the broader network infrastructure.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS T8061 Ethernet Surge Protector |
| Product Type |
Outdoor Ethernet Surge Protector |
| Application |
Surge protection for outdoor PoE network devices |
| Maximum Surge Protection |
Up to 10kV |
| Maximum Data Rate |
Up to 1Gbps |
| Network Use |
Ethernet / PoE network device protection |
| Outdoor Ready |
Yes |
| IP Rating |
IP66 |
| Casing |
Weatherproof metal casing |
| Mounting |
Wall or pole mounting |
| Recommended Placement |
Before the Ethernet cable enters a building or immediately adjacent to wall or pole-mounted network cameras |
| Device Compatibility |
Tested with Axis devices |
| Outdoor Installation Purpose |
Helps reduce downtime, service, and maintenance caused by transient voltage spikes in Ethernet cabling |
| Indoor Cabinet Alternative |
AXIS TU8001 Ethernet Surge Protector recommended for indoor or electrical enclosure cabinet installations |
| Warranty |
3-year warranty |
Ideal Use Cases
- Outdoor Camera Installations – Suitable for protecting Ethernet cabling connected to outdoor Axis cameras exposed to weather, poles, building exteriors, and long external cable routes.
- Building Entry Points – Ideal for installation before an outdoor Ethernet cable enters a building, helping protect internal network equipment from surge events travelling along the cable.
- Pole-Mounted Devices – Useful for cameras, speakers, intercoms, and network devices mounted on poles where the cable path may be more exposed to electrical disturbances.
- Perimeter Security Systems – A practical choice for gates, fence lines, car parks, warehouses, industrial yards, and access roads where outdoor network cabling requires additional protection.
- High-Risk Outdoor Sites – Suitable for exposed commercial, industrial, infrastructure, education, and public-space environments where reducing downtime and protecting equipment is important.
Understanding Ethernet Surge Protection
An Ethernet surge protector helps shield network devices from transient voltage spikes that can travel through outdoor Ethernet cabling. These spikes may be caused by nearby lightning activity, electrical disturbances, grounding differences, or exposed cable routes. The AXIS T8061 is designed for outdoor PoE installations and should be positioned close to the point where protection is needed, such as before a cable enters a building or near a wall or pole-mounted network camera.
| Installation Position |
Purpose |
Best For |
| Before Cable Enters Building |
Helps protect internal network equipment from surges travelling through outdoor Ethernet cables |
Building entry points, perimeter camera runs, external cable paths, and outdoor-to-indoor network links |
| Near Wall-Mounted Camera |
Helps protect the outdoor device and nearby cabling from transient voltage spikes |
External walls, car parks, shopfronts, warehouses, and commercial building perimeters |
| Near Pole-Mounted Camera |
Provides local surge protection at exposed pole-mounted network equipment |
Car parks, gates, access roads, fence lines, industrial yards, and open outdoor areas |
Tip:
Use the AXIS T8061 for outdoor Ethernet surge protection, especially where network cables run externally, between buildings, up poles, or into outdoor cameras. For indoor installations or electrical enclosure cabinets, Axis recommends using AXIS TU8001 Ethernet Surge Protector instead.
FAQs
- What is the AXIS T8061 Ethernet Surge Protector used for?
The AXIS T8061 Ethernet Surge Protector is used to help protect outdoor PoE network devices from transient voltage spikes travelling through Ethernet cabling. It is suitable for outdoor Axis cameras and other compatible network devices where exposed cable runs, pole mounting, building entry points, or outdoor installation conditions increase the risk of surge-related equipment damage.
- How much surge protection does the AXIS T8061 provide?
The AXIS T8061 is designed to protect against surge events up to 10kV. This makes it a useful accessory for outdoor surveillance networks where Ethernet cables may be exposed to electrical disturbances. Correct installation placement and site grounding practices remain important parts of a complete surge protection design.
- Does the AXIS T8061 support gigabit Ethernet?
Yes, the AXIS T8061 supports data rates up to 1Gbps. This allows it to be used in modern Axis network surveillance installations without unnecessarily limiting standard gigabit Ethernet performance. It is suitable for outdoor camera systems where both reliable data transmission and surge protection are required.
- Is the AXIS T8061 suitable for outdoor installation?
Yes, the AXIS T8061 is designed for outdoor use. It has a robust weatherproof metal casing with an IP66 rating, helping protect it from dust and water jets. It can be wall or pole mounted, making it suitable for outdoor camera locations, building exteriors, car parks, gates, perimeters, and other exposed surveillance areas.
- Where should the AXIS T8061 be installed?
Axis recommends installing the AXIS T8061 before the Ethernet cable enters the building or immediately adjacent to a wall or pole-mounted network camera. This positioning helps protect outdoor PoE devices and the connected network infrastructure from transient voltage spikes carried through Ethernet cabling.
- Should I use AXIS T8061 or AXIS TU8001?
The AXIS T8061 is intended for outdoor installations where a waterproof, IP66-rated metal housing is required. For indoor installations or use inside an electrical enclosure cabinet, Axis recommends the AXIS TU8001 Ethernet Surge Protector. Choosing the correct model depends on where the surge protector will be installed and the environmental protection needed.
Additional Information
Datasheet-axis-t8061-ethernet-surge-protector
