Product SKU: AXIS S3008 Mk II
Product Overview

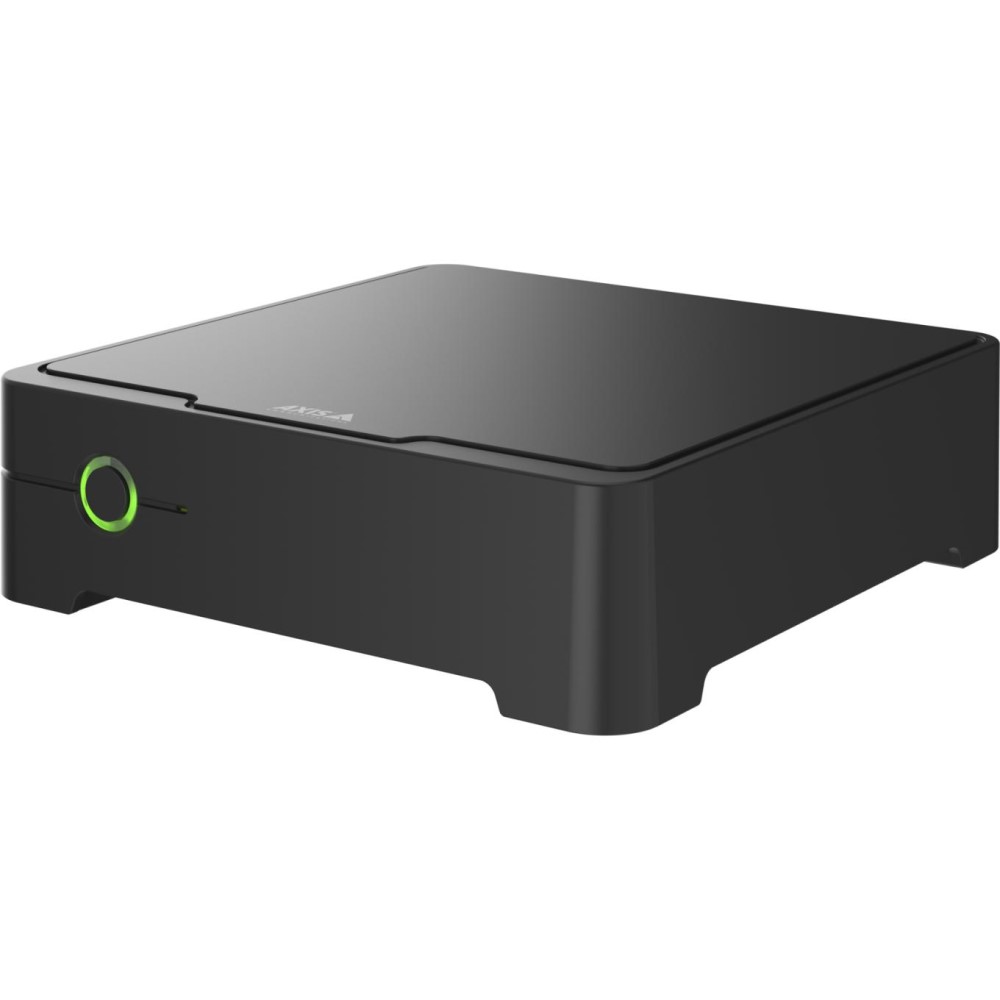

Consolidating an 8-channel recorder, an integrated 8-port PoE switch, and a surveillance-grade 4TB hard drive into a single unit measuring 180 x 180 x 53 mm, the AXIS S3008 Mk II removes the need for a separate PoE switch in small Axis surveillance installations. This compact recorder is suited to comms rooms, equipment cabinets, and lockable indoor spaces at retail stores, offices, schools, and light commercial sites. Equipped with Axis Secure Remote Access, it allows authorised users to view live and recorded footage remotely without requiring open firewall ports or manual port forwarding configuration. It also supports both AXIS Camera Station Edge and AXIS Companion, giving installers a single consistent recording platform that works across owner-operated single-site setups and professionally managed multi-site deployments. With encrypted local storage, a USB export port, a validated 160 Mbit/s recording bitrate, and a 5-year warranty, the AXIS S3008 Mk II is a practical consolidation choice for installations running up to 8 Axis cameras.
Key Capabilities
Integrated 8-Port PoE Switch
The onboard PoE switch provides up to 15.4W per port (PoE Class 3) and a combined budget of 124W, allowing cameras to receive power and data through a single Cat5e or Cat6 connection. Eliminating the separate switch simplifies the cabinet, reduces device count, and streamlines ongoing maintenance at small and medium sites.
Validated 160 Mbit/s Recording Throughput
The recorder is rated to 160 Mbit/s of sustained recording throughput, confirming it can manage the combined bandwidth of a fully loaded 8-camera Axis system. H.264 and H.265 compression are supported depending on the connected camera, with H.265 helping extend usable retention on the included 4TB drive.
4TB Surveillance-Grade Hard Drive
The included 4TB drive is suited to the write-intensive demands of continuous surveillance workloads. For sites recording 4 to 8 cameras at 1080p to 4MP resolution with motion-triggered or scheduled recording, it supports 7 to 14 days of retention without requiring an immediate drive swap or additional hardware investment at commissioning.
Encrypted Storage and Secure Remote Access
Footage written to the 4TB drive is encrypted, protecting it against unauthorised access if the drive is physically removed. Axis Secure Remote Access enables internet-based viewing of live and recorded footage without opening inbound firewall ports, which reduces the network configuration burden at each site and is particularly useful for multi-site deployments managed by a single operator.
Dual VMS Compatibility and USB Export
Support for both AXIS Camera Station Edge and AXIS Companion means the recorder can be deployed across different customer environments without requiring a separate product selection. The USB port enables direct video export for incident review and evidence retrieval independently of network access, which is a practical advantage when footage needs to be produced quickly for insurance or compliance purposes.
Best For
- Small Commercial and Retail Installations: The 8-channel capacity and integrated PoE switch make this recorder a clean single-unit solution for shops, service businesses, and offices that need to cover entries, counters, stock areas, and car parks without adding a separate switch to the equipment list.
- Installations Requiring Extended Retention: The 4TB drive provides meaningful headroom for sites that need footage to remain available for 7 to 14 days across multiple cameras recording at moderate to high resolution, without changing the physical footprint of the installation.
- Multi-Site Deployments Managed Centrally: Axis Secure Remote Access and AXIS Camera Station compatibility allow the same recorder model to be installed consistently across multiple branches, with a central operator viewing footage at each location without per-site port forwarding or VPN configuration.
- Installers Reducing Cabinet Complexity: Combining recorder, PoE switch, and storage in a 180 x 180 x 53 mm unit cuts the number of discrete devices and power supplies in a comms room or equipment cabinet, which reduces both installation time and long-term support overhead.
Why Choose the AXIS S3008 Mk II
Where most compact recorders require a separate PoE switch to power connected cameras, the AXIS S3008 Mk II builds that switch directly into the unit alongside the recorder and storage, trimming the equipment list without compromising capability. The 124W PoE budget across 8 ports, validated 160 Mbit/s recording throughput, and 4TB surveillance-grade drive are all confirmed specifications rather than theoretical maximums, giving installers a reliable baseline for system design. Encrypted local storage and Axis Secure Remote Access address both data security and remote connectivity in a way that simpler recorders without these features cannot match. The 5-year warranty and native compatibility across the Axis product portfolio add long-term confidence for professional installations. The AXIS S3008 Mk II is available through Security Wholesalers as part of a focused range of Axis network recording products suited to small commercial, education, and light industrial sites.
Buyer Decision Tips
Storage Planning Before Purchase: The AXIS S3008 Mk II has a single HDD bay. The installed 4TB drive can be replaced with a compatible surveillance-grade drive of a higher capacity, but the recorder cannot accept a second drive and has no RAID or redundancy mode. Before committing to this model, calculate your expected daily storage consumption based on camera count, resolution, frame rate, and recording schedule. Sites running continuous recording across all 8 channels at resolutions above 4MP, or sites with compliance requirements calling for more than two weeks of retention, should evaluate whether a single drive of any capacity will meet the brief or whether a multi-bay recorder is the more appropriate platform.
PoE Budget Verification: The total 124W PoE budget averages to approximately 15.4W per port when all 8 ports are active, which comfortably covers standard Axis fixed cameras operating within PoE Class 3. Axis cameras with integrated heaters, multi-sensor housings, or high-wattage illuminators may draw above this average per port, pushing the combined load beyond 124W when multiple high-draw devices are connected simultaneously. Confirm the individual power draw of every planned camera model and add a margin before finalising the design.
Key Features & Technical Specifications
| Model |
AXIS S3008 Mk II 4TB |
| Product Type |
8-Channel Network Video Recorder with Integrated PoE Switch |
| Video Channels |
Up to 8 channels |
| Included Storage |
4TB surveillance-grade hard drive |
| HDD Bays |
1 bay, 1 HDD included |
| PoE Ports |
8 integrated PoE ports |
| PoE Class Support |
Up to PoE Class 3 per port |
| PoE Power Per Port |
Up to 15.4W |
| Total PoE Power Budget |
124W |
| Uplink |
Gigabit RJ45 uplink port |
| Validated Recording Bitrate |
Up to 160 Mbit/s |
| Video Compression |
H.264 and H.265 (camera dependent) |
| Video Management Software |
AXIS Camera Station Edge, AXIS Companion |
| Remote Access |
Axis Secure Remote Access |
| Recording Security |
Encrypted recordings |
| Export |
USB port for video export |
| Connectors |
8 x RJ45 PoE, 1 x RJ45 gigabit uplink, DC input, USB |
| Dimensions |
180 x 180 x 53 mm |
| Weight |
Approx. 1350 g (4TB model) |
| Operating Temperature |
0°C to 45°C |
| Humidity |
10-85% RH non-condensing |
| Warranty |
5 years |
Ideal Use Cases
Retail Stores
A retail operator can connect cameras covering entrances, checkout counters, aisles, and stockrooms through the integrated PoE switch without a separate device in the back-of-house cabinet. Encrypted recordings and Axis Secure Remote Access allow the owner or loss prevention team to review footage from any location without attending the store in person.
Small to Medium Offices
For office environments covering reception areas, corridors, entry points, and server rooms, the 180 x 180 x 53 mm footprint allows the recorder to sit in an existing comms room or lockable cabinet without consuming significant shelf space. The gigabit uplink integrates cleanly into the office network infrastructure.
Schools and Education Facilities
Administration buildings, external access points, corridors, and staff parking areas can all be monitored across up to 8 connected Axis cameras. The 4TB drive supports the extended retention periods that education sites often require for behavioural incident review, with encrypted storage protecting sensitive footage during the retention window.
Warehouses and Light Industrial Sites
Loading dock cameras, internal aisle coverage, roller door positions, and site entry points can all be recorded within the validated 160 Mbit/s throughput of the AXIS S3008 Mk II. The USB export port makes it straightforward to pull specific footage clips for insurance claims or logistics incident review without requiring active network access.
Multi-Branch Business Networks
Businesses operating across multiple locations can install the AXIS S3008 Mk II as a consistent recording platform at each branch. Axis Secure Remote Access allows a central operator to access live and recorded footage at every site without configuring individual port forwarding rules or VPN tunnels at each location, which reduces the ongoing IT administration workload.
Choosing the Right Model
- Choose this model if: Your installation requires an Axis-native 8-channel recorder with a built-in PoE switch, encrypted storage, and a 4TB drive sized for 7 to 14 days of retention at 1080p to 4MP across a fully loaded 8-camera system. The single-unit design, 5-year warranty, and dual VMS support make it a well-suited option for retail, office, education, and light commercial sites running exclusively Axis cameras.
- Choose a different model if: Your site needs more than 8 camera channels, requires a second drive bay for additional capacity or redundancy, or if your planned recording schedule and resolution will exceed what a single 4TB drive can sustain for your required retention period. A rack-mount NVR with multiple drive bays is better suited to larger or higher-density deployments. If your camera selection includes non-Axis brands, verify compatibility carefully as this recorder is designed and validated for use within the Axis ecosystem.
FAQs
- Does the AXIS S3008 Mk II work with cameras from brands other than Axis?
The AXIS S3008 Mk II is designed and validated specifically for the Axis product ecosystem. While the recorder operates over standard IP network infrastructure, Axis does not guarantee compatibility with third-party camera brands. If your installation includes cameras from other manufacturers, an NVR with broader ONVIF support is a more appropriate platform for that system.
- Where should the AXIS S3008 Mk II be physically installed?
The recorder must be installed in a protected, ventilated indoor location with an operating temperature between 0°C and 45°C. Suitable positions include comms rooms, server rooms, and lockable equipment cabinets. The unit is not rated for outdoor placement. It is built to record and power outdoor Axis cameras connected via structured cabling, while the recorder itself remains in a controlled indoor environment for the life of the installation.
- Can all 8 PoE ports run simultaneously, and how is the power budget managed?
All 8 PoE ports can operate at the same time, but the combined power draw of all connected devices must remain within the 124W total budget. With 8 cameras active, the average available power is approximately 15.4W per port, which covers standard Axis fixed cameras within PoE Class 3. Axis cameras with integrated heaters, panoramic multi-sensor designs, or other high-draw features may consume more than this average per port. Always confirm the individual power specification of each camera model before finalising the system design.
- How does Axis Secure Remote Access work, and does it require changes to the local network firewall?
Axis Secure Remote Access is a cloud-assisted relay service that creates an outbound connection from the recorder to the Axis cloud infrastructure, allowing authorised users to connect remotely without requiring open inbound firewall ports or port forwarding rules on the local router. Once configured, users can access live and recorded footage through AXIS Camera Station or AXIS Companion from a computer or mobile device on any internet connection, which simplifies remote access setup for both the installer and the site owner.
- What does encrypted recording protect against on the AXIS S3008 Mk II?
Encrypted recording means footage written to the 4TB hard drive is protected against unauthorised access if the drive is physically removed from the recorder and connected to a different device. This is relevant for retail loss prevention sites, education facilities, and commercial environments where footage may contain sensitive material subject to data protection obligations. Encryption applies to stored footage and does not affect normal playback or export through authorised AXIS Camera Station or AXIS Companion access. Security Wholesalers recommends discussing your specific data security requirements with your installer before commissioning.
- Can the 4TB hard drive be upgraded after the recorder has been installed?
Yes. The single HDD bay in the AXIS S3008 Mk II accepts a compatible surveillance-grade drive of a higher capacity if your storage requirements change after installation. The recorder does not support a second drive bay or RAID configuration, so capacity is always limited to a single installed drive at any one time. If your site has a known requirement for extended retention from the outset, calculate the required drive size before purchase rather than treating a later upgrade as a given, as downtime will be required to swap the drive and reinitialise the storage.
