Product SKU: Q6078-E
Product Overview

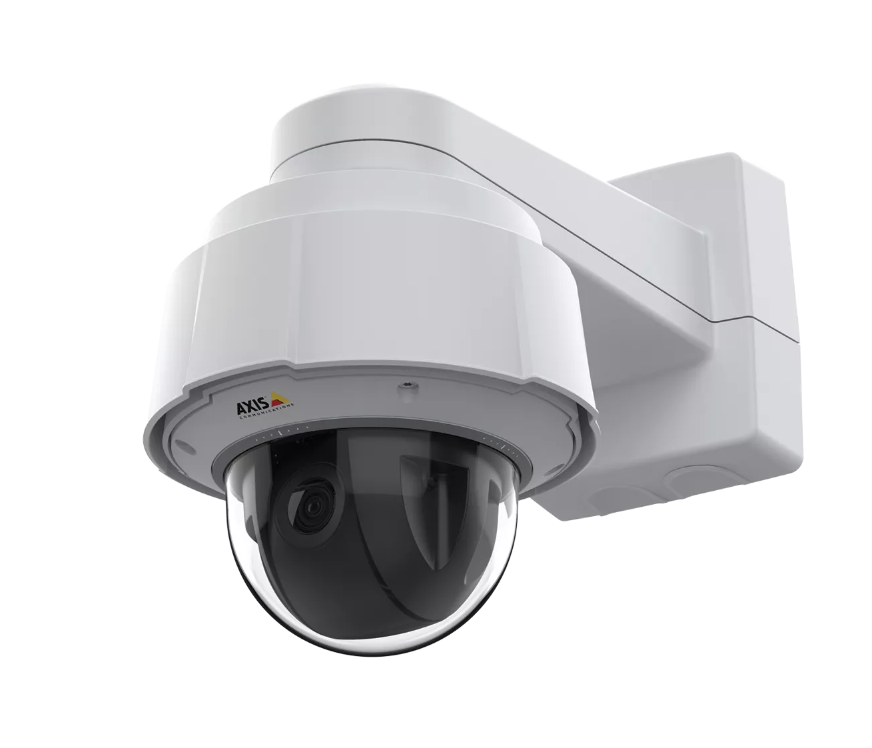

Wide-area outdoor surveillance across airports, port facilities, public precincts, and critical infrastructure sites demands far more than a fixed camera can deliver from a single mounting position. The Axis Q6078-E is an outdoor-ready PTZ network camera built around a UHD 4K sensor with 20x optical zoom, giving operators the combination of broad situational awareness and on-demand forensic detail without deploying multiple dedicated cameras across the same scene. Featuring Axis Lightfinder 2.0, the Q6078-E maintains accurate colour reproduction in near-darkness, keeping footage usable across partially lit outdoor environments without defaulting to flat monochrome output. Autotracking 2 with click-and-track allows operators to initiate subject following directly from the live view, reducing the manual control burden on monitoring teams managing large perimeters. The housing is rated to IP66, IK10, and NEMA 4X, confirming suitability for exposed pole and parapet positions subject to heavy weather, physical impact, and corrosive conditions. Axis Edge Vault, signed firmware, and secure boot deliver hardware-level cybersecurity for deployments on government and critical infrastructure networks with formal compliance requirements.
Key Capabilities
UHD 4K Resolution with 20x Optical Zoom
Capturing at UHD 4K and applying 20x optical zoom means the Q6078-E can hold a wide overview and zoom to fine identification detail at considerable distances. Because the zoom is optical rather than digital, full resolution is retained at the zoomed focal length, giving operators usable evidence-grade imagery without a separate close-range camera.
Axis Lightfinder 2.0 Colour Night Imaging
Lightfinder 2.0 preserves colour accuracy in near-darkness, which matters on partially lit streets, industrial yards, and terminal aprons where flat monochrome footage reduces investigative value. It avoids the noise and washed output associated with cameras that rely on heavy gain amplification as the primary response to low ambient light.
Autotracking 2 with Click-and-Track
Autotracking 2 follows moving subjects across the full pan and tilt range without continuous operator input. A single click on a subject in the live view initiates independent tracking, freeing control room staff from constant joystick adjustment and making the Q6078-E practical in environments where one operator monitors a large perimeter across a busy site.
IP66, IK10, and NEMA 4X Housing
The combined housing ratings confirm protection against dust ingress, high-pressure water from any direction, significant mechanical impact, and corrosive conditions. This supports exposed pole and parapet installations in coastal, industrial, and urban environments without requiring additional protective enclosures around the camera body.
Axis Edge Vault Hardware Cybersecurity
Edge Vault stores cryptographic identity credentials and encryption keys in a physically protected hardware element, preventing device impersonation and unauthorised firmware loading. Combined with signed firmware and a verified secure boot sequence, this hardware-based approach meets cybersecurity requirements on government, transport authority, and critical infrastructure networks that software-only credential layers cannot satisfy.
Edge Storage and Orientation Aid
Local edge storage ensures recordings continue to be written directly to the camera if the network connection to a central VMS is interrupted, closing evidence gaps during outages. The orientation aid with dynamic overlays adds real-time directional context to the live view, helping operators maintain spatial awareness across wide outdoor scenes where tracking a specific camera heading is otherwise difficult.
Best For
- Government and Critical Infrastructure Networks: Axis Edge Vault combined with signed firmware and secure boot provides hardware-level device identity protection that satisfies cybersecurity compliance requirements on government, utility, and transport authority networks where a software-only credential layer is insufficient.
- Large Open Outdoor Areas Requiring Dual Overview and Detail: The UHD 4K sensor with 20x optical zoom allows a single Q6078-E to maintain wide situational awareness and deliver forensic-level zoom detail on demand, reducing the camera count needed to cover airports, stadiums, public squares, and industrial yards from a single mounting position.
- Automated Subject Tracking in Busy Public Spaces: Transit hubs, shopping precincts, and event venues where operators need to follow individuals across a wide scene benefit directly from Autotracking 2, which handles subject following without requiring continuous manual pan and tilt control from the operator.
- Exposed Outdoor Pole and Parapet Installations: The IP66, IK10, and NEMA 4X ratings confirm the Q6078-E is built for positions exposed to weather extremes, mechanical contact, and corrosive conditions without the need for a supplementary protective enclosure around the unit.
Why Choose the Axis Q6078-E
The Axis Q6078-E occupies the upper tier of outdoor PTZ cameras by combining UHD 4K resolution with 20x optical zoom, a pairing that allows forensic-quality zoom detail at distances that lower-resolution PTZ units cannot match. Lightfinder 2.0 keeps colour imaging accurate in near-darkness rather than defaulting to the degraded monochrome output that many competing low-light cameras produce when ambient light drops. Autotracking 2 with click-and-track is a genuine operational efficiency feature, enabling a single operator to initiate and sustain subject tracking across a large perimeter without constant manual joystick input. The cybersecurity architecture on the Q6078-E is hardware-based through Axis Edge Vault, not a software credential layer, which is a meaningful distinction for deployments on networks carrying formal compliance obligations. Edge storage ensures local recording continuity during network disruptions, preserving evidence integrity when it matters most. Available through Security Wholesalers, the Q6078-E is engineered for enterprise, government, and critical infrastructure environments where resolution, cyber resilience, and mechanical durability are fundamental requirements.
Buyer Decision Tips
PTZ Coverage Trade-Off: A PTZ camera monitors one direction at a time. While the Q6078-E is actively tracking or zoomed in on a subject, the wider scene is not being captured in full detail from that position. For sites requiring persistent simultaneous coverage across multiple directions, pairing the Q6078-E with fixed wide-angle or multi-sensor cameras maintains a continuous overview while the PTZ handles active tracking and close-up inspection duties. The edge storage on this model ensures the PTZ’s own recording is protected locally even if the network link to the primary VMS fails during an incident.
Network, Power, and Storage Planning: Confirm that the network switch provides a sufficient PoE power budget for the Q6078-E before deployment. Verify that the NVR or VMS platform supports full 4K resolution streams from an Axis PTZ and has the storage throughput and capacity to handle 4K bitrates across the planned recording schedule, particularly where continuous recording across multiple streams is required. Checking platform compatibility with Autotracking 2 and Edge Vault device management before purchase avoids integration issues on site.
Key Features & Technical Specifications
| Model |
Axis Q6078-E |
| Part Number |
02147-006 |
| Resolution |
UHD 4K |
| Optical Zoom |
20x |
| Low-Light Technology |
Axis Lightfinder 2.0 |
| Autotracking |
Autotracking 2 with click-and-track |
| Orientation Aid |
Yes, with dynamic overlays |
| Privacy Masking |
Yes |
| Ingress Protection |
IP66 |
| Impact Rating |
IK10 |
| Environmental Rating |
NEMA 4X |
| Cybersecurity |
Axis Edge Vault, signed firmware, secure boot |
| Edge Storage |
Supported |
| Installation Type |
Outdoor PTZ |
| Camera Type |
Network PTZ Camera |
Ideal Use Cases
Airport Terminals and Airside Perimeters
Autotracking 2 and 20x optical zoom allow security teams to follow individuals or vehicles across large terminal forecourts and airside areas from a single mounting position. The 4K sensor provides the pixel density required for vehicle or identity verification at the zoomed focal length without a dedicated close-range fixed camera at each checkpoint.
City Streets and Public Precincts
Lightfinder 2.0 maintains colour imaging on partially lit streets and public spaces at night, while the IP66 and NEMA 4X housing handles the sustained weather and corrosive exposure typical of pole-mounted urban installations. The orientation aid with dynamic overlays supports operators tracking subjects across complex street intersections where spatial context is otherwise difficult to maintain.
Stadiums and Event Venues
High crowd-density environments benefit from the combination of wide PTZ overview and UHD 4K zoom detail. The click-and-track function allows an operator to initiate subject following immediately from the live view during a developing incident, while the orientation aid helps maintain spatial awareness across large venue footprints with multiple concurrent activities.
Critical Infrastructure and Government Sites
Axis Edge Vault and secure boot provide the hardware-level device identity protection required for cameras on energy, water, and transport authority networks. Edge storage ensures recording continuity is maintained locally if the site network link is disrupted during a security event, protecting evidence integrity without dependence on an uninterrupted network path.
Industrial Yards and Port Facilities
The IK10 and NEMA 4X housing ratings support installation in environments where equipment vibration, chemical exposure, and physical contact are realistic hazards. The 20x optical zoom covers the long sightlines common across container yards and port perimeters from a single elevated mounting position, reducing the number of fixed cameras required along the same sight line.
Choosing the Right Model
- Choose this model if: Your site requires a single outdoor PTZ to cover a large open area with UHD 4K zoom capability, Autotracking 2 for automated subject following, Lightfinder 2.0 for colour night imaging, and hardware-level cybersecurity via Axis Edge Vault for network compliance on government or critical infrastructure deployments.
- Choose a different model if: Your application requires persistent simultaneous coverage across multiple directions with no monitoring gaps. A fixed multi-sensor or panoramic camera maintains continuous wide-angle recording that a PTZ cannot replicate while it is actively tracking or zoomed in on a single subject.
- Choose a different model if: The installation budget or PoE power infrastructure does not support a high-specification 4K PTZ. A fixed 4K outdoor camera with a motorised varifocal lens provides flexible focal length framing at the time of installation without the pan, tilt, zoom mechanics, and autotracking capabilities of the Q6078-E, at a considerably lower system cost per camera position.
FAQs
- What does 20x optical zoom deliver that digital zoom on a fixed camera cannot?
Optical zoom on the Q6078-E physically adjusts the lens to magnify the scene, preserving the full UHD 4K resolution at the zoomed focal length. Digital zoom on a fixed camera simply crops and enlarges the existing sensor output, which reduces pixel density and degrades image quality as magnification increases. The result is that the Q6078-E retains usable, evidence-grade detail at distances where a digitally zoomed fixed camera would produce an image too soft for subject identification.
- How does click-and-track work in practice during an incident?
When an operator spots a subject of interest in the live view, they click directly on that subject within the interface. Autotracking 2 then takes over, automatically adjusting pan, tilt, and zoom to keep that subject centred in frame as they move across the scene. The operator does not need to maintain continuous joystick control while tracking is active, which is particularly useful in control rooms where a single person is managing a wide perimeter or multiple camera feeds simultaneously.
- What does the IP66 rating protect against and how does it differ from the NEMA 4X rating?
IP66 is an IEC standard that confirms full protection against dust ingress and resistance to high-pressure water jets from any direction, making it suitable for outdoor cameras exposed to rain, wash-down, and dusty environments. NEMA 4X adds corrosion resistance for chemically exposed or coastal locations where salt air and industrial contaminants would degrade a standard outdoor housing over time. Together with the IK10 impact rating, the 3 ratings address the distinct exposure risks faced at exposed pole and parapet mounting positions.
- What is Axis Edge Vault and why does it matter for government network deployments?
Axis Edge Vault is a hardware-based secure element embedded in the camera that stores cryptographic identity credentials and encryption keys in a physically protected environment inaccessible through software. Combined with signed firmware and a secure boot process, it prevents unauthorised firmware from loading and protects against device impersonation on the network. Government, transport authority, and critical infrastructure networks commonly require this level of hardware-rooted cybersecurity because software-only credential protection can be bypassed through firmware exploits that Edge Vault is specifically designed to block.
- Does the Q6078-E record locally if the connection to the VMS is lost?
Yes. The Q6078-E supports edge storage, which allows recordings to be written directly to a local storage device installed in the camera. If the network path to a central NVR or VMS is interrupted, the camera continues recording locally, avoiding evidence gaps during network outages or deliberate network disruptions. Footage held on the edge device can be retrieved and synchronised to the central system once connectivity is restored.
- Can privacy masking be applied to specific zones within the camera’s field of view?
Yes. The Q6078-E supports privacy masking, which permanently obscures defined areas in both live view and recorded footage. This is used to exclude neighbouring private property, residential windows, or other sensitive zones from the camera’s effective monitoring coverage, supporting compliance with Australian privacy legislation and relevant data handling obligations in public space, transport, and critical infrastructure deployments.
- Is the Axis Q6078-E suited to professional installation and where is it available in Australia?
The Q6078-E is available through Security Wholesalers and is designed for professional installation and integration. As a high-specification enterprise PTZ with Autotracking 2, Edge Vault cybersecurity, and UHD 4K output, it requires integration with an Axis-compatible VMS or NVR platform to access the full feature set including autotracking configuration, edge storage management, and Edge Vault device identity administration. Security integrators and system designers working on large-scale or compliance-driven projects are the primary audience for this model.
