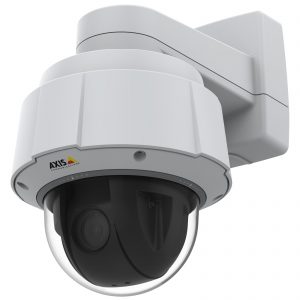

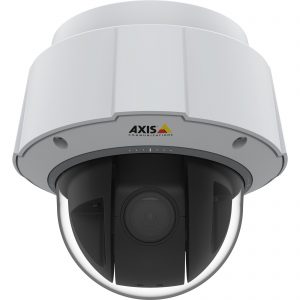

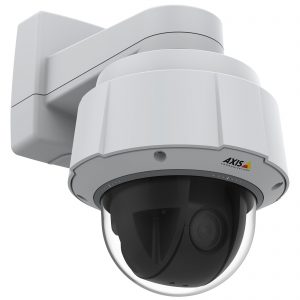

AXIS Q6075-E PTZ Dome Camera, 1080p, H.264, Zipstream, 4.25-170mm VF Lens

Product SKU: Q6075-E

Product Overview

Wide-area monitoring across city precincts, ports, industrial yards, and transport hubs demands a camera that can do more than simply record – it needs to actively track, zoom, and respond. The AXIS Q6075-E is an outdoor PTZ dome built for exactly these mission-critical environments. Featuring a 40x optical zoom lens (4.25-170mm, F1.6-4.95), it delivers HDTV 1080p at up to 60fps from a 1/2.8″ progressive scan CMOS sensor, covering a horizontal field of view from 65.1 degrees at wide angle to 2.0 degrees at full zoom. Axis Lightfinder 2.0 enables colour video down to approximately 0.1 lux, while Optimized IR extends visibility to around 0.002 lux in near-total darkness. Autotracking 2 with click-to-track allows the Q6075-E to follow moving subjects automatically. It is rated IP66, IP67, NEMA 4X, and IK10, operates from -40 degrees C to +50 degrees C, and is well suited to exposed infrastructure and critical asset protection deployments.

Key Capabilities

Best For

• Urban and City Surveillance: The 40x optical zoom and Autotracking 2 allow a single camera to cover wide public areas while zooming in to capture detail of incidents as they develop, reducing the number of fixed cameras required across a precinct.
• Ports, Utilities, and Critical Infrastructure: The IK10 vandal rating, IP66/67 and NEMA 4X sealing, and -40 degrees C to +50 degrees C operating range support continuous outdoor deployment in industrial and exposed coastal environments.
• Perimeter and Fence Line Monitoring: On-edge fence guard and loitering analytics trigger alerts without server dependency, making the Q6075-E suitable for securing perimeters at utilities, water treatment facilities, and freight yards.
• Large Venue and Campus Security: Up to 256 preset positions and guided guard tours allow security teams to automate monitoring routes across stadiums, university campuses, or hospital grounds without constant manual camera control.
• Traffic and Road Network Monitoring: The 40x optical zoom and Forensic WDR provide the detail range needed to capture vehicle identification from distance in mixed-light conditions typical of road and intersection monitoring.

Why Choose the AXIS Q6075-E

The AXIS Q6075-E separates itself from standard outdoor PTZ cameras through the combination of Autotracking 2, a FIPS 140-2 Level 2 certified TPM, and the full AXIS Guard Suite running on-edge via the ARTPEC-7 processor. A basic motorised zoom camera can reframe a scene, but the Q6075-E actively follows subjects, triggers analytics events at the fence line or gate, and does so without a dedicated analytics server in the loop. Axis Zipstream technology for both H.264 and H.265 reduces bandwidth and storage consumption while preserving forensic image detail. The Arctic temperature control makes it a viable choice for deployments where overnight temperatures regularly drop well below zero. Encrypted local microSD storage and NAS recording support are also included. For integrators and end users sourcing enterprise-grade PTZ solutions, the Q6075-E is available at Security Wholesalers as part of the AXIS Communications product range.

Buyer Decision Tips

Key Features & Technical Specifications

Resolution	HDTV 1080p (1920 x 1080) to 320 x 180
Frame Rate	Up to 60fps
Image Sensor	1/2.8″ progressive scan CMOS
Lens	4.25-170mm, F1.6-4.95, 40x optical zoom
Horizontal Field of View	65.1 degrees (wide) to 2.0 degrees (telephoto)
Vertical Field of View	39.1 degrees (wide) to 1.18 degrees (telephoto)
Minimum Illumination	Colour: ~0.1 lux (Lightfinder 2.0), Monochrome: ~0.002 lux (Optimized IR)
Wide Dynamic Range	Forensic WDR
Video Compression	H.265, H.264 (with Axis Zipstream), MJPEG
Pan / Tilt Range	360 degrees continuous pan, 220 degrees tilt
Pan / Tilt Speed	Up to 450 degrees per second
Preset Positions	Up to 256
Analytics	AXIS Guard Suite: motion detection, loitering guard, fence guard, object removal, enter/exit detection, object counter, active gatekeeper
Processor	ARTPEC-7 SoC
Memory	1024MB RAM, 512MB flash
Local Storage	Encrypted microSD/SDHC/SDXC, NAS
Network Interface	RJ45 10BASE-T/100BASE-TX, PoE+
Environmental Rating	IP66, IP67, NEMA 4X, IK10
Operating Temperature	-40 degrees C to +50 degrees C (Arctic temperature control)
Security Features	FIPS 140-2 Level 2 certified TPM, secure boot, signed firmware

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your site requires active subject tracking across a wide outdoor area, on-edge analytics for fence or perimeter events, and a camera rated for extreme temperatures (-40 degrees C to +50 degrees C) with cybersecurity certifications including FIPS 140-2 Level 2 TPM and secure boot.
• Choose a different model if: Your site requires simultaneous multi-directional coverage without monitoring gaps – a PTZ covers one view at a time, and a panoramic or multi-sensor camera may be better suited to locations where all-direction continuous recording is the priority rather than active tracking across a single wide zone.
• Choose a different model if: Your budget, network infrastructure, or mounting position does not support PoE+. The Q6075-E requires PoE+ (IEEE 802.3at) and is a precision PTZ unit designed for enterprise and mission-critical deployment rather than small-site or cost-sensitive applications.

FAQs

1. What zoom range does the AXIS Q6075-E provide?
   The Q6075-E features a 40x optical zoom lens spanning 4.25mm to 170mm (F1.6 to F4.95). This delivers a horizontal field of view from 65.1 degrees at the widest setting down to 2.0 degrees at full telephoto, enabling both broad situational awareness and close-detail capture from a single camera position.
2. How does Autotracking 2 work in practice?
   Autotracking 2 enables the Q6075-E to detect and automatically follow a moving object or person within a defined monitoring zone. Operators can also initiate tracking manually using the click-to-track function. The camera returns to its configured guard tour or preset position once tracking concludes or the subject leaves the zone.
3. Is the Q6075-E suitable for outdoor installation in Australian coastal or northern tropical climates?
   Yes. The IP66 and IP67 ratings protect against windblown dust and complete water immersion, and the NEMA 4X certification covers corrosion resistance relevant to coastal salt-air environments. The operating range of -40 degrees C to +50 degrees C accommodates both tropical heat and extreme cold at elevated altitude or inland sites.
4. What analytics does the camera support without a separate server?
   The ARTPEC-7 processor runs the full AXIS Guard Suite on-edge, including motion detection, loitering guard, fence guard, object removal detection, enter/exit zone monitoring, object counting, and active gatekeeper. All of these generate alerts and events directly from the camera without requiring a dedicated analytics server or third-party software licence.
5. Does the Q6075-E support two-way audio?
   Yes, the Q6075-E includes two-way audio support along with alarm inputs and outputs, enabling voice communication and integration with external alarm systems or access control triggers as part of a broader security response workflow.
6. What cybersecurity protections are built into the Q6075-E?
   The camera incorporates a FIPS 140-2 Level 2 certified Trusted Platform Module (TPM), secure boot, and signed firmware verification. These mechanisms ensure the device only runs authenticated code from power-on through operation, addressing the cybersecurity standards required for government, utilities, and critical infrastructure deployments.
7. How does Axis Zipstream affect storage and bandwidth for this camera?
   Axis Zipstream dynamically reduces bitrate in areas of low activity within the scene while maintaining full detail around motion or analytically significant events. Applied to both H.264 and H.265 streams, this reduces storage consumption and network load without sacrificing the forensic image quality needed for post-incident review. The Q6075-E, supplied through Security Wholesalers as part of the AXIS Communications range, supports Zipstream natively across all recording modes.

Additional Information

• AXIS-01751-006 Datasheet
