Product SKU: Q3839-PVE
Product Overview
Wide-area outdoor surveillance across transport hubs, public plazas, commercial perimeters and large building frontages presents a real coverage planning challenge, and the AXIS Q3839-PVE addresses it with a 29MP 8K multisensor design that delivers 180° horizontal and 90° vertical panoramic coverage through a single IP address. Four image sensors are stitched into one seamless 7552 x 3776 panoramic output at 30fps, removing the blind spots that fixed single-lens cameras leave between positions. Featuring Lightfinder 2.0 for colour imaging in low-light conditions and Forensic WDR for mixed-lighting scenes, the Q3839-PVE handles demanding outdoor lighting without built-in IR. It integrates a deep learning processing unit supporting AXIS Object Analytics, AXIS Scene Metadata and AXIS Video Motion Detection at the edge. Additional capabilities include lossless zoom, horizon straightening, remote pan/tilt/roll adjustment, H.265 with Zipstream, local storage, Axis Edge Vault cybersecurity, IP66/IP67 weather resistance and IK10 vandal resistance, making it a practical single-device solution for professional installations requiring detailed situational awareness across wide scenes.
Key Capabilities
29MP 8K Multisensor Output
Four sensors combine into a single 7552 x 3776 panoramic stream at 30fps, providing the kind of scene detail that allows meaningful forensic review across a wide monitored area from one camera position.
180° Horizontal and 90° Vertical Coverage
The wide vertical field of view captures foreground activity, near-camera ground-level detail and extended depth into the scene simultaneously, which is useful in open plazas, concourses and wide building frontages.
Deep Learning Edge Analytics
A dual Axis system-on-chip architecture runs AXIS Object Analytics, AXIS Scene Metadata and AXIS Video Motion Detection locally, enabling detection, classification, tracking and counting of humans and vehicle types without relying on server-side processing.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 maintains usable colour imaging at 0.1 lux, while Forensic WDR balances overexposed and underexposed areas in the same frame, supporting consistent image quality across outdoor scenes with variable lighting.
Single-IP Installation Efficiency
All four sensors operate under one IP address, one network cable and one VMS channel licence, which simplifies cabling runs, switch port allocation and software licensing compared with deploying multiple individual cameras to cover the same area.
Axis Edge Vault Cybersecurity
Axis Edge Vault, signed OS and secure boot help protect device integrity and network credentials on the camera itself, which matters for public-sector and enterprise installations with strict cybersecurity requirements.
Best For
- Public Space and City Surveillance: The 180° x 90° panoramic field of view and 29MP resolution support wide-area monitoring in pedestrian zones, civic squares and high-traffic outdoor environments where detail and coverage breadth are both required.
- Transport and Transit Facilities: Station concourses, bus terminals, car park entrances and transit platforms benefit from the wide vertical coverage that captures near-camera ground activity and crowd movement in a single view.
- Commercial Perimeter and Building Frontage Monitoring: Long building elevations, loading areas, forecourts and external yards can be covered with reduced camera count and fewer cable runs, using the 180° horizontal sweep.
- AI-Driven Security Operations: On-camera AXIS Object Analytics supports detection, classification, tracking and counting workflows without additional server-based analytics licences, which suits VMS integrations and automated alerting setups.
- Professional and Institutional Projects: Axis Edge Vault cybersecurity, IP66/IP67 weather resistance, IK10 vandal resistance and a wide operating temperature range of -40°C to 50°C suit demanding government, education, healthcare and large commercial installations.
Why Choose the AXIS Q3839-PVE
The AXIS Q3839-PVE occupies a specific position in the panoramic camera market: it combines 8K multisensor resolution with a 90° vertical field of view that wider-but-flatter panoramic designs cannot match. Where lower-resolution panoramic cameras limit forensic usefulness and narrower vertical models miss ground-level foreground activity, the Q3839-PVE delivers both depth and width across its monitored scene. The on-camera deep learning unit removes the need for separate analytics servers or additional licences for object detection and classification. Lossless zoom, remote pan/tilt/roll adjustment and horizon straightening provide post-installation flexibility that fixed-orientation cameras do not offer. For large-site projects requiring a single device to cover what would otherwise need multiple cameras, cables and VMS seats, this model represents genuine infrastructure savings. Available at Security Wholesalers, the AXIS Q3839-PVE is a professional-grade panoramic camera backed by Axis Communications network camera standards and long-term firmware support.
Buyer Decision Tips
Buyer Tip – Lighting Planning: The Q3839-PVE has no built-in IR illumination. At 0.1 lux colour minimum illumination, it depends on ambient or external artificial lighting for overnight coverage. Before specifying this model for a site with low or no existing night lighting, confirm whether external illuminators or site lighting upgrades will be included. Sites with consistent artificial lighting such as lit car parks, illuminated building frontages and transit areas with overhead lighting are well suited to this camera without supplementary IR.
Buyer Tip – Bandwidth and Storage: Recording 29MP panoramic video at 30fps generates significantly higher data volumes than standard HD or 4K single-sensor cameras. Confirm that the network switch, NVR or VMS storage, and recording bandwidth are sized appropriately before installation. H.265 with Zipstream helps reduce bitrate without sacrificing detail, and local storage via the memory card slot can provide edge recording as a redundancy option.
Key Features & Technical Specifications
| Product Type |
Outdoor panoramic multisensor network camera. |
| Model |
AXIS Q3839-PVE. |
| Brand |
Axis Communications. |
| Resolution |
29MP, 8K panoramic (7552 x 3776). |
| Maximum Frame Rate |
30fps. |
| Image Sensor |
CMOS, 1/1.8″. |
| Multisensor Design |
4 sensors stitched into one panoramic view through one IP address. |
| Horizontal Field of View |
180°. |
| Vertical Field of View |
90°. |
| Focal Length |
4.6mm. |
| Minimum Illumination |
Colour: 0.1 lux; black and white: 0.03 lux. |
| Low-Light Technology |
Lightfinder 2.0. |
| Wide Dynamic Range |
Forensic WDR. |
| Built-In IR |
Not included. |
| Day and Night |
Yes. |
| Lossless Zoom |
Supported. |
| Horizon Straightening |
Supported. |
| Remote Pan/Tilt/Roll |
Built-in motors allow remote orientation adjustment post-installation. |
| AI Processing |
Deep learning processing unit, dual Axis system-on-chip. |
| Included Analytics |
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection. |
| Object Classification |
Humans and vehicle types; detect, classify, track and count. |
| Video Compression |
H.264 (Baseline, Main, High), H.265, Zipstream. |
| Audio Support |
Supported via compatible audio accessories or connectivity devices. |
| Local Storage |
Memory card slot supported. |
| Cybersecurity |
Axis Edge Vault, signed OS, secure boot. |
| Weather Rating |
IP66 and IP67. |
| Vandal Rating |
IK10. |
| Operating Temperature |
-40°C to 50°C. |
| Sustainability |
BFR/CFR free and PVC free. |
Ideal Use Cases
Public Squares and Pedestrian Zones
The 180° horizontal sweep and 90° vertical field of view cover the full width and foreground depth of open civic spaces, capturing pedestrian movement and incident detail across areas that would otherwise require multiple camera positions.
Rail, Bus and Transit Facilities
Station concourses, platform ends and transit forecourts benefit from wide vertical coverage that captures crowd density, queue formation and ground-level activity without requiring elevated camera positions or multiple overlapping camera views.
Large Car Parks and Outdoor Lots
A single Q3839-PVE can monitor multiple lanes and bays across a wide parking area. AXIS Object Analytics supports vehicle detection and counting, helping site operators monitor occupancy and identify incidents across the panoramic view.
Commercial and Industrial Perimeters
Loading docks, external yards, fence lines and access roads can be covered with a 180° sweep from a wall or pole-mounted position. IK10 and IP66/IP67 ratings support exposure to knocks, dust and heavy weather in working environments.
Campus and Educational Precincts
Wide outdoor walkways, sports courts, drop-off zones and building forecourts on school and university campuses benefit from broad overview coverage with AI-based people detection running at the edge without additional server licences.
Government and High-Security Facilities
Axis Edge Vault cybersecurity, signed OS and secure boot meet the device integrity standards required in government, defence and critical infrastructure environments. The wide operating temperature range of -40°C to 50°C supports deployment in regional and harsh-climate sites.
Choosing the Right Model
- Choose this model if: You need 29MP 8K panoramic output with 180° horizontal and 90° vertical coverage from a single IP address, and the site has adequate ambient or artificial lighting for overnight monitoring.

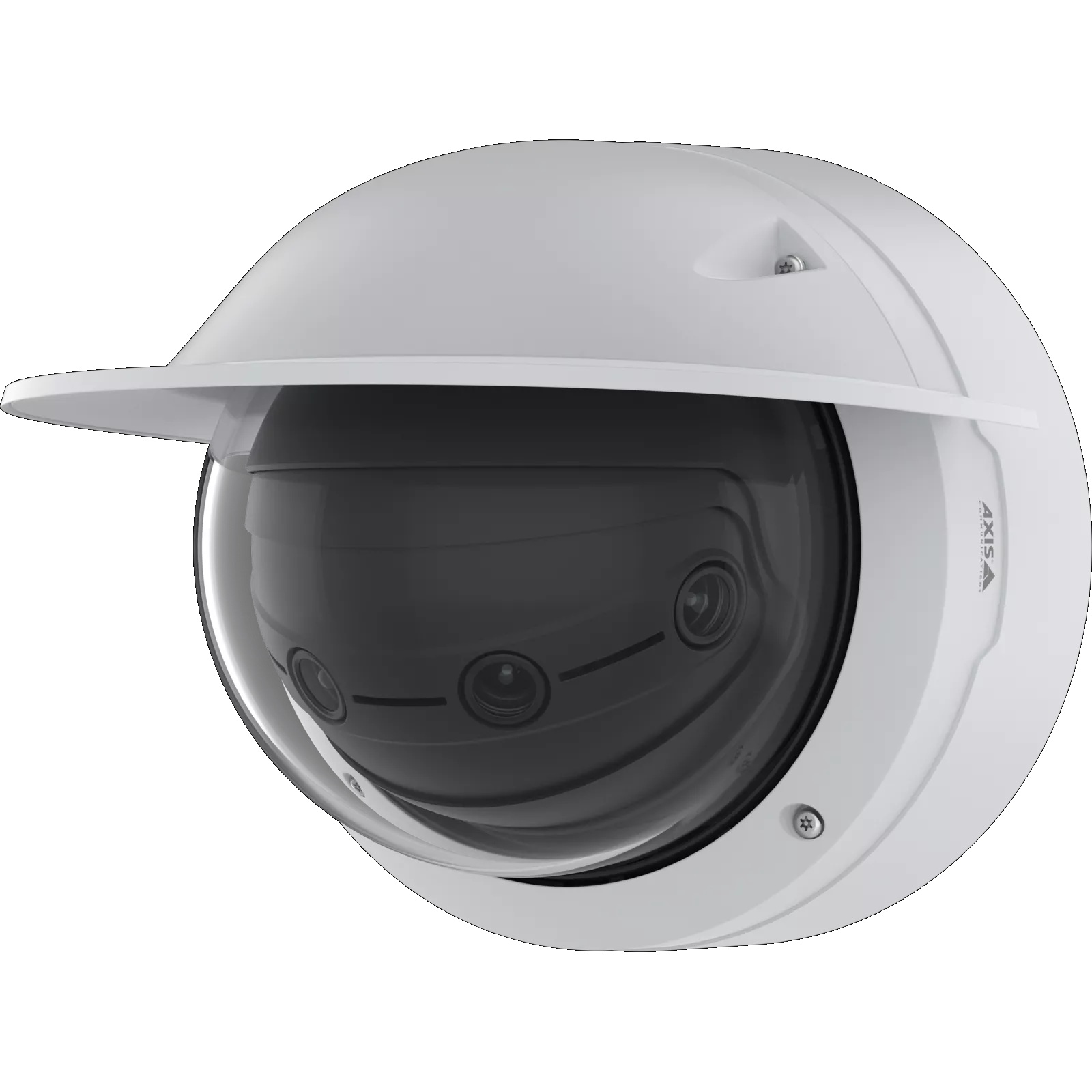

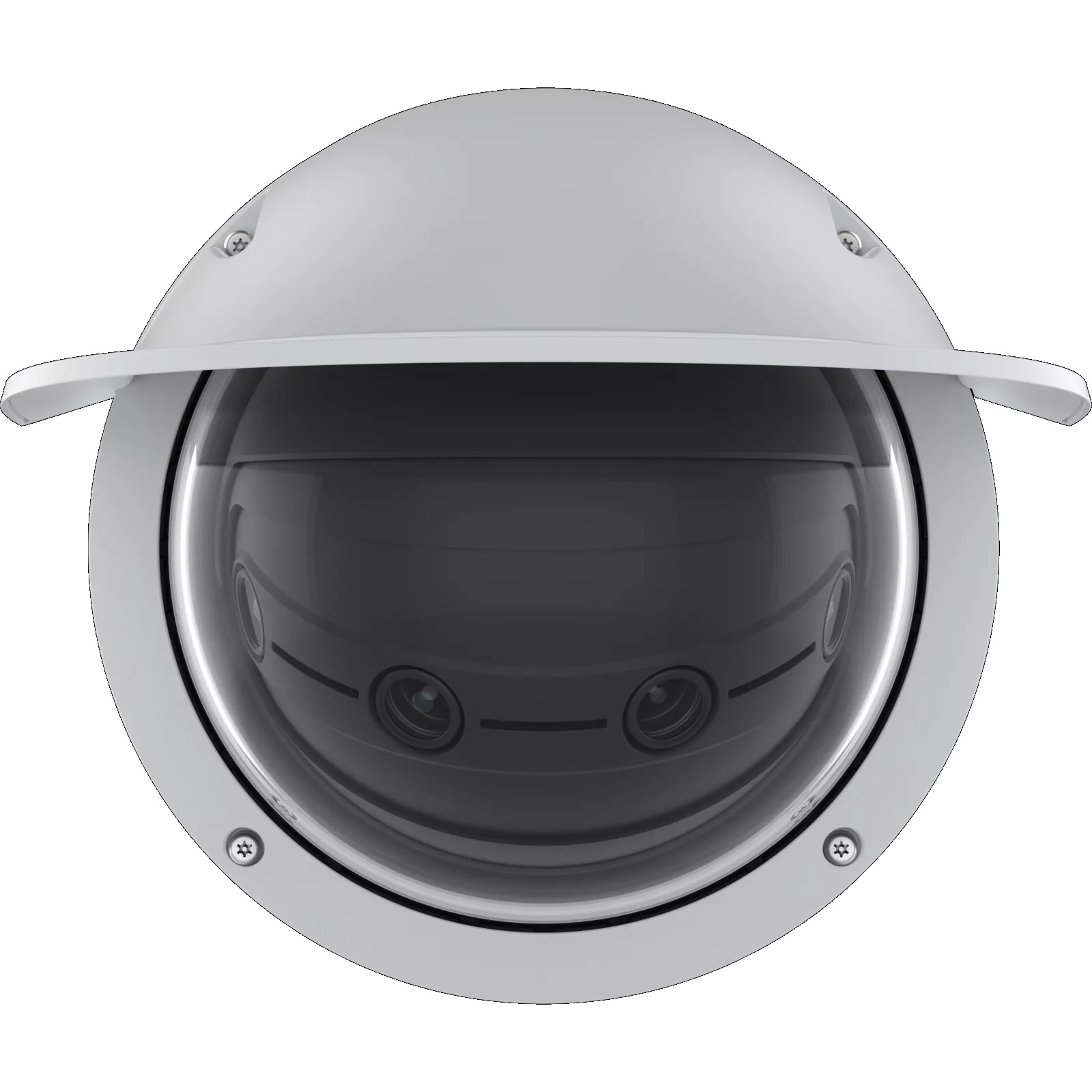

- Choose the AXIS Q4809-PVE if: You need 10K horizontal resolution and the installation prioritises maximum horizontal reach over the wider 90° vertical field of view that this model provides.
- Choose a PTZ camera if: The site requires operator-driven live zoom, directional tracking and active pan/tilt control rather than a fixed panoramic overview with lossless digital zoom.
- Check illumination before specifying: This model has no built-in IR, so nighttime coverage depends on site lighting. Confirm light levels at the planned mounting position before committing to this model for dark or poorly lit outdoor areas.
- Confirm mounting and accessory requirements: Wall, pole, ceiling, pendant and corridor mount options may each require specific Axis mounting accessories. Confirm the installation method and compatible accessories before ordering.
FAQs
- How does the Q3839-PVE create a panoramic image from 4 sensors?
The camera uses 4 individual CMOS sensors, each capturing its portion of the scene. The camera’s processing combines these into a single seamlessly stitched 7552 x 3776 panoramic frame. The result is delivered through one IP address, meaning the VMS and recording system see one camera stream rather than 4 separate feeds, which simplifies system design and licensing.
- What is the significance of the 90° vertical field of view compared with flatter panoramic cameras?
A wider vertical field of view captures more foreground depth, including activity close to the camera base and ground-level detail across the full width of the scene. In open areas such as plazas, concourses and wide building forecourts, this means less of the scene is lost at the bottom of the frame, which matters for both monitoring quality and forensic review.
- Can the AXIS Q3839-PVE be adjusted after it is mounted?
Yes. Built-in motors support remote pan, tilt and roll adjustment, allowing installers and operators to fine-tune the camera’s orientation after physical mounting is complete. Horizon straightening is also supported, helping correct any tilt in the panoramic image without remounting the camera.
- What analytics are included with the camera out of the box?
The camera includes AXIS Object Analytics, AXIS Scene Metadata and AXIS Video Motion Detection. AXIS Object Analytics supports detection, classification, tracking and counting of humans and vehicle types, and runs on the camera’s onboard deep learning processing unit without requiring a separate analytics server or additional licence.
- What happens to image quality if I zoom into the panoramic view?
The Q3839-PVE supports lossless zoom, which means users can zoom into any section of the 29MP panoramic frame and retain image sharpness up to the resolution limit of the captured detail. This is particularly useful for reviewing incidents in one section of a wide scene without losing the context of the full panoramic overview.
- Does the camera record locally or does it need an NVR?
The camera supports a memory card slot for local edge recording, which can serve as a recording redundancy option if the network or NVR becomes temporarily unavailable. For primary recording in most professional installations, connection to an NVR or VMS with sufficient storage and bandwidth for 29MP video at 30fps will be required.
- How does Zipstream help manage the high data output of a 29MP camera?
H.265 combined with Axis Zipstream reduces the bitrate of recorded and streamed video by intelligently lowering the data rate in areas of the frame with low activity while preserving full detail where motion or relevant objects are detected. This reduces storage and bandwidth requirements without sacrificing usable image quality in the areas that matter most.
- Where can I source the AXIS Q3839-PVE in Australia?
The AXIS Q3839-PVE is part of the Security Wholesalers range of professional Axis Communications network cameras. Before purchasing, confirm the planned mounting position, site lighting levels, VMS compatibility, network bandwidth capacity and storage requirements with your installer to ensure the system is correctly sized for 29MP panoramic recording.
