Product SKU: AXIS Q3556-LVE
Product Overview

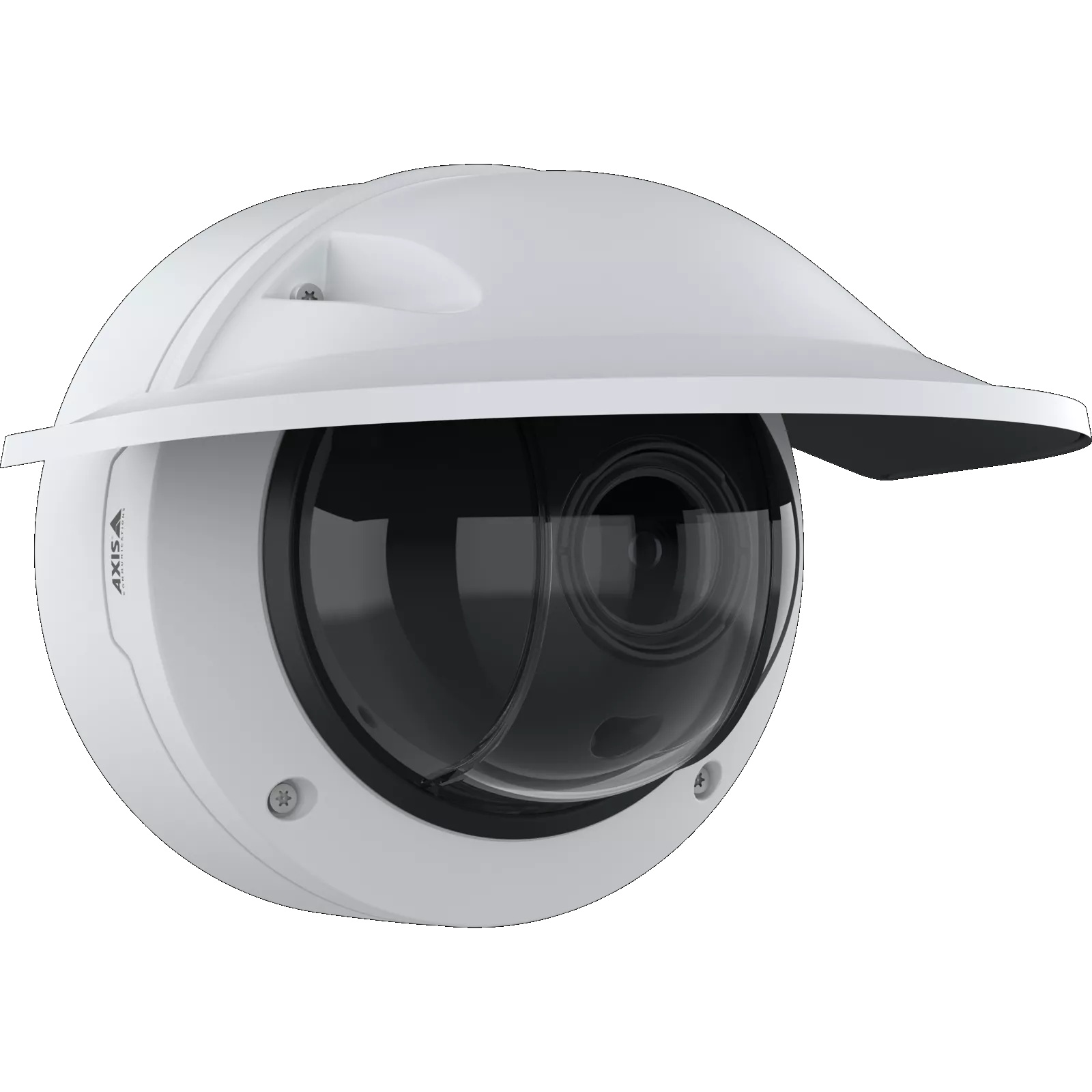

Built for exposed outdoor installations where standard cameras fall short, the AXIS Q3556-LVE is a 4MP AI-powered outdoor dome camera engineered to handle critical infrastructure, transport sites, industrial perimeters, car parks, and demanding commercial exteriors. Featuring 2688 x 1512 resolution at up to 100/120fps, it captures fast-moving activity with forensic-level detail across vehicle lanes, entrance points, and wide outdoor approaches. Equipped with Lightfinder 2.0, Forensic WDR, OptimizedIR, and an IR-shielded dome, it maintains usable images from near darkness through to high-contrast outdoor scenes in rain and snow. Built on the ARTPEC-9 platform with a deep learning processing unit, it runs AXIS Object Analytics, AXIS Audio Analytics, and AXIS Image Health Analytics on the edge. It also integrates Axis Edge Vault cybersecurity with FIPS 140-3 Level 3 certified secure key storage, electronic image stabilisation, dual PoE and DC power support, and IP66/IP6K9K, IK10, and NEMA 4X protection for the harshest environments.
Key Capabilities
4MP High Frame Rate Imaging
Captures up to 2688 x 1512 resolution at up to 100/120fps on a 1/1.8″ CMOS sensor. The combination of 4MP detail and high frame rate makes it well suited to vehicle lanes, transit corridors, and busy entry points where both image sharpness and motion clarity matter.
Dual Varifocal Lens Variants
Available with a 4.7-10mm lens for wider outdoor coverage up to around 102 degrees horizontal, or a 13-51mm tele lens for distant monitoring down to an 8.5 degree field of view. Both variants include remote zoom and focus to simplify post-installation framing at height or in difficult positions.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 preserves colour and contrast down to 0.01 lux, while Forensic WDR handles scenes with strong exposure differences such as vehicle headlights, shaded entrances, and outdoor areas with mixed ambient and artificial lighting.
OptimizedIR with IR-Shielded Dome
Built-in OptimizedIR supports monitoring in complete darkness at 0 lux. The IR-shielded dome reduces internal reflections that degrade image quality in rain, wet surfaces, and snow conditions, making it more reliable than standard domes in harsh outdoor night-time environments.
ARTPEC-9 Edge AI Analytics
The ARTPEC-9 SoC with built-in DLPU runs AXIS Object Analytics for detection, classification, tracking, and counting of humans, vehicles, and vehicle types directly on the camera. AXIS Image Health Analytics adds automated alerts if the image is blocked, degraded, or redirected.
Enterprise Cybersecurity and Rugged Build
Axis Edge Vault with FIPS 140-3 Level 3 certified cryptographic key storage, secure boot, and signed OS protects device integrity. IP66/IP6K9K, IK10, NEMA 4X, and a -50 degrees C to 55 degrees C operating range address the physical demands of industrial, infrastructure, and exposed outdoor installations.
Best For
- Critical Infrastructure and Secure Facilities: Dual PoE and DC power support, Axis Edge Vault cybersecurity, and FIPS 140-3 Level 3 certified key storage make this model appropriate for sites where device integrity and operational continuity are non-negotiable.
- Transport Hubs and High-Traffic Areas: Up to 120fps at 4MP captures vehicle and pedestrian movement with enough detail for incident review at stations, terminals, platforms, and busy outdoor thoroughfares.
- Industrial Perimeters and Car Parks: Electronic image stabilisation, OptimizedIR, and IK10/IP6K9K/NEMA 4X protection handle pole-mounted and wall-mounted locations exposed to vibration, impact, and extreme weather.
- Long-Range Monitoring with the 51mm Variant: The 13-51mm tele lens covers approach roads, distant gates, fence lines, and access points where a narrower focused field of view is required and a wide-area lens would not resolve sufficient detail.
- Schools, Campuses, and Commercial Exteriors: AXIS Object Analytics with human and vehicle classification, audio analytics, and all-weather durability support reliable outdoor coverage across building entrances, courtyards, and shared outdoor spaces.
Why Choose the AXIS Q3556-LVE
The AXIS Q3556-LVE goes beyond standard 4MP outdoor cameras by combining high frame rate imaging, professional AI analytics, and enterprise cybersecurity in a single ruggedised dome housing. Where simpler outdoor cameras offer basic motion detection, this model runs AXIS Object Analytics on the ARTPEC-9 platform to classify humans and vehicles at the edge, reducing false alerts and supporting faster forensic review. The IR-shielded dome addresses a practical limitation of standard dome designs in rain and snow, and electronic image stabilisation keeps footage usable on vibration-prone poles and bridges. The addition of AXIS Audio Analytics for sound event detection and AXIS Image Health Analytics for camera tamper monitoring adds a layer of situational awareness that entry-level alternatives cannot match. Power redundancy through both PoE Class 4 and DC input is especially valuable for critical installations. Available through Security Wholesalers, the AXIS Q3556-LVE suits professional installers and integrators working on sites where image quality, analytics accuracy, and long-term operational reliability all matter.
Buyer Decision Tips
Lens Variant Selection: The 10mm and 51mm variants require a decision before purchase as they are separate models. Choose the 4.7-10mm variant when the priority is wider coverage of a car park, courtyard, entrance, or broad outdoor zone. Choose the 13-51mm tele variant when the camera needs to resolve detail at longer distances, such as an approach road, distant gate, or perimeter fence line. Both variants support remote zoom and focus, so final framing can be fine-tuned electronically after the camera is mounted.
Power Planning for Critical Sites: The AXIS Q3556-LVE uses PoE Class 4, which requires a switch or injector capable of delivering sufficient power. For critical infrastructure or high-availability installations, the DC power input can be used alongside PoE to support power redundancy. Confirm the site’s power infrastructure and cable run lengths before specifying, particularly for pole-mounted locations in exposed outdoor environments.
Key Features & Technical Specifications
| Model |
AXIS Q3556-LVE |
| Product Type |
AI-Powered Outdoor Dome Network Camera |
| Resolution |
4MP / 2688 x 1512 |
| Maximum Frame Rate |
100/120fps |
| Image Sensor |
1/1.8″ CMOS |
| System-on-Chip |
ARTPEC-9 with built-in deep learning processing unit |
| Lens Options |
4.7-10mm varifocal (10mm variant) or 13-51mm varifocal tele lens (51mm variant) |
| Horizontal Field of View |
101.8 degrees to 44.0 degrees (10mm variant) / 33.1 degrees to 8.5 degrees (51mm variant) |
| Minimum Illumination |
0.01 lux colour (10mm variant) / 0.04 lux colour (51mm variant) / 0 lux with IR |
| Low-Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| IR Illumination |
OptimizedIR with IR-shielded dome |
| Electronic Image Stabilisation |
Yes |
| Video Compression |
AV1, H.265, H.264, Axis Zipstream |
| Analytics |
AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Live Privacy Shield, AXIS Scene Metadata, AXIS Video Motion Detection |
| Alarm I/O |
2 inputs/outputs |
| Power |
PoE Class 4 and DC power (power redundancy supported) |
| Weather and Environmental Rating |
IP66, IP6K9K, NEMA 4X |
| Vandal Rating |
IK10 |
| Operating Temperature |
-50 degrees C to 55 degrees C |
| Cybersecurity |
Axis Edge Vault, HTTPS, IEEE 802.1X, secure boot, signed OS, FIPS 140-3 Level 3 certified secure key storage |
| Warranty |
5-year warranty |
Ideal Use Cases
Critical Infrastructure and Utilities
Power redundancy through PoE and DC inputs, FIPS 140-3 Level 3 cybersecurity, and NEMA 4X protection make the Q3556-LVE a practical choice for substations, water treatment facilities, ports, and high-security depots where operational continuity and device integrity are priorities.
Transport and Transit Hubs
High frame rates up to 120fps combined with AXIS Object Analytics for human and vehicle classification make this camera well suited to stations, platforms, bus terminals, and vehicle approach zones where capturing fast movement accurately supports both live monitoring and incident review.
Industrial Perimeters and Yards
Electronic image stabilisation maintains a steady image on poles and structures affected by wind or vibration. Combined with IK10 vandal resistance, IP6K9K ingress protection, and an operating range down to -50 degrees C, this camera handles conditions that would compromise less rugged models.
Car Parks and Vehicle Access Points
Forensic WDR manages the contrast between headlights and dark surroundings, while AXIS Object Analytics classifies vehicle types and tracks movement through lanes and gates. The 51mm tele lens variant extends this capability to distant entry points and approach roads.
Schools and Large Commercial Exteriors
The 10mm variant covers courtyards, building entrances, and outdoor shared spaces with a field of view up to 101.8 degrees horizontal. AXIS Audio Analytics adds awareness of sound events such as raised voices or screaming, extending detection capability beyond standard video analytics.
Choosing the Right Model
- Choose the Q3556-LVE 10mm variant if: The site requires wider outdoor coverage of a car park, school ground, building entrance, or broad perimeter zone, and the priority is situational awareness across a large area rather than detail at distance.
- Choose the Q3556-LVE 51mm variant if: The installation needs to resolve detail at longer distances, such as a vehicle approach road, distant pedestrian gate, or extended fence line where the 10mm lens would not provide sufficient detail at range.
- Choose a different model if: The installation is indoors with no exposure to weather or vandalism, and the cybersecurity features, NEMA 4X rating, and power redundancy are not relevant to the project. A lower-specification indoor dome would be more cost-appropriate in that case.
- Choose a different model if: The site requires continuous pan, tilt, and zoom control across a very wide area. The Q3556-LVE provides digital pan and tilt but does not offer motorised PTZ movement, so a dedicated PTZ camera would be more appropriate for that application.
FAQs
- What is the difference between the 10mm and 51mm variants of the AXIS Q3556-LVE?
The 10mm variant uses a 4.7-10mm varifocal lens with a horizontal field of view of 101.8 degrees to 44.0 degrees, suited to wider outdoor areas such as car parks, courtyards, and building entrances. The 51mm variant uses a 13-51mm tele lens with a horizontal field of view narrowing to 8.5 degrees, suited to distant monitoring of approach roads, gates, and perimeter fence lines. Both support remote zoom and focus for post-installation adjustment.
- Does the AXIS Q3556-LVE work in very cold or extreme outdoor conditions?
Yes. The Q3556-LVE is rated to operate from -50 degrees C to 55 degrees C and carries IP66, IP6K9K, and NEMA 4X environmental protection. The IP6K9K rating specifically addresses high-pressure water ingress, and NEMA 4X covers corrosion resistance, making it suitable for coastal, industrial, and other chemically exposed outdoor locations.
- Why does the IR-shielded dome matter for outdoor night-time surveillance?
Standard dome cameras can suffer from internal IR reflections when moisture, rain, or condensation is present on the dome surface. The IR-shielded dome on the Q3556-LVE is designed to reduce these reflections, which helps maintain clearer night-time images in wet weather conditions that would degrade the image quality of a standard dome design.
- What AI analytics are built into the AXIS Q3556-LVE?
The camera runs AXIS Object Analytics on its ARTPEC-9 platform with a built-in deep learning processing unit. This enables detection, classification, tracking, and counting of humans, vehicles, and vehicle types directly on the camera without requiring server-side processing. AXIS Image Health Analytics monitors whether the image is blocked, degraded, under-exposed, or redirected, and AXIS Audio Analytics detects sound events such as screams, shouts, and abnormal sound levels.
- How does the power redundancy feature work on the AXIS Q3556-LVE?
The Q3556-LVE supports both PoE Class 4 and a separate DC power input. When the installation is wired to use both simultaneously, the system can maintain camera operation if one power source fails. This is a meaningful feature for critical infrastructure, secure facilities, and transport sites where camera downtime during a power event is not acceptable.
- What cybersecurity features does the AXIS Q3556-LVE include?
The Q3556-LVE is built on Axis Edge Vault, which includes FIPS 140-3 Level 3 certified secure cryptographic key storage and operations, a signed operating system, secure boot, HTTPS encryption, and IEEE 802.1X network access control. These features protect the device from unauthorised access and firmware tampering, and are relevant to government, infrastructure, and enterprise network environments with strict security requirements. The Q3556-LVE is available through Security Wholesalers as part of a range of professional Axis cameras for these types of deployments.
- Can the AXIS Q3556-LVE be used on a vibrating pole or structure?
Yes. The built-in electronic image stabilisation compensates for vibrations caused by wind, passing traffic, or machinery. This makes it a practical option for pole-mounted positions near roads, bridges, rail environments, and industrial areas where movement in the mounting structure would otherwise cause ongoing image blur or instability.
Additional Information
