Product SKU: Q1809-LE 03019-001
Product Overview

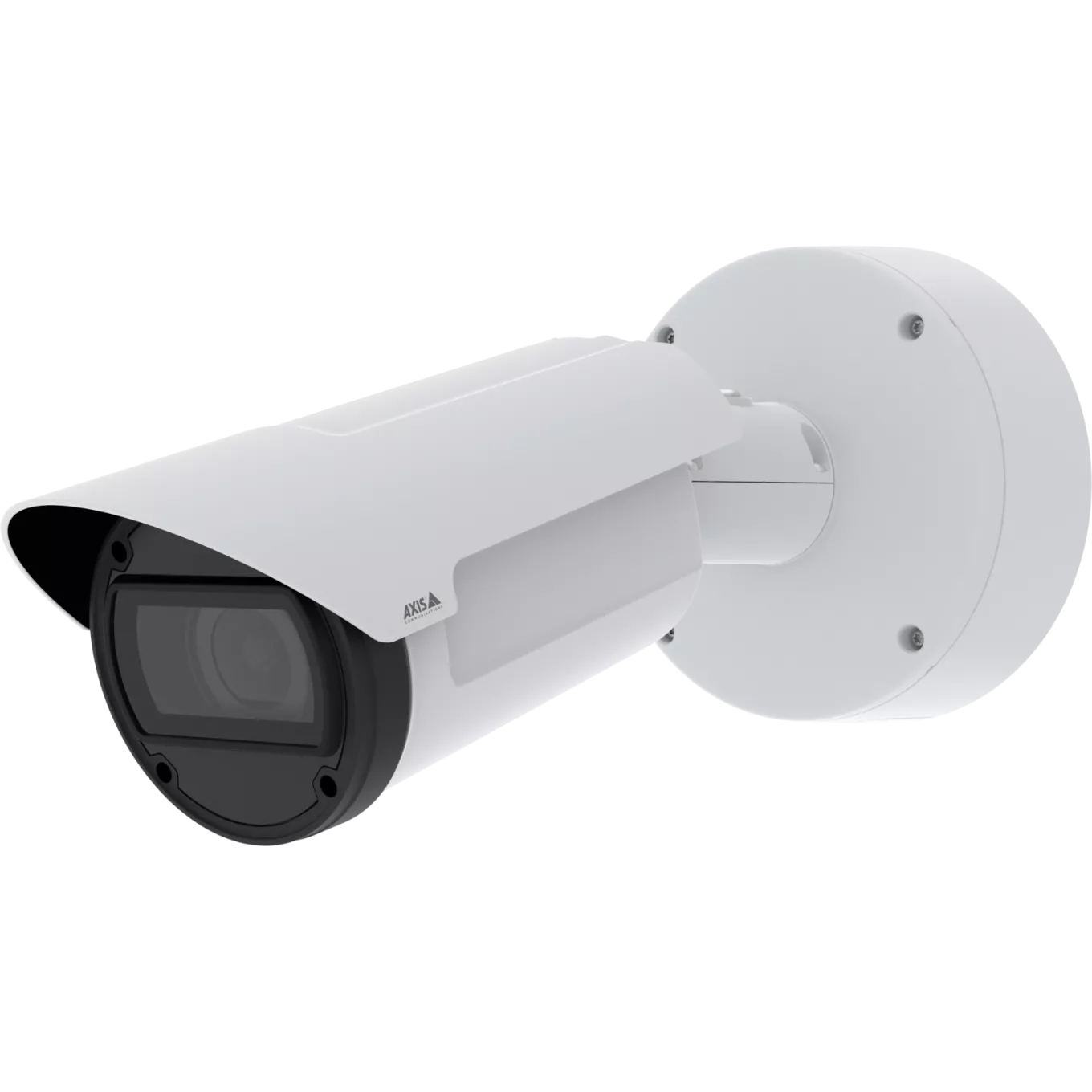

Built for sites where identifying a subject at distance is the entire purpose of the installation, the AXIS Q1809-LE 150mm 03019-001 is a fixed outdoor bullet network camera engineered around extreme long-range detail. Featuring a 41MP / 8K image sensor paired with a 50-150mm varifocal Canon tele lens delivering 3x optical zoom, this model produces pixel-dense imagery across narrow fields of view that standard surveillance cameras cannot match. The telephoto focal range makes it suited to perimeter fence lines, vehicle entry gates, port approaches, airport aprons, rail corridors, logistics yards, and stadium outer zones where the camera must focus on a specific distant target rather than a broad scene. Equipped with a built-in Deep Learning Processing Unit, OptimizedIR for night-time coverage, and WDR for challenging lighting transitions, the Q1809-LE 150mm is rated IP66, IP67, IK10, and NEMA 4X for year-round outdoor deployment. Note a standard lead time of approximately 30 days applies to this model.
Key Capabilities
41MP / 8K Ultra-High Resolution
A 41 megapixel sensor at 8K resolution captures substantially more pixel information than conventional HD or 4K cameras. At distance, this translates to greater detail per subject, which supports forensic review, identification workflows, and compliance requirements at critical infrastructure sites.
50-150mm Varifocal Canon Tele Lens
The Canon telephoto lens covers a 50-150mm focal range with 3x optical zoom, enabling tight, focused coverage of gates, perimeter barriers, vehicle lanes, and restricted zones at considerable distances. This is a fundamentally different use case from wide-angle overview cameras and requires deliberate positioning during installation planning.
DLPU Edge Analytics
The onboard Deep Learning Processing Unit allows compatible analytics to run directly on the camera rather than relying solely on server-side processing. This supports smarter event filtering, improved detection accuracy, and reduces the processing load on the video management system in large-scale deployments.
OptimizedIR Night-Time Coverage
Built-in OptimizedIR illumination supports night-time surveillance at the long distances this camera is intended to cover. Combined with 8K resolution, this means low-light scenes at range retain the level of detail needed for post-event investigation and live monitoring in unlit or poorly lit outdoor environments.
Wide Dynamic Range
WDR processing manages scenes with strong contrast between bright and dark areas, such as vehicle headlights approaching a gate, sunlit open yards with shaded entrances, or outdoor locations where lighting conditions shift significantly across the day. This helps maintain usable image quality across a wider range of outdoor lighting situations.
IP66, IP67, IK10, NEMA 4X Rated Housing
The bullet housing carries IP66 and IP67 dust and water ingress ratings, IK10 vandal resistance, and NEMA 4X classification, making it suited to exposed outdoor mounting on walls, poles, and gantries at industrial facilities, transport hubs, and perimeter locations subject to weather, hose-down, or tampering risk.
Best For
- Perimeter Fence Lines and Gate Monitoring: The 50-150mm telephoto lens focuses tightly on a narrow zone at distance, making it well suited to monitoring specific access points, barriers, and fence sections where subject identification matters more than scene width.
- Ports, Airports, and Transport Infrastructure: Large-scale sites with long sightlines and a need for high-resolution detail on vehicles, vessels, or personnel at distance benefit from the 41MP sensor and telephoto focal range.
- Forensic and Identification-Focused Surveillance: Where the primary requirement is usable evidence-grade imagery rather than general awareness, the 8K pixel density at telephoto distances provides a meaningful advantage over lower-resolution options.
- Industrial Facilities and Logistics Yards: Wall or pole-mounted deployment in large outdoor operational areas where specific lanes, bays, or entry points require consistent detail capture, including at night via OptimizedIR.
- Stadiums and Large Public Venues: Monitoring distant crowd zones, entry corridors, or outer perimeters where a wide-angle camera would deliver insufficient detail for the distances involved.
Why Choose the AXIS Q1809-LE 150mm
The AXIS Q1809-LE 150mm 03019-001 occupies a specific and demanding position in professional surveillance: it is built to deliver identification-grade detail at ranges that standard CCTV cameras cannot support. The combination of a 41MP / 8K sensor with a 50-150mm Canon varifocal tele lens and 3x optical zoom means each frame contains the pixel depth required for genuine forensic review, not just general scene awareness. The onboard DLPU supports edge analytics without placing additional processing demands on the VMS, which matters in large-scale deployments with many camera streams. Rated to IP66, IP67, IK10, and NEMA 4X, this camera is not a compromise build – it is an instrument-grade camera for professional outdoor applications. Available through Security Wholesalers with a standard lead time of approximately 30 days, the Q1809-LE 150mm suits government, critical infrastructure, transport, and high-security commercial projects where resolution and range are non-negotiable.
Buyer Decision Tips
Telephoto Field of View: The 50-150mm focal range produces a narrow field of view by design. This camera is optimised for looking far into a specific zone rather than covering a wide area. Before specifying this model, confirm your target distance and scene width requirements. For sites needing broader coverage at shorter ranges, a shorter focal length lens would be more appropriate. The Q1809-LE 150mm is the right choice when your primary need is pixel density on a distant, focused point.
Lead Time Planning: This product carries a standard lead time of approximately 30 days. For project installations with scheduled commissioning dates, factor this into procurement timelines. Early ordering is advisable for large-scale or multi-camera deployments to avoid delays on-site.
Key Features & Technical Specifications
| Model |
AXIS Q1809-LE 150mm |
| SKU |
03019-001 |
| Brand |
Axis Communications |
| Resolution |
41MP / 8K |
| Lens |
50-150mm varifocal Canon tele lens |
| Optical Zoom |
3x |
| IR Illumination |
Built-in OptimizedIR |
| Wide Dynamic Range |
Yes |
| Deep Learning Processing Unit (DLPU) |
Yes – onboard edge analytics support |
| Form Factor |
Fixed outdoor bullet network camera |
| Ingress Protection |
IP66, IP67 |
| Vandal Rating |
IK10 |
| Environmental Rating |
NEMA 4X |
| Intended Use |
Long-range, high-detail professional outdoor surveillance |
| Standard Lead Time |
Approximately 30 days |
| Product Status |
Active |
Ideal Use Cases
Port and Harbour Perimeters
Long unobstructed sightlines across wharf areas, vessel approaches, and restricted maritime zones suit the 50-150mm telephoto focal range. The 8K sensor captures usable detail on personnel and vehicle movements at the distances typically involved in port security applications.
Airport Aprons and Airside Perimeters
Monitoring aircraft ground movements, vehicle access lanes, and airside perimeter zones at distance requires high resolution that standard CCTV cannot provide. The 41MP sensor combined with OptimizedIR extends coverage into low-light conditions during early morning and overnight operations.
Industrial Facility Fence Lines
Pole or wall-mounted along outer fence perimeters of manufacturing plants, refineries, or utilities sites, the IK10 and NEMA 4X rated bullet housing withstands the environmental and physical demands of industrial outdoor settings while the telephoto lens maintains focus on the boundary zone.
Roadway and Rail Corridor Monitoring
Positioned to monitor approaching vehicles or rail movements over distance, the 3x optical zoom and 50-150mm focal range allow operators to capture plate-level or driver-level detail well before a vehicle reaches a checkpoint, gate, or controlled zone.
Stadium Outer Zones and Crowd Monitoring
For venues requiring detailed imagery of crowd movement at external entry points, concourses, or outer perimeters, the 8K resolution allows significant digital zoom in playback without losing the subject detail needed for incident review or crowd management analysis.
Critical Infrastructure and Government Sites
Power stations, water treatment facilities, data centres, and government installations with large secure perimeters benefit from the DLPU-supported edge analytics and forensic-grade 41MP imagery for access monitoring, incident documentation, and compliance with high-security site requirements.
Choosing the Right Model
- Choose this model if: Your site requires identification-grade detail on subjects at long range, the installation point has a clear sightline to the target zone, and you need a camera that can support edge analytics via DLPU with IP66/IP67/IK10/NEMA 4X outdoor durability.
- Choose a different model if: You need wide-area scene coverage rather than focused long-range detail – a shorter focal length bullet or multi-sensor panoramic camera would cover more scene width at closer distances. Similarly, if your budget and timeline cannot accommodate the 30-day lead time, an in-stock alternative may better suit immediate project needs.
FAQs
- What does the 50-150mm varifocal lens mean in practical terms for my installation?
The 50-150mm focal range means this camera is designed to focus on a relatively narrow zone at long distance rather than providing a wide-angle overview. During installation, the varifocal lens is adjusted to frame the specific target area, such as a gate, a lane, or a section of perimeter fence. The 3x optical zoom allows the operator to refine that framing. This is very different from a wide-angle camera covering a broad scene.
- How far can the AXIS Q1809-LE 150mm realistically identify a subject?
Effective identification distance depends on the specific scene, lighting conditions, subject size, and analytics configuration. The combination of 41MP / 8K resolution and the 50-150mm telephoto lens is engineered to maintain subject detail at ranges that exceed what standard HD or 4K cameras can deliver. Axis Communications provides camera selector tools and DORI calculation resources that help determine the specific identification distance for your exact scenario.
- Is the DLPU pre-loaded with analytics, or does it require additional software?
The onboard DLPU provides the hardware capability for deep learning-based analytics to run at the edge. The specific analytics available depend on the Axis applications and VMS integrations used on your project. Compatible analytics are deployed through the Axis camera application platform or supported video management systems. Check with your system integrator or Axis for the analytics that can be enabled on this model.
- Can this camera be mounted on a pole outdoors in exposed locations?
Yes. The bullet-style housing with IP66, IP67, IK10, and NEMA 4X ratings is well suited to exposed outdoor mounting on poles, walls, and gantries. IP66 and IP67 cover protection against dust and water jets as well as temporary submersion, IK10 provides protection against physical impact, and NEMA 4X covers protection against outdoor weather, windblown dust, and corrosive environments.
- Does the OptimizedIR perform differently at telephoto focal lengths compared to wide-angle cameras?
Axis OptimizedIR is designed to automatically adjust the IR illumination angle to match the lens field of view. At longer focal lengths, the IR beam is narrowed to concentrate illumination on the more distant, focused target zone rather than flooding a wide area. This helps maintain night-time detail at the distances this camera is optimised for, rather than wasting IR output across a scene the lens cannot cover.
- What is the lead time for the AXIS Q1809-LE 150mm 03019-001?
This product carries a standard lead time of approximately 30 days. For projects with fixed commissioning deadlines, procurement should be initiated well in advance. The team at Security Wholesalers can confirm current availability and advise on timing for your specific order.
- Does the 41MP / 8K resolution place heavy demands on storage and network bandwidth?
Yes. Ultra-high resolution at 8K generates significantly more data per frame than HD or 4K cameras. Network bandwidth allocation, NVR storage capacity, and VMS licensing should all be evaluated before deployment. In large-scale projects with multiple high-resolution streams, this planning is especially important. Some installations use stream profiles or scheduled high-resolution recording to manage storage demand without sacrificing detail when it matters.
Additional Information
No additional downloads available for this product.
