Product SKU: Q1806-LE
Product Overview

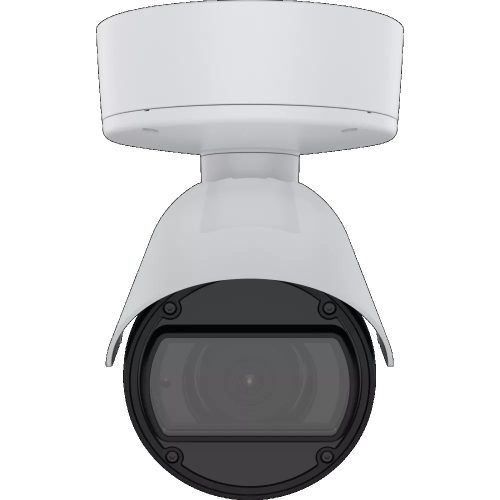

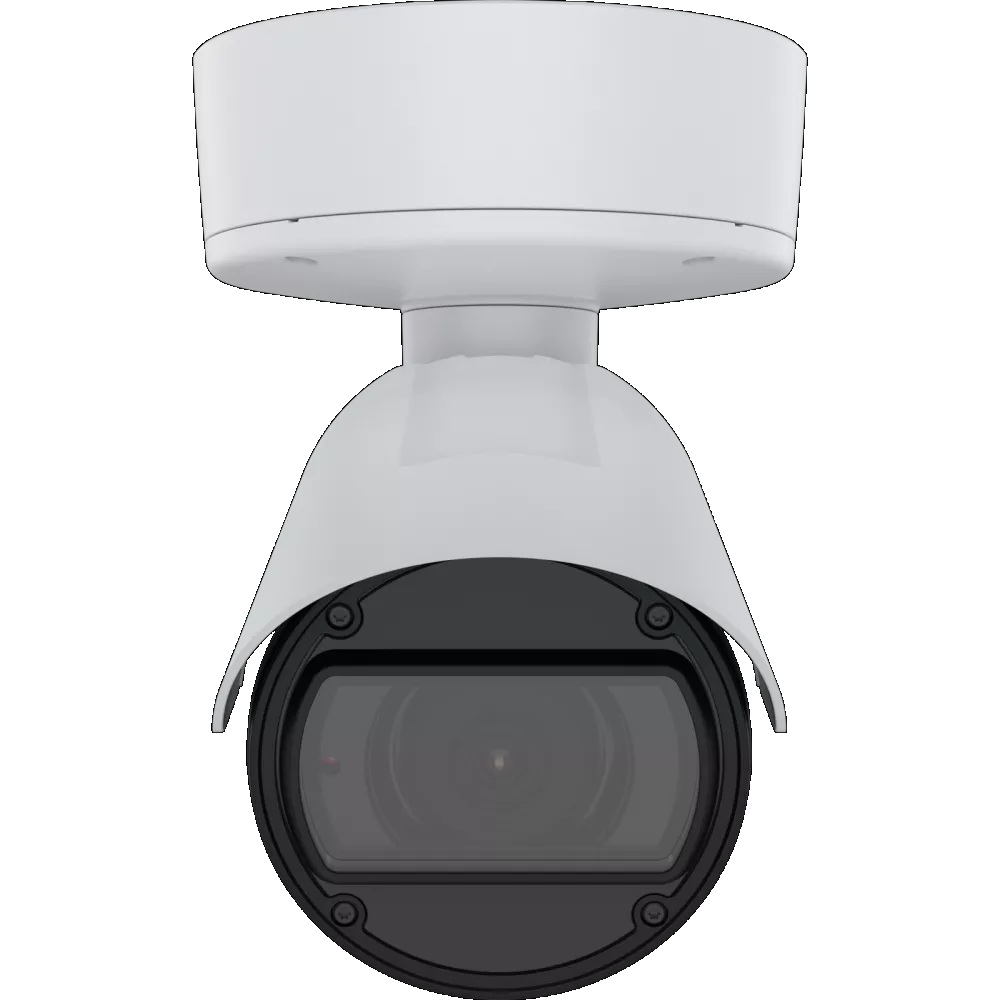

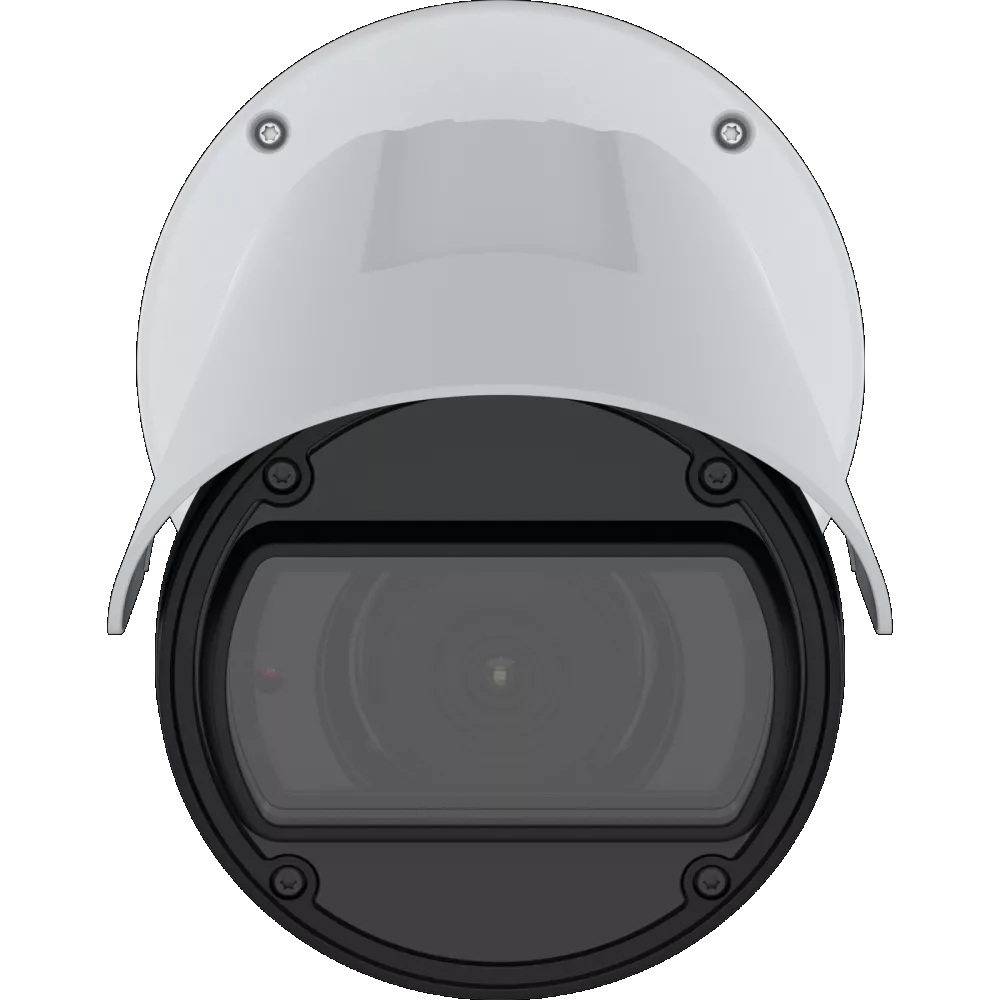

Long-range optical reach in a fixed outdoor bullet housing is the defining requirement for perimeter, infrastructure, and large-site surveillance projects where fixed-lens cameras fall short. The AXIS Q1806-LE is a 4MP outdoor bullet camera equipped with a 4.3-137mm motorised varifocal lens delivering 32x optical zoom, shifting field of view from a 60-degree wide position down to a 2.3-degree telephoto without repositioning the unit after installation. Built-in OptimizedIR extends night coverage to 100m, and Lightfinder 2.0 with Forensic WDR handles the contrast extremes and low ambient light typical of unlit outdoor yards and access roads. Optical image stabilisation compensates for wind and structural movement at extended zoom on pole and rooftop mounts. The ARTPEC-8 processor runs AXIS Object Analytics on-device, classifying people and vehicles directly at the edge. Rated IP66, IP67, and IK10 body with operation from -40 degrees C to 60 degrees C, the AXIS Q1806-LE is suited to industrial, logistics, and critical infrastructure deployments where optical performance and physical durability are both non-negotiable.
Key Capabilities
32x Optical Zoom with Motorised Varifocal Lens
The 4.3-137mm motorised lens adjusts remotely from a 60-degree wide angle to a 2.3-degree telephoto without physical remounting. On perimeter and access road installations, this allows the camera to be positioned well back from the target zone and still concentrate all 4MP resolution onto a narrow scene for useful identification detail.
OptimizedIR Night Coverage to 100m
The built-in OptimizedIR system adjusts its illumination beam width to match the current lens position, maintaining usable night coverage across the scene at any zoom level. On unlit industrial compounds, loading areas, and remote access points, this removes the dependency on supplementary IR floodlights for most mounting configurations.
Optical Image Stabilisation for Exposed Mounts
At high zoom levels, wind load and structural vibration produce blur that software-only stabilisation handles poorly. Optical image stabilisation on the Q1806-LE corrects this physically, keeping telephoto frames sharp on pole, rooftop, and gantry mounts that experience regular movement in exposed outdoor environments.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 retains colour in very low ambient light, while Forensic WDR controls scenes where vehicle headlights, sun glare, or mixed shade and bright sky would otherwise blow out or crush image detail. Both technologies operate together to sustain usable footage across the variable outdoor conditions found at working industrial and logistics sites.
ARTPEC-8 Edge Analytics via AXIS Object Analytics
AXIS Object Analytics runs directly on the ARTPEC-8 chip’s built-in deep learning processing unit, classifying people and vehicles on-camera without relying on server resources. On busy outdoor sites with background movement from foliage, animals, and passing traffic, this reduces the volume of irrelevant alerts and makes post-event footage searches faster and more targeted.
Best For
- Long Perimeter and Fence Line Monitoring: The 32x optical zoom and 100m OptimizedIR allow a single elevated unit to watch a long outer boundary across day and night without multiple fixed-lens camera positions across the same stretch.
- Gate and Access Road Coverage from Standoff Distance: The motorised varifocal lens can be configured to frame a gate or entry road from a considerable distance back, with up to 90 fps capture reducing motion blur on vehicles moving through the monitored zone.
- Demanding Industrial and Logistics Environments: IP66, IP67, and IK10 body protection alongside a -40 degrees C to 60 degrees C operating range give the Q1806-LE the physical tolerance needed for outdoor yards, loading docks, and plant areas with harsh weather exposure.
- High-Security and Infrastructure Sites with Cybersecurity Requirements: Axis Edge Vault hardware security, IEEE 802.1X port authentication, and HTTPS encryption satisfy the network integrity requirements applied to utility facilities, government installations, and regulated infrastructure projects.
Why Choose the AXIS Q1806-LE
Fixed outdoor bullet cameras cover close to medium-range scenes well, but they cannot replicate genuine optical reach across distance. The AXIS Q1806-LE places 32x optical zoom inside a rugged fixed bullet housing, giving a single mounted unit the coverage span that would otherwise need several cameras or a full PTZ platform to achieve. The 4MP sensor running at up to 90 fps adds frame density that matters when reviewing vehicle movement through narrow entry points, where standard frame rates leave motion blurred across critical identification frames. Hardware-level optical image stabilisation handles the vibration that high-zoom pole and rooftop positions experience, something electronic stabilisation cannot fully compensate for at telephoto extremes. PoE-out support allows a compatible Axis speaker or deterrence accessory to draw power from the camera itself, simplifying cabling where active deterrence is co-located with the camera. On-device ARTPEC-8 analytics keep processing off the VMS server and reduce bandwidth on constrained industrial networks. Available at Security Wholesalers, the AXIS Q1806-LE is a verified long-range outdoor solution for installers who need optical performance, edge intelligence, and site-grade durability from a single unit.
Buyer Decision Tips
IR Performance at Maximum Telephoto: OptimizedIR narrows its illumination beam as the lens zooms in, which concentrates light toward the distant target but also shortens the effective illuminated distance compared to the 100m rating at wider settings. If the specific scene requires both maximum telephoto framing and reliable IR coverage to the furthest point in the frame, confirm whether supplementary lighting at the target zone is practical before committing to the final mounting position and zoom configuration.
PoE Class 4 Power Requirement: The Q1806-LE draws up to 30W and requires a PoE Class 4 switch port. Standard Class 3 ports rated to 15.4W will not power this camera, and this constraint applies regardless of whether PoE-out to a connected accessory is also active. Check the PoE budget on every switch port involved, particularly on existing site infrastructure that was not originally specified for Class 4 draw.
Key Features & Technical Specifications
| Model |
AXIS Q1806-LE |
| Product Type |
Outdoor Bullet Network Camera |
| Maximum Video Resolution |
2880 x 1620 |
| Resolution Class |
4MP |
| Maximum Frame Rate |
Up to 90 fps |
| Image Sensor |
1/1.8″ CMOS |
| Lens Type |
4.3-137mm Motorised Varifocal |
| Optical Zoom |
32x |
| Aperture |
F1.4-4.0 |
| Horizontal Field of View |
60 degrees (wide) to 2.3 degrees (telephoto) |
| Vertical Field of View |
39 degrees (wide) to 1.3 degrees (telephoto) |
| Minimum Illumination |
0.08 lux colour / 0 lux black and white with IR |
| IR Illumination |
Built-in OptimizedIR up to 100m |
| Low-Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| Image Stabilisation |
Optical Image Stabilisation |
| Video Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
AXIS Object Analytics, video motion detection, active tampering alarm |
| Processing |
ARTPEC-8 with built-in deep learning processing unit |
| Audio |
Audio support and audio detection |
| Alarm I/O |
2 inputs / 2 outputs |
| Local Storage |
Memory card slot supported |
| Power |
Power over Ethernet, PoE Class 4 |
| PoE-Out |
Supported for compatible additional devices |
| Weather Protection |
IP66, IP67 |
| Impact Resistance |
IK10 body, IK08 glass |
| Operating Temperature |
-40 degrees C to 60 degrees C |
| Cybersecurity |
Axis Edge Vault, HTTPS encryption, IEEE 802.1X |
Ideal Use Cases
Perimeter Fence Line and Compound Boundaries
A single Q1806-LE at an elevated position can survey a long fence line segment using 32x optical zoom to tighten focus onto distant boundary sections. OptimizedIR adjusts with the lens to maintain up to 100m of night coverage, reducing the number of individual camera positions required across large warehouse compounds and restricted outdoor zones.
Industrial Yards and Logistics Sites
IK10 body rating, IP67 ingress protection, and a -40 degrees C to 60 degrees C operating range cover the physical and environmental demands common to outdoor production yards and logistics facilities. The motorised lens allows remote refocusing if operational zones or loading configurations shift after the camera is installed.
Vehicle Access Roads and Gated Entries
At telephoto, the 2.3-degree horizontal field of view concentrates all 4MP resolution onto a narrow entry corridor. At up to 90 fps, vehicles moving through the monitored zone are captured with considerably less motion blur than at standard frame rates, supporting post-event review of vehicle details at the gate or entry point.
Critical Infrastructure and Utility Facilities
Axis Edge Vault hardware security, IEEE 802.1X port authentication, and HTTPS encryption address the cybersecurity standards applied to utility infrastructure, government facilities, and regulated sites. On-device AXIS Object Analytics reduces bandwidth demand on constrained site networks while generating event metadata for integration with site management platforms.
Large Commercial Campuses and Business Parks
Across properties with long internal roads and open outdoor areas, the Q1806-LE covers extended approaches from fewer mounting points. AXIS Object Analytics filters background movement from wind, foliage, and passing traffic, reducing the volume of irrelevant event notifications reaching the monitoring console during normal site activity.
Choosing the Right Model
- Choose this model if: The installation requires long-range optical zoom in a fixed outdoor bullet housing, with 4MP at up to 90 fps, 100m IR, optical image stabilisation for pole or rooftop mounts, on-device deep learning analytics via ARTPEC-8, and cybersecurity features suited to high-security or infrastructure environments.
- Choose a different model if: The coverage area only needs fixed close to medium-range framing. A fixed-lens outdoor bullet or turret camera at a comparable resolution will cost less, draw a lower PoE budget, and deliver sufficient performance where optical reach across distance is not part of the site requirement.
- Choose a different model if: Operators need to actively steer coverage during live monitoring in response to incidents. The Q1806-LE uses its motorised varifocal lens for scene framing at setup rather than real-time directional control. A PTZ camera is the appropriate choice where live pan, tilt, and repositioning are required during operation.
FAQs
- What is the practical difference between the 32x optical zoom on the AXIS Q1806-LE and digital zoom on a standard bullet camera?
Optical zoom physically moves the lens elements to magnify a distant scene, keeping the full 4MP sensor active at every zoom position. Digital zoom crops into the existing image and enlarges the pixels, reducing resolution with each step of magnification. On the Q1806-LE, the 2.3-degree telephoto position still uses all 4MP of the sensor, delivering meaningful identification detail at distances where a digitally zoomed image would be too degraded for practical use.
- How does optical image stabilisation on the AXIS Q1806-LE affect image quality on a pole mount at high zoom?
At extended telephoto settings, even minor structural movement or wind load causes significant blur in the image. The optical image stabilisation on the Q1806-LE corrects movement physically in the lens rather than digitally in post-processing, preserving sharpness in the telephoto frame on exposed pole, rooftop, or gantry installations where mechanical vibration is a regular condition.
- What frame rate does the AXIS Q1806-LE support at maximum 4MP resolution?
The camera supports up to 90 fps at its full resolution of 2880 x 1620. This higher frame rate reduces motion blur on fast-moving subjects such as vehicles entering a gated facility or pedestrians crossing a monitored zone. Individual frames captured at 90 fps contain substantially more useful detail for post-event review compared to footage recorded at 25 fps.
- Does the AXIS Q1806-LE function as a PTZ camera during live monitoring?
No. The motorised varifocal lens on the Q1806-LE is used to frame the scene at installation and can be adjusted remotely, but the camera does not pan, tilt, or rotate in response to operator commands during live monitoring. It is a fixed-position bullet camera with remote zoom adjustment, not a PTZ unit. Sites requiring live operator-steered tracking of moving subjects need a dedicated PTZ camera.
- What does PoE-out on the AXIS Q1806-LE allow, and what is its power budget?
PoE-out lets the camera supply power to a compatible connected accessory, such as an Axis network speaker, through the camera’s own network connection. This removes the need for an independent power run to the accessory. The camera itself draws up to 30W from a PoE Class 4 switch port, and the available PoE-out budget should be confirmed against both the camera’s own draw and the power requirement of the intended accessory before installation.
- Where can I access the AXIS Q1806-LE datasheet and get deployment advice in Australia?
The official datasheet is linked in the Additional Information section below. The AXIS Q1806-LE is part of the Security Wholesalers range, and the team is available to assist professional installers with specification questions, PoE infrastructure planning, and deployment guidance for industrial, commercial, and infrastructure projects across Australia.
