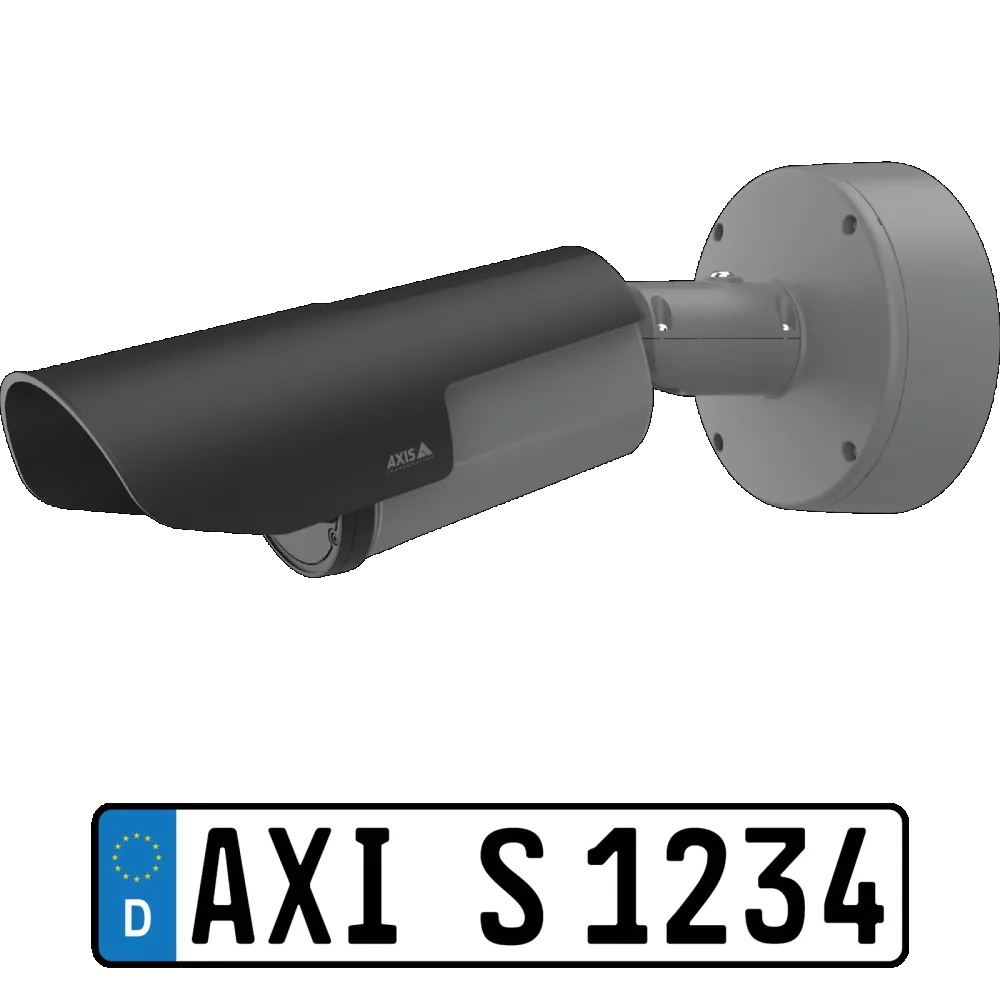

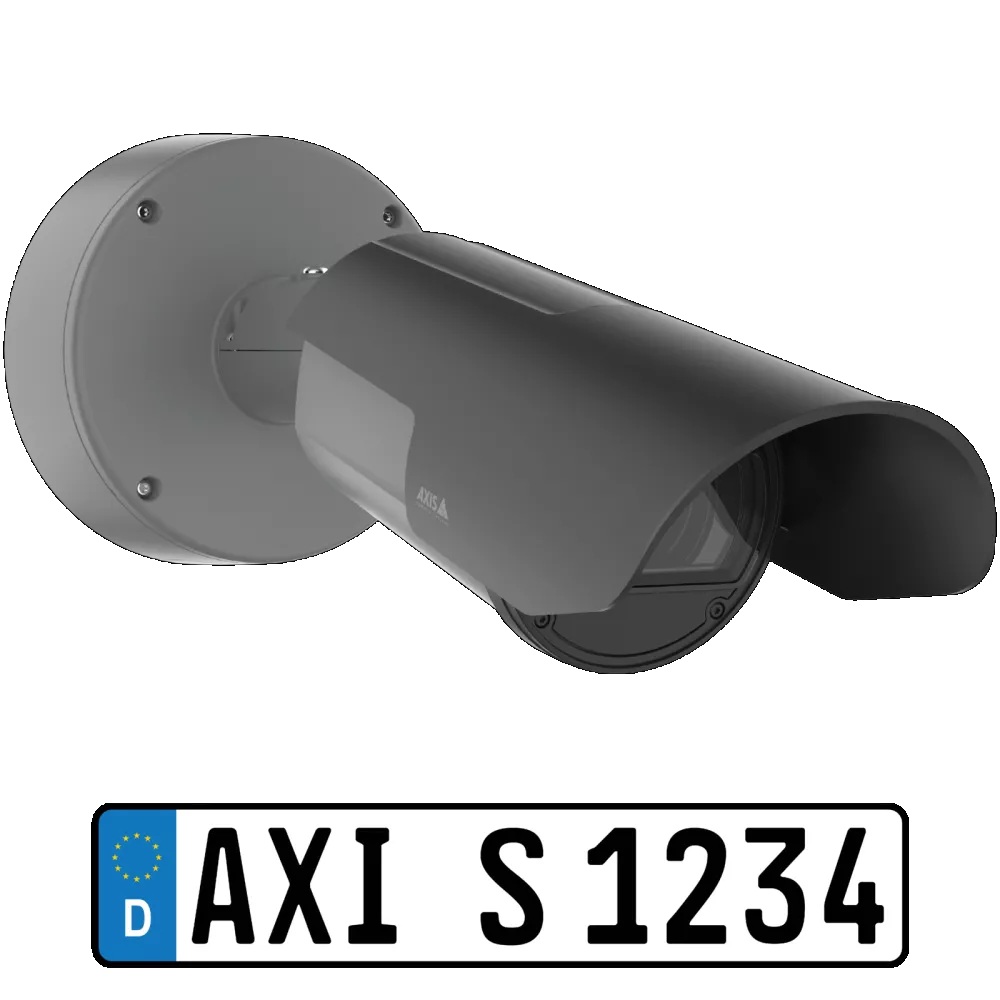

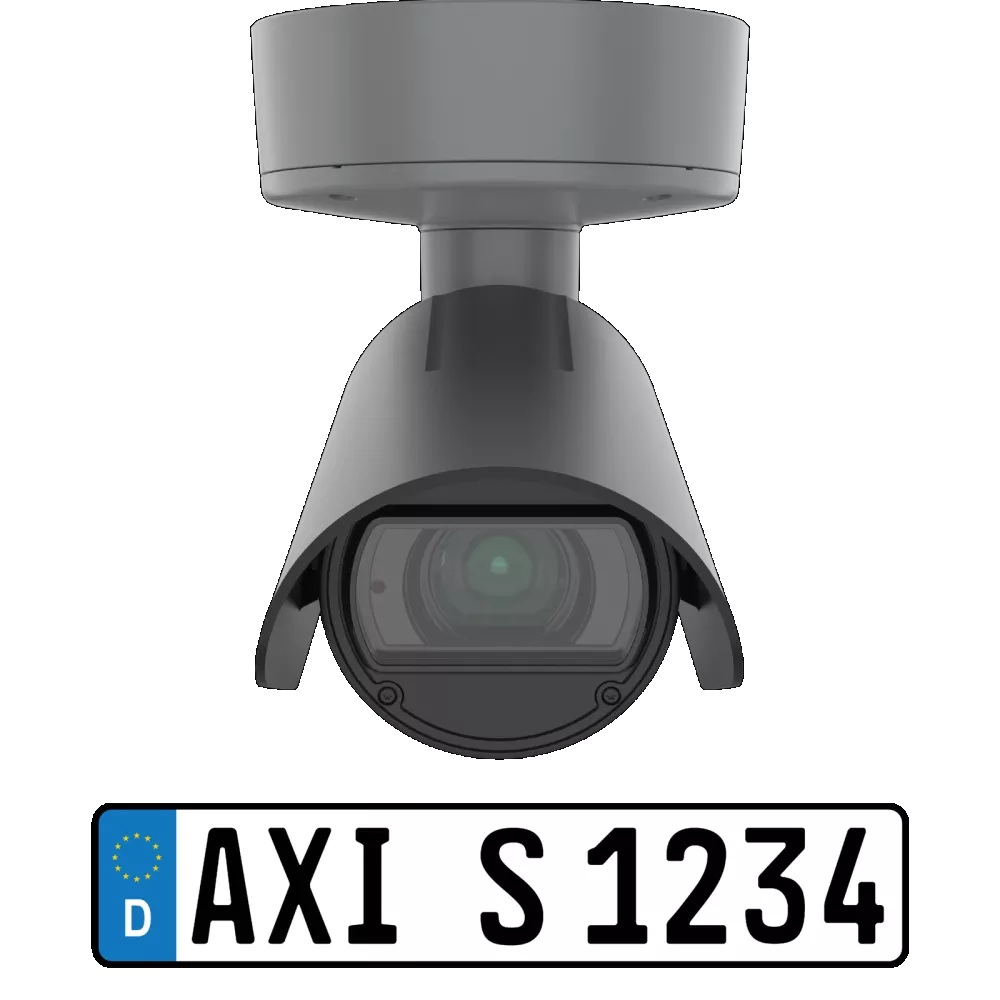

The AXIS Q1800-LE-3 Licence Plate Verifier Kit (03108-001) delivers high-speed, long-range licence plate recognition in one ready-to-deploy package. It’s designed for demanding traffic environments such as toll stations, industrial sites, city surveillance and access-controlled entry points.
This preconfigured system comes with the AXIS License Plate Verifier analytic application already installed, allowing automatic on-camera plate detection and verification 24/7 without the need for a dedicated server. Edge-based processing ensures fast and reliable results with minimal bandwidth usage.
The kit’s camera features a robust, weatherproof housing rated for outdoor environments (IP66/NEMA 4X) and includes a long-range varifocal lens (approximately 7–137 mm, 20× optical zoom). It provides accurate plate capture for vehicles traveling at up to 200 km/h and at distances of up to 100 metres.
Built for stability and accuracy, the system excels in both day and night conditions, with integrated IR illumination ensuring high-contrast plate images. This makes the Q1800-LE-3 an excellent turnkey solution for law enforcement, logistics, smart city monitoring, and access control automation where precision and uptime are critical.
Specifications
| Feature |
Specification |
| Camera Resolution |
2 MP (1080p) |
| Lens / Zoom |
Varifocal 7–137 mm (approx.), 20× optical zoom |
| Licence Plate Capture Range |
Up to 100 m; vehicle speeds up to 200 km/h |
| Weatherproof Rating |
IP66 / NEMA 4X – suitable for harsh outdoor use |
| Built-in Analytics |
AXIS License Plate Verifier (pre-installed) |
| Operating Temperature |
–40 °C to +60 °C |
| Power Options |
PoE or 10–28 V DC |
| Part Number |
03108-001 |
| Application Areas |
Tollways, secure access points, perimeter gates, logistics, and enforcement |
Installer Tips
-
Mounting height and alignment – Install the camera with a clear view of vehicle lanes. Maintain an optimal angle of incidence (ideally under 30° horizontally and vertically) for consistent plate recognition.
-
Distance calibration – Adjust zoom and focus according to your lane distance. For best accuracy, ensure licence plates occupy at least 10–15% of the frame width at the point of capture.
-
Lighting setup – Enable or adjust built-in IR to match ambient conditions. Verify that reflective plates remain legible under headlights and in low-light conditions.
-
Network & power – Use reliable PoE or 10–28 V DC power. Ensure your network bandwidth accommodates HD video streams plus metadata transfer if integrated with a VMS.
-
Weather protection – Even though the camera housing is weather-rated, use additional shielding in areas exposed to salt, snow, or direct spray to extend equipment life.
-
Firmware & analytics activation – Confirm the firmware version supports the included AXIS License Plate Verifier. Complete any required license activation via Axis web interface before final commissioning.
-
Integration – The camera can trigger external systems such as gates, barriers, or alarms based on licence plate lists. Use relay outputs or integrate via your VMS/AXIS Camera Station software.
-
Testing & verification – Conduct test passes at target speeds to confirm accuracy. Fine-tune the zoom, shutter, and exposure settings for optimal readability under all conditions.
-
Maintenance – Clean the lens and IR window regularly to prevent dirt or insect interference. Schedule periodic verification of the recognition accuracy and software updates.
Frequently Asked Questions (FAQs)
Q: What is included in the AXIS Q1800-LE-3 kit?
A: The kit includes a pre-configured 2MP long-range Axis camera with integrated IR, the AXIS License Plate Verifier application pre-installed, and a weatherproof housing suitable for outdoor environments.
Q: What vehicle speeds can it handle?
A: The system can accurately read licence plates on vehicles moving at speeds of up to 200 km/h, depending on mounting setup and local lighting conditions.
Q: What is the optimal capture range?
A: The camera can capture clear licence plate images from close range up to approximately 100 metres. The zoom lens allows precise calibration for your site.
Q: Does it require a separate server or NVR for plate processing?
A: No. The AXIS License Plate Verifier runs on the camera itself, performing edge-based analysis without needing a dedicated server. You can, however, integrate results into a VMS or access control system.
Q: Is it suitable for multi-lane capture?
A: Each camera is optimised for one lane per field of view for best accuracy. Multi-lane setups can be achieved by using multiple cameras.
Q: Can it operate at night or in low light?
A: Yes. The camera includes built-in IR illumination to ensure clear plate images 24/7, even in complete darkness.
Q: What power options are available?
A: It supports Power over Ethernet (PoE) or 10–28 V DC external power for flexible installation.
Q: Can it integrate with barrier gates or access systems?
A: Yes. The camera can trigger relays or send verification events to open gates automatically for whitelisted plates or alert operators for unknown vehicles.
Q: What environments can it withstand?
A: The camera is IP66 and NEMA 4X rated, allowing continuous operation in harsh weather, including rain, wind, and extreme temperatures between –40 °C and +60 °C.
Q: How often should the system be maintained?
A: Routine maintenance includes cleaning the lens and IR window every few months and checking firmware updates periodically to maintain optimal recognition performance.
Q: What applications is it best suited for?
A: It is ideal for toll roads, parking management, logistics facilities, law enforcement, perimeter security, and any high-speed vehicle monitoring application.
Additional Information
Datasheet-axis-q1800-le-3-license-plate-verifier-kit
