What does block camera format mean and why does it matter for the AXIS Q1715?

A block camera is a camera imaging unit without a built-in protective housing. The AXIS Q1715 is supplied as the core camera module intended for integration into a compatible enclosure chosen by the installer. This gives flexibility to match the housing to the environment, but it means the camera is not ready to mount outdoors on its own without a suitable enclosure in place.

How does 21x optical zoom benefit a fixed surveillance installation?

Unlike a digital zoom, optical zoom physically adjusts the lens to maintain image quality across the zoom range. The 4 to 84.6mm focal length on the AXIS Q1715 allows the installer to frame a distant subject with genuine optical resolution rather than a cropped and degraded digital image. Remote zoom and remote focus mean this framing can be adjusted from the management system without physically accessing the camera.

What is the maximum frame rate and when would I need it?

The AXIS Q1715 supports up to 120fps at 1920 x 1080 resolution. Higher frame rates reduce motion blur on fast-moving subjects such as vehicles, passengers moving through transit areas or machinery in industrial environments. Final recording frame rates will depend on VMS configuration, network bandwidth and storage capacity planning.

Does the AXIS Q1715 have built-in IR illumination?

No. The AXIS Q1715 does not include built-in IR illumination. In low-light conditions, it relies on Lightfinder 2.0 to produce usable colour or monochrome images using available ambient light. For installations requiring night vision in complete darkness, external illumination would need to be provided separately.

What analytics does the camera support on-board?

The AXIS Q1715 includes a deep learning processing unit that supports Axis Object Analytics, Axis Scene Metadata and video motion detection. Axis Object Analytics enables human and vehicle classification at the edge, which can help reduce storage consumption on non-relevant events and improve alert accuracy without offloading all processing to the VMS server.

What power options does the AXIS Q1715 support?

The camera supports PoE Class 4 for network-powered installations and also accepts 10 to 28VDC direct current input. Maximum power draw is listed at 13.5W with an average of 12.0W. Confirm the available power infrastructure at the installation site before specifying the cabling and switching equipment.

What should I confirm before purchasing the AXIS Q1715?

Confirm that a block camera format suits the project, that a compatible housing is available and specified for the installation environment, and that the power supply is confirmed as PoE Class 4 or 10 to 28VDC. Also verify whether HDMI or HD-SDI outputs are needed for local display, and that the VMS and storage system can handle the frame rate and resolution requirements. Security Wholesalers supplies the AXIS Q1715 for professional projects requiring long-zoom block camera capability with analytics and flexible video output support.

AXIS Communications CCTV

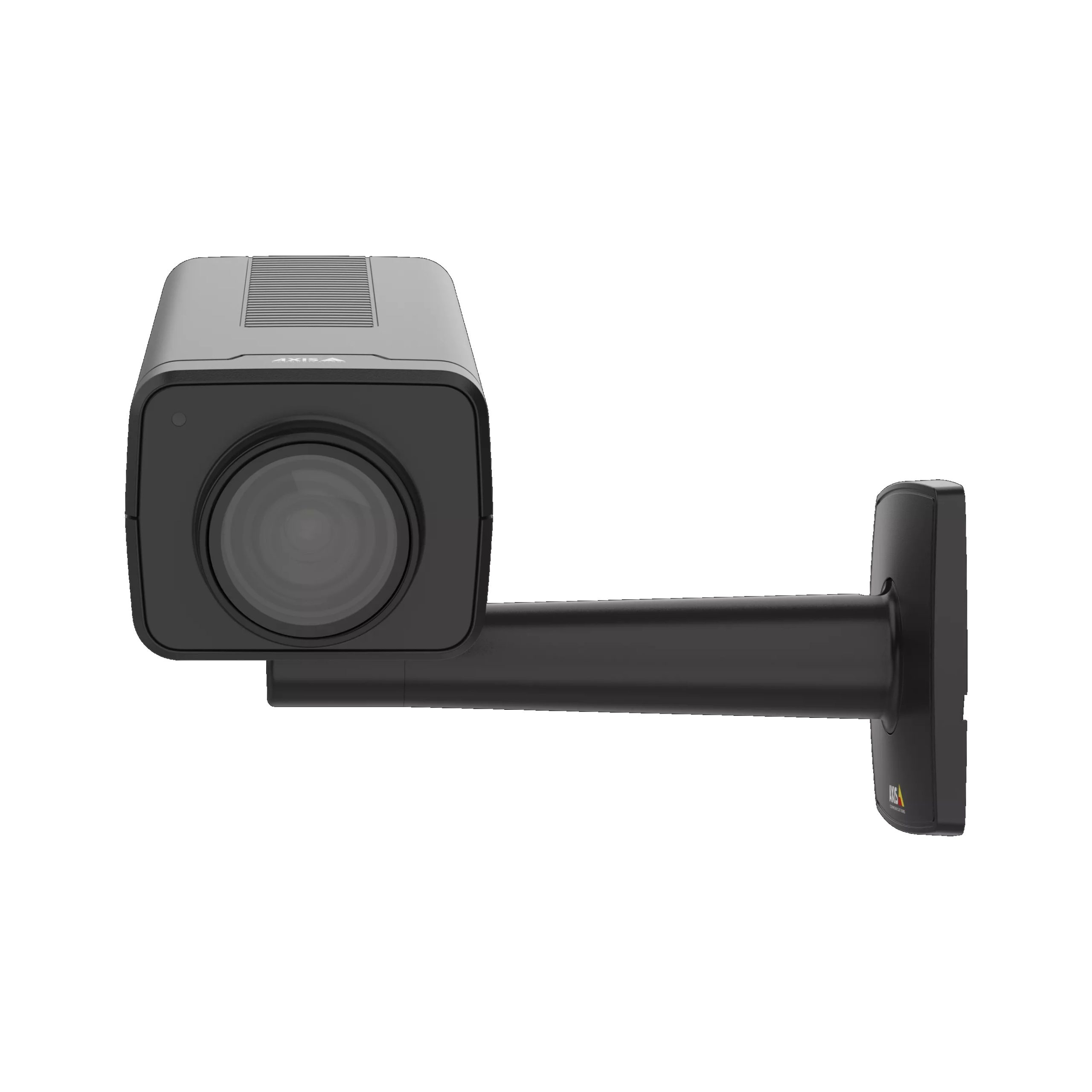

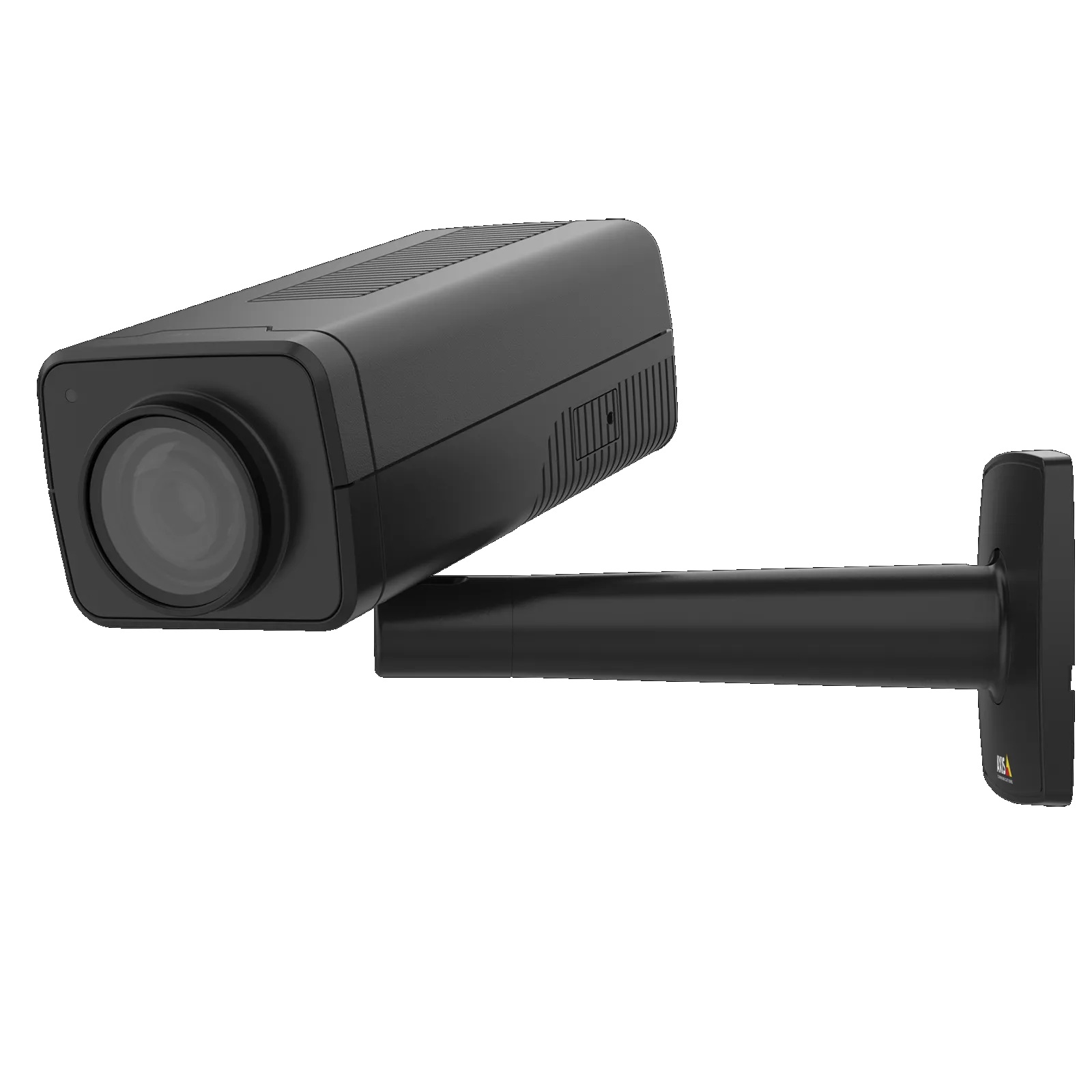

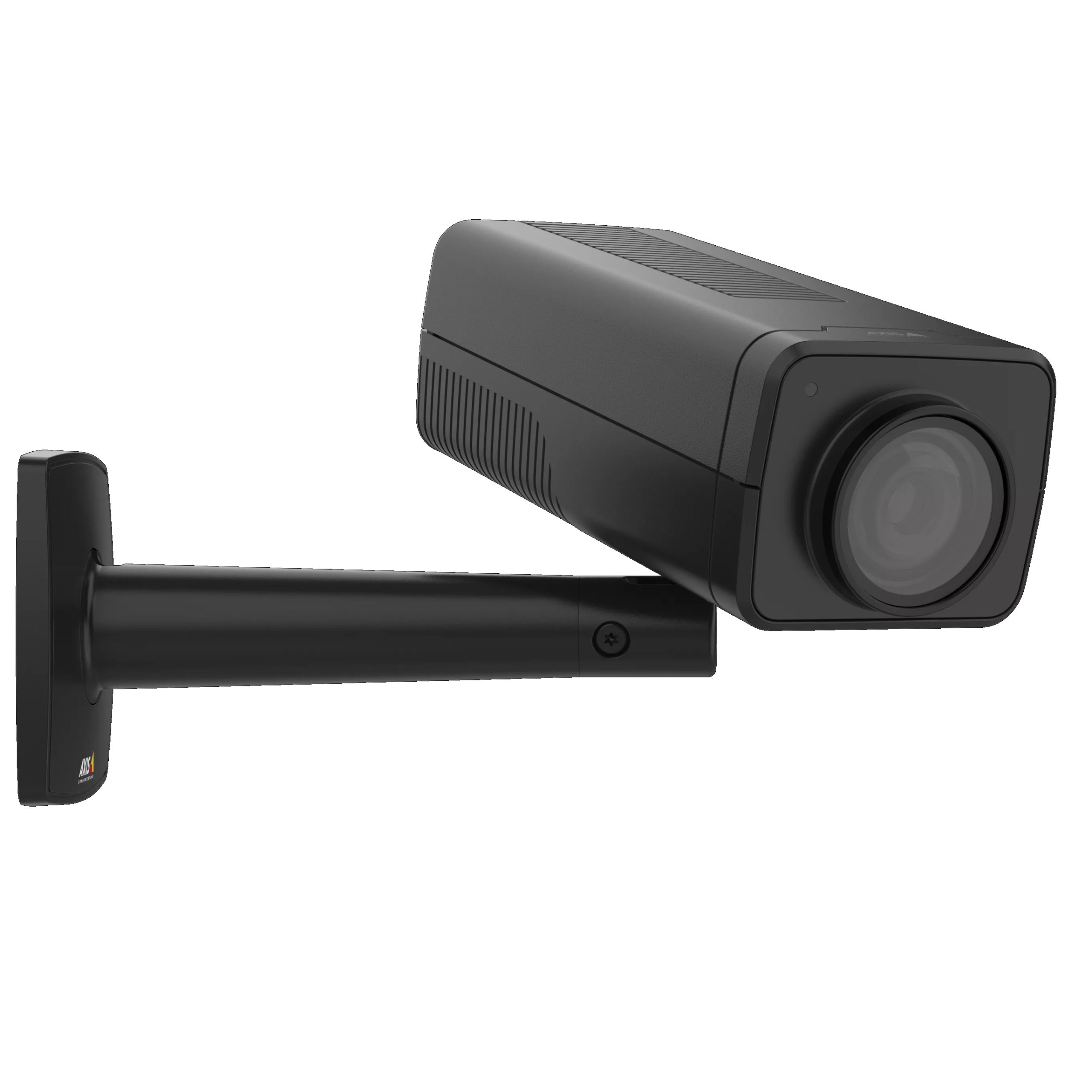

AXIS Q1715 1080p Block Camera with 21x Optical Zoom, Lightfinder 2.0 & Forensic WDR

$2,131.80

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

AXIS Q1715 Block Camera | 1080p | 21x Optical Zoom | Lightfinder 2.0 | Forensic WDR

The AXIS Q1715 delivers a high-performance 1080p block camera solution designed for custom surveillance housings, specialist monitoring setups, transport, commercial sites and long-range observation applications. Featuring HDTV 1080p video at up to 120fps, 21x optical zoom and Forensic WDR with Lightfinder 2.0, it supports detailed image capture in challenging lighting conditions. It also includes a deep learning processing unit with AXIS Object Analytics for human, vehicle and vehicle-type classification at the edge. With HDMI and HD-SDI output, H.265 compression, electronic image stabilisation and supervised I/O, the AXIS Q1715 suits flexible surveillance builds that need strong zoom, analytics and integration options.

Key Features

HDTV 1080p Video: Captures detailed 1920 x 1080 footage with high frame rate support for smoother monitoring.
21x Optical Zoom: Provides strong zoom capability for long-range observation and detailed subject viewing.
Lightfinder 2.0 and Forensic WDR: Maintains usable image detail in low-light and high-contrast scenes.
Deep Learning Analytics: Supports AXIS Object Analytics for human, vehicle and vehicle-type classification at the edge.
Flexible Video Outputs: Includes HDMI and HD-SDI output for specialist monitoring and integration applications.
Supervised I/O: Supports supervised input/output connections for broader security system integration.

Additional Information

Datasheet – AXIS Q1715 Block Camera

$2,131.80 inc GST +3 Year Warranty & Support

Description

Product SKU: Q1715

Product Overview

Built for specialist surveillance integrations rather than standard standalone mounting, the AXIS Q1715 is a network block camera that gives installers the flexibility to pair a high-performance imaging unit with a compatible housing suited to the application. Featuring HDTV 1080p video at up to 120fps, 21x optical zoom across a 4 to 84.6mm focal length, remote zoom and remote focus, it is suited to long-distance observation, transport monitoring and commercial installations where framing precision and detail over distance are priorities. Lightfinder 2.0 supports realistic colour in low-light conditions with a minimum illumination of 0.1 lux in colour mode, while Forensic WDR improves usability in high-contrast scenes. HDMI and HD-SDI outputs extend its integration options beyond network video. It also includes a deep learning processing unit supporting Axis Object Analytics, electronic image stabilisation, H.265 with Zipstream, local storage, and cybersecurity features including signed OS, secure boot and secure keystore.

Key Capabilities

21x Optical Zoom with Remote Control

A 4 to 84.6mm lens delivers 21x optical zoom, covering a horizontal field of view from 76 degrees down to 3.6 degrees. Remote zoom and remote focus allow post-installation adjustment without physically accessing the camera, which is particularly useful when mounted inside a housing or at height.

1080p at Up to 120fps

Full HDTV 1080p resolution at up to 120fps provides smooth video capture for fast-moving subjects. This is relevant for transport monitoring, busy public spaces and applications where standard frame rates may produce motion blur on fast targets.

Lightfinder 2.0

Lightfinder 2.0 helps produce realistic colour and sharper images of moving objects in low-light environments. With a minimum colour illumination of 0.1 lux and 0.02 lux in black and white, it is suited to sites where artificial illumination is limited or inconsistent.

Forensic WDR

Forensic WDR addresses scenes where bright outdoor light and darker indoor or shaded areas appear simultaneously. It helps retain usable detail across both ends of the exposure range, making it valuable for entrances, windows and backlit monitoring locations.

Deep Learning Analytics at the Edge

A built-in deep learning processing unit supports Axis Object Analytics, Axis Scene Metadata and video motion detection. This allows human and vehicle classification directly on the camera, reducing the processing load on the VMS and improving the relevance of recorded events.

HDMI and HD-SDI Outputs

In addition to network video, the AXIS Q1715 provides HDMI and HD-SDI outputs for direct connection to compatible monitors or video distribution equipment. This supports control room displays, video walls and specialist integration scenarios that standard IP-only cameras cannot address.

Best For

Custom Housing Installations: The block camera format is designed to be paired with compatible enclosures and specialist casings, giving integrators the ability to match the housing to the environment rather than accepting a fixed camera form factor.
Long-Range Observation: The 21x optical zoom and remote focus make it suitable for monitoring subjects or areas over longer distances, including transport corridors, vehicle approaches and wide outdoor zones when used in an appropriate housing.
High Frame Rate Applications: Up to 120fps supports smoother capture of fast-moving scenes, relevant for traffic monitoring, transit platforms and sports or event coverage where motion clarity matters.
Control Room and Display Integration: HDMI and HD-SDI outputs make this camera useful for installations that need a local display feed in addition to network recording, without requiring a separate signal converter.

Why Choose the AXIS Q1715

The AXIS Q1715 addresses a specific gap in professional surveillance builds: a compact, integration-ready block camera with serious zoom reach, high frame rate video and on-board deep learning analytics. The 21x optical zoom with remote zoom and remote focus sets it apart from fixed-lens cameras where post-installation framing is not possible. Lightfinder 2.0, Forensic WDR and electronic image stabilisation add image processing depth that simpler alternatives do not provide. HDMI and HD-SDI outputs extend the camera beyond standard IP-only applications into broadcast-style integrations and control room setups. Axis cybersecurity features including signed OS, secure boot and Secure Element CC EAL6+ address the integrity requirements of government, critical infrastructure and transport projects. H.265 with Zipstream and a memory card slot support efficient storage management. The AXIS Q1715 is available at Security Wholesalers for professional projects requiring a capable block camera platform in a compact format.

Buyer Decision Tips

Housing Selection: The AXIS Q1715 is not outdoor ready without a suitable enclosure. Before purchasing, confirm which compatible housing will be used and whether it accommodates the camera’s dimensions, power connections and cable routing requirements. The housing choice determines the final IP rating and environmental suitability of the finished installation.

Power and Output Planning: Confirm whether the installation will use PoE Class 4 or 10 to 28VDC power before finalising the design. Also confirm whether HDMI or HD-SDI outputs are required for local display, as this will influence cabling and equipment planning. If only network video is needed, ensure the VMS and storage solution support the frame rate and resolution requirements of the application.

Key Features & Technical Specifications

Product Type	Network block camera.
Model	AXIS Q1715.
Brand	Axis Communications.
Camera Series	Axis Q17 Series.
Image Sensor	1/2.8″ CMOS.
Maximum Video Resolution	1920 x 1080.
Resolution Class	HDTV 1080p.
Maximum Frame Rate	Up to 120fps.
Optical Zoom	21x optical zoom.
Focal Length	4 to 84.6mm.
Horizontal Field of View	76 degrees to 3.6 degrees.
Vertical Field of View	42 degrees to 2.2 degrees.
Remote Zoom	Yes.
Remote Focus	Yes.
Lightfinder	Lightfinder 2.0.
Wide Dynamic Range	Forensic WDR.
Minimum Illumination	Colour: 0.1 lux; black and white: 0.02 lux.
Electronic Image Stabilisation	Yes.
Video Compression	H.264 Baseline, Main and High; H.265; Zipstream supported.
Analytics Support	Deep learning processing unit; Axis Object Analytics; Axis Scene Metadata; video motion detection.
Video Outputs	HDMI and HD-SDI output.
Audio Support	Yes.
Local Storage	Memory card slot supported.
Cybersecurity Features	Signed OS, secure boot and secure keystore with Secure Element CC EAL6+.
PoE	PoE Class 4.
DC Input Voltage	10 to 28VDC.
Power Consumption	Maximum 13.5W; average 12.0W.
Operating Temperature	-20 degrees C to 50 degrees C.
Built-In IR	Not built in.
Outdoor Ready	Not listed as outdoor ready without a suitable housing.
Sustainability	BFR/CFR free and PVC free.

Ideal Use Cases

Specialist Housing Builds

The block camera format is designed for integration into compatible enclosures, speed dome housings or custom fabricated casings. This approach allows the imaging unit to be matched with housing that suits the environment, rather than being constrained by a fixed camera body design.

Transport and Transit Monitoring

The combination of 21x optical zoom, up to 120fps frame rate and on-board deep learning analytics makes the AXIS Q1715 relevant for railway platforms, bus terminals and transit corridors where fast movement and object classification are both required.

Long-Distance Perimeter and Vehicle Monitoring

With a 76-degree wide field of view at the short end and a 3.6-degree narrow field at maximum zoom, this camera can cover wide approaches at low zoom and read fine detail at longer distances when zoomed in, supporting flexible perimeter monitoring from a single camera position.

Control Room and Operator Display Feeds

HDMI and HD-SDI outputs allow the AXIS Q1715 to feed directly into compatible monitors, video walls or broadcast-style display systems. This is useful for operations centres where a local high-quality display feed is required alongside the network recording stream.

Analytics-Driven Commercial Security

On-board Axis Object Analytics supports human and vehicle classification at the edge, making the camera suitable for installations where event filtering, metadata generation and reduced false event rates are part of the system design brief.

Choosing the Right Model

Choose this model if: The installation requires a compact block camera with 21x optical zoom, high frame rate 1080p video, Lightfinder 2.0, Forensic WDR and deep learning analytics, and where the camera will be integrated into a compatible housing rather than used as a standalone unit.
Choose this model if: The system design requires HDMI or HD-SDI local display output in addition to network video, which a standard fixed or varifocal IP camera would not provide.
Choose a different model if: The installation site needs a self-contained outdoor camera with a built-in IP-rated housing. A fixed dome, turret or bullet camera with a confirmed weather rating will be more appropriate without the additional step of sourcing and fitting a separate enclosure.
Choose a different model if: The project does not require the block camera format, long zoom range or HDMI/HD-SDI outputs. A fixed-lens or varifocal network camera may deliver the required image quality at lower cost and with simpler installation.

FAQs

What does block camera format mean and why does it matter for the AXIS Q1715?
A block camera is a camera imaging unit without a built-in protective housing. The AXIS Q1715 is supplied as the core camera module intended for integration into a compatible enclosure chosen by the installer. This gives flexibility to match the housing to the environment, but it means the camera is not ready to mount outdoors on its own without a suitable enclosure in place.
How does 21x optical zoom benefit a fixed surveillance installation?
Unlike a digital zoom, optical zoom physically adjusts the lens to maintain image quality across the zoom range. The 4 to 84.6mm focal length on the AXIS Q1715 allows the installer to frame a distant subject with genuine optical resolution rather than a cropped and degraded digital image. Remote zoom and remote focus mean this framing can be adjusted from the management system without physically accessing the camera.
What is the maximum frame rate and when would I need it?
The AXIS Q1715 supports up to 120fps at 1920 x 1080 resolution. Higher frame rates reduce motion blur on fast-moving subjects such as vehicles, passengers moving through transit areas or machinery in industrial environments. Final recording frame rates will depend on VMS configuration, network bandwidth and storage capacity planning.
Does the AXIS Q1715 have built-in IR illumination?
No. The AXIS Q1715 does not include built-in IR illumination. In low-light conditions, it relies on Lightfinder 2.0 to produce usable colour or monochrome images using available ambient light. For installations requiring night vision in complete darkness, external illumination would need to be provided separately.
What analytics does the camera support on-board?
The AXIS Q1715 includes a deep learning processing unit that supports Axis Object Analytics, Axis Scene Metadata and video motion detection. Axis Object Analytics enables human and vehicle classification at the edge, which can help reduce storage consumption on non-relevant events and improve alert accuracy without offloading all processing to the VMS server.
What power options does the AXIS Q1715 support?
The camera supports PoE Class 4 for network-powered installations and also accepts 10 to 28VDC direct current input. Maximum power draw is listed at 13.5W with an average of 12.0W. Confirm the available power infrastructure at the installation site before specifying the cabling and switching equipment.
What should I confirm before purchasing the AXIS Q1715?
Confirm that a block camera format suits the project, that a compatible housing is available and specified for the installation environment, and that the power supply is confirmed as PoE Class 4 or 10 to 28VDC. Also verify whether HDMI or HD-SDI outputs are needed for local display, and that the VMS and storage system can handle the frame rate and resolution requirements. Security Wholesalers supplies the AXIS Q1715 for professional projects requiring long-zoom block camera capability with analytics and flexible video output support.

Additional Information

Datasheet-Axis-Q1715-block-camera

SKU: Q17‌15 Category: AXIS Communications CCTV
