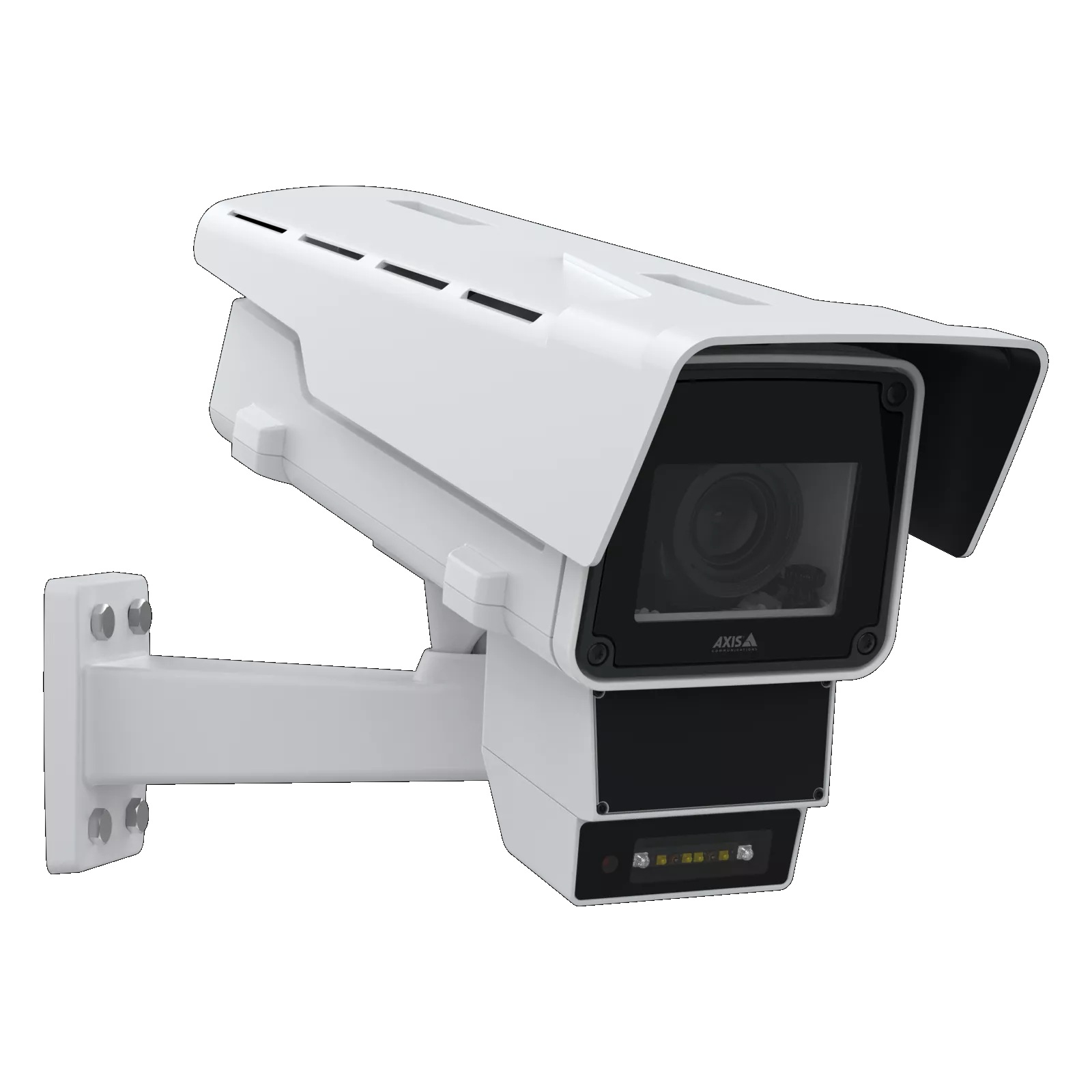

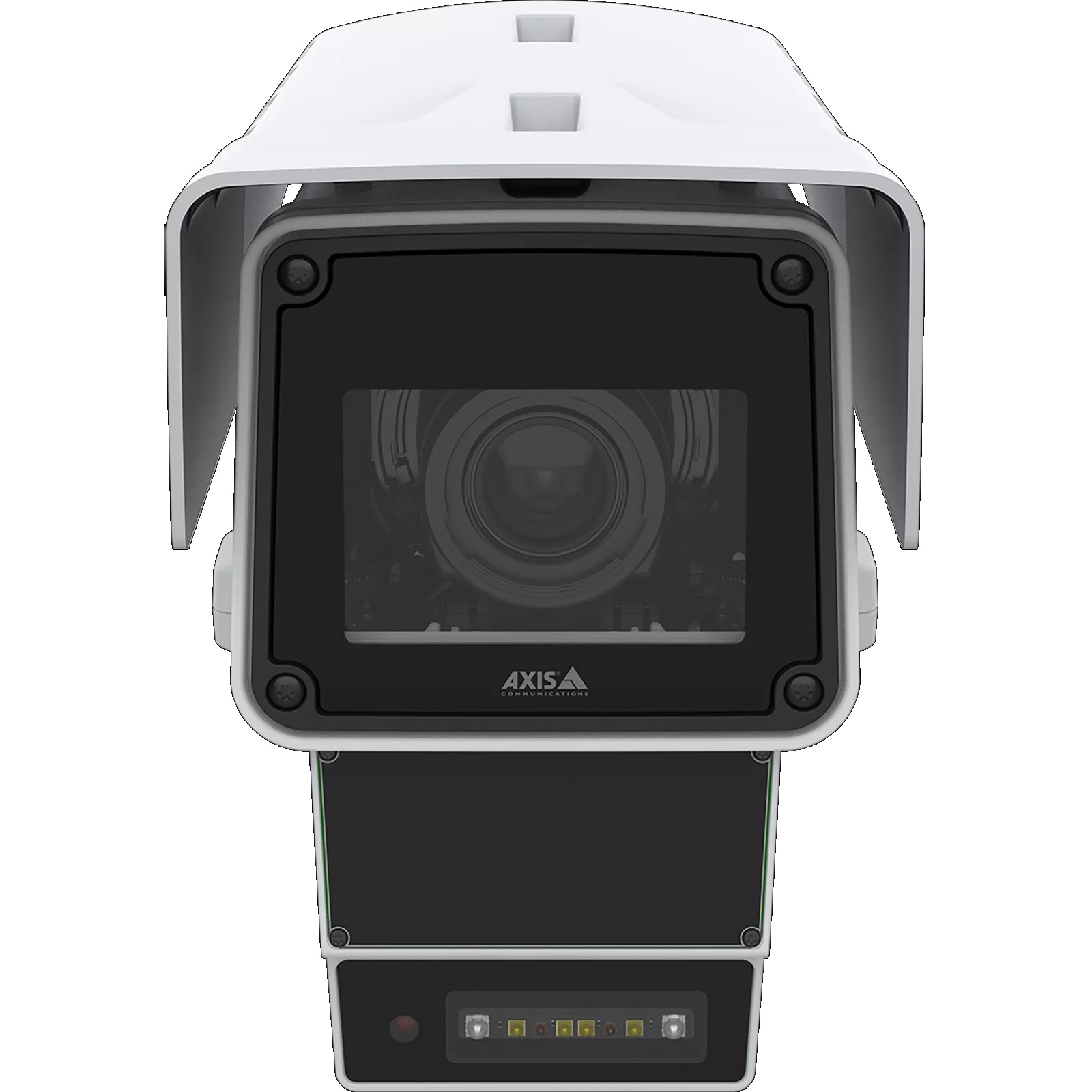

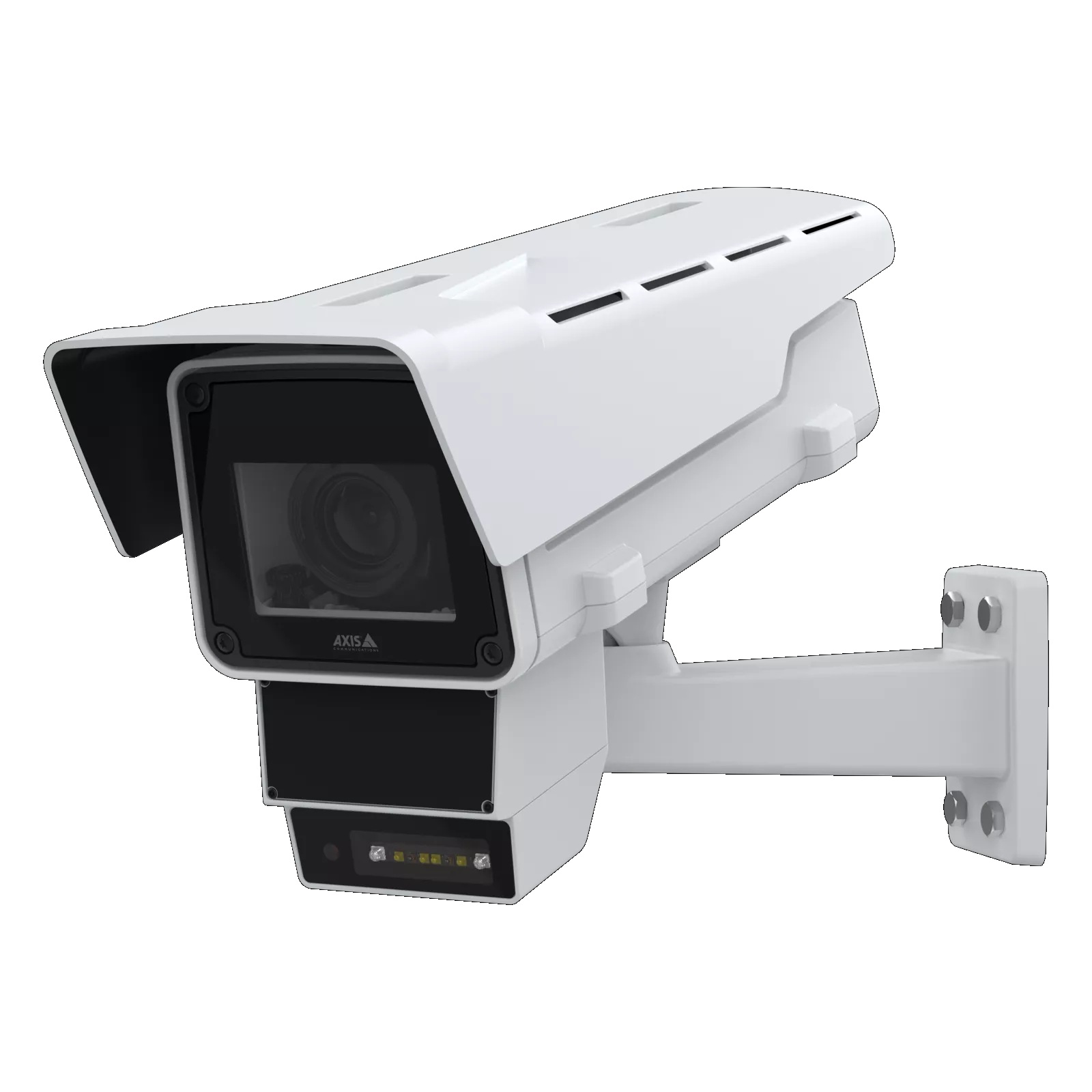

AXIS Q1656-DLE Radar Video Fusion Camera | 2 MP | Built-In Radar | Long-Range Detection
The AXIS Q1656-DLE delivers a radar video fusion solution designed for perimeter and wide-area surveillance applications. Equipped with built-in radar sensing combined with 2 MP video, it enables reliable detection and tracking of moving objects across large areas. This model features integrated radar and video analytics that work together to improve situational awareness and reduce false alarms in complex or challenging environments. It is well suited to outdoor installations where long-range detection and accurate object classification are required.
Key Features
Radar Video Fusion: Combines built-in radar sensing with 2 MP video for enhanced detection and object tracking.
Long-Range Detection: Radar capability supports detection of moving objects across wide areas and extended distances.
False Alarm Reduction: Fusion of radar and video data helps filter out environmental triggers and reduce unwanted alerts.
Perimeter Surveillance: Designed for outdoor perimeter and wide-area monitoring in demanding conditions.
Weatherproof Construction: Built to operate reliably in outdoor environments across a range of conditions.
Network Camera: Connects via standard IP network infrastructure for flexible installation and remote management.
Combining integrated radar sensing with 6 MP video capture, the AXIS Q1656-DLE Radar Video Fusion Camera is engineered for perimeter and wide-area outdoor surveillance where conventional video-only detection falls short. Mounted on building exteriors, fence lines, or at the edge of open yards, it fuses radar-based motion data with visual footage to deliver movement localisation, speed reporting, and direction tracking in a single device. Equipped with edge analytics, the Q1656-DLE processes detection events on-board, reducing the processing load on downstream servers while improving event accuracy. It also supports Power-over-Ethernet for straightforward deployment at commercial and industrial sites. This makes it well suited to demanding installations where consistent perimeter detection across variable lighting and environmental conditions is the primary requirement, and where false alarm rates from standard video motion detection have proven problematic.
Key Capabilities
Radar-Video Fusion
The Q1656-DLE merges radar motion data with 6 MP video analytics in a single device. This fusion approach means detection decisions are cross-referenced between two independent sensing methods, improving accuracy in complex outdoor environments where video-only triggers are unreliable.
Speed and Direction Tracking
The built-in radar reports the speed and direction of detected movement, giving operators richer event context than a standard motion trigger. This data helps security personnel assess whether a detected object is approaching, departing, or moving laterally across the monitored zone.
6 MP Video Resolution
The 6 MP sensor captures detailed imagery across wide outdoor scenes, supporting object identification and post-event evidence review at ranges suited to perimeter and yard monitoring. Higher resolution reduces the number of cameras needed to cover a given area with usable detail.
Reduced False Alarm Rate
By requiring both radar and video data to confirm a detection event, the Q1656-DLE filters out environmental triggers such as moving foliage, lighting changes, and small animals that commonly cause false alerts on single-sensor systems, reducing unnecessary operator responses at monitored sites.
Edge Analytics Processing
On-board analytics process detection logic at the camera itself, reducing bandwidth consumption and server-side load. This is particularly useful at sites with constrained network infrastructure or where low-latency alerting is needed without routing all footage to a central server for analysis.
Outdoor-Ready Construction
The rugged housing and environmental sealing allow the Q1656-DLE to operate reliably in exposed outdoor locations. PoE support simplifies cable runs to wall or pole-mount positions at building perimeters, fence lines, and open yard edges where power and data share a single cable.
Best For
Perimeter Detection at Commercial Sites: The radar-video fusion approach delivers consistent boundary monitoring along fence lines and building edges where lighting and foliage cause high false alarm rates with standard cameras.
Industrial Yards and Loading Areas: Speed and direction data from the built-in radar helps operators quickly assess whether movement in a yard or loading dock poses a genuine security concern, reducing response time.
Open Campus and Infrastructure Sites: The 6 MP sensor covers wide outdoor scenes with enough resolution for object identification, making it practical for large campuses, utility sites, and transport hubs where broad coverage matters.
High-Reliability Alerting Environments: Sites where excessive false alarms have eroded operator confidence in existing systems benefit directly from the Q1656-DLE’s dual-sensor confirmation approach before triggering an alert.
Why Choose the AXIS Q1656-DLE
Standard video motion detection cameras rely on a single sensor, leaving them vulnerable to false triggers from wind-blown vegetation, shifting light, and small animals. The AXIS Q1656-DLE addresses this by integrating a dedicated radar unit directly with its 6 MP video sensor, so every detection event is confirmed by two independent technologies before an alert is raised. The radar also contributes speed and direction data that a video camera alone cannot provide, giving monitoring teams actionable context rather than just a trigger notification. On-board edge analytics keep processing local to the device, which reduces bandwidth load across the network. For professional installers and security managers working on perimeter-critical deployments at industrial or commercial sites, the Q1656-DLE is available through Security Wholesalers as part of the AXIS Communications range.
Buyer Decision Tips
Buyer Tip 1 – Radar Coverage Zone vs. Camera Field of View: The radar and video fields of view on the Q1656-DLE are designed to overlap, but the radar detection zone may extend beyond the video frame at longer ranges. During site planning, confirm that the specific zones you need to monitor with tracked motion data fall within the radar’s operational coverage area and are also captured within the 6 MP video frame, so fusion events are generated correctly for the zones that matter most to your application.
Buyer Tip 2 – This is a Detection and Tracking Device, Not a PTZ: The Q1656-DLE is a fixed-mount camera with a fixed field of view. It does not pan, tilt, or zoom in response to radar detections. If your application requires a camera that physically follows a detected target, this unit would need to be paired with a PTZ camera in a separate detection-and-response architecture, where the Q1656-DLE handles detection and tracking while the PTZ provides follow-up visual coverage.
Key Features & Technical Specifications
Model
AXIS Q1656-DLE Radar Video Fusion Camera
Part Number
02420-001
Video Resolution
6 MP
Detection Technology
Integrated radar and video fusion
Radar Data Output
Movement localisation, speed, and direction
Track Consistency
Radar provides stable object tracking across the monitored zone
Rugged weather-resistant construction with environmental sealing
Camera Type
Fixed bullet-style network camera with integrated radar
Brand
AXIS Communications
Ideal Use Cases
Industrial Perimeter Fencing
The radar-video fusion detects and tracks movement along fence lines, with speed and direction data helping operators distinguish vehicles moving along an access road from personnel crossing a restricted boundary, reducing unnecessary alert escalations.
Warehouse and Logistics Yards
Covering open yard areas after hours, the Q1656-DLE’s 6 MP sensor captures enough detail for identification while the radar confirms genuine movement, filtering out lighting artifacts and small animals that commonly trigger standard video motion detection in large open yards.
Campus and Education Precincts
Wide outdoor areas on school or university campuses benefit from the broad coverage of the 6 MP sensor combined with radar-based motion localisation, allowing security teams to pinpoint the location of detected movement across large grounds without needing dense camera coverage.
Infrastructure and Utility Sites
Power substations, water treatment facilities, and similar critical infrastructure sites require low false alarm rates and reliable detection. The Q1656-DLE’s dual-sensor confirmation and edge analytics reduce nuisance alerts while maintaining responsive detection of genuine intrusion events.
Transit Hubs and Public Precincts
At transport interchanges, plazas, and public gathering areas, the ability to track multiple moving objects with speed and direction data supports real-time situational awareness for control room operators managing dynamic pedestrian environments.
Choosing the Right Model
Choose this model if: Your site has a documented problem with false alarms from video-only motion detection, you need radar-derived speed and direction data for operational decision-making, and your application involves outdoor perimeter or wide-area monitoring where a fixed field of view is sufficient.
Choose a different model if: Your primary requirement is PTZ tracking that physically follows a detected object, as the Q1656-DLE is a fixed-mount camera and does not pan or tilt. Alternatively, if your site is entirely indoors or your budget does not extend to radar-fusion technology, a standard fixed-lens outdoor bullet or turret camera may deliver adequate coverage at lower cost for low-risk locations.
FAQs
What does radar-video fusion actually mean in practice for the Q1656-DLE? Rather than relying on a single sensor to decide whether motion is worth alerting on, the Q1656-DLE uses its radar to detect and measure movement independently from its video sensor. The two data streams are fused together so that an event is confirmed by both technologies simultaneously. This cross-referencing process is what gives the unit its false alarm reduction capability and adds the speed and direction data that video alone cannot supply.
Does the radar work in complete darkness or adverse weather? Radar is not affected by ambient light levels, meaning it detects movement in complete darkness without relying on IR illumination or visible light. Radar is also generally more resilient than video analytics to rain, fog, and dust, which makes the Q1656-DLE particularly well suited to sites where adverse weather has historically degraded detection performance from video-only systems.
What resolution does the video sensor provide, and is it sufficient for identification at perimeter distances? The Q1656-DLE captures 6 MP video, which provides considerably more spatial detail than a standard 2 MP or 4 MP camera over a given field of view. This allows it to cover a wider area while retaining enough pixel density for object identification, reducing the number of camera positions needed along a perimeter compared with lower-resolution alternatives.
Does this camera require a specialised VMS to make use of the radar data? The Q1656-DLE is an AXIS Communications product and is designed to integrate with AXIS Camera Station and other ONVIF-compatible video management systems. For full utilisation of radar event metadata including speed, direction, and tracked zone data, the VMS used should support AXIS radar event handling. Consult your system integrator to confirm compatibility with your existing or planned VMS before deployment.
Can the Q1656-DLE be used indoors? The Q1656-DLE is designed and positioned for outdoor perimeter and wide-area monitoring. While the unit is not physically prevented from being mounted indoors, the radar-video fusion functionality and rugged outdoor housing are specifically engineered for exterior environments. Indoor spaces with controlled conditions and short detection ranges would not make effective use of the radar capability, and a standard fixed indoor camera would be a more appropriate choice.
How is the Q1656-DLE powered and connected? The camera supports Power-over-Ethernet, allowing both power and network data to be delivered over a single Cat5e or Cat6 cable run. This simplifies installation at outdoor perimeter positions such as wall brackets, pole mounts, and fence-line housings where running separate power cables would add cost and complexity.
Where can I get technical support or purchase the AXIS Q1656-DLE in Australia? The AXIS Q1656-DLE is part of the Security Wholesalers range of AXIS Communications products. For pre-sales technical questions, compatibility advice, or purchase enquiries, contact the Security Wholesalers team directly. A full datasheet is also available via the Additional Information link below for detailed specification review prior to purchase.
