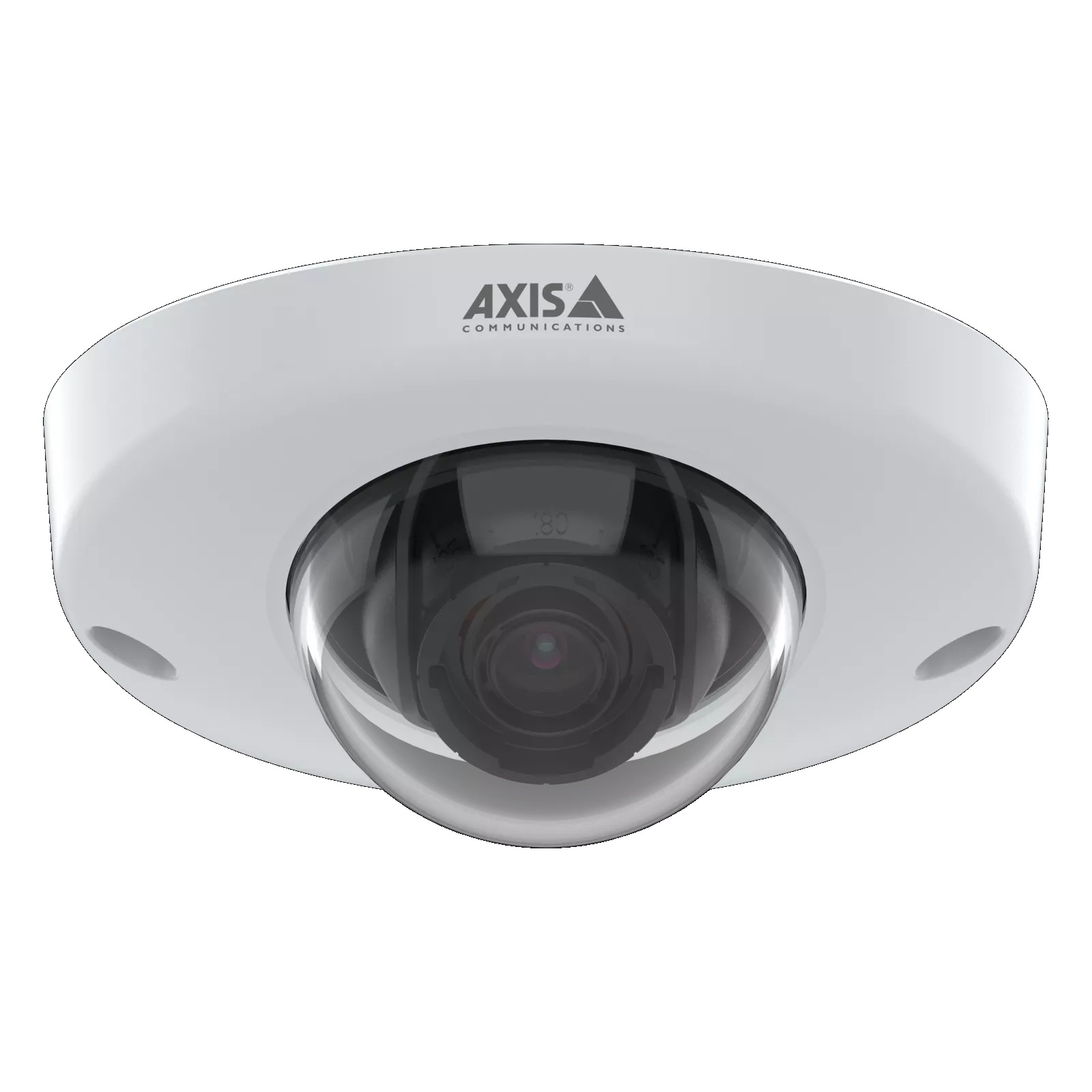

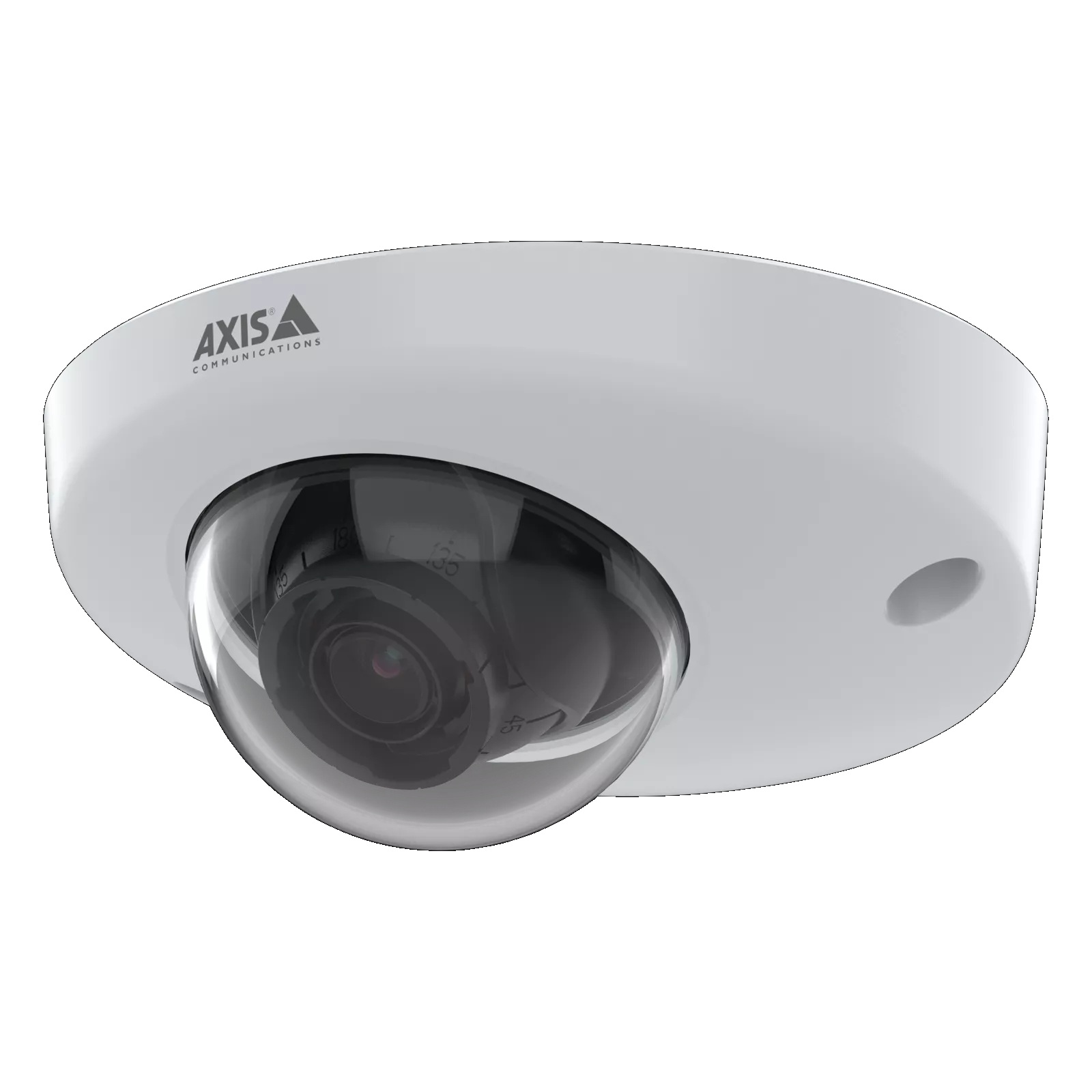

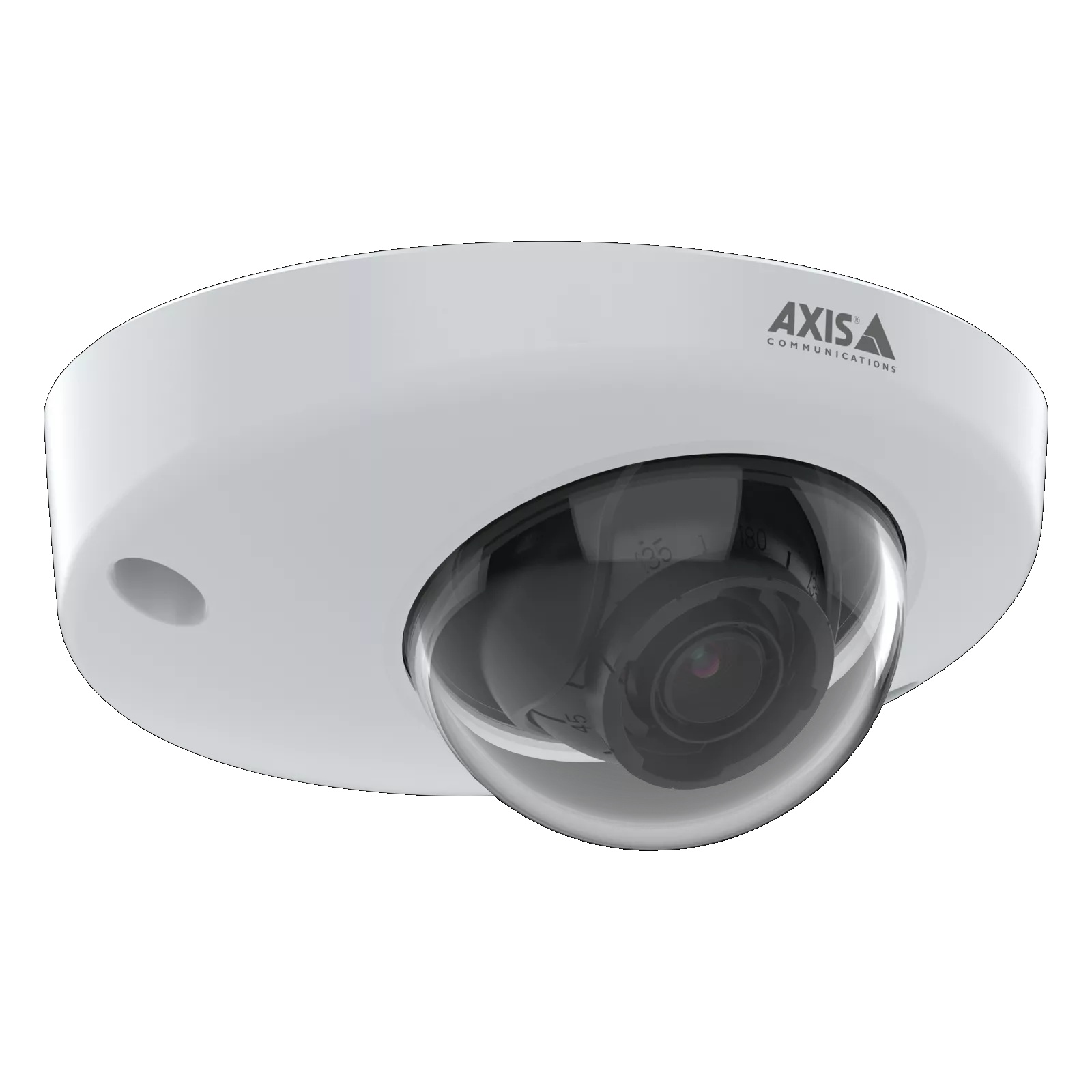

AXIS P3905-R Mk III 2MP 1080p Rugged Onboard Dome Camera with Lightfinder & Forensic WDR

Product SKU: P3905-R

Product Overview

Built specifically for indoor onboard surveillance in trains, trams, buses and other transport vehicles, the AXIS P3905-R Mk III is a compact dome camera engineered to handle the demands of mobile installations where standard cameras are not rated or certified. Featuring 2MP 1080p video at up to 45fps, Lightfinder for colour imaging down to 0.07 lux, and Forensic WDR for improved clarity when bright windows and darker interiors appear in the same scene, the P3905-R Mk III is designed for challenging onboard lighting conditions. Compliance with EN50155 and EN45545, combined with IK10, IP66 and IP67 ratings, confirms suitability for vibration, shock and ingress-protection requirements in demanding transport environments. Traffic Light mode assists with distinguishing traffic signal colours in dark scenes. Available in RJ45 and M12 connector variants with 3.6mm and 2.8mm lens options, it supports H.265, H.264, Zipstream, local storage and PoE Class 1 for compact, low-power onboard deployments.

Key Capabilities

Best For

• Train and Tram Surveillance: EN50155 and EN45545 compliance and IK10 rugged ratings make this camera appropriate for railway vehicle interiors where durability standards are required.
• Bus and Fleet Vehicle Interiors: The compact dome profile and vibration-resistant design suit passenger vehicle cabins where mounting space is restricted.
• Dim Onboard Environments: Lightfinder at 0.07 lux helps maintain colour video in poorly lit vehicle interiors without relying on supplementary IR illumination.
• High-Contrast Lighting Conditions: Forensic WDR supports clearer imaging when passengers are backlit by large windows or external lighting entering the vehicle.
• Projects Requiring Onboard Cybersecurity: Axis Edge Vault, HTTPS encryption, IEEE 802.1X and signed OS support transport surveillance projects with strict network security requirements.

Why Choose the AXIS P3905-R Mk III

The AXIS P3905-R Mk III is purpose-designed for onboard transport surveillance rather than adapted from a general-purpose indoor camera. The combination of EN50155 railway certification, EN45545 fire protection compliance and IK10, IP66 and IP67 ratings confirms it is built to meet the mechanical and environmental standards required in rolling stock and fleet vehicle projects. Lightfinder at 0.07 lux colour sensitivity and Forensic WDR address the specific lighting challenges found inside passenger vehicles, where neither a standard low-light camera nor a fixed office dome would be appropriate. H.265 with Zipstream reduces bandwidth and storage consumption on mobile network connections. With variant options for both RJ45 and M12 connectors plus replaceable M12 lenses, installers can match the camera to the vehicle wiring and coverage angle needed. Available through Security Wholesalers, the P3905-R Mk III suits integrators and transport operators specifying an Axis onboard solution with verifiable compliance documentation.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your project requires a 2MP onboard dome camera with confirmed EN50155 and EN45545 transport certification, IK10 and IP67 rugged ratings, Lightfinder low-light colour imaging and Forensic WDR for vehicle interior use.
• Choose the RJ45 variant if: The vehicle uses standard Ethernet cabling to connect onboard cameras.
• Choose an M12 variant if: The vehicle wiring uses M12 connectors, which provide a more secure and vibration-resistant connection in mobile environments.
• Choose the 2.8mm lens if: A wider 106.6 degree horizontal field of view is needed to cover broader interior areas from a single mounting point.
• Choose a different model if: The installation is a fixed indoor site such as an office, retail store or corridor, where a general-purpose dome camera without transport certification would be more cost-appropriate.

FAQs

1. What transport standards does the AXIS P3905-R Mk III comply with?
   The camera complies with EN50155, which covers electronic equipment used in railway rolling stock, and EN45545, which addresses fire protection requirements for railway vehicles. These certifications are important for projects where regulatory or authority approval for onboard equipment is required.
2. Does the camera include built-in IR illumination?
   No. The AXIS P3905-R Mk III does not include built-in IR. Lightfinder enables colour imaging at 0.07 lux using available ambient light, but installations in environments with no light source at all will need to consider supplementary illumination or confirm that existing vehicle lighting provides adequate scene coverage.
3. What is the difference between the RJ45 and M12 variants?
   The RJ45 variant uses a standard Ethernet connector, while the M12 variants use a circular locking connector designed to resist loosening from vibration. M12 connectors are common in transport and industrial environments where cable security and connector durability under constant movement are a concern.
4. How does Forensic WDR help in a vehicle interior?
   Vehicle interiors often present high-contrast scenes where passengers near windows are backlit by bright daylight while the rest of the cabin is darker. Forensic WDR processes both exposure levels simultaneously, helping preserve readable detail in bright and shadowed areas within the same frame rather than sacrificing one for the other.
5. What lens options are available and how do they affect coverage?
   3 variants are available: RJ45 3.6mm with 87.6 degree horizontal field of view, M12 3.6mm with 87.6 degree horizontal field of view, and M12 2.8mm with 106.6 degree horizontal field of view. The 2.8mm variant covers a wider area from a single mounting point, which can be useful for broader cabin views or constrained mounting positions.
6. Can this camera be used outside a vehicle?
   The P3905-R Mk III is designed for indoor onboard mounting. For external vehicle applications, a compatible protective housing such as the AXIS TP3826-E can be used, but confirm housing compatibility and any additional certification requirements for the specific exterior application before specifying.
7. Does the camera support local storage?
   Yes. A memory card slot is included, allowing local recording directly on the camera. This is a practical consideration for onboard applications where continuous connection to a network video recorder may not always be available, and edge storage provides a backup or primary recording option.
8. What should I confirm before ordering the AXIS P3905-R Mk III?
   Before ordering, confirm the connector type needed for the vehicle wiring, the preferred lens and field of view, the PoE Class 1 power source, the mounting position inside the vehicle, and whether external housing accessories are required. Security Wholesalers supplies this model for Axis onboard and transport surveillance projects and can assist with confirming the correct variant for the application.

Additional Information

• Datasheet-Axis-P3905-R-MK-III-Dome-Camera
