Key Features & Specifications
-

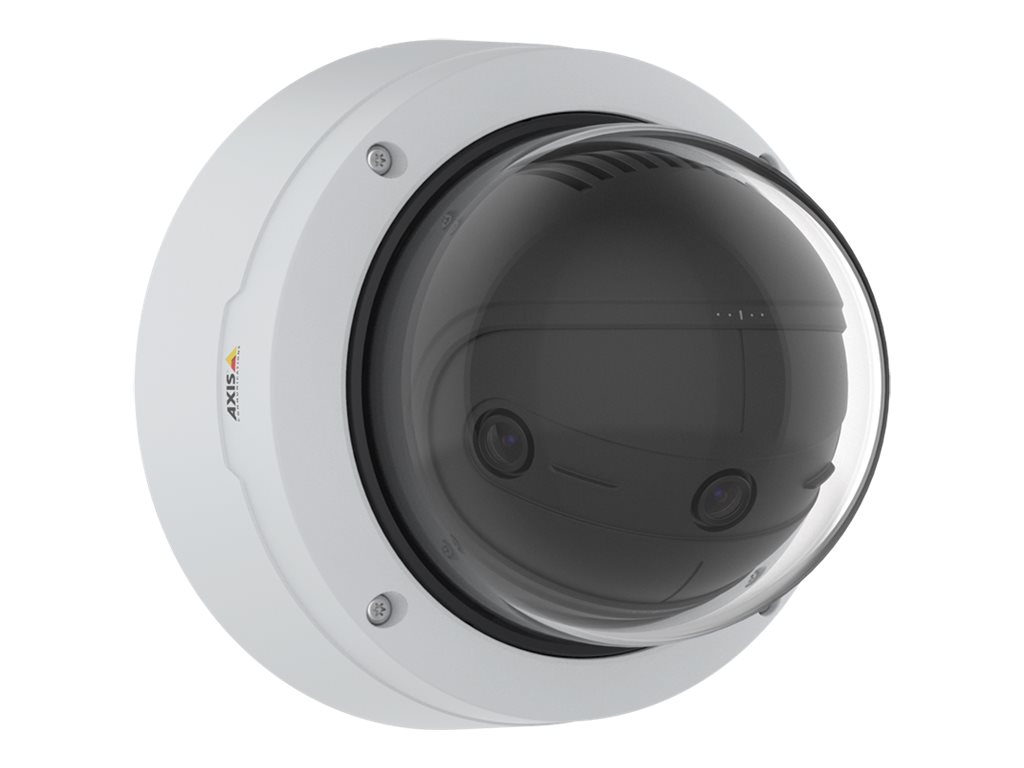

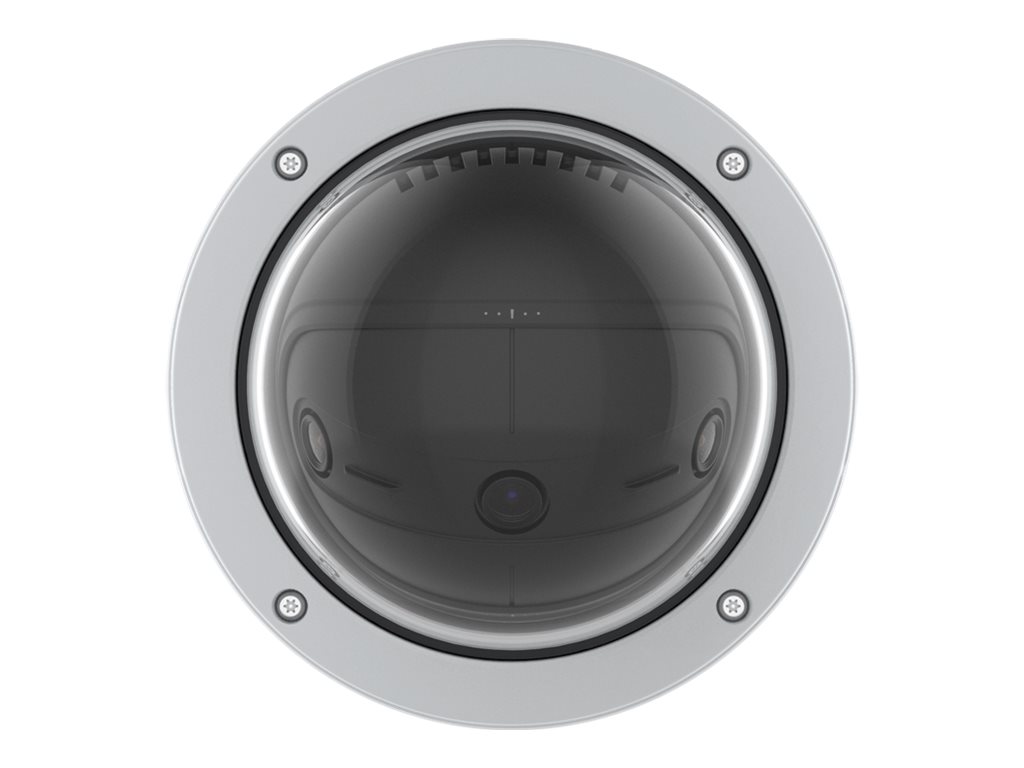

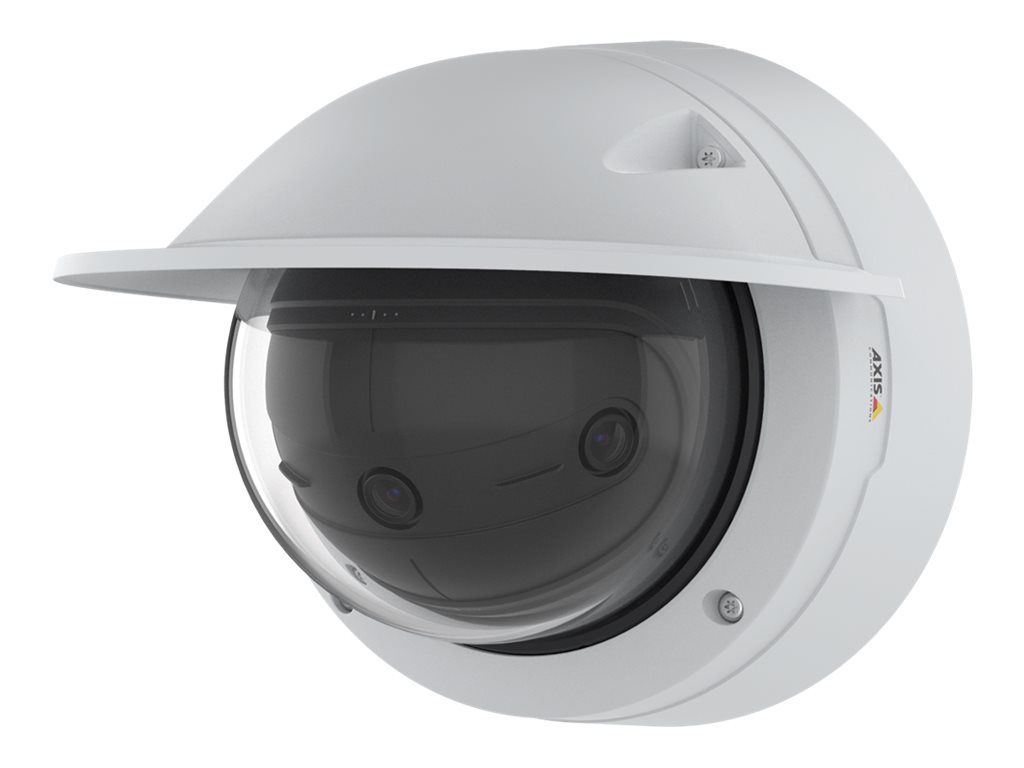

Multi-sensor panoramic camera with a total 13 MP resolution (three 5 MP sensors).
-
Seamless image stitching provides a single wide panoramic view without visible seams.
-
180° horizontal and 90° vertical field of view.
-
Fixed 3.2 mm F2.0 lens.
-
Supports H.264 and H.265 video compression.
-
Equipped with advanced cybersecurity features including TPM module, Secure Boot, and Axis Edge Vault.
-
Rugged outdoor housing rated IP66/IP67 for water and dust resistance, IK10 for impact resistance, and NEMA 4X equivalent.
-
Operating temperature: –40 °C to +50 °C.
-
Power via PoE+ (IEEE 802.3at Type 2 / Class 4).
-
Mounting options: ceiling, wall, pendant, recessed, or dual back-to-back configuration for 360° coverage.
-
Weight: approximately 2.2 kg. Dimensions: diameter ~195 mm, height ~170 mm.
-
5-year manufacturer warranty.
Typical Use-Cases
1. Wide-Area Outdoor Surveillance
The 180° panoramic coverage allows one camera to monitor large open areas — perfect for farms, yards, car parks, or building perimeters. It can replace three to four standard fixed cameras, saving on cabling and switch ports.
2. Commercial or Institutional Sites
Ideal for monitoring external communal spaces, courtyards, or entrances at facilities such as nursing homes, schools, or warehouses. The rugged housing makes it suitable for harsh environments.
3. Cyber-Secure Enterprise Installations
Built-in hardware security (TPM and secure boot) provides protection against firmware tampering — important for critical infrastructure or government sites.
4. Dual Mount for 360° Coverage
Two units can be mounted back-to-back to achieve full 360° monitoring in large open areas, reducing blind spots.
5. Low-Maintenance Long-Term Installations
With fewer cameras required for coverage, maintenance and lifecycle costs are reduced — valuable for long-term, large-scale installations like farms or business campuses.
Frequently Asked Questions (FAQ)
Q1: Can one P3818-PVE replace multiple fixed cameras?
Yes. Its 180° × 90° field of view lets you cover large areas with a single unit, replacing up to four standard fixed cameras. However, it’s not intended for long-range identification; pair it with PTZ or zoom cameras if detailed facial or plate recognition is required.
Q2: What should I consider during installation?
-
Use stable mounting points and ensure proper leveling for seamless stitching.
-
The camera draws PoE+ power (Class 4), so ensure your switch or injector supports it.
-
Maintain the IP66/IP67 seal when routing cables.
-
Check that your NVR or VMS can handle 13 MP panoramic streams.
Q3: What is the maximum resolution and frame rate?
Supports up to 13.1 MP (5120 × 2560) at 30 fps. H.265 compression significantly reduces bandwidth while maintaining image quality.
Q4: Is it compatible with third-party NVRs and VMS platforms?
Yes. The P3818-PVE supports ONVIF Profiles G, S, and T, enabling integration with most third-party systems.
Q5: How does it perform in low light?
Includes Forensic WDR and Lightfinder technology, offering strong colour performance down to 0.16 lux. Handles mixed lighting and night scenes effectively, though for distant targets or very dark areas, external lighting is recommended.
Q6: Is it durable enough for outdoor industrial or farm use?
Yes. IP66/IP67 and IK10 ratings protect against rain, dust, and vandalism. Operating range down to –40 °C makes it ideal for outdoor applications.
Q7: What are the available mounting options?
Wall, ceiling, pendant, and recessed mounts are supported. Dual back-to-back mounting accessories are available for complete 360° panoramic coverage.
