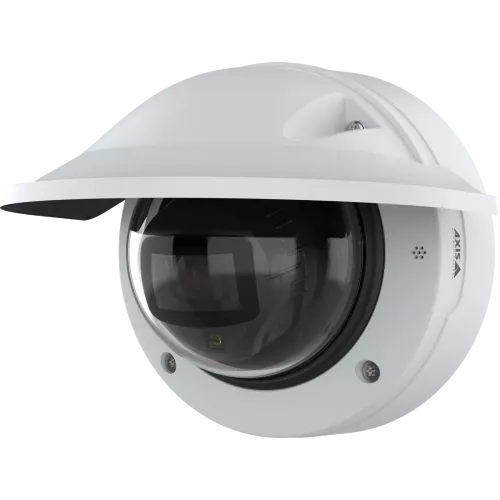

AXIS P3285-LVE 2MP AI Outdoor Dome Camera, Varifocal Lens, IR | 02981-001

$1,510.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

AXIS P3285-LVE | 2MP AI Outdoor Dome Camera | Varifocal Lens | IR

The AXIS P3285-LVE delivers a professional-grade 2MP outdoor AI dome camera designed for demanding surveillance environments. Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, it maintains clear detail in challenging lighting conditions day or night. Equipped with edge-based analytics, it enables intelligent on-device processing without relying on external servers. Its rugged vandal-resistant housing and weather-rated construction make it well suited to commercial, industrial, and public-space installations.

Key Features

  • Lightfinder 2.0: Advanced low-light technology delivers sharp, detailed colour video in near-darkness.
  • Forensic WDR: Handles high-contrast scenes to capture clear detail in both bright and shadowed areas simultaneously.
  • OptimizedIR: Integrated IR illumination automatically adjusts to maintain consistent night-time coverage.
  • Edge-Based AI Analytics: On-board processing supports intelligent detection and classification without external hardware.
  • Varifocal Lens: Adjustable focal length allows flexible coverage tuning to suit the installation.
  • Vandal-Resistant and Weather-Rated: Rugged housing built to withstand physical attack and outdoor environmental exposure.
Colour Night Vision
Varifocal Lens
Weatherproof
Mobile Viewing
Low Light Performance
AI Search



Additional Information

Datasheet-axis-p3285-lve-dome-camera

$1,510.00 inc GST +5 Year Warranty & Support

Product SKU: P3285-LVE

Product Overview

Combining Lightfinder 2.0 with on-camera AI analytics, the AXIS P3285-LVE is a 2 MP outdoor dome camera built for commercial and institutional installations where image clarity, analytic accuracy, and hardware security all need to be addressed in a single unit. The IK10 vandal-resistant housing and IP66 weather rating make it a practical choice for exposed ceiling and soffit positions across car parks, retail exteriors, school perimeters, and warehouse entries. Equipped with a varifocal 3.4-9.8 mm lens with remote zoom and focus adjustment, the P3285-LVE can be precisely framed after ceiling mounting without a technician needing physical access to the lens. It also incorporates Forensic WDR for high-contrast scenes, OptimizedIR for zero-lux night coverage, and Axis Edge Vault with secure boot for hardware-level cybersecurity. AV1 and H.265 compression with Zipstream technology help reduce storage and bandwidth demands across multi-camera deployments.

Key Capabilities

Lightfinder 2.0 and Forensic WDR

Lightfinder 2.0 maintains colour detail at extremely low light levels, while Forensic WDR handles mixed-lighting scenes such as building entrances with bright exterior light and shadowed interiors. Together they keep footage analytically useful across changing conditions without manual adjustment.

Edge-Based Object and Audio Analytics

Object Analytics runs directly on the camera, classifying humans and vehicles without requiring a separate analytics server. Audio Analytics uses the integrated microphone to flag sound events such as shouting or glass breakage, adding a second detection layer for sites where visual coverage alone is insufficient.

Varifocal Lens with Remote Zoom and Focus

The 3.4-9.8 mm varifocal lens provides a horizontal field of view ranging from approximately 100 degrees to 32 degrees. Remote zoom and focus adjustment means the installer can lock in the correct framing from the NVR or VMS interface after the camera is physically mounted, reducing the need for repeated access to the dome head.

OptimizedIR Night Coverage

Built-in OptimizedIR LEDs deliver a minimum illumination of 0 lux in monochrome mode, providing usable footage in complete darkness. The IR output is tuned to avoid hotspot overexposure at close range, which is a common issue with fixed-power IR in dome form factors.

Axis Edge Vault Cybersecurity

Axis Edge Vault provides a hardware-secured enclave that protects the device identity, signed firmware, and cryptographic keys. Secure boot ensures the camera only runs verified firmware from startup, which is a meaningful protection for cameras deployed on networked infrastructure serving public or institutional clients.

AV1, H.265, and Zipstream Compression

Support for AV1 alongside H.264 and H.265 gives integrators flexibility when connecting to modern VMS platforms. Zipstream dynamically reduces bitrate during low-activity periods while preserving detail in forensically relevant frames, lowering storage requirements across a multi-camera deployment without compromising recorded evidence quality.

Best For

  • Commercial Perimeter and Exterior Ceilings: The IK10 and IP66-rated dome housing handles exposed outdoor positions on building soffits, canopies, and covered walkways where vandal resistance and weather sealing are both required.
  • Sites Requiring AI Detection Without a Dedicated Analytics Server: Object Analytics runs on the camera itself, classifying humans and vehicles at the edge, which suits deployments where adding server-side analytics licensing is not practical.
  • Installations Needing Flexible Post-Mount Framing: The remote varifocal lens is particularly useful in high-ceiling or hard-to-reach mounting positions where physically adjusting the lens after installation would require scaffolding or elevated access.
  • Networked Infrastructure With Cybersecurity Requirements: Axis Edge Vault and secure boot meet the device security requirements of councils, schools, and enterprise clients operating formal cybersecurity policies across their networked systems.

Why Choose the AXIS P3285-LVE

The P3285-LVE occupies a specific position in the Axis outdoor dome range by combining hardware-level cybersecurity with practical installation engineering. The remote zoom and focus capability on the varifocal lens addresses a genuine installation problem: dome cameras mounted at height or in awkward positions typically require a second site visit to finalise framing, and the P3285-LVE removes that step. Lightfinder 2.0 alongside Forensic WDR means the camera continues to produce analytically useful images in the mixed-light conditions common at building entries and loading areas, not just in controlled lighting. The addition of Audio Analytics via the integrated microphone extends detection capability beyond line-of-sight. AV1 support adds compression efficiency over H.265 for compatible VMS deployments. Available through Security Wholesalers, the P3285-LVE suits integrators working on commercial, institutional, or council projects where both operational performance and device security are part of the specification.

Buyer Decision Tips

Varifocal Range and Mounting Height: The 3.4-9.8 mm varifocal range gives a horizontal field of view of approximately 100 degrees at the wide end and 32 degrees at the telephoto end. At a typical 4-5 metre ceiling height, the wide end covers a broad corridor or entry forecourt, while the telephoto end suits longer approaches such as driveways or external walkways. Plan mounting positions against these angles before finalising camera counts, as the varifocal range allows meaningful coverage variation from a single mounting point.

PoE Standard and Switch Compatibility: The P3285-LVE draws power via PoE to the IEEE 802.3af standard. Confirm that the PoE switch or NVR PoE ports in the proposed installation supply 802.3af or higher. Some budget PoE switches only supply passive PoE at non-standard voltages, which will not power this camera reliably. This is a straightforward check during system design but worth confirming early for sites using existing switch infrastructure.

Key Features & Technical Specifications

Image Sensor 1/2.8-inch CMOS
Resolution 1920 x 1080 (2 MP)
Lens Type Varifocal 3.4-9.8 mm
Horizontal Field of View Approx. 100 degrees to 32 degrees
Minimum Illumination Colour: approx. 0.08 lux / Monochrome: 0 lux (IR on)
Day/Night True Day/Night with automatic IR cut filter
IR Illumination Built-in OptimizedIR
Low-Light Technology Lightfinder 2.0
Wide Dynamic Range Forensic WDR
Video Compression AV1, H.265, H.264 with Zipstream
Analytics Object Analytics (human and vehicle classification), Audio Analytics
Audio Integrated microphone (Audio Analytics support)
Edge Storage MicroSD / MicroSDHC / MicroSDXC
Power PoE IEEE 802.3af
Operating Temperature -40 degrees C to +50 degrees C
Ingress Protection IP66
Impact Rating IK10
Cybersecurity Axis Edge Vault, Secure Boot, Signed Firmware

Ideal Use Cases

Retail Exterior and Shopfront Canopies

The IP66 and IK10-rated housing handles direct weather exposure on shopfront canopies and outdoor mall walkways. Object Analytics classifies pedestrian and vehicle movement, reducing event noise compared with standard motion detection in high-foot-traffic retail environments.

School and Campus Perimeters

The combination of Axis Edge Vault cybersecurity, on-edge AI analytics, and vandal-resistant dome housing addresses the technical and physical security requirements typical of education sector camera specifications. Audio Analytics adds detection capability in areas where visual monitoring alone may be insufficient.

Car Parks and Entry Approaches

Forensic WDR handles the high-contrast lighting common at car park entries where headlights and ambient lighting vary significantly. The varifocal lens can be set to cover a longer approach lane or a wider bay area from the same ceiling mounting point, depending on the site layout.

Warehouse Entries and Loading Dock Overhangs

At loading docks and warehouse access points, Lightfinder 2.0 maintains usable colour detail during dawn and dusk shift changeovers when ambient light drops quickly. OptimizedIR takes over in complete darkness without requiring additional lighting infrastructure.

Council and Public Infrastructure

The -40 degrees C lower operating limit and IP66 rating suit outdoor public space installations in variable Australian climates. Axis Edge Vault and signed firmware align with council and government procurement requirements for network device security and firmware integrity verification.

Choosing the Right Model

  • Choose this model if: You need an outdoor dome with edge-based AI analytics, remote varifocal lens adjustment, and hardware cybersecurity (Axis Edge Vault) in a single IK10 and IP66-rated unit – particularly for commercial, institutional, or council projects where device security is part of the specification.
  • Choose a different model if: The installation requires 4K or higher resolution for detailed forensic capture at extended distances – a higher-resolution dome in the same housing category would be more appropriate for that use case.
  • Choose a different model if: The site has no IK10 vandal resistance requirement and budget is the primary constraint – a fixed-lens dome without remote varifocal capability would cost less where lens flexibility is not needed post-installation.

FAQs

  1. What AI analytics does the P3285-LVE run directly on the camera?
    The P3285-LVE runs Object Analytics on the edge, classifying detected objects as humans or vehicles without requiring an external analytics server or additional software licensing. It also supports Audio Analytics using the integrated microphone, allowing detection of specific sound events. Both analytics functions operate independently of any connected VMS.
  2. How does the remote zoom and focus work on the varifocal lens?
    After the dome is physically mounted, the installer can adjust zoom and focus remotely via the camera’s web interface or a connected VMS. This eliminates the need for physical access to the dome head during commissioning, which is particularly useful for high-ceiling or awkward mounting positions where repeated physical access would involve elevated work platforms.
  3. What does the IK10 rating mean in practice for an outdoor dome installation?
    IK10 is the highest standard impact protection rating under IEC 62262, indicating the housing can withstand a 20-joule impact. For outdoor dome installations in publicly accessible areas such as car parks, school grounds, or retail exteriors, this rating means the camera housing resists deliberate physical interference beyond what a standard dome can tolerate.
  4. Does the P3285-LVE support local edge recording without an NVR?
    Yes. The camera accepts a MicroSD, MicroSDHC, or MicroSDXC card for on-camera edge recording. This supports standalone operation, recording redundancy during network outages, or edge-only deployments where a centralised NVR is not part of the installation design.
  5. What is Axis Edge Vault and why does it matter for networked camera deployments?
    Axis Edge Vault is a hardware-secured computing environment built into the camera that stores the device’s cryptographic identity, protects signed firmware, and enables secure boot. It ensures the camera cannot be booted with unauthorised firmware and that its identity on the network can be cryptographically verified. This is relevant for enterprise, council, and government deployments where network device integrity is part of a formal security policy.
  6. What VMS platforms is the P3285-LVE compatible with?
    The P3285-LVE is compatible with Axis Camera Station and Axis Camera Companion, as well as major third-party VMS platforms that support ONVIF or the Axis VAPIX API. AV1 stream support depends on VMS version compatibility, so confirming AV1 decoding support with the specific VMS vendor before deployment is recommended for new installations.
  7. Where can I purchase the AXIS P3285-LVE in Australia?
    The AXIS P3285-LVE is available through Security Wholesalers, which supplies the Axis Communications CCTV range to installers and integrators across Australia. The product datasheet is available as a download from the product page for specification and tender documentation purposes.
