Product Overview

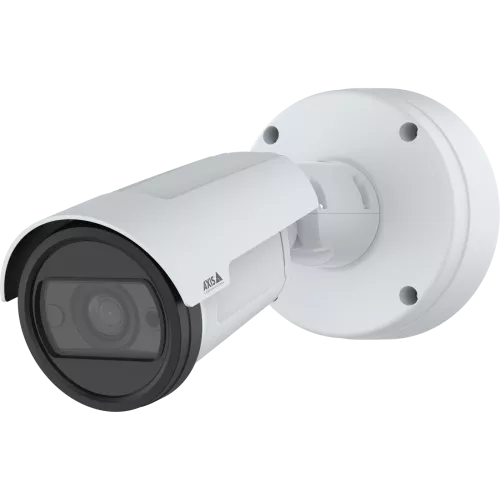

Built for demanding outdoor surveillance across perimeters, industrial yards, and commercial access points, the AXIS P1487-LE is a 5MP outdoor bullet camera engineered around the ARTPEC-9 processor and Axis’s P14 Series architecture. Featuring a motorised varifocal lens with remote zoom and focus, installers can frame scenes precisely without physical adjustments after mounting, which is a real advantage on high walls, poles, or restricted-access locations. Lightfinder 2.0 delivers usable colour detail in near-darkness, while OptimizedIR provides long-range infrared illumination that automatically adjusts to prevent over-exposure on close subjects. Forensic WDR manages high-contrast scenes such as gated entry points where bright sky and deep shadow coexist. On-edge AI analytics run directly on the camera, supporting human and vehicle detection and object classification without loading the NVR. Electronic image stabilisation keeps footage clean in vibration-prone environments such as rooftop plant rooms or industrial structures. Zipstream with AV1, H.265, and H.264 support reduces storage and bandwidth demands across larger deployments.
Key Capabilities
Motorised Varifocal Lens
Remote zoom and focus adjustment means the lens can be dialled in from the control room after physical installation, removing the need for a second technician on a ladder to confirm framing during commissioning at heights or restricted locations.
OptimizedIR Long-Range Illumination
The integrated OptimizedIR system delivers long-range infrared illumination that adapts automatically to scene conditions. It reduces hotspot over-exposure on nearby reflective surfaces such as number plates, signage, and fence posts while maintaining depth of field at range.
Edge AI Analytics on ARTPEC-9
Human and vehicle detection and object classification run directly on the camera’s ARTPEC-9 processor, reducing false alerts from motion triggers such as wind, foliage, and lighting changes. Compatible with Axis Object Analytics and additional Axis edge applications.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 maintains colour detail in very low ambient light, while Forensic WDR handles high-contrast scenes such as covered loading docks, entrance gates with bright sky behind, and car parks with mixed lighting sources across a single frame.
Zipstream with AV1, H.265, and H.264
Axis Zipstream dynamically reduces bitrate on low-activity areas of the frame while preserving detail where motion occurs. AV1 support adds a further efficiency layer for deployments where storage costs or bandwidth constraints across multiple camera channels are a design consideration.
Axis Edge Vault Cybersecurity
Secure boot, signed firmware, and Axis Edge Vault hardware-based security protect device identity and prevent unauthorised firmware modification. This is particularly relevant in critical infrastructure, government, and multi-site commercial deployments where network integrity requirements are stringent.
Best For
- Perimeter and Fence-Line Coverage: The directional bullet housing combined with a motorised varifocal lens allows precise coverage of long boundary runs, entry gates, and fence lines where fixed focal lengths would leave gaps or waste resolution on sky.
- Industrial Yards and Loading Docks: Electronic image stabilisation and vandal-resistant housing suit wall or pole mounting on structures subject to vibration from machinery, vehicle movement, or overhead crane operation.
- Vehicle Access Monitoring: Forensic WDR and OptimizedIR handle the contrast and reflectivity challenges of driveways, boom gates, and car park approaches where headlights and plate reflection degrade image quality in lesser cameras.
- Multi-Site Commercial Deployments: Axis Edge Vault, ONVIF compliance, and compatibility with a wide range of VMS platforms make the P1487-LE a practical choice for integrators managing large or multi-site Axis-based installations.
- Corridor Format Applications: Built-in corridor format support rotates the sensor orientation to a vertical aspect, making it effective for long narrow scenes such as hallways, fence runs, and walking paths without wasting resolution on unnecessary sky or ground.
Why Choose the AXIS P1487-LE
The AXIS P1487-LE steps beyond a standard outdoor bullet camera by combining ARTPEC-9-powered edge AI with Lightfinder 2.0, OptimizedIR, and Forensic WDR in a single vandal-resistant housing rated IP66, IK10, and NEMA 4X. A lower-cost bullet camera may capture 5MP video but will lack the on-edge analytics that distinguish people from vehicles without server-side processing, the Zipstream intelligence that cuts storage costs across a multi-channel installation, or the hardware-secured device identity that Axis Edge Vault provides. The motorised varifocal lens removes a common commissioning bottleneck on elevated or hard-to-access mounting positions. Electronic image stabilisation addresses a failure point that affects most fixed outdoor bullets on vibration-prone structures. For installers and end users who need a camera that can be deployed, remotely commissioned, analytically tuned, and securely maintained over a long operational life, the P1487-LE is available at Security Wholesalers as part of the AXIS P14 Series range.
Buyer Decision Tips
Buyer Tip 1 – Varifocal Range and Scene Planning: The motorised varifocal lens allows post-installation framing adjustment, but the scene coverage you get depends on how far the subject is from the camera and which end of the zoom range you use. For very long-range perimeter runs, confirm the lens range against the actual distance to the boundary line you want to cover before specifying mounting height, as OptimizedIR range and lens reach need to be matched for the camera to be useful at night.
Buyer Tip 2 – Edge Analytics and Application Licensing: Human and vehicle detection is supported natively, but more advanced Axis edge applications may require separate application licences installed via AXIS Camera Application Platform. If your deployment requires specific analytics beyond object classification, confirm which applications are compatible with the ARTPEC-9 platform and budget for licences accordingly before project sign-off.
Key Features & Technical Specifications
| Resolution |
5 megapixel |
| Frame Rate |
Up to 30 fps |
| Lens Type |
Motorised varifocal with remote zoom and focus |
| IR Illumination |
OptimizedIR with long-range infrared and automatic intensity control |
| Low Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| Image Stabilisation |
Electronic image stabilisation (EIS) |
| Processor |
ARTPEC-9 |
| AI Analytics |
Edge-based human and vehicle detection, object classification; compatible with Axis Object Analytics |
| Video Compression |
AV1, H.265, H.264 with Axis Zipstream |
| Corridor Format |
Supported |
| Environmental Rating |
IP66, IK10, NEMA 4X |
| Vandal Resistance |
Vandal-resistant housing |
| Power Input |
Power over Ethernet (PoE); DC power input for redundancy |
| Cybersecurity |
Secure boot, signed firmware, Axis Edge Vault, device identity protection |
| Network Protocol |
Standard IP networking, ONVIF compliant |
| Included Accessories |
Integrated sunshield, connector guard, sealing components, installation documentation, owner authentication key |
Ideal Use Cases
Perimeter and Boundary Monitoring
The motorised varifocal lens allows precise coverage of fence lines and entry gates from a fixed mounting position. Corridor format support further optimises resolution along narrow boundary runs without wasting pixels on sky or open ground either side of the perimeter line.
Industrial Yards and Logistics Sites
Electronic image stabilisation compensates for camera movement caused by heavy plant, loading equipment, and structural vibration. The IK10-rated vandal-resistant housing resists impact in environments where accidental contact from vehicles or equipment is a possibility.
Car Parks and Loading Docks
Forensic WDR handles the contrast range between bright vehicle headlights and dark covered structures. OptimizedIR reduces over-exposure on reflective number plates and painted surfaces, improving the usability of nighttime footage for vehicle identification.
Schools, Warehouses, and Campuses
On-edge human and vehicle detection reduces false event triggers from motion-only detection across large open areas where wind, foliage, and shadows frequently activate less capable cameras. This lowers nuisance alert volumes for security staff managing multi-camera systems.
Critical Infrastructure and Access Roads
Axis Edge Vault hardware-based device security, secure boot, and signed firmware protect the camera from network-based attacks and unauthorised firmware changes, meeting the elevated cybersecurity requirements of substations, utilities, and government-adjacent facilities.
Multi-Site Commercial Installations
Zipstream with AV1 support reduces storage and bandwidth overhead across large channel counts, and ONVIF compliance allows the P1487-LE to integrate with a wide range of existing VMS and NVR platforms, reducing the need to replace infrastructure when adding Axis cameras to a mixed-brand system.
Choosing the Right Model
- Choose this model if: You need a 5MP outdoor bullet camera with a motorised varifocal lens for post-installation framing adjustment, on-edge AI analytics for human and vehicle detection, long-range OptimizedIR, and enterprise-grade cybersecurity features including Axis Edge Vault, for perimeter, industrial, or multi-site commercial deployments.
- Choose a different model if: Your installation is entirely indoors and does not require IP66/IK10 weather or vandal protection, as a fixed-lens indoor dome or turret camera at a lower price point would deliver equivalent image quality without the outdoor housing cost premium. Similarly, if the mounting location requires continuous pan, tilt, and zoom control across a wide area rather than fixed directional coverage, a PTZ camera would be more appropriate than this fixed-position bullet.
FAQs
- What does the motorised varifocal lens offer that a fixed lens does not?
The motorised varifocal lens on the P1487-LE allows zoom and focus to be adjusted remotely after the camera is physically mounted. This is particularly useful on elevated poles, rooftop brackets, or restricted-access walls where re-climbing to adjust a fixed lens manually after installation would add significant labour cost. Framing can be confirmed and modified from the control room or via a laptop connected to the network.
- How does OptimizedIR handle reflective surfaces at night?
OptimizedIR automatically adjusts infrared output intensity based on what is in front of the camera. When a subject moves close to the lens or a highly reflective surface such as a number plate or painted wall is in frame, the system reduces IR intensity to avoid overexposing the image. This results in more consistent nighttime footage for scenes with variable subject distances.
- What is Forensic WDR and when does it matter?
Forensic WDR is Axis’s wide dynamic range processing, designed for scenes with extreme contrast between bright and dark areas within a single frame. Entry gates with open sky behind a subject, covered loading docks lit by a single overhead light, and car parks with headlights pointing toward the camera are typical examples where Forensic WDR helps retain detail in both the highlight and shadow regions simultaneously.
- Does the P1487-LE need a server to run its AI analytics?
No. Human and vehicle detection and object classification run directly on the ARTPEC-9 processor inside the camera. This means the NVR or VMS does not need to process analytics centrally, which reduces server load across large deployments and allows event-driven recording rules to be applied at the edge without relying on a continuously connected management server.
- What are the confirmed environmental ratings for outdoor use?
The AXIS P1487-LE is rated IP66 for dust and water ingress protection, IK10 for impact resistance, and NEMA 4X for protection against corrosion and outdoor exposure. These ratings make it suitable for fully exposed outdoor positions including rooftops, open yard walls, and pole-mounted installations subject to rain, dust, and direct sun.
- Why does Axis Edge Vault matter for a surveillance camera?
Axis Edge Vault is a hardware-based security module that stores the camera’s device identity and cryptographic keys in protected hardware rather than software. Combined with secure boot and signed firmware, it prevents the camera from being hijacked via firmware replacement attacks or impersonated on the network. This is particularly relevant for government facilities, utilities, financial institutions, and any deployment where network security compliance is audited.
- Is the AXIS P1487-LE compatible with third-party VMS platforms?
Yes. The camera supports standard IP networking protocols and ONVIF compliance, which allows it to integrate with a wide range of network video recorders and video management systems. For installers managing mixed-brand infrastructure or expanding existing non-Axis systems, ONVIF compatibility avoids the need to replace recording platforms when adding P1487-LE cameras. Security Wholesalers can assist with compatibility questions for specific VMS platforms before purchase.
