Product SKU: P1485-LE
Product Overview

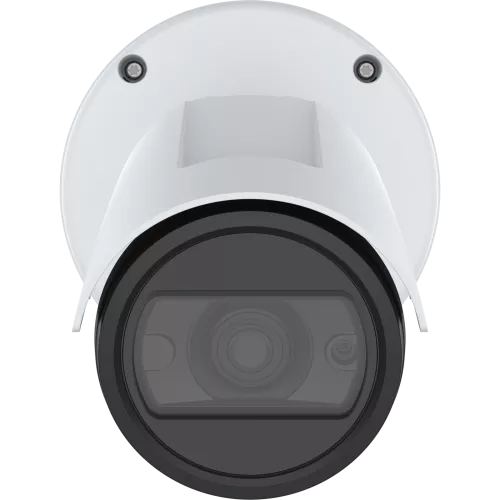

For perimeter monitoring across industrial sites, transport corridors, and extended fence lines, the Axis P1485-LE is an outdoor bullet camera built around a telephoto varifocal lens that narrows the field of view to concentrate on distant detail. With a 10-28 mm lens range and a corresponding field of view of approximately 29° down to 11°, this camera is purpose-built to identify people and vehicles at range rather than covering wide open areas. Featuring Lightfinder 2.0 for colour imaging in near-dark conditions and OptimizedIR illumination reaching approximately 50 metres, it continues to deliver usable footage after dark without supplemental lighting. The ARTPEC-9 system-on-chip enables AV1, H.265, and H.264 compression alongside edge-based AI analytics, including compatibility with Axis Object Analytics for object classification. An IK10-rated, IP66/IP67 housing and an operating temperature range of -40°C to +60°C make this camera a practical choice for demanding outdoor deployments year-round.
Key Capabilities
Telephoto Varifocal Lens
The 10-28 mm telephoto lens concentrates coverage on a narrow corridor or distant approach, achieving a field of view as tight as 11°. This makes it suited to perimeter fence lines, vehicle gates, and roadway monitoring where identifying subjects at distance is the primary requirement.
Lightfinder 2.0
Axis Lightfinder 2.0 retains colour detail in very low ambient light conditions. For outdoor industrial and perimeter sites where lighting is minimal or uneven, this technology keeps footage interpretable at dusk and in partially lit environments without switching fully to infrared monochrome.
OptimizedIR up to 50 m
Built-in OptimizedIR automatically adjusts IR intensity relative to the lens zoom position, preventing overexposure in the scene. At up to approximately 50 metres of illumination range, this supports after-dark monitoring at access points and along perimeter approaches without additional lighting infrastructure.
AV1 and Efficient Compression
Support for AV1 alongside H.265 and H.264 allows significant reductions in bandwidth and storage consumption compared to older codecs. For sites running multiple cameras across constrained network infrastructure, this reduces the load on switches and NVR storage without sacrificing resolution.
Edge-Based AI Analytics
The ARTPEC-9 chip enables AI analytics to run directly on the camera, including compatibility with Axis Object Analytics for classifying objects such as humans and vehicles. This reduces the processing burden on central servers and allows event-driven recording triggered at the camera level.
Axis Edge Vault Cybersecurity
Axis Edge Vault provides a hardware-based security platform that protects device identity, secure boot, and signed firmware. For critical infrastructure, utilities, and commercial perimeter deployments where network security is a compliance or risk requirement, this offers a hardened foundation beyond standard IP camera security.
Best For
- Industrial Perimeter Surveillance: The telephoto varifocal lens and OptimizedIR range make this camera a practical fit for monitoring fence lines and outer boundaries of industrial facilities, where subjects need to be identified at distance rather than tracked across a wide area.
- Transport and Infrastructure Corridors: The IK10 impact rating, IP66/IP67 weather sealing, and operating temperature range of -40°C to +60°C allow consistent deployment along roadways, rail corridors, and remote utility infrastructure subject to extreme weather.
- Access Point and Gate Monitoring: At a narrow field of view, the P1485-LE is well suited to fixed positions covering vehicle entry lanes or pedestrian gates, where the camera is aimed to capture a defined corridor rather than a broad scene.
- Sites Requiring Edge AI Without Server Dependency: Facilities that cannot rely on centralised analytics servers benefit from on-camera processing via the ARTPEC-9 chip, with the microSD card slot providing local storage redundancy when network connectivity is intermittent.
Why Choose the Axis P1485-LE
The Axis P1485-LE separates itself from general-purpose outdoor bullet cameras through the combination of a telephoto varifocal lens and Lightfinder 2.0, a pairing that is specifically useful when the installation goal is identification at range rather than area coverage. At 60 fps and 1080p, the camera captures fast-moving vehicles and persons with reduced motion blur at distance. The ARTPEC-9 processor provides AV1 encoding support, which is not standard across most IP cameras at this price tier and materially reduces storage costs on multi-camera deployments. Axis Edge Vault adds a hardware cybersecurity layer that matters for installations in utilities, transport, and government infrastructure where device integrity is a formal requirement. The Forensic WDR capability handles high-contrast scenes at entry points where sun glare or artificial lighting creates overexposure challenges. Available through Security Wholesalers, the P1485-LE is suited to installers who need a purpose-built long-range camera rather than a wider-angle model repurposed for a role it was not designed for.
Buyer Decision Tips
Lens Aiming and Mounting: The telephoto varifocal range of 10-28 mm produces a very narrow field of view, especially at the long end. Before finalising the mounting position, confirm the exact distance to the target zone and use the approximate field of view (29° at 10 mm, 11° at 28 mm) to calculate horizontal coverage at that distance. Mounting height and horizontal angle will significantly affect whether the camera captures the intended approach. A site survey with test framing before cabling is strongly recommended for first-time installs with telephoto lenses.
PoE Budget and Multi-Camera Deployments: The P1485-LE is powered via PoE (IEEE 802.3af). When deploying multiple units across a switch, confirm the total PoE power budget available per port and across the switch. AV1 encoding reduces bandwidth demand but the camera still requires network capacity per stream. For remote or outdoor deployments where cable runs are long, factor in PoE voltage drop over Cat6 runs exceeding 70-80 metres.
Key Features & Technical Specifications
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Resolution |
1920 x 1080 (Full HD / 2MP) |
| Maximum Frame Rate |
Up to 60 fps |
| Lens Type |
Telephoto varifocal, 10-28 mm |
| Field of View |
Approx. 29° to 11° |
| Day/Night |
Mechanical IR cut filter |
| Infrared Illumination |
OptimizedIR, up to approximately 50 m |
| Low-Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| Video Compression |
AV1, H.265, H.264 |
| Processor |
Axis ARTPEC-9 |
| Analytics |
Edge-based AI analytics, Axis Object Analytics compatible |
| Cybersecurity |
Axis Edge Vault |
| Edge Storage |
microSD / microSDHC / microSDXC slot |
| Power |
PoE (IEEE 802.3af) |
| Protection Rating |
IK10, IP66, IP67 |
| Operating Temperature |
-40°C to +60°C |
| Housing Type |
Outdoor bullet |
Ideal Use Cases
Perimeter Fence-Line Monitoring
The 10-28 mm telephoto lens allows the camera to be aimed along a fence line or boundary, capturing activity at distances where a standard wide-angle lens would render subjects too small to identify. OptimizedIR extends usable coverage after dark.
Vehicle Entry Lanes and Gates
Positioned above a vehicle access point and zoomed to frame the lane, the P1485-LE captures detail on vehicles approaching from a fixed direction. Forensic WDR assists with scenes where headlights or sunlight create high-contrast exposure challenges at the entry point.
Utilities and Critical Infrastructure
Axis Edge Vault provides hardware-level device security, which is relevant for deployments at substations, water treatment facilities, and other regulated infrastructure where camera tampering or network compromise carries compliance risk. The IP66/IP67 and IK10 ratings support exposed outdoor installations.
Industrial Yards and Loading Docks
Mounted on a wall or pole at a loading dock or yard entrance, the telephoto lens frames the approach corridor tightly. AI-based object classification running on the ARTPEC-9 chip can trigger event-based recording when vehicles or persons are detected in the defined zone.
Remote and Off-Grid Monitoring Points
The microSD card slot provides local edge storage at locations where network connectivity is intermittent or unreliable. The -40°C to +60°C operating range covers remote outdoor environments subject to significant temperature variation, including exposed rural and mining sites.
Choosing the Right Model
- Choose this model if: Your installation requires long-range identification at a fixed approach, fence line, or access corridor, and you need a camera that can resolve detail at distance in low-light conditions using Lightfinder 2.0 and OptimizedIR without adding external lighting.
- Choose this model if: Your site has cybersecurity requirements that benefit from hardware-level device protection, or you need AV1 encoding to manage bandwidth and storage costs across a multi-camera deployment on constrained network infrastructure.
- Choose a different model if: You need to cover a wide outdoor area such as a car park, open yard, or building facade from a single mounting point. The narrow telephoto field of view (down to 11°) is not suited to broad-area coverage, and a wider fixed-lens or varifocal camera with a shorter focal range would be more appropriate for that application.
- Choose a different model if: Your mounting position is indoors, in a corridor, or in a space where an IK10-rated outdoor bullet housing is unnecessary. A compact indoor camera would be more proportionate for those environments.
FAQs
- What does the telephoto varifocal lens mean in practice for installation?
The 10-28 mm focal length produces a very narrow field of view, ranging from approximately 29° at the wide end to 11° at full zoom. In practice, this means the camera needs to be precisely aimed at a defined target zone during installation. Unlike a wide-angle camera where framing is forgiving, the telephoto setting requires knowing the distance to the target and adjusting the lens accordingly before locking the camera in position.
- How far does the OptimizedIR illumination reach on the P1485-LE?
The built-in OptimizedIR provides infrared illumination up to approximately 50 metres. It adjusts IR intensity automatically based on the current zoom position to reduce hotspot overexposure. This means the effective IR range is linked to the lens setting, so a tightly zoomed scene at 28 mm benefits from a more concentrated IR beam than a wider 10 mm setting would produce.
- What is Forensic WDR and when does it make a difference?
Forensic WDR is Axis’s wide dynamic range processing designed to retain detail in scenes with extreme contrast between bright and dark areas. At outdoor access points where vehicle headlights, direct sunlight, or overhead lighting creates overexposed foregrounds against darker backgrounds, Forensic WDR helps maintain identifiable detail across the full scene rather than exposing only for one end of the brightness range.
- Does the P1485-LE support AI analytics out of the box?
The camera is equipped with the Axis ARTPEC-9 chip, which supports edge-based AI processing, and it is compatible with Axis Object Analytics for classifying detected objects such as humans and vehicles. Analytics applications run directly on the camera without requiring a separate analytics server. Specific analytics configurations may require installation via the Axis device management tools.
- What is Axis Edge Vault and does it affect how the camera is managed?
Axis Edge Vault is a hardware-based cybersecurity platform embedded in the ARTPEC-9 chip. It protects device identity through secure key storage, supports signed firmware to prevent unauthorised modifications, and enables secure boot. For most standard deployments this operates transparently. It becomes relevant in environments where camera integrity verification or compliance with network security standards is required, such as utilities or government infrastructure.
- Can the P1485-LE store footage locally without a recorder?
Yes. The camera includes a microSD card slot supporting microSD, microSDHC, and microSDXC cards, which allows recording directly to the card at the camera level. This is useful as redundancy in case of network interruption or as a standalone option at remote sites. For long-term managed storage across multiple cameras, an NVR remains the recommended approach. The P1485-LE is available through Security Wholesalers and is compatible with Axis-supported NVR platforms.
- Is the P1485-LE suitable for very cold or very hot climates?
Yes. The confirmed operating temperature range of -40°C to +60°C covers both extreme cold climates such as alpine or southern Australian highland environments and high-heat conditions found at exposed industrial and mining sites in northern Australia. The IP66 and IP67 ratings also confirm dust-tight sealing and protection against water ingress, making the housing appropriate for exposed outdoor use year-round.
