Product SKU: P1468-XLE
Product Overview

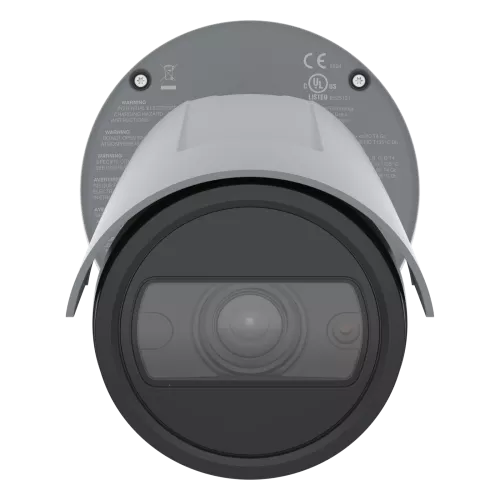

Engineered specifically for Zone/Division 2 hazardous locations, the AXIS P1468-XLE is an explosion-protected outdoor bullet camera delivering 8MP 4K UHD video where standard surveillance equipment cannot be installed. Certified for environments with the occasional presence of flammable gases, vapours, or combustible dust, it brings enterprise-grade imaging to petrochemical sites, grain terminals, chemical processing plants, and other high-risk industrial perimeters. Featuring a varifocal lens spanning 6.2 to 12.9mm, installers can set the field of view from approximately 108 degrees down to 49 degrees horizontal, covering both broad zone entries and tighter approach corridors. Built-in OptimizedIR provides night visibility to roughly 40 metres, while Lightfinder 2.0 and Forensic WDR handle low-light and high-contrast conditions. An onboard Deep Learning Processing Unit enables edge-based object classification, and Axis Edge Vault delivers hardware-level cybersecurity protection suited to critical infrastructure deployments.
Key Capabilities
Zone/Division 2 Explosion Protection
The P1468-XLE carries certified hazardous area approval for Zone/Division 2 locations, making it one of the few camera options legally and safely deployable where flammable gases, vapours, or combustible dust may periodically be present. Standard cameras are not permitted in these zones.
8MP 4K UHD at Up to 60 fps
Capturing at 3840 x 2160 resolution with a 1/1.2″ CMOS sensor, the camera records forensic-grade detail across wide industrial approaches. Frame rates up to 60 fps ensure moving subjects such as vehicles or personnel are captured without blur in busy operational environments.
Varifocal Lens with Adjustable Coverage
The 6.2 to 12.9mm varifocal lens allows the installer to dial in the precise field of view at commissioning, from a wide 108 degrees for gate and zone entries down to 49 degrees for focused coverage of a tank access road or loading area, without changing camera hardware.
Deep Learning Edge Analytics
An onboard Deep Learning Processing Unit (DLPU) runs object detection and classification directly in the camera, reducing reliance on server-side processing. This is particularly valuable at remote or distributed industrial sites where network bandwidth to a central VMS may be limited.
OptimizedIR Night Surveillance to ~40m
Integrated OptimizedIR illumination provides effective night vision coverage to approximately 40 metres, covering perimeter fences, tank bunds, and outdoor walkways in unlit industrial zones without requiring separate lighting infrastructure.
Axis Edge Vault Cybersecurity
Hardware-based cybersecurity through Axis Edge Vault includes secure boot and signed firmware verification, protecting against tampering and unauthorised firmware modifications. This level of protection meets the requirements of critical infrastructure operators handling sensitive industrial processes.
Best For
- Petrochemical and Refinery Perimeters: Zone/Division 2 certification makes this camera compliant for installation across refinery boundaries, tank farms, and process areas where standard outdoor cameras are not permitted.
- Grain Terminals and Combustible Dust Zones: Approved for environments where combustible grain dust creates an explosion risk, providing 4K surveillance coverage at receival pits, conveyor areas, and silo perimeters.
- Chemical Plant Access Control Points: The varifocal lens and 4K resolution make it well suited to monitoring vehicle and personnel access points at chemical plants, capturing detail at distances that lower-resolution cameras would miss.
- Critical Infrastructure Requiring Edge Analytics: Sites needing on-camera object classification without heavy server-side processing benefit from the onboard DLPU, particularly at remote locations with constrained network infrastructure.
Why Choose the AXIS P1468-XLE
The AXIS P1468-XLE occupies a narrow but critical category: a 4K-resolution, deep-learning-capable camera that is genuinely certified for hazardous area installation. A standard IP67-rated outdoor bullet camera, regardless of its image quality, cannot legally or safely be deployed in Zone/Division 2 locations. This camera closes that gap by combining the imaging performance expected of a premium surveillance product with the explosion-protection certification required by hazardous area regulations. The varifocal 6.2 to 12.9mm lens, Lightfinder 2.0, Forensic WDR, and 60 fps capture rate are not compromised by the industrial housing. Axis Edge Vault adds a layer of hardware-based cybersecurity that matches the operational security expectations of petrochemical, mining, and chemical industry operators. Available at Security Wholesalers, the P1468-XLE is the appropriate choice when both compliance and imaging performance are non-negotiable on the same site.
Buyer Decision Tips
Buyer Tip 1 – Confirm Your Hazardous Area Classification First: Before specifying this camera, verify the exact Zone or Division classification of the installation location with your site’s hazardous area engineer. The P1468-XLE is certified for Zone/Division 2, which covers areas where flammable atmospheres are not normally present but may occasionally occur. Zone 1 or Division 1 locations, where hazardous atmospheres are more frequently present, require a different certification level and this camera would not be appropriate for those zones.
Buyer Tip 2 – PoE Power and Cable Planning: The P1468-XLE is powered by PoE. In industrial hazardous area installations, cabling routes must comply with relevant wiring standards for the hazardous zone classification, and PoE injectors or switches must be located outside the hazardous area boundary. Confirm conduit and cable requirements with your hazardous area electrician during the design phase, as retrofitting cable routes in these environments is costly.
Key Features & Technical Specifications
| Resolution |
8MP 4K UHD (3840 x 2160) |
| Frame Rate |
Up to 60 fps |
| Image Sensor |
1/1.2″ CMOS |
| Lens Type |
Varifocal 6.2 to 12.9mm |
| Field of View |
Approximately 108 to 49 degrees horizontal |
| Low Light Technology |
Lightfinder 2.0, Forensic WDR |
| Motion Handling |
Motion-adaptive exposure |
| IR Illumination |
OptimizedIR, range up to approximately 40m |
| Video Compression |
H.264, H.265, Zipstream |
| Power |
PoE |
| Weatherproof Rating |
IP66, IP67, NEMA 4X |
| Impact Rating |
IK10 |
| Hazardous Area Certification |
Explosion-protected, Zone/Division 2 |
| Edge Analytics |
Deep Learning Processing Unit (DLPU), object detection and classification |
| Cybersecurity |
Axis Edge Vault, secure boot, signed firmware |
Ideal Use Cases
Petrochemical Refinery Surveillance
Zone/Division 2 certification allows compliant installation at tank farm entries, process unit perimeters, and refinery access roads, where 4K resolution and the varifocal lens deliver the detail required to identify vehicles and personnel at distance.
Grain Terminal and Silo Monitoring
Combustible grain dust environments are classified hazardous areas. The P1468-XLE is appropriate for installation at receival pits, conveyor loading points, and silo access areas where standard cameras create an ignition risk.
Chemical Plant Perimeter Coverage
The OptimizedIR range of approximately 40 metres and Lightfinder 2.0 technology make this camera effective for monitoring outdoor perimeter fencing and access corridors at chemical manufacturing sites operating around the clock.
Remote Industrial Sites with Limited Connectivity
The onboard DLPU runs object classification at the edge, reducing the volume of video that must be transmitted over constrained WAN links at remote mining, oil and gas, or utilities infrastructure sites.
Critical Infrastructure Security
Axis Edge Vault hardware cybersecurity, including secure boot and signed firmware, addresses the elevated cybersecurity requirements of operators managing critical national infrastructure such as energy, water, and chemical processing facilities.
Choosing the Right Model
- Choose this model if: Your installation site is classified as Zone 2 or Division 2 under hazardous area regulations and you need 4K resolution, deep learning edge analytics, and a varifocal lens in a single certified camera.
- Choose a different model if: Your site is not a classified hazardous area – the specialised explosion-protected housing and certification come at a significant cost premium over standard industrial outdoor bullet cameras, and that cost is not justified where hazardous area compliance is not required.
- Choose a different model if: Your site is classified Zone 1 or Division 1, where hazardous atmospheres are frequently present rather than only occasionally – the P1468-XLE is certified for Zone/Division 2 only, and a higher-rated certification class is required for those zones.
FAQs
- What does Zone/Division 2 certification mean for the AXIS P1468-XLE?
Zone/Division 2 covers locations where flammable gases, vapours, or combustible dust may occasionally be present but are not expected under normal operating conditions. The P1468-XLE is certified safe for installation in these environments, meaning its electrical components and housing are designed so as not to provide an ignition source. This certification is a regulatory requirement in many industrial sectors, and standard cameras do not carry it.
- Can the P1468-XLE be installed indoors in a hazardous classified area?
Yes. The Zone/Division 2 certification applies to the explosive atmosphere classification of the space, not strictly to outdoor locations. Indoor areas within a chemical plant, grain handling facility, or petrochemical building that carry a Zone 2 or Division 2 classification are appropriate installation locations, provided the physical mounting and cabling also meet hazardous area wiring requirements.
- How does the varifocal lens affect installation at a hazardous site?
The 6.2 to 12.9mm varifocal range allows the lens to be adjusted at commissioning to frame the exact coverage zone needed, from a wide 108 degrees at the 6.2mm end to a tighter 49 degrees at 12.9mm. This avoids the need to stock multiple fixed-focal-length camera variants for different coverage distances on the same site, which simplifies hazardous area procurement and spares management.
- What does the Deep Learning Processing Unit (DLPU) enable on this camera?
The onboard DLPU allows the camera to perform object detection and classification at the edge without sending all video to a server for analysis. At industrial sites this can be used to trigger alerts when unauthorised personnel or vehicles enter restricted zones, while reducing the volume of data transmitted across the network and lowering the load on centralised VMS infrastructure.
- What are the weatherproofing ratings of the P1468-XLE?
The camera carries IP66 and IP67 ratings, providing protection against powerful water jets and temporary immersion respectively, as well as NEMA 4X certification for corrosion resistance. The IK10 impact rating confirms the housing can withstand significant mechanical impact. These ratings are relevant at outdoor industrial sites where pressure washing, chemical splatter, or physical contact during plant operations are realistic risks.
- Does the P1468-XLE require an NVR or VMS to operate?
The camera streams video over IP and is designed to work with an AXIS-compatible VMS or NVR. For sites where centralised recording infrastructure is already in place, it integrates into that system via standard ONVIF or AXIS protocols. Edge analytics run independently on the camera regardless of recording architecture, meaning classification events can be processed even during temporary network interruptions.
- Where can I purchase the AXIS P1468-XLE in Australia, and is technical support available?
The P1468-XLE is part of the Security Wholesalers range. Given the specialised nature of hazardous area camera installations, it is recommended to confirm site classification documents and installation compliance requirements with a qualified hazardous area engineer before placing an order, as the correct camera specification must match the verified zone classification of the installation location.
