Product SKU: P1468-LE
Product Overview

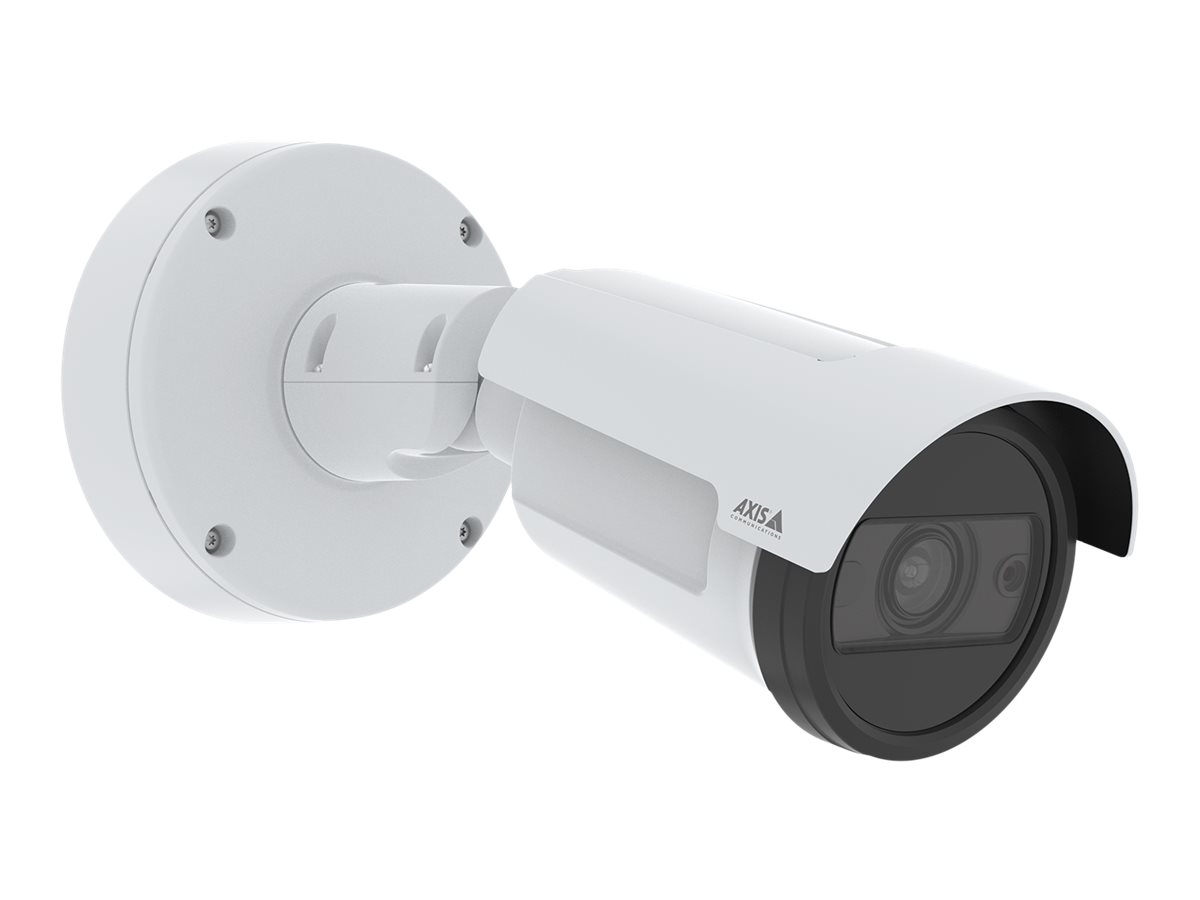

Built for perimeter monitoring, roadway surveillance, and exposed industrial sites where resolution and edge intelligence must coexist in a single housing, the AXIS P1468-LE is a 4K (8MP) outdoor fixed bullet camera rated for the most demanding physical and environmental conditions. Equipped with a 6.2-12.9mm motorised varifocal lens with P-Iris control and IR correction, the camera supports remote zoom and focus adjustment after installation, removing the need for physical access once the unit is mounted at height or on a pole. Lightfinder 2.0 maintains accurate colour reproduction down to approximately 0.07 lux, and Forensic WDR handles up to 120 dB contrast for scenes with simultaneous bright and shadowed zones. Optimized IR extends monochrome coverage to approximately 40 metres. Powered by an ARTPEC-8 processor with an integrated Deep Learning Processing Unit, the P1468-LE runs AXIS Object Analytics on-device for human and vehicle classification. The housing carries IP66, IP67, IK10, and NEMA 4X ratings, operates from -40 degrees C to +60 degrees C, and is wind rated to 50 m/s. Note: this model has been discontinued and replaced by the AXIS P1488-LE.
Key Capabilities
4K Resolution at Up to 60fps
3840 x 2160 capture at up to 60 frames per second provides the image density needed to extract usable detail from distant subjects, including vehicle plates and individuals, in real time or from recorded footage reviewed after an event at range.
Motorised Varifocal Lens with Remote Adjustment
The 6.2-12.9mm motorised varifocal lens covers a horizontal field of view from approximately 108 degrees wide to 49 degrees tele, adjustable remotely over the network. This is particularly practical when the camera is mounted on a pole or elevated bracket where physical access after installation is difficult.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 sustains colour accuracy in scenes as dim as 0.07 lux, while Forensic WDR manages up to 120 dB dynamic range. These two technologies address the split-lighting conditions typical of gateways, loading dock approaches, and roadway entry points at dawn and dusk.
On-Device Deep Learning Analytics
AXIS Object Analytics runs on the ARTPEC-8 processor’s integrated DLPU, classifying detected objects as humans or vehicles without routing data to an external server. Event-driven recording and alerts operate at the camera edge and remain active during network interruptions.
Axis Zipstream and Multi-Stream Output
Axis Zipstream reduces bitrate dynamically in low-activity scenes while preserving full detail during events, keeping 4K storage requirements manageable. Up to 20 independent streams can be configured across VBR, ABR, MBR, and low-latency modes, with onboard microSD available for edge recording.
Industrial Housing and Hardware Cybersecurity
IP66, IP67, IK10, and NEMA 4X ratings address dust, water immersion, physical impact, and corrosion. Axis Edge Vault adds secure boot, signed firmware, and a certified cryptographic keystore, meeting the cybersecurity baseline requirements of government and critical infrastructure projects.
Best For
- Industrial Perimeter and Fence Line Monitoring: Optimized IR to 40 metres, IK10 impact resistance, and operation across -40 to +60 degrees C make the P1468-LE a practical fit for exposed boundary installations where coverage distance, physical durability, and temperature tolerance all matter.
- Vehicle Entry and Exit Points: 4K resolution with on-device human and vehicle classification via AXIS Object Analytics supports licence plate detail capture and traffic monitoring at barriers and boom gates without requiring a separate analytics server.
- Critical Infrastructure and Utilities: NEMA 4X, signed firmware, and Axis Edge Vault cryptographic credentials address the physical and cybersecurity requirements common to utilities, transport hubs, and secure government facilities.
- Smart City and Multi-Vendor Urban Platforms: ONVIF Profiles G, M, S, and T alongside VAPIX and ACAP support allow direct integration into urban monitoring platforms without custom middleware or proprietary lock-in.
Why Choose the AXIS P1468-LE
The AXIS P1468-LE brings together resolution, on-device intelligence, and industrial-grade construction in a combination that standard outdoor bullets do not replicate. A fixed-lens 4K camera provides resolution but cannot be remotely reframed once mounted; the P1468-LE’s motorised varifocal lens with P-Iris control allows exact field-of-view adjustment via the network after installation, which matters on elevated or pole-mounted positions. Cameras without an integrated DLPU rely on a VMS or server for object classification; the P1468-LE runs AXIS Object Analytics on-device via the ARTPEC-8 chip, keeping analytics active independently of network availability. Forensic WDR at 120 dB and Lightfinder 2.0 together handle the mixed-lighting conditions at vehicle entry points that standard WDR cannot fully resolve. Axis Edge Vault provides cryptographic security at the hardware level, not just software configuration. Available through Security Wholesalers, the P1468-LE suits commercial, industrial, and infrastructure projects where both image intelligence and physical durability carry real weight. Note: this model is discontinued and has been replaced by the AXIS P1488-LE.
Buyer Decision Tips
Discontinued Model – Confirm Stock Before Ordering: The AXIS P1468-LE has been officially discontinued by Axis Communications. Units may remain available while stock lasts, but for new installations or system expansions, confirm current availability before specifying this model. The AXIS P1488-LE is the confirmed direct replacement and will provide better long-term firmware support, warranty coverage, and spares availability for projects with an extended operational horizon.
Varifocal Range and Minimum Scene Distance: The 6.2-12.9mm motorised varifocal lens is optimised for scenes at 8 metres and beyond, where the zoom range delivers genuine value for framing and detail. At the narrowest end, the 49-degree horizontal field of view is not suited to wide-angle close-range coverage such as an entranceway directly below the mount. If your primary scene is within 3-4 metres of the camera position and requires a broad view, a fixed wide-angle lens camera is a more appropriate choice for that application.
Key Features & Technical Specifications
| Model |
AXIS P1468-LE (02342-001) |
| Resolution |
8MP / 4K (3840 x 2160) |
| Frame Rate |
Up to 60fps at 3840 x 2160 |
| Lens Type |
Motorised varifocal, 6.2-12.9mm, P-Iris, IR corrected |
| Field of View (Horizontal) |
Approximately 108 degrees (wide) to 49 degrees (tele) |
| Field of View (Vertical) |
Approximately 58 degrees (wide) to 27 degrees (tele) |
| Low Light Performance |
Lightfinder 2.0 – approximately 0.07 lux colour; Optimized IR approximately 0 lux (IR active) |
| IR Range |
Up to 40 metres |
| WDR |
Forensic WDR up to 120 dB |
| Processor |
ARTPEC-8 with integrated DLPU |
| Video Compression |
H.265, H.264, MJPEG, MPEG-4 AVC; Axis Zipstream |
| Analytics |
AXIS Object Analytics – human and vehicle detection and classification (on-device) |
| Audio |
Audio input; configurable I/O terminals for external audio devices |
| Storage |
Built-in microSD slot for edge recording |
| Network Interface |
Gigabit Ethernet (GbE) |
| Ingress Protection |
IP66, IP67, IK10, NEMA 4X |
| Operating Temperature |
-40 degrees C to +60 degrees C |
| Wind Resistance |
Up to 50 m/s |
| Cybersecurity |
Axis Edge Vault – secure boot, signed firmware, certified cryptographic keystore |
| Protocols and Integrations |
VAPIX API, ONVIF Profiles G/M/S/T, ACAP, Axis Device Manager, Axis Site Designer |
Ideal Use Cases
Industrial Perimeter and Fence Lines
IK10 impact resistance, NEMA 4X corrosion protection, and operation down to -40 degrees C make the P1468-LE a practical fit for exposed boundary installations where heavy equipment, driven rain, and temperature extremes are all genuine site factors.
Vehicle Entry Points and Boom Gates
4K resolution combined with on-device vehicle classification via AXIS Object Analytics supports lane-specific coverage at barriers, with the motorised lens adjustable remotely to frame the exact approach lane width needed for licence plate detail capture at distance.
Roadway and Urban Traffic Monitoring
ONVIF Profile M and ACAP application support enable integration into smart city and traffic monitoring platforms. On-device classification reduces central processing load and allows real-time event alerting without dependency on a connected server.
Critical Infrastructure and Secure Facilities
Axis Edge Vault’s signed firmware and certified cryptographic keystore address the hardware-level cybersecurity requirements common in utilities, transport hubs, and government sites where software-only security controls are insufficient.
Large Campus and Multi-Station Deployments
Up to 20 configurable independent streams in VBR, ABR, MBR, and low-latency modes support deployments where multiple monitoring stations or integrated platforms require simultaneous access to the same camera feed without compromising stream quality.
Choosing the Right Model
- Choose this model if: You have confirmed stock on hand and your project requires 4K outdoor bullet coverage with motorised remote zoom, on-device AI classification via DLPU, and a housing that is rated IP66, IP67, IK10, and NEMA 4X in a single unit.
- Consider the replacement model if: This is a new project specification or a system expansion – the AXIS P1488-LE is the confirmed direct replacement for the discontinued P1468-LE and carries better long-term firmware support, warranty coverage, and spares availability.
- Choose a different product type if: Your primary scene is close-range at under 4 metres and requires a broad field of view directly below the mount – a fixed wide-angle lens camera is better suited to that coverage requirement than a varifocal bullet optimised for distance.
- Choose a different product type if: Your application requires active panning or tilting to track moving subjects across a wide area – a PTZ camera is the appropriate form factor for that coverage requirement, not a fixed-direction bullet housing.
FAQs
- Is the AXIS P1468-LE still available to purchase?
The P1468-LE has been officially discontinued by Axis Communications. Units may remain available while stock lasts, but for any new installation or system extension, stock levels should be confirmed before this model is specified. Security Wholesalers can advise on current availability and help with transition planning to the confirmed replacement model.
- What does the motorised varifocal lens allow that a standard fixed lens cannot?
The 6.2-12.9mm motorised varifocal lens can be adjusted remotely in zoom and focus via the camera’s network interface after physical installation is complete. This means the field of view can be narrowed from 108 degrees to 49 degrees horizontally, or any point in between, without accessing the camera physically – which is particularly useful when the unit is mounted on a pole, roofline, or elevated bracket.
- How does AXIS Object Analytics function without a connected server?
AXIS Object Analytics runs directly on the ARTPEC-8 chip using its integrated DLPU. The camera classifies objects as humans or vehicles on-device and can trigger event-based actions such as recording or notifications according to configured rules. This processing continues independently of VMS connectivity or network availability, which matters in remote or intermittently connected installations.
- What does Forensic WDR at 120 dB mean for a vehicle entry point installation?
Forensic WDR at up to 120 dB allows the camera to retain usable detail simultaneously in very bright and very shadowed zones within the same frame. At a vehicle entry gate, this means the camera can correctly expose a vehicle in shadow while also maintaining detail of a brightly lit background, without overexposing the sky or crushing the darker foreground area.
- Does the P1468-LE support two-way audio?
The camera includes an audio input and configurable I/O terminals for connecting external audio devices. However, a confirmed built-in microphone and built-in speaker combination is not present in this unit, so two-way audio communication is not an out-of-the-box capability of the P1468-LE.
- How far does the built-in IR reach, and how does the switch between colour and IR mode work?
Optimized IR on the P1468-LE is rated to approximately 40 metres, producing monochrome footage at approximately 0 lux. The auto IR-cut filter switches the sensor from colour imaging to IR mode automatically as ambient light drops below the threshold for Lightfinder 2.0 colour operation, and switches back at dawn without requiring manual intervention or scheduled rules.
- Is the P1468-LE housing suitable for coastal or chemically exposed outdoor environments?
The NEMA 4X rating confirms protection against corrosion, making the housing appropriate for coastal and marine-adjacent environments where salt air is a consistent factor. IP66 and IP67 ratings confirm dust exclusion and protection against water immersion. The operating range of -40 degrees C to +60 degrees C also covers high-altitude and sub-zero cold-climate industrial sites without requiring additional thermal housing.
