Product SKU: AXIS P1265
Product Overview
When a conventional camera cannot fit or must not be seen, the AXIS P1265 Mk II offers a fundamentally different approach to indoor surveillance. Built around a modular architecture, it separates a compact pinhole sensor unit from the main processing unit, connecting the two via a detachable cable that supports runs of up to 15 m. Only a pinhole opening remains visible at the sensor end, enabling installation behind panels, glass, or machine fascias where standard camera housings are not viable. Featuring 2MP HDTV 1080p resolution with a 91-degree horizontal field of view and Wide Dynamic Range, it maintains image clarity across varied indoor lighting conditions. Equipped with a deep learning processing unit (DLPU), it comes with AXIS Object Analytics pre-installed for on-camera object detection and classification. It also includes Axis Zipstream for reduced bandwidth and storage consumption, and AXIS Live Privacy Shield for privacy-sensitive environments. This makes it well suited to ATMs, self-checkouts, ticketing machines, automated parcel lockers, and medical equipment installations.
Key Capabilities

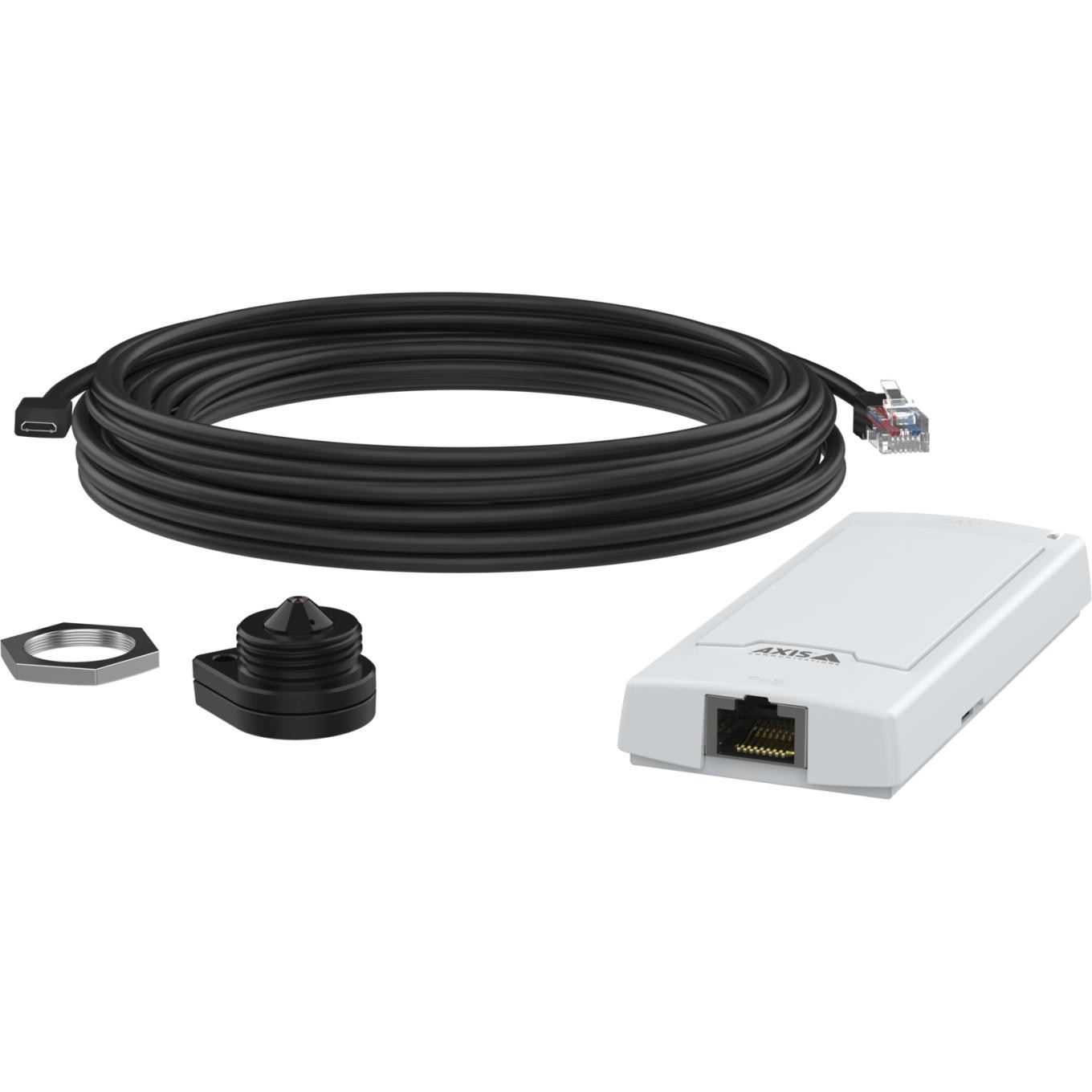

Modular Pinhole Design
The sensor unit and main unit are physically separated, connected by a detachable cable up to 15 m long. At the sensor end, only a pinhole opening is present, allowing concealment behind machine fascias, glass panels, or ceiling voids where no conventional camera housing could be installed.
2MP 1080p with Wide Dynamic Range
HDTV 1080p resolution with a 91-degree horizontal field of view captures useful scene detail across indoor environments. WDR maintains image clarity in locations with mixed or challenging lighting, such as near screens, windows, or artificially lit machine interiors.
Deep Learning Processing Unit
The onboard DLPU enables edge-based analytics without relying on server-side processing. AXIS Object Analytics comes pre-installed, allowing the camera to detect and classify object types directly on the device and trigger configurable rules and event responses accordingly.
Axis Zipstream Compression
Zipstream intelligently reduces bitrate during periods of low activity while preserving full detail when objects of interest are present. This lowers ongoing bandwidth and storage demands without affecting the quality of recorded footage during significant events.
AXIS Live Privacy Shield
Built-in privacy masking applies visual obscuring to identifiable individuals in the live video stream, allowing activity monitoring while supporting compliance obligations. This is particularly relevant in medical facilities, financial service environments, and other privacy-regulated indoor spaces.
Best For
- Embedded Machine Surveillance: The pinhole sensor unit integrates directly into ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines, where only a tiny opening needs to be exposed at the user-facing surface.
- Covert Indoor Monitoring: Installations requiring surveillance without alerting subjects, including loss prevention in retail environments or controlled access areas, benefit from the near-invisible sensor footprint.
- Constrained or Enclosed Spaces: The 15 m detachable cable between sensor and main unit means the sensor can occupy locations with no room for a housing, while the main unit is routed to a nearby cabinet, ceiling void, or enclosure.
- Analytics-Driven Deployments: Sites requiring on-camera object detection and classification without additional server-side hardware can use the pre-installed AXIS Object Analytics and the ACAP version 4 open application platform directly on the device.
Why Choose the AXIS P1265 Mk II
The AXIS P1265 Mk II occupies a category that standard dome or turret cameras cannot enter. Its modular architecture reduces the sensor footprint to a single pinhole, while the main unit, which carries the DLPU and all processing capability, can be installed up to 15 m away in a concealed location. This physical separation is not available on conventional fixed cameras and is the defining reason to specify this model over a standard mini dome in constrained or sensitivity-driven applications. The detachable cable also simplifies future servicing and upgrades without disturbing the sensor position. Combined with WDR, Zipstream, AXIS Object Analytics, ACAP version 4, and AXIS Live Privacy Shield, the P1265 Mk II provides an analytics-ready capability from a near-invisible sensor point. Available at Security Wholesalers as part of the broader AXIS Communications range, it is suited to integrators and end users who need discreet, analytics-capable indoor coverage in locations where visible cameras are impractical or inappropriate.
Buyer Decision Tips
Buyer Tip: The modular design requires planning for both the sensor placement and the main unit location before installation begins. The detachable cable between the two units supports a maximum run of 15 m, so confirm that your intended cable route from the pinhole position to the main unit enclosure is achievable within that distance. The main unit needs its own dedicated space, typically inside a machine cabinet, above a ceiling tile, or within a secure enclosure, and this space requirement should be scoped during site survey.
Key Features & Technical Specifications
| Model |
AXIS P1265 Mk II |
| Camera Type |
Indoor Modular Pinhole Camera |
| Resolution |
2MP / HDTV 1080p |
| Horizontal Field of View |
91 degrees |
| Wide Dynamic Range |
Yes |
| Processing Unit |
Deep Learning Processing Unit (DLPU) |
| Pre-installed Analytics |
AXIS Object Analytics |
| Open Application Platform |
ACAP version 4 |
| Video Compression |
Axis Zipstream |
| Privacy Feature |
AXIS Live Privacy Shield |
| Sensor-to-Main Unit Cable |
Detachable, up to 15 m |
| Installation Type |
Modular, sensor unit and main unit physically separate |
| Environment |
Indoor |
| Typical Applications |
ATMs, ticketing machines, self-checkouts, automated parcel lockers, medical machines |
Ideal Use Cases
ATM and Kiosk Monitoring
The pinhole sensor fits within the fascia of ATMs and self-service kiosks, capturing transaction-area footage without any visible housing. The 91-degree field of view and 1080p resolution record sufficient scene detail for incident review and identification purposes.
Retail Self-Checkout Surveillance
Integrated into self-checkout terminals, the camera monitors transaction behaviour without a visible dome or housing. AXIS Object Analytics supports detection and classification events that can flag anomalies at the edge, reducing the need for continuous manual monitoring of live feeds.
Medical and Clinical Equipment
In clinical environments where patient privacy must be maintained, AXIS Live Privacy Shield allows activity and event monitoring while obscuring identifiable individuals in the live stream. The discreet sensor format avoids disrupting the aesthetic of clinical or patient-facing spaces.
Automated Parcel Locker Facilities
The sensor unit mounts within parcel locker enclosures to monitor collection and deposit activity, while the main unit sits separately inside the cabinet. This keeps all processing hardware away from the user-facing surface and maintains a clean external appearance.
Sensitive Indoor Spaces Requiring Covert Coverage
Interview rooms, secure access lobbies, and areas where visible cameras may influence behaviour are well suited to the P1265 Mk II. The near-invisible sensor profile allows monitoring to occur without the psychological effect associated with a conventional visible camera housing.
Choosing the Right Model
- Choose this model if: You need to install a camera inside a machine, behind a panel, or in a space where only a pinhole opening is feasible, and the 15 m sensor-to-main-unit cable run provides enough flexibility to route to a concealed main unit location.
- Choose a different model if: Your installation is a standard indoor ceiling or wall position with no space constraint. A conventional mini dome or fixed indoor turret will deliver a simpler single-unit installation with less routing complexity and lower cost per camera point.
- Choose this model if: On-camera analytics via AXIS Object Analytics and ACAP version 4 application support are part of your system design and you need those capabilities delivered from a covert indoor sensor format.
- Choose a different model if: You require outdoor weatherproofing, IR night vision, or a higher-resolution sensor, as none of those capabilities are part of this model’s confirmed specification.
FAQs
- How far apart can the sensor unit and main unit be installed?
The sensor unit connects to the main unit via a detachable cable with a maximum supported length of 15 m. This allows the pinhole sensor to be positioned at the point of interest, such as an ATM fascia or panel cutout, while the main unit is routed to a concealed enclosure or cabinet within that distance.
- Can the sensor unit be installed behind glass or a metal panel?
Yes. The modular design was developed specifically for installation behind glass, metal panels, and machine fascias where a conventional camera housing would not fit. Only the pinhole opening needs to be accessible at the mounting surface, making it compatible with a wide range of embedded and recessed installation scenarios.
- What does AXIS Object Analytics detect on this camera?
AXIS Object Analytics is pre-installed and runs on the onboard DLPU. It detects and classifies objects in the scene, including people and vehicles, and can trigger configurable rules or alerts based on those detections. All processing happens directly on the camera without requiring a separate analytics server or additional licensing.
- What is AXIS Live Privacy Shield and when should it be used?
AXIS Live Privacy Shield applies visual masking to individuals in the live video stream, allowing operators to monitor activity and events without displaying identifiable people on screen. It is relevant for deployments in medical facilities, financial service environments, or any site where live monitoring is subject to privacy compliance obligations.
- Is this camera suitable for outdoor installation?
No. The AXIS P1265 Mk II is an indoor camera and does not carry a weatherproofing rating for outdoor use. It is designed for controlled indoor environments, including embedded machine applications, offices, and indoor spaces with privacy or concealment requirements.
- Does the AXIS P1265 Mk II support third-party applications?
Yes. The camera supports ACAP version 4, Axis’s open application platform, which allows compatible third-party and custom deep learning applications to be deployed directly on the camera at the edge. Security Wholesalers can assist with confirming ACAP application compatibility for specific project requirements.
