Product SKU: M5526-E
Product Overview

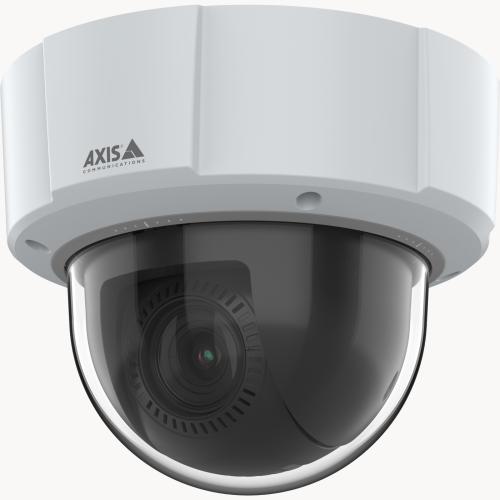

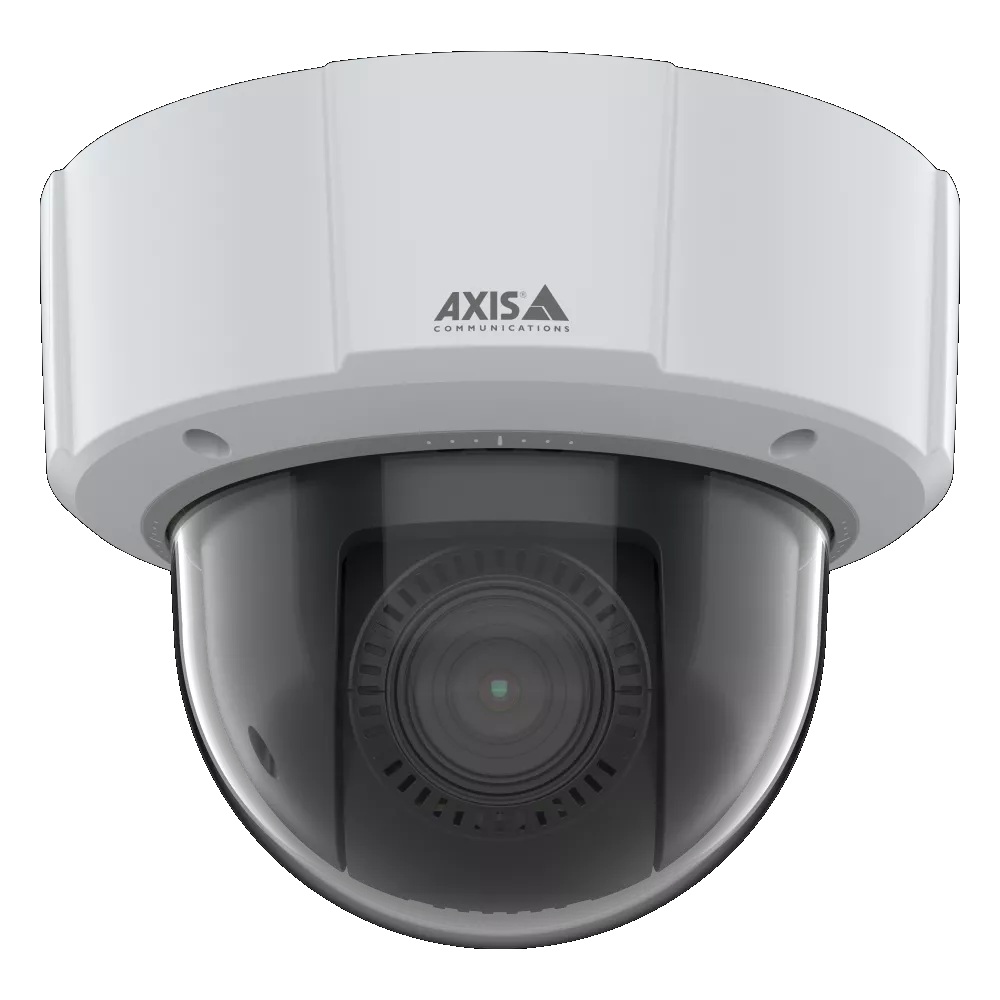

Covering a lobby, retail floor, or commercial entry from a single mounting point is where the AXIS M5526-E PTZ Camera earns its place in a project design. This compact dome houses a 4MP sensor capturing at 2688 x 1512 resolution, paired with a 4.7-47mm varifocal lens delivering 10x optical zoom across a horizontal field of view from 59.1 degrees at wide angle down to 6.5 degrees at telephoto. Continuous 360-degree endless pan and 0-90-degree tilt mean there is no mechanical hard stop limiting coverage direction, making the camera practical for spaces where activity moves unpredictably. Equipped with Axis’s ARTPEC-8 processor and a built-in deep learning processing unit, it runs AXIS Object Analytics on-camera to classify people and vehicles without external server dependency. Built with Forensic WDR and Lightfinder 2.0, the M5526-E handles mixed-light environments including glazed entries and partially shaded covered areas. IP66 and IK09 ratings support covered outdoor and vandal-exposed positions, while PoE Class 3 keeps installation to a single Ethernet cable run.
Key Capabilities
10x Optical Zoom with Focus Recall
The 4.7-47mm lens spans from a wide 59.1-degree horizontal view down to a 6.5-degree telephoto angle. Focus recall stores a saved focus plane at each guard tour preset, so when the camera returns to a named position it restores sharp focus immediately rather than waiting for autofocus to hunt and settle across different zoom levels and subject distances.
Continuous 360-Degree Endless Pan
The M5526-E pans continuously in either direction without a mechanical end stop, pairing with a 0-90-degree tilt range. This matters in open retail floors, entrance halls, and covered courtyards where activity appears from any direction and a camera with a fixed travel limit would require repositioning to maintain full scene coverage.
On-Camera AI via ARTPEC-8
A dedicated deep learning processing unit built into the ARTPEC-8 chip runs AXIS Object Analytics directly on the camera, classifying humans, vehicles, and vehicle types at the edge. Sites with no analytics server infrastructure benefit from this arrangement, as classification and event triggering occur at the camera without adding server load or network latency to the system.
Forensic WDR and Lightfinder 2.0
Forensic WDR processes scenes where bright and dark zones appear together, such as a glazed shopfront entry or a covered walkway open to sky on one side. Lightfinder 2.0 extends usable colour video down to 0.25 lux and black-and-white operation to 0.01 lux, maintaining footage quality in dimly lit interiors and partially shaded covered outdoor positions.
IP66 and IK09 Outdoor Protection
IP66 dust and water ingress protection qualifies the M5526-E for covered outdoor locations exposed to weather, while IK09 impact resistance provides durability where the camera may be subject to deliberate or accidental contact. An operating temperature range of -20 to 50 degrees Celsius supports deployment across a wide range of Australian site conditions.
Zipstream Compression with H.264 and H.265
Axis Zipstream reduces bitrate dynamically when scene content is static, while preserving full image detail during activity. Combined with H.264 and H.265 encoding, this lowers both storage requirements and network bandwidth consumption across multi-camera deployments where recording efficiency is a practical constraint in system planning and storage budgeting.
Best For
- Multi-Zone Coverage from a Single Mount: Continuous 360-degree pan and 10x optical zoom allow the M5526-E to monitor entrances, service counters, and walkways from one ceiling or wall position, reducing the camera count needed in medium-sized retail, commercial, and covered outdoor spaces.
- Sites Needing Edge AI Without a Server: AXIS Object Analytics runs on the ARTPEC-8 processor without offloading to external infrastructure, making the M5526-E suited to installations where classifying people and vehicle events at the camera itself reduces system complexity and avoids adding server hardware to the design.
- Mixed-Light Interiors and Covered Outdoor Entries: Forensic WDR and Lightfinder 2.0 together handle reception areas, hotel foyers, covered car park entries, and external zones with significant contrast between natural and artificial light sources, maintaining usable colour footage without requiring dedicated infrared illumination in these environments.

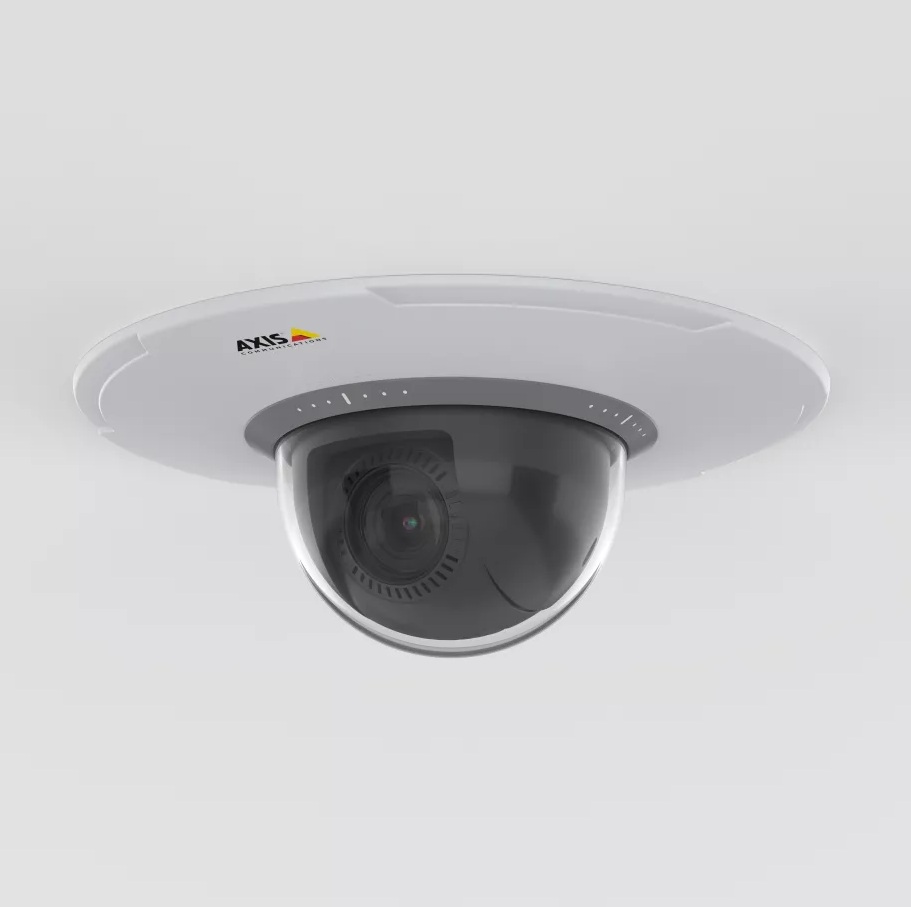

- Spaces Where Camera Profile Matters: The compact dome housing keeps the M5526-E visually lower-profile than a traditional full-sized PTZ housing, which is a practical consideration in hospitality, education, and public-facing facilities where site owners or operators prefer a less conspicuous camera body on the ceiling or wall.
Why Choose the AXIS M5526-E
The AXIS M5526-E targets a specific gap in PTZ deployment: compact dome form factor, genuine outdoor protection, on-camera AI classification, 10x optical zoom, and focus recall, all delivered over a single PoE Class 3 cable. A fixed varifocal dome can cover a defined zone but cannot pan to track movement across an open floor or zoom onto a vehicle entry lane on operator demand. A larger PTZ unit can do both, but adds a housing footprint that does not suit retail ceilings, hotel lobbies, or campus common areas where visual profile matters to site management. The ARTPEC-8 chip runs AXIS Object Analytics, AXIS Speed Monitor, and AXIS Scene Metadata directly on the M5526-E, so classification and alerting happen at the edge without server dependency. Focus recall is a practical differentiator in guard tour configurations, eliminating the autofocus lag that affects image sharpness when a PTZ transitions between widely different zoom depths and subject distances. Available at Security Wholesalers, the M5526-E suits integrators specifying a PTZ that combines analytics capability, outdoor resilience, and a compact dome profile within a single unit.
Buyer Decision Tips
No Built-In IR Illumination: The M5526-E does not include infrared illumination. Lightfinder 2.0 maintains usable colour video down to 0.25 lux and black-and-white down to 0.01 lux, but locations that are genuinely dark after hours with no ambient light source, such as unlit external yards or basement-level car parks, will require external lighting to support adequate footage quality. Confirm ambient light levels at each proposed camera position before specifying this model as the sole coverage solution for after-hours monitoring at those specific locations.
Audio and I/O Connectivity Requires External Devices: The M5526-E provides audio input and output ports along with 4 alarm inputs and outputs, but does not include a built-in microphone. If audio capture at the camera position is part of the installation brief, an external microphone must be included in the hardware specification and cabling plan from the outset. Alarm I/O connections to door contacts, sirens, or other peripheral devices also need to be accounted for in the cable run design before the camera is ordered and installed.
Key Features & Technical Specifications
| Model |
AXIS M5526-E |
| Part Number |
02768-001 |
| Product Type |
Indoor / Outdoor PTZ Network Camera |
| Maximum Video Resolution |
2688 x 1512 |
| Resolution Class |
4MP |
| Maximum Frame Rate |
50/60 fps |
| Image Sensor |
1/3″ CMOS |
| Lens |
4.7-47mm varifocal |
| Optical Zoom |
10x |
| Digital Zoom |
12x |
| Horizontal Field of View |
59.1 degrees (wide) to 6.5 degrees (telephoto) |
| Vertical Field of View |
35 degrees (wide) to 3.67 degrees (telephoto) |
| Pan Range |
360 degrees endless pan |
| Tilt Range |
0 to 90 degrees |
| Minimum Illumination |
0.25 lux colour / 0.01 lux black and white |
| Low-Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| Built-In IR |
No |
| Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
AXIS Object Analytics, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection |
| Deep Learning |
Built-in deep learning processing unit (ARTPEC-8) |
| Audio Support |
Yes (external audio input and output ports) |
| Built-In Microphone |
No |
| Alarm I/O |
4 alarm inputs/outputs |
| Local Storage |
Memory card slot supported |
| Power |
Power over Ethernet, PoE Class 3 |
| IP Rating |
IP66 |
| Vandal Rating |
IK09 |
| Operating Temperature |
-20 to 50 degrees Celsius |
| Cybersecurity |
Signed OS, secure boot, Axis Edge Vault |
Ideal Use Cases
Retail Floors and Shop Entries
A single M5526-E at a central ceiling position can pan continuously across an entire shop floor and zoom to 10x optical on a specific counter, fitting room entry, or exit point. AXIS Object Analytics classifies customer movement from background motion, supporting event-driven recording that reduces storage consumption compared to constant full-frame capture across the day.
Hotel Lobbies and Hospitality Foyers
The compact dome form factor suits hospitality environments where a lower-profile camera body is preferred over a large traditional PTZ housing. Forensic WDR manages the contrast between bright glazed entry doors and dimmer lobby interiors, while IP66 and IK09 ratings extend suitability to covered external drop-off points and entry canopy positions adjacent to the foyer.
Commercial Building Entries and Access Points
Positioned above a building entry, the M5526-E can monitor multiple approach paths using saved PTZ presets. Focus recall returns the camera to sharp focus at each stored position when cycling between a wide pedestrian approach view and a closer look at a vehicle entry lane, intercom station, or access control reader without autofocus delay.
Education Campuses and Covered Walkways
School halls, undercover common areas, and open-plan shared spaces benefit from the M5526-E’s ability to sweep across wide areas and zoom onto specific activity. IK09 impact resistance provides durability in environments where contact with camera housings can occur, and Lightfinder 2.0 maintains colour video quality in partially shaded covered zones throughout the day.
Public Spaces and Transport Facilities
Sheltered platforms, ticketing concourses, and public entry points can be monitored using guard tour presets combined with AXIS Speed Monitor and AXIS Scene Metadata. These on-camera analytics extend situational awareness for operators managing movement across higher-traffic public environments, with all processing handled on the ARTPEC-8 chip without external server dependency.
Choosing the Right Model
- Choose this model if: You need a compact PTZ dome that covers multiple zones from one mounting point, with 10x optical zoom, focus recall for sharp guard tour presets, on-camera AI classification via AXIS Object Analytics on the ARTPEC-8 processor, and IP66/IK09 outdoor protection powered by a single PoE Class 3 cable.
- Choose a different model if: The installation includes positions that are genuinely unlit after hours with no ambient light source. A camera with integrated infrared illumination would be better suited to those specific locations, as Lightfinder 2.0 requires some residual ambient light to maintain usable colour output and cannot compensate for complete darkness.
- Choose a different model if: Coverage at a location is a single fixed direction with no operational need to pan, tilt, or zoom during normal use. A fixed-lens dome or varifocal dome camera would deliver comparable 4MP image quality at a lower unit cost for static, single-direction positions where the PTZ functionality of the M5526-E adds no practical monitoring benefit.
FAQs
- Is the AXIS M5526-E suitable for outdoor installation?
Yes. The M5526-E carries an IP66 rating for dust and water ingress protection and an IK09 impact resistance rating, making it suitable for covered outdoor locations such as building entries, commercial forecourts, covered walkways, and external hospitality areas. Its operating temperature range of -20 to 50 degrees Celsius supports installation across the range of Australian climate conditions without requiring additional thermal management accessories.
- What is focus recall and how does it benefit a PTZ guard tour?
Focus recall stores a predefined focus setting for each saved preset position on the M5526-E. When a PTZ camera transitions between preset positions at different zoom depths and subject distances, standard autofocus can lag or hunt before stabilising on the correct focal plane. Focus recall bypasses this by restoring the saved focus value the moment the camera arrives at a preset, keeping footage sharp at every monitored zone during a guard tour without any settling delay.
- Does the AXIS M5526-E have built-in infrared illumination?
No, the M5526-E does not include integrated IR illumination. It relies on Lightfinder 2.0 for low-light performance, maintaining usable colour video down to 0.25 lux and black-and-white operation down to 0.01 lux. Locations that have no ambient light source after hours will need external lighting factored into the site design to maintain adequate footage quality at those positions.
- Which analytics does the AXIS M5526-E run on-camera?
The ARTPEC-8 processor includes a dedicated deep learning processing unit that runs AXIS Object Analytics directly on the camera, classifying humans, vehicles, and vehicle types without requiring an external analytics server. The M5526-E also supports AXIS Scene Metadata, AXIS Speed Monitor, and AXIS Video Motion Detection, all processed at the edge and available without additional server infrastructure or software licensing for those built-in capabilities.
- How is the AXIS M5526-E powered and what cable does it need?
The M5526-E is powered via Power over Ethernet at PoE Class 3. A single Cat5e or Cat6 Ethernet cable from a compatible PoE switch or injector carries both data and power to the camera at each mounting position. This eliminates the need for a separate mains power cable at the camera, simplifies ceiling and wall-mount installation, and reduces the number of cable types required across the installation.
- Does the AXIS M5526-E support audio capture, and what is needed for it?
The M5526-E provides external audio input and output ports and includes 4 alarm inputs and outputs for connecting peripheral devices such as door contacts or sirens. It does not have a built-in microphone, so audio capture at the camera location requires an external microphone connected to the audio input port. This needs to be included in the hardware specification and cabling plan before installation. The M5526-E is offered through Security Wholesalers and is suited to deployments where audio is integrated as part of a broader system design rather than a built-in standalone feature.
