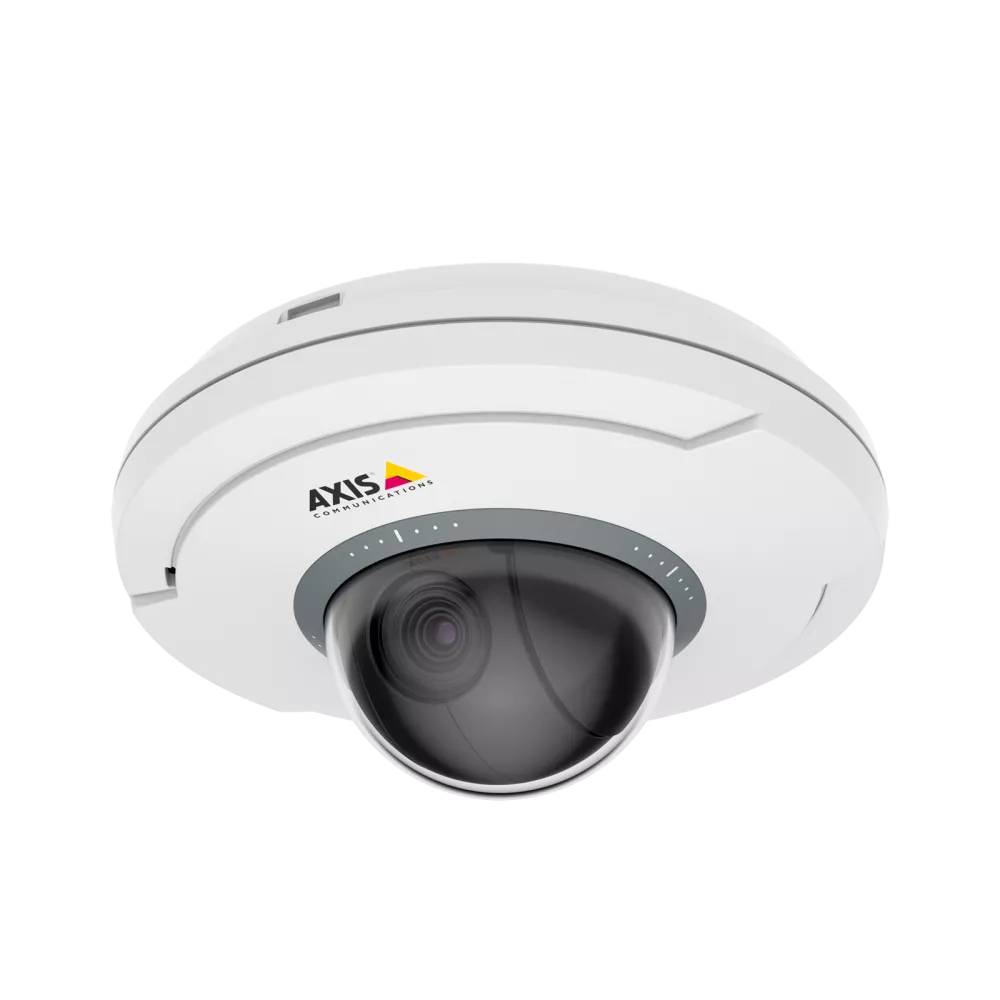

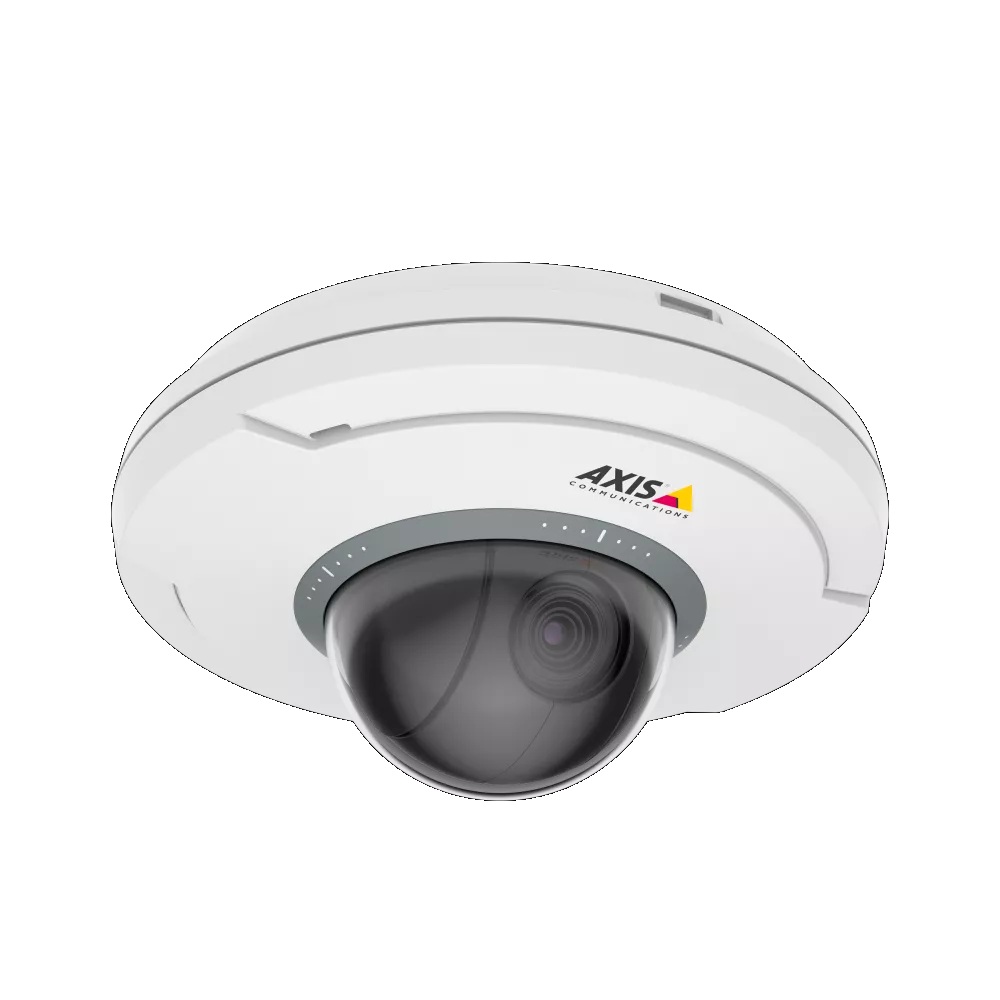

Product SKU: AXIS M5074
Product Overview
For indoor sites that need flexible PTZ coverage without a large or obtrusive camera head, the AXIS M5074 offers a palm-sized solution suited to retail floors, reception areas, offices, classrooms, and small commercial spaces. Featuring HDTV 720p video, a 2.2-11.0mm motorised lens with 5x optical zoom, and autofocus, the camera can sweep across a room and close in on specific points of interest without sacrificing optical quality. Built with Forensic WDR to handle mixed lighting from windows and artificial sources, it maintains useful detail in the challenging contrast conditions common in indoor environments. It also includes a built-in microphone, audio analytics, video motion detection, Axis Zipstream with H.264/H.265 compression, PoE Class 3 support, and a memory card slot for local storage. With an IP51 rating and an operating temperature range of 0°C to 45°C, it is designed exclusively for protected indoor installations.
Key Capabilities
Compact Indoor PTZ Control
The AXIS M5074 provides pan up to ±179° and tilt up to 90° in a palm-sized body that fits discreetly on indoor ceilings and wall mounts. This makes it practical for retail stores, reception desks, corridors, and office spaces where a full-sized PTZ unit would be visually out of place.
5x Optical Zoom with Autofocus
The 2.2-11.0mm motorised lens delivers 5x optical zoom, shifting the horizontal field of view from 71° down to 14°. Autofocus maintains sharpness as zoom position changes, so operators can move from a wide room overview to closer detail on a counter or doorway without losing image clarity.
Forensic WDR for Mixed Lighting
Forensic WDR preserves detail simultaneously in bright and dark areas within the same frame. In indoor spaces with windows, glass doors, bright retail displays, or variable artificial lighting, this helps maintain usable footage where standard cameras would lose shadow or highlight detail.
Built-In Microphone and Audio Analytics
The built-in microphone enables audio detection and supports audio analytics including audio volume detection and scream detection. These functions allow the camera to trigger events based on sound, adding a layer of awareness in indoor environments where incidents may be audible before they are visually apparent.
Zipstream Compression with H.264/H.265
Axis Zipstream reduces bandwidth and storage demands while preserving important image detail. With both H.264 and H.265 supported, the AXIS M5074 integrates efficiently into modern network video systems and helps keep storage costs manageable across multi-camera installations in smaller commercial sites.
Best For
- Indoor Retail Monitoring: The pan and tilt range combined with 5x optical zoom lets a single camera cover a shop floor at wide angle and close in on a service counter or entry point without repositioning.
- Reception and Lobby Areas: The compact, palm-sized body blends into ceiling installations without drawing attention, while Forensic WDR handles the backlit conditions common near glass entries and bright foyer lighting.
- Education and Office Spaces: Built-in audio analytics and video motion detection make this camera useful in classrooms, administration areas, and open offices where both visual and audio-based event triggers can improve monitoring responsiveness.
- Small Commercial Installations Requiring PoE Simplicity: PoE Class 3 support allows power and data over a single Ethernet cable, reducing wiring complexity in clinics, showrooms, and professional suites where a tidy installation matters.
Why Choose the AXIS M5074
Where a fixed-lens dome can only cover one predetermined angle, the AXIS M5074 adds full PTZ control and 5x optical zoom in a form factor small enough to install unobtrusively on an indoor ceiling. Unlike larger PTZ units designed for wide outdoor areas, this camera is engineered specifically for confined indoor spaces where appearance, proportionality, and discreet placement matter. The Forensic WDR capability handles the kind of mixed-lighting scenes found in retail and reception environments where standard cameras often struggle. Built-in audio analytics, AXIS Image Health Analytics, and active tampering alarm extend the camera’s usefulness beyond simple video recording. Zipstream with H.265 keeps storage and bandwidth demands practical, while PoE Class 3 simplifies cabling. The AXIS M5074 is available at Security Wholesalers and offers a well-supported Axis indoor PTZ option for smaller sites that need coverage flexibility without a large camera footprint.
Buyer Decision Tips
Buyer Tip 1 – No Built-In IR: The AXIS M5074 does not include infrared illumination and has a minimum colour sensitivity of 0.1 lux. It is designed for indoor environments that maintain adequate ambient lighting at all times. If the installation includes rooms that are fully unlit after hours, supplementary lighting or a camera model with built-in IR illumination will be required to capture usable footage in those conditions.
Buyer Tip 2 – Resolution and Coverage Trade-Off: The AXIS M5074 records at HDTV 720p, which is suited to smaller indoor spaces where the camera is positioned close to the area of interest. In larger rooms where the camera must rely heavily on digital zoom beyond the 5x optical range, image detail will reduce. For larger open-plan interiors requiring higher resolution at extended zoom distances, a 1080p or higher resolution PTZ model may better suit the monitoring requirement.
Key Features & Technical Specifications
| Model |
AXIS M5074 |
| Product Type |
Compact Indoor PTZ Network Camera |
| Maximum Video Resolution |
1280 x 720 (HDTV 720p) |
| Resolution Class |
1MP / 720p |
| Maximum Frame Rate |
50/60 fps |
| Image Sensor |
1/2.8″ CMOS |
| Lens |
2.2-11.0mm motorised varifocal with autofocus |
| Optical Zoom |
5x |
| Digital Zoom |
12x |
| Horizontal Field of View |
71° (wide) to 14° (telephoto) |
| Vertical Field of View |
40° (wide) to 8° (telephoto) |
| Pan Range |
±179° |
| Tilt Range |
90° |
| Minimum Illumination |
0.1 lux (colour) |
| Wide Dynamic Range |
Forensic WDR |
| Built-In IR |
No |
| Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
AXIS Image Health Analytics, video motion detection, active tampering alarm, audio detection |
| Built-In Microphone |
Yes |
| Local Storage |
Memory card slot supported |
| Power |
Power over Ethernet, PoE Class 3 |
| IP Rating |
IP51 |
| Outdoor Rated |
No, indoor use only |
| Operating Temperature |
0°C to 45°C |
| Cybersecurity |
Signed OS and built-in cybersecurity features |
Ideal Use Cases
Retail Shop Floors
The pan/tilt range and 5x optical zoom allow a single AXIS M5074 to monitor multiple areas of a shop floor, then close in on a counter or entry point when needed. Forensic WDR helps manage contrast between bright display lighting and shaded aisles.
Reception and Waiting Areas
The compact body installs discreetly on reception ceilings where a large PTZ head would be impractical. Forensic WDR handles backlit conditions near entry glass, and audio detection can flag unusual sound events in otherwise quiet waiting spaces.
Classrooms and Education Facilities
Audio analytics including scream detection provide an additional layer of awareness in classroom and corridor environments. The compact profile and PoE Class 3 connection keep installation tidy and straightforward in buildings where cable routing is a consideration.
Clinics and Professional Suites
For healthcare and professional environments where discretion and minimal visual impact matter, the palm-sized AXIS M5074 provides flexible PTZ coverage from a single ceiling mount without dominating the room. Local storage via memory card adds a fallback recording option independent of the main NVR.
Indoor Entry Points and Corridors
Internal doors, vestibules, and hallway intersections often combine artificial lighting with daylight spill from outside. Forensic WDR and autofocus help the AXIS M5074 maintain usable detail across these mixed-lighting transitions, while PTZ control lets operators redirect the view along a corridor without installing additional cameras.
Choosing the Right Model
- Choose this model if: You need a compact indoor PTZ camera with 5x optical zoom, Forensic WDR, audio analytics, and Zipstream compression for a retail, office, reception, education, or small commercial space where the camera must remain unobtrusive and the room maintains adequate ambient lighting at all times.
- Choose a different model if: The installation is outdoors or in a partially exposed indoor area, as the AXIS M5074 is rated IP51 for protected indoor use only. If the monitoring area is fully unlit after hours, a camera with built-in IR illumination is required. If the space is large and the application demands consistent detail at greater distances, a higher-resolution PTZ with a longer zoom range may be more appropriate.
FAQs
- Can the AXIS M5074 be used outdoors?
No. The AXIS M5074 carries an IP51 rating, which provides limited protection against dust and dripping water but is not designed for outdoor or weather-exposed installations. It is intended for controlled indoor environments such as retail stores, offices, reception areas, corridors, and classrooms. An outdoor-rated Axis camera with appropriate weather and temperature protection should be used for any external or partially exposed location.
- Does the AXIS M5074 have infrared night vision?
No, the camera does not include built-in IR illumination. It is designed for indoor spaces with continuous ambient lighting and has a minimum colour sensitivity of 0.1 lux. If a room is completely unlit during after-hours periods, a camera with integrated IR or supplementary artificial lighting will be needed to capture usable footage in those conditions.
- What is the difference between the 5x optical zoom and the 12x digital zoom?
The 5x optical zoom uses the physical movement of the 2.2-11.0mm lens to magnify a scene, preserving image detail as the field of view narrows. The 12x digital zoom enlarges the image electronically beyond the optical limit, which reduces detail quality at higher magnification. For the best results when zooming in on a counter, doorway, or activity zone, the optical zoom range should be used first before engaging digital enlargement.
- What analytics does the AXIS M5074 support?
The camera includes video motion detection, active tampering alarm, AXIS Image Health Analytics, and audio detection. Audio analytics cover audio volume detection and scream detection, allowing the camera to trigger events based on sound levels as well as visual movement. These built-in analytics functions operate without requiring additional software licences for basic use.
- How is the AXIS M5074 powered and connected?
The AXIS M5074 uses Power over Ethernet at PoE Class 3, meaning a single Cat5e or Cat6 Ethernet cable carries both power and network data to the camera when connected to a compatible PoE switch or injector. This reduces cabling complexity and makes the installation cleaner, which is particularly useful in retail fit-outs, office spaces, and professional environments where tidy cabling matters.
- Does the AXIS M5074 support local storage?
Yes, the camera includes a memory card slot for local storage. This allows footage to be recorded directly to the camera independently of a network video recorder, providing a fallback recording option if network connectivity is interrupted. The AXIS M5074 is part of the Security Wholesalers range, and the datasheet linked below provides further detail on supported card specifications and storage configurations.
