Product SKU: M5000
Product Overview

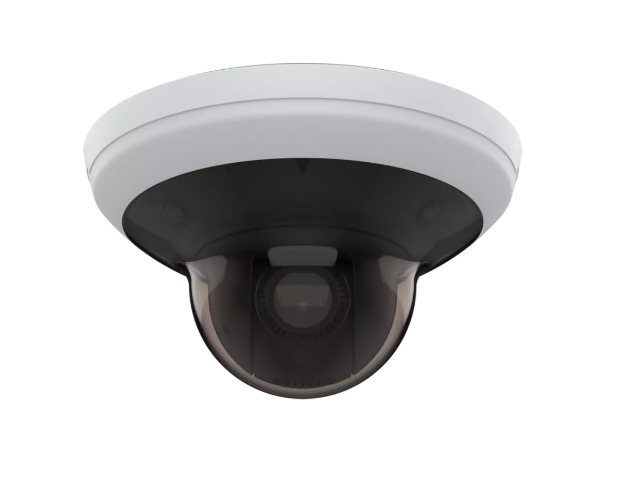

Wide-area indoor monitoring from a single ceiling position is the specific challenge the Axis M5000-G is engineered to address. This compact multi-sensor PTZ dome combines 3 x 5MP panoramic sensors delivering continuous 360-degree coverage with an integrated 10x optical zoom PTZ channel, all within one ceiling-mount unit. Both streams operate simultaneously, meaning an operator can direct the PTZ to a point of interest without any interruption to the full-room panoramic recording. Equipped with Axis Object Analytics running on-device for people and vehicle classification, Wide Dynamic Range for scenes with mixed lighting, and PoE+ for single-cable ceiling deployment, the M5000-G suits retail floors, corporate lobbies, airport terminals, and other large public-facing interiors. It integrates with Axis Camera Station and third-party VMS platforms, and includes signed firmware, secure boot, and end-to-end encryption as part of its built-in cybersecurity architecture. This model has no IR illumination and is rated for indoor installation only.
Key Capabilities
360-Degree Multi-Sensor Panoramic Coverage
Three 5MP sensors produce a continuous, seamless 360-degree overhead view with no gaps in coverage. For large open-plan spaces such as retail floors or transit concourses, this eliminates the need for multiple fixed cameras positioned around the perimeter to achieve equivalent situational awareness from a single ceiling mount.
Integrated 10x Optical Zoom PTZ
The dedicated PTZ channel delivers 10x optical zoom for directed, detailed inspection of any specific area within the scene. It operates concurrently with the panoramic sensors, so directing the PTZ to an incident location does not suspend or interrupt the continuous full-room overview being captured by the 3 multi-sensors.
Axis Object Analytics On-Device
Object Analytics processes people and vehicle classification directly on the camera hardware, without requiring server-side computation. Configurable rule-based alerts allow automated event responses across high-footfall environments, reducing manual monitoring workload and the processing overhead placed on the VMS in multi-camera deployments.
Wide Dynamic Range
WDR manages exposure across scenes where bright overhead artificial lighting, natural window light, and shadowed floor areas exist within the same frame simultaneously. This is directly relevant in lobbies, retail atria, and educational buildings where lighting varies significantly across different parts of the monitored space.
PoE+ Single-Cable Ceiling Deployment
Power and data are carried over a single Ethernet cable via PoE+ (IEEE 802.3at), removing the need for a separate power run to the ceiling mounting point. This aligns with the structured network cabling infrastructure already present in commercial and institutional buildings, simplifying installation without adding additional conduit or cabling pathways.
Hardware-Level Cybersecurity Architecture
Signed firmware, secure boot, and end-to-end encryption are embedded at the device hardware level. Signed firmware prevents unauthorised or tampered code from executing. Secure boot verifies software integrity at startup. End-to-end encryption protects video data in transit, addressing formal network security compliance requirements in enterprise, government, and education environments.
Best For
- Large Retail Sales Floors: The 360-degree panoramic view covers an entire floor from a single overhead mount, eliminating aisle blind spots. When Object Analytics triggers an alert near a checkout or exit, the integrated 10x optical zoom PTZ can be directed to that location instantly without any disruption to the ongoing panoramic recording across the rest of the floor.
- Airport and Transit Terminals: High-footfall public zones such as departure lounges, ticketing halls, and concourse areas require simultaneous wide-area crowd awareness and the ability to zoom directly to individual incidents. The M5000-G delivers both functions concurrently from a single ceiling unit, reducing the camera infrastructure required in architecturally prominent public spaces.
- Corporate Lobbies and Reception Areas: The compact dome form factor integrates cleanly into reception and foyer ceilings. PoE+ single-cable deployment suits existing commercial structured cabling, and the signed firmware and secure boot protections directly address the network governance requirements common in enterprise IT environments.
- Educational and Civic Venues: Libraries, auditoriums, and multipurpose halls gain complete room coverage from a single overhead mount. WDR handles the variable natural and artificial lighting typical of educational buildings, and configurable Object Analytics rules allow automated after-hours alerts without requiring continuous manual oversight of each monitored space.
Why Choose the Axis M5000-G
The M5000-G solves a specific design problem in large indoor camera planning: delivering both continuous 360-degree situational awareness and directed close-up zoom detail from the fewest possible ceiling mounting points. Combining 3 x 5MP panoramic sensors with an integrated 10x optical zoom PTZ in one compact dome unit replaces what would otherwise require a cluster of fixed cameras plus a separate PTZ, reducing hardware count, cable runs, and installation labour in a single product. Axis Object Analytics processing on-device lowers VMS server load in large multi-camera deployments, where server capacity is a genuine design constraint. The cybersecurity features, including signed firmware, secure boot, and end-to-end encryption, exceed what standard commercial cameras provide and are directly relevant in enterprise, government, and education projects with formal network compliance requirements. Available through Security Wholesalers, the M5000-G is suited to integrators and security managers who need to reduce camera count and cabling complexity while meeting demanding indoor coverage and compliance requirements from a single device.
Buyer Tip: The M5000-G requires PoE+ (IEEE 802.3at), which supplies up to 30W per port. Standard PoE (IEEE 802.3af, up to 15.4W) will not power this camera. Before ordering, confirm that every switch port or midspan injector port assigned to an M5000-G is rated IEEE 802.3at. Budget and mixed-spec PoE switches often include both port types without clearly labelling each one, and an undersupplied port will prevent the camera from operating.
Buyer Tip: The M5000-G has no built-in IR illumination and is designed for indoor use only. It requires ambient artificial lighting to produce usable footage. If the monitored space goes completely dark outside business hours and IR night vision capability is needed, this model is not appropriate for that application. A controlled lighting source must remain active in the monitored environment for this camera to function as intended in low-light periods.
Key Features & Technical Specifications
| Model |
Axis M5000-G |
| Camera Type |
Multi-sensor PTZ dome (indoor) |
| Panoramic Sensors |
3 x 5MP |
| Panoramic Coverage |
360 degrees |
| PTZ Optical Zoom |
10x optical zoom |
| Simultaneous Streams |
Panoramic and PTZ channels operate concurrently |
| IR Illumination |
None |
| Wide Dynamic Range |
Yes |
| On-Device Analytics |
Axis Object Analytics (people and vehicle detection and classification) |
| Power Input |
PoE+ (IEEE 802.3at) |
| Installation Type |
Indoor ceiling mount |
| Housing Design |
Compact dome |
| VMS Compatibility |
Axis Camera Station and third-party VMS platforms |
| Cybersecurity |
Signed firmware, secure boot, end-to-end encryption |
| Environment Rating |
Indoor only |
Ideal Use Cases
Large Retail Stores
The 360-degree panoramic sensors cover entire sales floors from a single ceiling mount, removing the need for camera clusters at each aisle end. When Object Analytics detects an event near a checkout or exit, the 10x optical zoom PTZ can be directed to that precise location without suspending the ongoing full-floor panoramic recording.
Airport and Transit Terminals
Departure lounges, ticketing halls, and concourse areas demand constant wide-area crowd awareness alongside the ability to direct zoom to individual incidents. The M5000-G delivers both functions simultaneously from one ceiling unit, reducing the camera count and infrastructure complexity required across high-profile public spaces.
Corporate Office Lobbies
The compact dome profile fits discreetly into reception and foyer ceilings without visual disruption. PoE+ deployment suits the structured cabling infrastructure already in place in commercial office buildings, and the hardware-level cybersecurity features satisfy the network compliance requirements of enterprise IT policies.
Educational Facilities
Libraries, auditoriums, and common areas gain complete room coverage from a single overhead mounting point. WDR handles the mixed natural and artificial lighting found in educational buildings, and configurable Object Analytics alert rules allow automated after-hours event detection without requiring continuous manual monitoring of each camera.
Shopping Centres and Public Atria
Food courts, entrance halls, and atrium spaces with significant daily foot traffic benefit from the panoramic overview and simultaneously available directed PTZ zoom. Consolidating coverage into fewer ceiling units also reduces the visual density of camera infrastructure in architecturally considered public-facing commercial environments.
Choosing the Right Model
- Choose this model if: Your project requires simultaneous 360-degree situational awareness and 10x optical zoom PTZ detail across a large indoor space from a single ceiling mounting point, and reducing camera count, cabling runs, and installation complexity is a deliberate design objective.
- Choose a different model if: The installation is outdoors, the monitored area goes fully dark and IR night vision is required, or the available switch infrastructure does not include IEEE 802.3at PoE+ ports. In those cases, a fixed outdoor camera with built-in IR illumination, a confirmed weatherproof IP rating, and standard PoE compatibility would be a more suitable fit.
- Choose a different model if: The coverage requirement is a single defined zone rather than a wide-area overview. A high-resolution fixed dome or turret camera aimed at the relevant angle would provide more cost-effective single-zone coverage without the added hardware complexity of a multi-sensor PTZ unit.
FAQs
- Does the Axis M5000-G record the panoramic view and the PTZ view at the same time?
Yes. The 3 x 5MP panoramic sensors and the integrated PTZ channel capture footage simultaneously and independently. The continuous 360-degree overhead stream is recorded without interruption while the PTZ is directed to any point in the scene, whether by an operator manually or by an automated Object Analytics alert rule.
- Can the M5000-G be used outdoors?
No. The M5000-G is designed and rated for indoor ceiling installation only. It does not carry an outdoor-rated IP weatherproof classification. It must not be installed in any location exposed to rain, direct sunlight, humidity, or temperature extremes outside the indoor operating range. For outdoor coverage, a camera with a confirmed outdoor IP housing rating is required.
- Why does the M5000-G need PoE+ rather than standard PoE?
Standard PoE (IEEE 802.3af) delivers a maximum of 15.4W per port. The M5000-G requires PoE+ (IEEE 802.3at), which provides up to 30W per port. The camera draws more power than a standard PoE port can supply due to the combination of multiple sensors, the PTZ motor, and on-device analytics processing. Plugging it into a standard PoE port will not power the unit correctly. Every port assigned to an M5000-G must be confirmed as IEEE 802.3at before installation.
- Does the M5000-G have IR night vision?
No. The M5000-G has no built-in IR illuminators. It depends on ambient artificial lighting in the monitored environment to produce usable footage. In spaces that remain well-lit throughout the monitored period this is not a limitation. In areas that go completely dark, an external light source must be active during those periods for the camera to capture usable footage.
- How does Axis Object Analytics function on this camera?
Axis Object Analytics runs directly on the M5000-G hardware without requiring a separate server or cloud processing component. It detects and classifies objects including people and vehicles across the panoramic field of view, and supports configurable rule-based alert triggers. Processing on-device reduces the computational load on the VMS, which is a meaningful consideration in large multi-camera deployments where server resources are planned carefully.
- Is the M5000-G compatible with third-party video management software?
Yes. The M5000-G supports Axis Camera Station and third-party VMS platforms using standard network protocols. The level of feature integration available, particularly for Object Analytics events and PTZ control, varies between VMS platforms. Compatibility with a specific VMS should be confirmed directly with the VMS vendor prior to deployment. The Axis M5000-G is part of the Security Wholesalers range, available to Australian integrators and end users.
- What do signed firmware and secure boot mean in practice for the M5000-G?
Signed firmware means that each firmware package is cryptographically verified before it is allowed to execute on the device. If the firmware has been altered or tampered with, the camera will reject it. Secure boot ensures that only verified, authorised software is loaded when the camera starts. Together with end-to-end encryption protecting video data in transit, these features address device-level network security requirements that are standard in enterprise, government, and education deployment environments.
