Product SKU: M4327-P
Product Overview

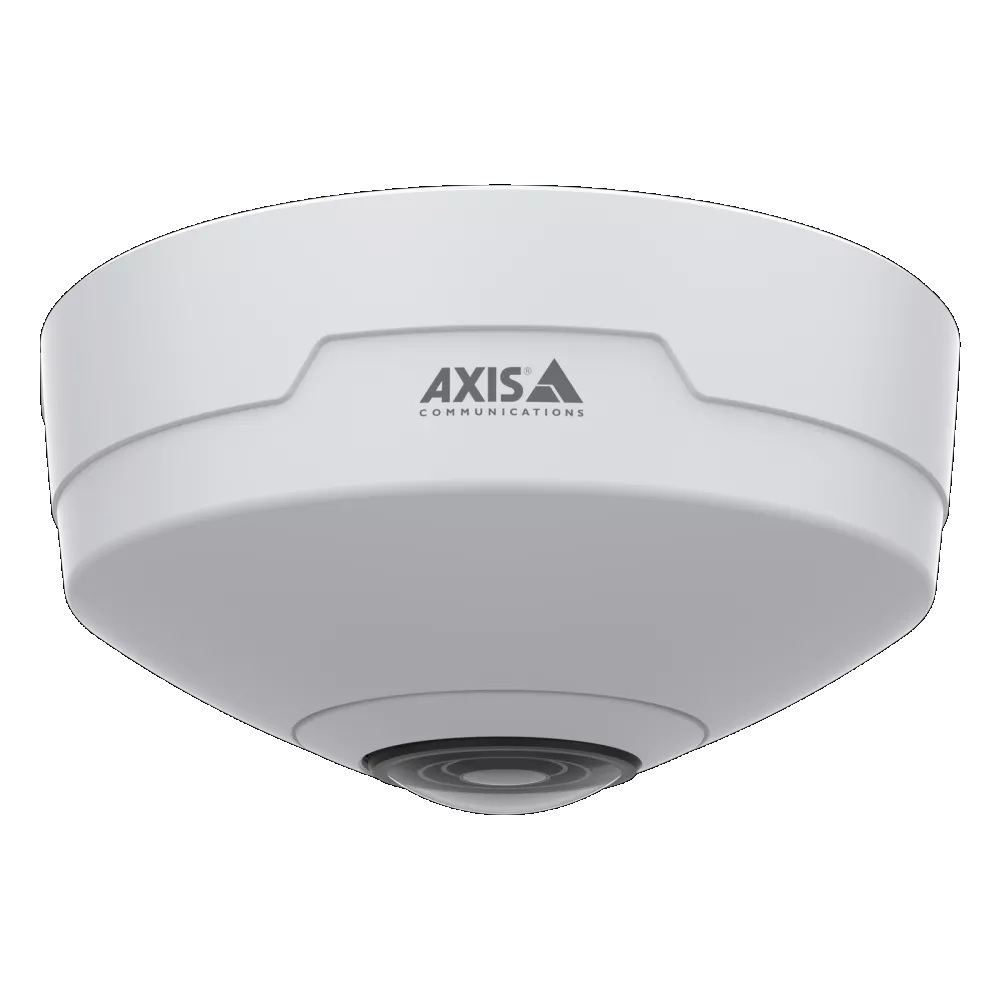

Covering an entire retail floor, school common area, or corporate lobby from a single ceiling point is the core purpose of the AXIS M4327-P, a compact 6MP indoor fisheye camera with a 1.1mm stereographic lens delivering 180° or 360° panoramic coverage at up to 30 fps. Built on the ARTPEC-8 system-on-chip, it runs AXIS Object Analytics directly on-camera, classifying people and vehicles through a deep learning processing unit without requiring external server resources. Equipped with Axis Lightfinder and Forensic WDR, it retains colour accuracy at illumination levels down to approximately 0.16 lux and manages high-contrast scenes with bright windows alongside dimmer interior zones. This model also supports customisable dewarped viewing modes including panorama, quad, and corridor layouts, digital PTZ for post-installation view adjustments, digital roll for simplified ceiling alignment, and H.264/H.265 with Zipstream compression for reduced bandwidth and storage across a continuous wide-area stream.
Key Capabilities
6MP Stereographic Fisheye Lens

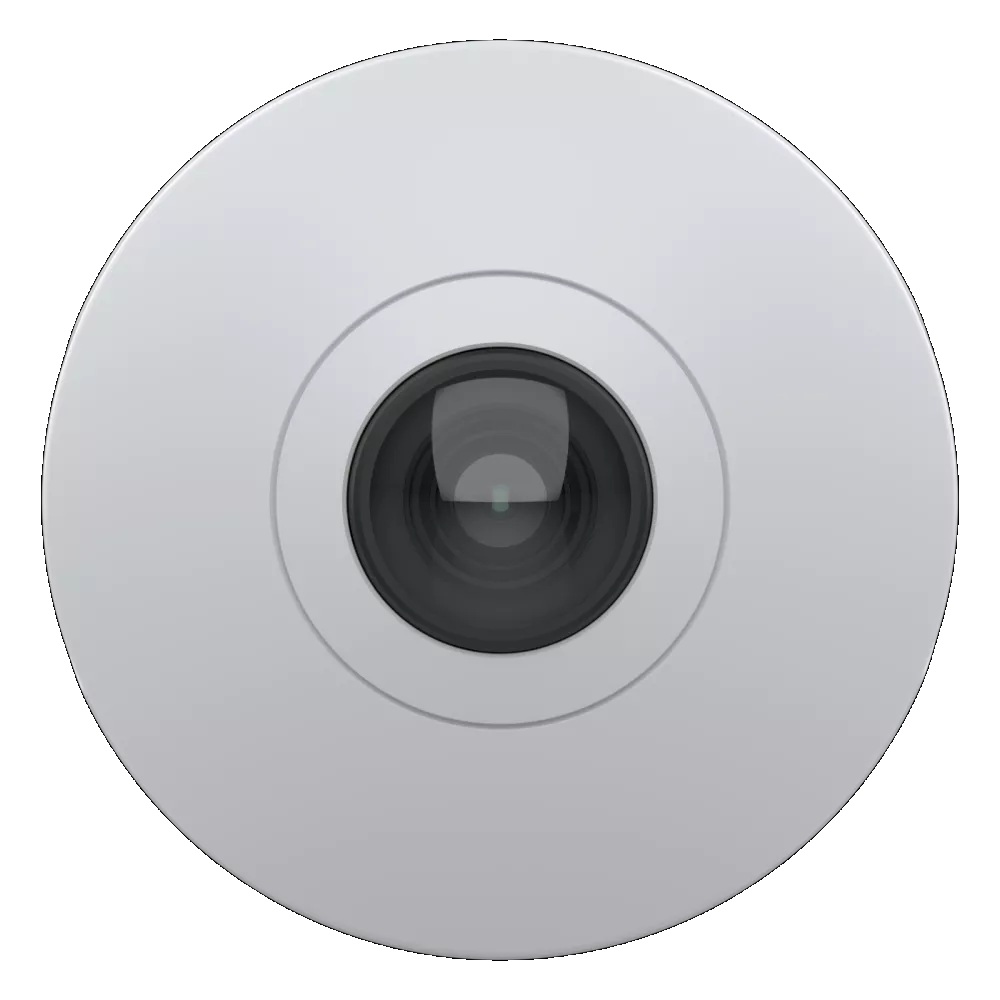

The 1.1mm fisheye lens captures a full hemisphere at up to 2160 x 2160 pixel resolution across 360° from a ceiling position, or 180° when wall-mounted. A single M4327-P replaces multiple fixed cameras in open indoor environments, eliminating coverage gaps and reducing ceiling clutter.
On-Camera Deep Learning via ARTPEC-8
The ARTPEC-8 processor runs AXIS Object Analytics locally, classifying detected objects as people or vehicles without server-side processing. Scene metadata enables event-based forensic searches through recorded footage, allowing operators to locate relevant clips by object type rather than scrubbing through hours of continuous video.
Lightfinder and Forensic WDR
Axis Lightfinder maintains colour detail at approximately 0.16 lux, with black and white sensitivity extending to around 0.03 lux. Forensic WDR handles scenes where bright natural light enters through windows alongside shaded interior areas, preserving readable detail across both extremes in the same frame.
Dewarped Viewing Modes and Digital PTZ
Software dewarping corrects fisheye barrel distortion and outputs multiple simultaneous views including panorama, quad-split, and corridor formats. Digital PTZ lets operators navigate and zoom within any dewarped view area after installation, providing monitoring flexibility without physical camera adjustment or additional hardware.
Digital Roll for Installation Alignment
Digital roll rotates the camera image in software, removing the need for precise physical repositioning on the ceiling after mounting. This is particularly useful in recessed or surface-mount configurations where access is limited during commissioning, reducing installation time without any loss of configured view areas.
Zipstream with H.264/H.265 Encoding
Axis Zipstream reduces the bitrate in static scene areas dynamically while preserving full quality around detected motion and classified objects. Combined with H.265 encoding, this significantly cuts the storage and bandwidth load of streaming a continuous 6MP panoramic view, making network and recorder sizing more practical.
Best For
- Open Indoor Areas Requiring Wide Coverage from One Point: The 360° fisheye view suits retail floors, atriums, canteens, and open-plan offices where eliminating blind spots from a single ceiling position is a priority over point-specific detail.
- Sites Needing On-Camera People and Vehicle Analytics: Environments requiring occupancy monitoring, people counting, or forensic search by object type benefit from AXIS Object Analytics running on the ARTPEC-8 without any additional server infrastructure or licencing.
- Lobbies and Entrances with Mixed Lighting Conditions: Reception areas and building entrances where bright daylight enters through glazing alongside shaded interiors are well matched to the Forensic WDR and Lightfinder combination, which maintains colour accuracy across the full frame.
- Commercial Spaces Where Camera Visibility Must Be Minimised: The compact ceiling-mount profile suits hospitality venues, healthcare waiting rooms, and professional office environments where exposed camera hardware would be visually disruptive or inappropriate.
Why Choose the AXIS M4327-P
The AXIS M4327-P separates itself from basic indoor fisheye cameras through three compounding advantages: a high-resolution 6MP stereographic lens, on-camera deep learning via the ARTPEC-8 SoC, and a Lightfinder and Forensic WDR pairing that addresses the specific lighting challenges of commercial indoor environments. A standard wide-angle camera captures a broad scene but cannot classify what it contains. The M4327-P runs AXIS Object Analytics locally, enabling people and vehicle detection without any server dependency, which reduces project cost and system complexity. The ability to output up to 4 simultaneous dewarped views, including corridor and quad formats, means a single camera serves multiple monitoring workflows at once. Digital roll simplifies ceiling commissioning in spaces where physical adjustments after mounting are impractical. Available at Security Wholesalers, the M4327-P suits projects where a single camera position must deliver broad coverage, analytical capability, and a discreet indoor profile together.
Buyer Decision Tips
Resolution is Shared Across the Full Panoramic Field: The M4327-P distributes its 6MP sensor across the entire hemisphere. In a 360° view covering a large room, pixel density at any individual point in the scene will be lower than what a dedicated fixed camera aimed at that same area would deliver. For installations where a specific zone such as a cash register, doorway, or reception desk also requires fine detail for identification purposes, consider pairing this camera with a fixed camera covering that critical area rather than relying on digital zoom within the fisheye view.
Confirm Indoor-Only Placement Before Ordering: The AXIS M4327-P carries no IP weather ingress rating and no IK vandal resistance rating. It is designed exclusively for controlled indoor environments operating between 0 and 40 degrees Celsius. Covered outdoor areas including undercover car parks, building entry canopies, and loading dock overhangs can expose the camera to humidity, condensation, and temperature fluctuations beyond its rated range. If the planned ceiling position is near a building entry or open-air transition zone, an outdoor-rated panoramic or fisheye model should be evaluated instead.
Key Features & Technical Specifications
| Model |
AXIS M4327-P |
| Series |
AXIS M43 Series |
| Resolution |
6MP, up to 2160 x 2160 pixels |
| Lens Type |
Stereographic fisheye, 1.1mm focal length |
| Field of View |
Approximately 182° horizontal and vertical, selectable 180° or 360° panoramic coverage |
| Frame Rate |
Up to 30 fps at full panoramic resolution |
| Minimum Illumination (Colour) |
Approximately 0.16 lux |
| Minimum Illumination (B/W) |
Approximately 0.03 lux |
| Low Light Technology |
Axis Lightfinder |
| Wide Dynamic Range |
Axis Forensic WDR |
| Video Compression |
H.264, H.265, Axis Zipstream |
| Processor (SoC) |
ARTPEC-8 |
| Analytics |
Deep learning processing unit, AXIS Object Analytics (people and vehicle classification), scene metadata, motion detection, support for custom ACAP applications |
| Viewing Modes |
Panorama, quad, corridor, customisable dewarped views, digital PTZ, up to 4 simultaneous view areas |
| Digital Roll |
Supported (software-based image rotation for installation alignment) |
| Local Storage |
Supported |
| Security Features |
Signed operating system, secure boot |
| Operating Temperature |
0 to 40 degrees Celsius (indoor use only) |
| Weather and Vandal Rating |
Not rated (indoor use only, no IP or IK rating) |
| Installation Type |
Indoor ceiling mount |
Ideal Use Cases
Retail Shop Floors and Showrooms
A ceiling-mounted M4327-P covers the full retail floor in a single 360° view, supporting loss prevention and customer flow monitoring without multiple cameras creating overhead clutter. AXIS Object Analytics adds people detection capability for operational reporting alongside security use.
Corporate Lobbies and Reception Areas
Forensic WDR manages the demanding contrast between glazed building facades and dimmer interior zones that characterise reception spaces. The compact fisheye form factor maintains a professional ceiling aesthetic while delivering complete 360° coverage of all visitor approach paths from one mounting position.
School Corridors and Canteen Areas
The dewarped corridor viewing mode delivers a straightened horizontal view of long passage areas, reducing the number of cameras required along a corridor run. Canteen and common area coverage benefits from the 360° field that captures movement in all directions from a central ceiling position.
Healthcare Waiting Rooms and Clinical Areas
The M4327-P’s ultra-compact ceiling profile minimises visual intrusion in clinical and patient-facing environments. Full hemisphere coverage reduces camera count in sensitive areas while Lightfinder maintains colour detail under the variable fluorescent and natural lighting conditions typical in healthcare settings.
Open-Plan Offices and Collaboration Spaces
Simultaneous quad and panorama output modes allow security teams to monitor all zones of an open workspace across multiple display windows at once. Scene metadata from AXIS Object Analytics enables rapid post-event searches, which is practical in high-access environments where isolating a specific incident quickly matters.
Choosing the Right Model
- Choose this model if: You need a single indoor ceiling-mount camera to eliminate blind spots across a wide open area, want on-camera people and vehicle analytics without server-side processing, and require a compact, discreet housing suited to commercial or professional interior environments. The M4327-P is the right fit when minimising camera count, leveraging deep learning analytics, and maintaining a clean ceiling installation are all project priorities.
- Choose a different model if: The installation location is outdoors or exposed to humidity, condensation, or temperatures outside the 0 to 40 degree Celsius operating range, as this camera has no IP or IK rating. If the monitoring task requires fine identification detail at a specific fixed point across a large area, a dedicated fixed-lens camera covering that zone will deliver higher pixel density at that location than the fisheye can provide through digital zoom. If true optical zoom with active operator PTZ control is required, a motorised PTZ camera is the appropriate choice, as the M4327-P provides digital zoom only.
FAQs
- Does mounting position affect whether the M4327-P delivers 180° or 360° coverage?
Yes. When ceiling-mounted, the 1.1mm fisheye lens captures a full 360° hemispherical view of the area below the camera. When wall-mounted, the camera delivers a 180° panoramic view covering the space in front of the mounting surface. Both configurations are selectable through the camera’s software interface and each produces a usable dewarped output appropriate to the mounting position.
- How does the camera correct the barrel distortion produced by the fisheye lens?
The M4327-P applies software-based dewarping to mathematically correct the curvature introduced by the 1.1mm stereographic lens. This produces straightened output views in panorama, quad-split, and corridor formats that present a usable perspective for operators and recording systems. Digital PTZ allows further navigation within any dewarped view area without physical camera adjustment or additional processing hardware.
- What object types can AXIS Object Analytics detect on this camera?
Running on the built-in deep learning processing unit within the ARTPEC-8 SoC, AXIS Object Analytics classifies detected objects as people or vehicles. It can trigger rule-based actions from these classifications and produces scene metadata that allows forensic searches within recorded footage to be filtered by object type, reducing review time after an event significantly compared to scanning unfiltered continuous video.
- Does the M4327-P have any built-in IR illumination for low-light operation?
No. The M4327-P has no built-in IR illumination. Low-light performance depends entirely on available ambient lighting in the scene. Axis Lightfinder retains colour accuracy at approximately 0.16 lux and the camera transitions to black and white at approximately 0.03 lux. For indoor environments where ambient lighting is maintained at normal commercial levels, this is typically sufficient. Spaces that are fully unlit after hours are not suited to this camera without supplemental lighting.
- Can the M4327-P be installed in a covered outdoor area such as a building entry canopy?
No. The AXIS M4327-P has no IP weather ingress rating and is rated for indoor use only within a temperature range of 0 to 40 degrees Celsius. Covered outdoor areas including entry canopies, undercover car parks, and loading dock overhangs expose cameras to humidity levels, condensation, and temperature variation that fall outside the M4327-P’s operating parameters. An outdoor-rated panoramic or fisheye camera should be selected for those environments. Security Wholesalers carries outdoor-rated wide-area cameras suited to those applications.
- What does digital roll do and when is it useful during installation?
Digital roll performs a software-based rotation of the captured image, allowing the installer to correct slight angular misalignment after the camera has been physically fixed to the ceiling. This is particularly useful in recessed ceiling tile configurations or on angled surfaces where repositioning the physical mount after cabling is difficult. The rotation is applied in software and does not involve any optical mechanism, keeping the process straightforward during commissioning.
- How does Zipstream reduce storage requirements for a continuous 6MP panoramic stream?
Axis Zipstream analyses each frame dynamically and reduces the encoding bitrate in regions of the scene where there is no motion or objects of interest, while maintaining full bitrate quality around detected activity and classified objects. Combined with H.265 compression, this can substantially reduce the total storage footprint compared to a constant bitrate 6MP recording. Setting an appropriate target bitrate and frame rate for the specific scene is recommended during configuration to optimise storage efficiency without compromising detail during events.
