Product SKU: AXIS M4225-LVE
Product Overview
Ceiling-mounted in a retail entrance, school corridor, or commercial lobby, the AXIS M4225-LVE is a compact 2MP AI-powered dome camera that brings together varifocal flexibility, strong low-light imaging, and on-device analytics in a single vandal-resistant housing. The 3.2-7.2mm varifocal lens covers a 100 to 38 degree horizontal field of view, and remote zoom and focus allow final scene framing to be dialled in after the camera is mounted without any hands-on lens adjustment. Featuring Lightfinder 2.0 and Forensic WDR, it handles the contrast challenges common around glazed entrances, shopfronts, and daylit corridors. Built-in OptimizedIR provides usable footage in total darkness. A built-in deep learning processing unit runs AXIS Object Analytics on the edge, detecting and classifying humans and vehicles without relying on the recorder. With IP66 weather protection, IK10 vandal resistance, a repaintable housing, and an operating range from -30 degrees C to 50 degrees C, it suits exposed indoor and outdoor commercial installations where appearance and durability both matter.
Key Capabilities
Varifocal Lens with Remote Zoom and Focus
The 3.2-7.2mm varifocal lens lets installers choose between a broad 100 degree overview and a tighter 38 degree view during commissioning. Remote zoom and focus eliminate the need to manually re-access the lens after mounting, which is especially useful in ceiling or elevated positions.
Edge AI with AXIS Object Analytics
A built-in deep learning processing unit runs AXIS Object Analytics directly on the camera, detecting, classifying, tracking, and counting humans and vehicles without depending on the recorder to process events. This makes detections more specific and helps separate meaningful activity from background movement.
Lightfinder 2.0 and Forensic WDR
Lightfinder 2.0 maintains colour detail at low illumination levels, while Forensic WDR reduces washout and silhouetting in high-contrast scenes. Together they improve image usability near windows, glass doors, and covered outdoor transitions where light levels change quickly.
OptimizedIR for Total Darkness
Built-in OptimizedIR provides black-and-white surveillance footage when ambient light reaches zero, removing the need for supplementary lighting in corridors, storerooms, loading areas, and overnight commercial sites where continuous coverage is required.
IK10 Vandal Resistance and Repaintable Housing
IK10-rated construction protects the dome against deliberate impact in public-facing and high-traffic spaces. The repaintable housing allows the camera to be colour-matched to ceiling finishes, which is useful in retail, hospitality, and education environments where appearance is a consideration.
Best For
- Retail Entrances and Shop Interiors: The varifocal lens lets the camera be framed to cover either a broad entry zone or a focused checkout or counter area, while AXIS Object Analytics tracks and counts people moving through the space.
- Corridors, Lobbies, and Access Points: The compact dome profile and repaintable housing fit neatly into ceiling-mounted positions in offices, schools, and commercial buildings where a discreet appearance is preferred.
- Outdoor Covered and Semi-Exposed Areas: IP66 weather protection, IK10 resistance, and the included weathershield make this camera suitable for covered building entrances, external walkways, and outdoor commercial areas in most Australian climate conditions.
- Sites Requiring Cybersecurity Compliance: Axis Edge Vault, IEEE 802.1X, HTTPS, secure boot, signed OS, and FIPS 140-3 Level 3 certified cryptographic storage address cybersecurity requirements in commercial, government, and education installations.
Why Choose the AXIS M4225-LVE
The AXIS M4225-LVE stands apart from entry-level dome cameras through its combination of on-device intelligence, varifocal flexibility, and enterprise-grade cybersecurity in a compact IK10-rated housing. Where a fixed-lens camera locks the installer into one field of view, the 3.2-7.2mm varifocal lens with remote zoom and focus gives the flexibility to tailor the scene during or after installation without manually handling the optics. The built-in deep learning processing unit means AXIS Object Analytics runs at the edge rather than placing that workload on the recorder, which is a genuine operational advantage in multi-camera deployments. Lightfinder 2.0, Forensic WDR, and OptimizedIR cover the full range of lighting challenges common in commercial buildings, while Axis Edge Vault provides a level of cybersecurity protection not found in most comparable dome cameras. The 5-year warranty and repaintable housing add long-term value for commercial installations. Available through Security Wholesalers, this model is well suited to installers and end users who need a capable, versatile dome camera that performs consistently across varied environments.
Buyer Decision Tips
Varifocal Lens Position: At the 3.2mm wide end, the AXIS M4225-LVE covers approximately 100 degrees horizontally, making it suitable for open retail floors, reception areas, and wider corridor intersections. At the 7.2mm telephoto end, the view narrows to approximately 38 degrees, which is better suited to a doorway, service counter, or gate. Decide the approximate required field of view for each camera position before installation so that remote zoom and focus adjustments are efficient on the day.
Acoustic Sensor vs. Microphone: The AXIS M4225-LVE includes an acoustic sensor for AXIS Audio Analytics, which detects and classifies sounds and sudden volume changes. It does not include a built-in microphone for recording ambient audio or for voice communication. If recorded audio or two-way voice capability is a project requirement, confirm that a compatible audio accessory or separate solution is included in the design before specifying this camera.
Key Features & Technical Specifications
| Model |
AXIS M4225-LVE |
| Part Number |
02814-001 |
| Resolution |
2MP / 1920 x 1080 (HDTV 1080p) |
| Image Sensor |
1/2.8″ CMOS |
| Lens |
3.2-7.2mm varifocal, F1.6-2.7 |
| Horizontal Field of View |
100 degrees (3.2mm) to 38 degrees (7.2mm) |
| Vertical Field of View |
52 degrees (3.2mm) to 20 degrees (7.2mm) |
| Remote Zoom and Focus |
Yes |
| Maximum Frame Rate |
25/30 fps |
| Minimum Illumination |
0.12 lux (colour) / 0.03 lux (black and white) |
| Low-Light Technology |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| Built-In IR |
Yes, OptimizedIR |
| Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
AXIS Object Analytics, AXIS Audio Analytics, AXIS Video Motion Detection, AXIS Speed Monitor, AXIS Live Privacy Shield, AXIS Image Health Analytics, AXIS Scene Metadata |
| Deep Learning |
Built-in deep learning processing unit |
| Acoustic Sensor |
Yes (for AXIS Audio Analytics; no built-in microphone) |
| Local Storage |
Memory card slot supported |
| Power |
PoE Class 3 |
| IP Rating |
IP66 |
| Vandal Resistance |
IK10 |
| Operating Temperature |
-30 degrees C to 50 degrees C |
| Repaintable Housing |
Yes |
| Included Accessory |

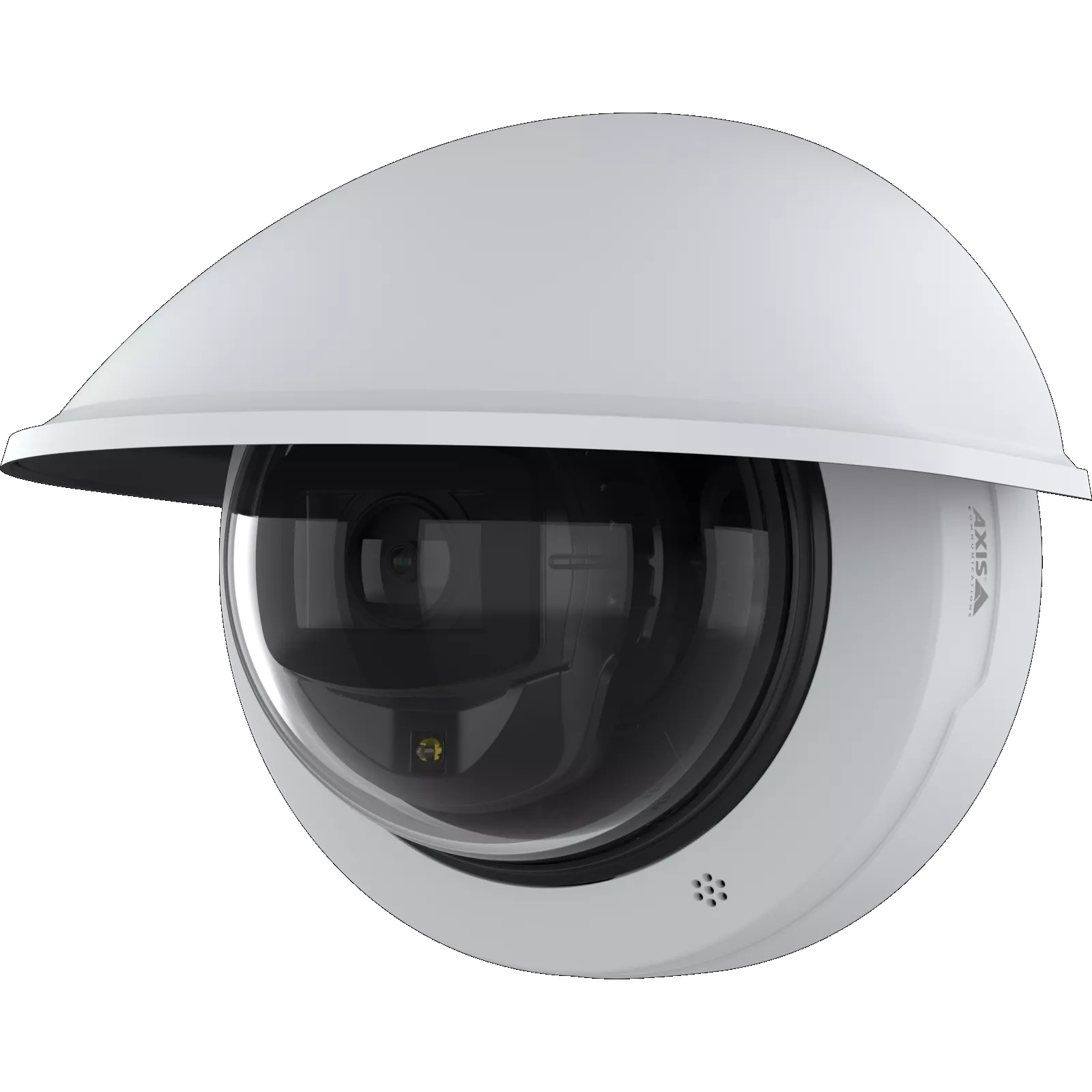

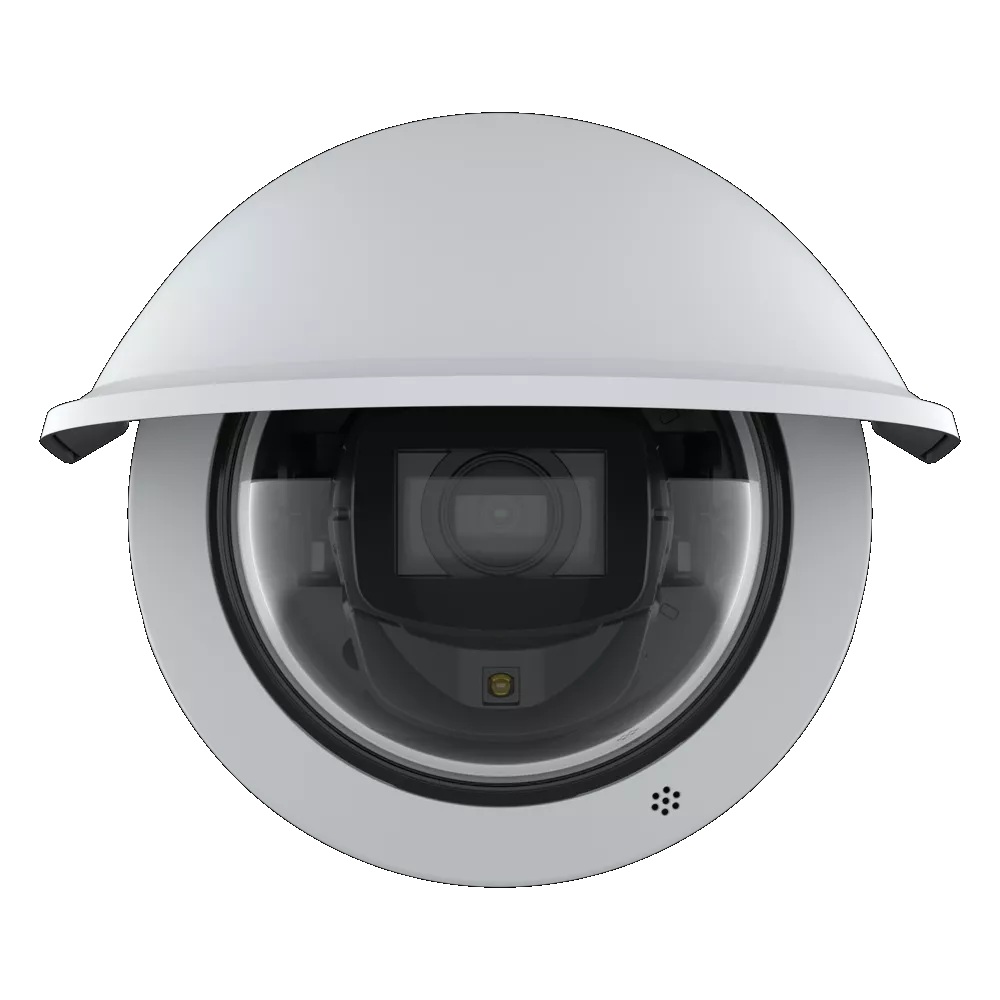

Weathershield included |
| Cybersecurity |
Axis Edge Vault, HTTPS, IEEE 802.1X, secure boot, signed OS, FIPS 140-3 Level 3 certified secure cryptographic key storage |
| Warranty |
5 years |
Ideal Use Cases
Retail Stores and Shopping Centres
AXIS Object Analytics tracks and counts people in aisles, at checkouts, and near entrances, while the varifocal lens allows each camera to be framed precisely to the zone being monitored. The IK10 dome housing suits customer-facing areas where cameras may be within reach.
Schools and Education Campuses
The repaintable housing and discreet dome profile integrate into corridors, administration areas, and covered outdoor spaces without standing out. IP66 and IK10 ratings handle exposure in semi-outdoor areas such as covered walkways and canteen overhangs.
Office Buildings and Corporate Lobbies
Forensic WDR manages the contrast between bright exterior glass and shaded interior lobby spaces, while AXIS Live Privacy Shield and AXIS Scene Metadata support compliance and integration with video management platforms used in corporate security deployments.
Restaurants and Hospitality Venues
The compact dome form factor and repaintable housing allow the camera to blend into dining areas, service counters, and reception spaces. Lightfinder 2.0 maintains useful colour footage in the low ambient light conditions typical of restaurant and bar environments.
Commercial Building Entrances and External Areas
With IP66 weather protection, a weathershield included in the box, and an operating range down to -30 degrees C, the camera handles exposed building entrance positions. OptimizedIR delivers usable overnight footage at access points where lighting is absent or minimal.
Choosing the Right Model
- Choose this model if: Your installation requires a compact IK10 vandal-resistant dome with a varifocal lens, remote zoom and focus for efficient commissioning, on-device AI object detection, and enterprise cybersecurity features including Axis Edge Vault and FIPS 140-3 Level 3 certified key storage.
- Choose a different model if: Your project requires 4MP or higher resolution for identifying finer detail at distance. A higher-resolution dome in the same family would deliver more image data per scene for applications such as monitoring wide floor areas or capturing partial identification detail at longer ranges.
- Choose a different model if: The site needs a bullet-style camera for directional outdoor mounting on a wall bracket, where a dome housing is not the preferred form factor for the installation position.
- Choose a different model if: The application requires a built-in microphone for recorded ambient audio. The AXIS M4225-LVE includes an acoustic sensor for audio analytics classification only and does not have a built-in microphone for audio capture.
FAQs
- What is the field of view range on the AXIS M4225-LVE?
The 3.2-7.2mm varifocal lens provides a horizontal field of view from 100 degrees at the wide end down to 38 degrees at the telephoto end. The vertical field of view ranges from 52 degrees to 20 degrees across the same range. Remote zoom and focus allow these adjustments to be made electronically after the camera is physically mounted.
- Does the AXIS M4225-LVE run analytics on the camera itself or on the recorder?
Analytics run directly on the camera. The built-in deep learning processing unit executes AXIS Object Analytics at the edge, so detection and classification of humans and vehicles does not depend on the recorder’s processing capacity. This is particularly useful in larger systems where offloading analytics to the recorder may affect performance.
- Is the AXIS M4225-LVE suitable for ceiling mounting in public-facing indoor spaces?
Yes. The compact dome housing, IK10 vandal resistance, and repaintable finish make this camera well suited to ceiling-mounted positions in retail stores, school corridors, office lobbies, restaurant dining areas, and similar public-facing environments where both durability and appearance are considerations.
- Does the AXIS M4225-LVE have a built-in microphone?
No. The camera includes an acoustic sensor that enables AXIS Audio Analytics to detect and classify sounds and sudden changes in volume. It does not include a built-in microphone for recording ambient audio. If a project requires audio recording or two-way voice communication, a separate compatible audio solution is needed.
- What cybersecurity features does the AXIS M4225-LVE include?
The camera includes Axis Edge Vault with FIPS 140-3 Level 3 certified secure cryptographic key storage, secure boot, a signed operating system, HTTPS encryption, and IEEE 802.1X network access control. These features are relevant for installations in government, education, healthcare, and corporate environments where device and network security standards apply.
- Is the AXIS M4225-LVE suitable for year-round outdoor use in Australian conditions?
Yes. The IP66 rating protects against dust ingress and direct water jets, while the operating temperature range of -30 degrees C to 50 degrees C covers the full range of Australian climates including hot inland regions. The included weathershield provides additional protection for exposed mounting positions.
- What compression formats does the AXIS M4225-LVE support, and how does Zipstream help storage?
The camera supports H.264, H.265, and Axis Zipstream. Zipstream dynamically reduces bitrate in areas of low activity within a scene while retaining full detail in regions with detected motion or objects of interest. This can significantly lower storage requirements and network load without compromising the quality of recorded events. The AXIS M4225-LVE is available through Security Wholesalers for professional installers and integrators.
