Product SKU: AXIS M3085-V
Product Overview

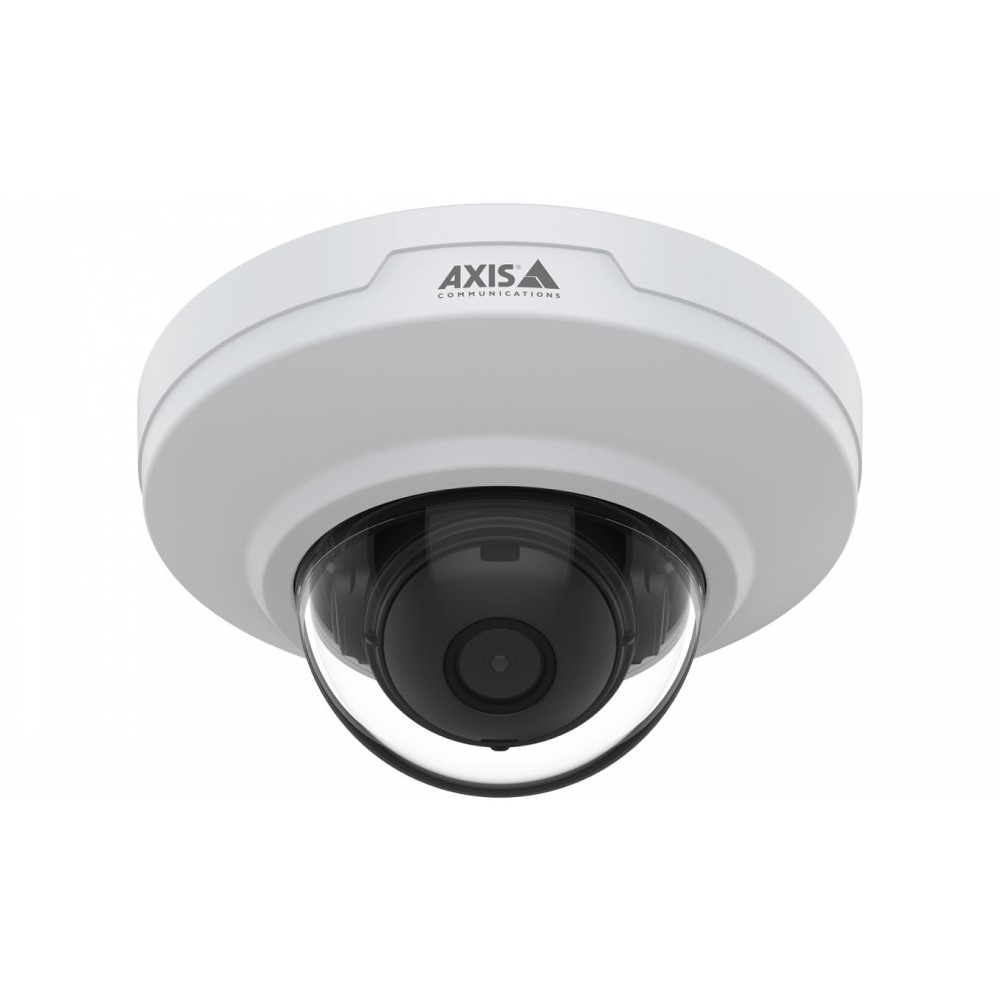

Designed for discreet ceiling installation in retail stores, corporate offices, reception areas and public spaces, the AXIS M3085-V is a compact 2MP indoor mini dome camera that combines practical everyday performance with deep learning analytics support. Featuring a 3.1mm fixed lens with a 102-degree horizontal field of view, it delivers broad coverage across counters, lobbies and open floor areas without requiring lens adjustment on site. Equipped with Wide Dynamic Range and day/night functionality, it maintains usable footage in scenes where lighting varies between windows and interior shadows. H.265 with Zipstream reduces bandwidth and storage load significantly compared to standard H.264 encoding. The HDMI output enables direct connection to a public viewing monitor, making it useful for entrance areas and retail fronts. Edge storage via the onboard memory card slot allows local recording without reliance on a central recorder, supporting cost-effective standalone deployments.
Key Capabilities
Wide Dynamic Range
WDR balances exposure across bright and shadowed zones in the same frame, making it effective for entrances, corridors and retail floors where window light and interior lighting create contrast that standard cameras struggle with.
H.265 with Zipstream
AXIS Zipstream dynamically reduces bitrate in low-activity areas of the frame while preserving detail in motion zones. Combined with H.265 encoding, this lowers storage and bandwidth requirements without manual bitrate management.
Deep Learning Analytics Support
The M3085-V supports AXIS People Counter and other analytics applications built on deep learning. This allows retailers and facility managers to gather occupancy data and gain operational insights from the same camera handling surveillance.
HDMI Output for Public Display
A built-in HDMI port allows live video to be streamed directly to a monitor, supporting public view display applications at checkouts, reception desks or building entrances without the need for a separate decoder or workstation.
Edge Storage via Memory Card Slot
Onboard memory card support lets the camera record locally, reducing dependency on a central NVR in smaller sites. This also provides a backup recording path if network connectivity is interrupted, which is useful in distributed retail or office environments.
Best For
- Retail Stores: The 102-degree horizontal field of view and AXIS People Counter support make it well suited to monitoring customer traffic across aisles and checkouts from a single ceiling-mounted position.
- Corporate Offices and Reception Areas: The discreet mini dome profile and snap-on screwless cover allow tidy integration into finished interior ceilings without drawing attention in client-facing spaces.
- Lobbies and Entrance Zones: WDR handles the contrast between exterior daylight and interior lighting at entry points, while the HDMI output supports a public view monitor at the front desk.
- Standalone Edge Recording Deployments: Sites that cannot accommodate a dedicated NVR benefit from the onboard memory card slot, allowing local recording at each camera independently.
Why Choose the AXIS M3085-V
The AXIS M3085-V separates itself from basic 1080p indoor domes through its combination of deep learning analytics support, HDMI output and Zipstream-enabled H.265 compression. A simpler fixed dome at a lower price point will capture video, but it will not support occupancy analytics like AXIS People Counter, will not connect directly to a public view monitor, and will generate significantly higher storage demands over time without Zipstream’s adaptive bitrate reduction. The screwless snap-on cover and factory-focused 3.1mm lens reduce installation time on multi-camera rollouts across retail branches or office floors. Running at a maximum of 4.2W on standard PoE, it places minimal load on switching infrastructure. Available at Security Wholesalers, the M3085-V is a practical choice for commercial indoor installations where analytics capability and efficient storage management are operational requirements rather than optional extras.
Buyer Decision Tips
Buyer Tip: The M3085-V is rated IP42 and IK08, which means it is suited to stable indoor environments but not to outdoor use or locations exposed to water ingress or heavy physical impact. If your installation is in a semi-outdoor covered area, a loading dock or a space where the dome may be subject to deliberate tampering, consider a camera with a higher IP and IK rating. For purely indoor commercial applications such as offices, retail floors and corridors, IP42 and IK08 are appropriate and the lightweight 4.2W PoE draw simplifies switch planning.
Key Features & Technical Specifications
| Image Sensor |
1/2.9″ progressive scan RGB CMOS |
| Lens |
3.1mm fixed |
| Horizontal Field of View |
102 degrees |
| Vertical Field of View |
55 degrees |
| Maximum Resolution |
1920 x 1080 (HDTV 1080p) |
| Video Compression |
H.265, H.264, Zipstream |
| Wide Dynamic Range |
Yes |
| Day/Night Functionality |
Yes (electronic) |
| HDMI Output |
Yes |
| Edge Storage |
MicroSD/microSDHC/microSDXC card slot |
| Analytics |
Deep learning support, AXIS People Counter compatible |
| IP Rating |
IP42 |
| Impact Rating |
IK08 |
| Memory |
1024MB RAM, 512MB flash |
| Power |
PoE IEEE 802.3af/802.3at, 4.2W maximum |
| Construction |
52% recycled plastics, PVC/BFR/CFR free, screwless snap-on cover |
Ideal Use Cases
Retail Floor Monitoring
The 102-degree horizontal field of view covers wide retail aisles from a single ceiling mount, while AXIS People Counter support allows the same camera to provide customer traffic data for operational decision-making.
Office Reception and Lobby
The discreet mini dome profile integrates cleanly into finished office ceilings. The screwless cover keeps the installation tidy in client-facing areas where visible hardware would be inappropriate.
Public View Display Applications
The HDMI output connects directly to a monitor at a checkout, service counter or building entrance, displaying live video to deter theft and reassure visitors without additional hardware between camera and screen.
Distributed Branch or Franchise Sites
Edge storage via the onboard memory card slot allows each camera to record locally, reducing infrastructure costs at smaller branch locations where a dedicated NVR is not practical or cost-effective.
Bandwidth-Constrained Network Environments
H.265 with Zipstream reduces the bitrate demanded by each camera on the network, making the M3085-V a practical option for sites with limited uplink capacity or high camera counts sharing a single connection.
Choosing the Right Model
- Choose this model if: You need a discreet indoor mini dome with deep learning analytics support, HDMI public view output and efficient H.265 Zipstream compression for retail, office or reception ceiling installations.
- Choose a different model if: Your installation is outdoors or in a semi-exposed area, as the IP42 and IK08 ratings are not suited to moisture, dust or higher physical impact risk. An outdoor-rated dome or bullet camera with a higher IP and IK rating would be more appropriate for those environments.
- Choose a different model if: You require optical zoom, motorised lens adjustment or coverage beyond the fixed 102-degree field of view, as the M3085-V uses a factory-focused 3.1mm fixed lens with no varifocal capability.
FAQs
- What does deep learning analytics support mean for the M3085-V?
The M3085-V is capable of running analytics applications that use deep learning processing, including AXIS People Counter. This allows the camera to analyse people movement patterns and provide occupancy data useful for retail operations, queue management and space utilisation reporting, without requiring a separate analytics server.
- Can the AXIS M3085-V be used outdoors?
No. The M3085-V carries an IP42 rating, which provides protection against solid objects larger than 1mm and dripping water only. It is not suitable for outdoor installation or any environment with direct moisture exposure, dust or temperature extremes. It is designed for stable, controlled indoor environments such as offices, retail floors and lobbies.
- How does Zipstream reduce storage without losing important detail?
AXIS Zipstream analyses each frame and applies higher compression to areas of the image with little activity or detail, while preserving full resolution and bitrate in regions containing motion or objects of interest. The result is a smaller file size overall without degrading the quality of footage in areas that matter for investigation.
- Does the HDMI output replace the need for a network video recorder?
No. The HDMI output is designed for public view display only, sending a live video signal directly to a connected monitor. Recording still requires either a network video recorder connected via the camera’s network interface or local edge storage using the camera’s onboard memory card slot.
- What memory card capacity does the M3085-V support?
The M3085-V includes a microSD/microSDHC/microSDXC card slot. The maximum supported card capacity is specified in the AXIS product datasheet. Larger capacity cards allow longer local recording retention, which is particularly useful in standalone edge deployments where no NVR is present. Security Wholesalers stocks the M3085-V as part of the AXIS indoor camera range.
- How much power does the AXIS M3085-V draw, and does it require a mid-span injector?
The M3085-V draws a maximum of 4.2W and is powered via PoE compliant with IEEE 802.3af and 802.3at. Standard 802.3af PoE switches supply up to 15.4W per port, so the M3085-V is well within the budget of any compliant PoE switch without requiring a mid-span injector or PoE+ infrastructure.
